Description

Endless™ LED Strip Lights are the ultimate choice for seamless accent lighting. With Integrated Chip (IC) technology, you can install continuous runs up to 98 feet (30 meters) without voltage drop, saving time, labor, and materials compared to traditional Constant Voltage strips. Each cut section regulates its own current for uniform brightness from end to end. Available in four color temperatures, these strips offer a tailored solution for any space. Compatible with non-dimmable power supplies and DC decoders/remotes, installation and upgrades are quick and hassle-free.

Key Features

Max Run Length: 98ft
Lower (Labor and Material) Costs
Constant Current
Integrated Chip

Specifications

Part #	AL-SL-EN-CC-IP20-24
Physical
Adhesive Backing	Yes
Beam Angle	120°

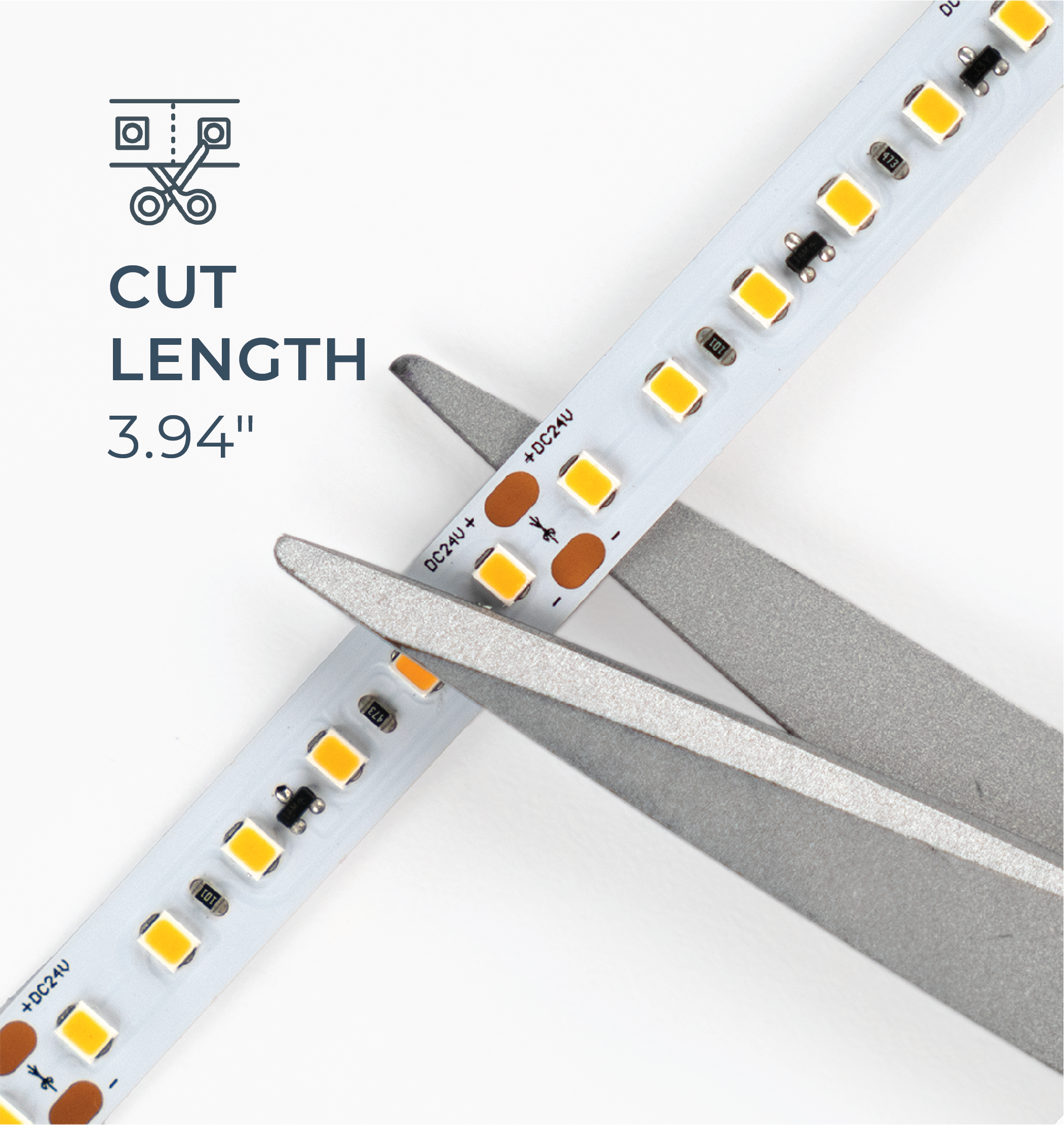

Cut Length	3.94" (100mm)
Dimensions	98.4' (30m) 0.394" (10mm) 0.083" (2.1mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive
Weight	1.4 lbs
Electrical
Efficacy (lumens per watt)	84.62 Lumens/Watt
Input Voltage	24VDC
LED Quantity	18 LEDs/ft (60 LEDs/m)
LED Type	SMD 2835
Max Power Consumption	0.91W/ft (3W/m)
Max Run Length	98.4' (30m)
Photometric
CRI	90
LED Color Options	2700K, 3000K, 4000K, 6000K
Max Lumens	Up to 75 Lumens/ft (255 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Current
Dimmable	Yes, Non-Dimmable Power Supplies ONLY
Compatibility
Compatible Connectors	10mm Single Color Connectors
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 Years

Features

Extended Length: Install one reel of 98ft, or equivalent shorter runs wired in series, up to a total length of 98ft, making it our longest static white strip light yet.
Integrated Chips: Regulate the light output across the entire run of Constant Current strip lights, giving an even level of light output from beginning to end.
Time Saving: Reduce installation time for large scale projects with less soldering and cutting, and in turn, save money.
Reduce Costs: Simplify the design, purchase, and installation process with fewer accessories required for successful and long-lasting installs.

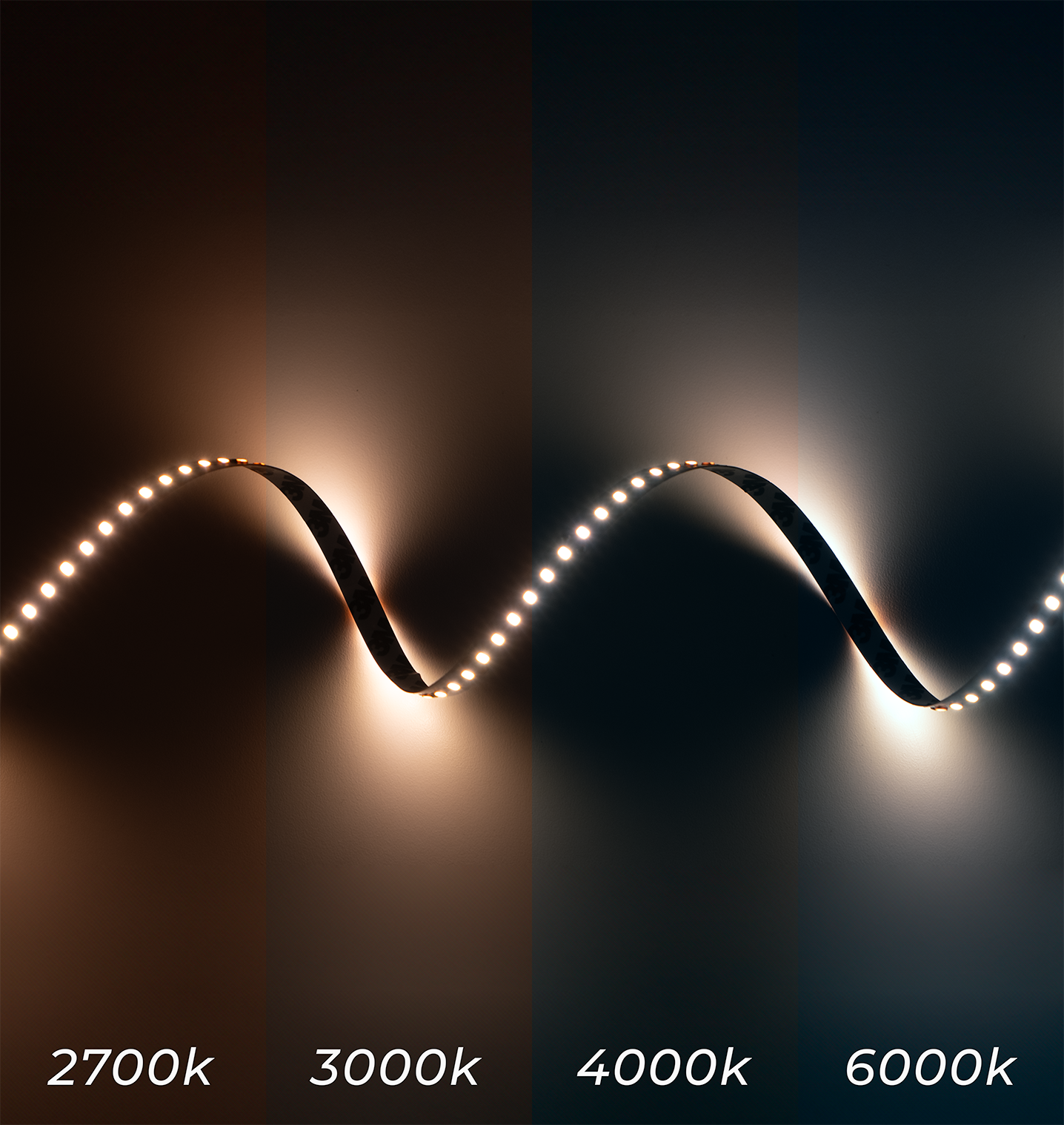

Available in Four Color Temperatures: 2700K, 3000K, 4000K, 6000K, providing a tailor-made solution for any environment.
Compatibility: Works seamlessly with the non-dimmable power supplies and DC decoders/remotes.
Temperature Protection: Integrated temperature sensors reduce current output and protect products from damage in high temperature or variable temperature environments.
Extremely Long Life: Up to 50,000 hours
Maintenance Free
No RF Interference

Applications

Accent lighting
Corridors/hallway lighting
Crown molding lighting
Cove lighting
Safety stair tread and step marking
Toe kick lighting

Technical Documents

Download Cut Sheet

Download Photometric

View Installation Guide

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

Frequently Asked Questions

What power supply should I use with the Endless™ LED Strip Lights?

Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights, this can be done by using a PWM dimmer.

Endless LED Strip Light – Static White

SKU: AL-SL-EN-CC-IP20-24-3K-98

$550.89

In-Stock (33) - Ships Same or Next Business Day

LED Light Color: Warm White (3000K)

This product requires a power supply.
Calculate your power supply
