LED In-Ground Well Light Installation

In-ground high power LEDs can be mounted in-ground or in-wall. aspectLED’s in-ground/in-wall recessed lights are bright, energy efficient, and attractively styled, making them perfect for virtually any application. These are available in Ultra Bright and Standard Bright options. Perfect for patios, garden walls, decks, docks, gazebos, pillar/column lighting, commercial building up lighting, tree lights, stair safety/accent lighting, garden walls, building entrances, pathways, public parks, docks, and marine environments.

These recessed in-ground/in-wall lights are waterproof (with an IP67 rating) and feature a 304 stainless steel trim and aluminum body. These lights come standard with a clear glass trim with stainless steel bezel. If you have any questions during your installation, please feel free to contact our electrician’s helpdesk at 888-503-1317 option 3 or via e-mail at [email protected] .

• Install in accordance with the National Electric Code, and all local regulations.
• This product is intended to be installed and serviced by a qualified licensed electrician.
• Only use with compatible LED fixtures, controls and dimmer switches. Only use copper wiring.
• Proper heat dissipation will prolong the working lifespan of this product. Install in well-ventilated area free from explosive gases and vapors.
• Ensure appropriate type and size wire is installed between driver, fixture, and any controls in between. When choosing wire, factor in voltage drop, amperage rating, and type (in-wall rated, wet location rated, etc). Improper wire type could overheat wires, and cause a fire.
• Do not install if product has any visible damage.
• Do not modify or disassemble this product beyond instructions or the warranty will be void.
• Use only constant voltage fixture LED power supply.

We know how boring it can be to read instructions, so we’ll keep this installation guide as short and sweet as possible. Before you begin with your installation, be sure to fully read the installation instructions. This installation guide is intended to be a helpful supplement, containing useful tips and pointers that will help to ensure a perfect installation, save you time, and ensure your safety. It is important that you install this product (and all other electrical products) in accordance with the National Electric Code (NEC) and all applicable local building and electrical codes for your area. If you are unfamiliar with the NEC, your local building/electrical codes, and/or the proper installation methods for electrical devices, you should hire a qualified and licensed electrician to do the work for you.

Before doing any electrical work, always disconnect power at the fuse or circuit breaker.

Important Considerations

• Keep fixture lens area clear and free from dirt, dust, plants, leaves, and any other kind of obstruction to allow proper operation and optimize light output.

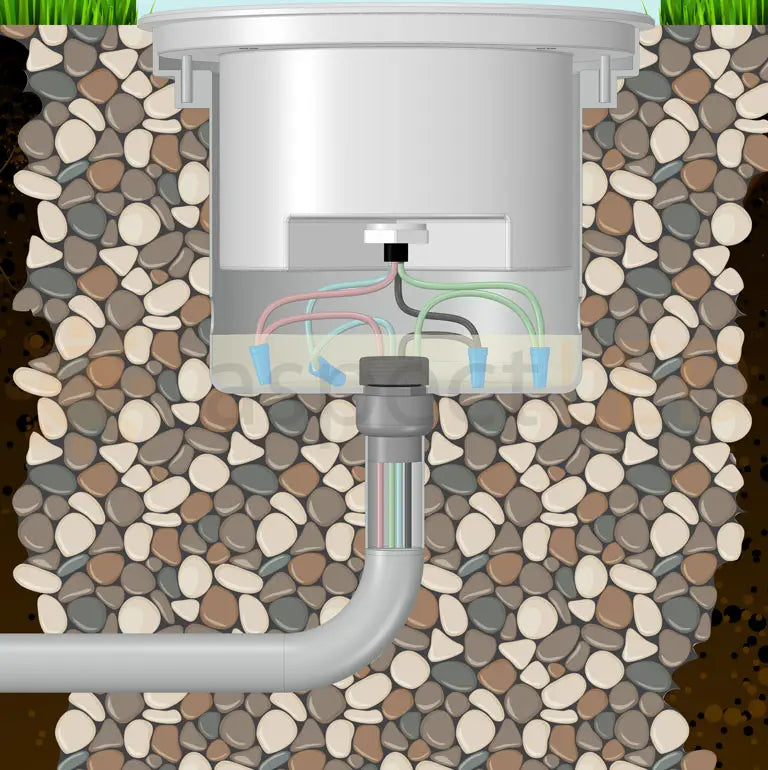

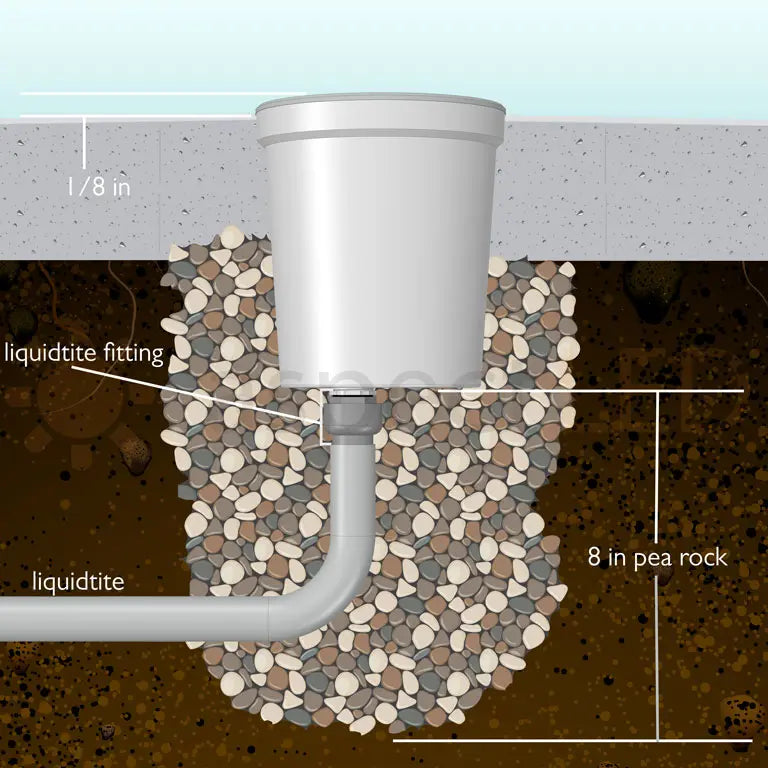

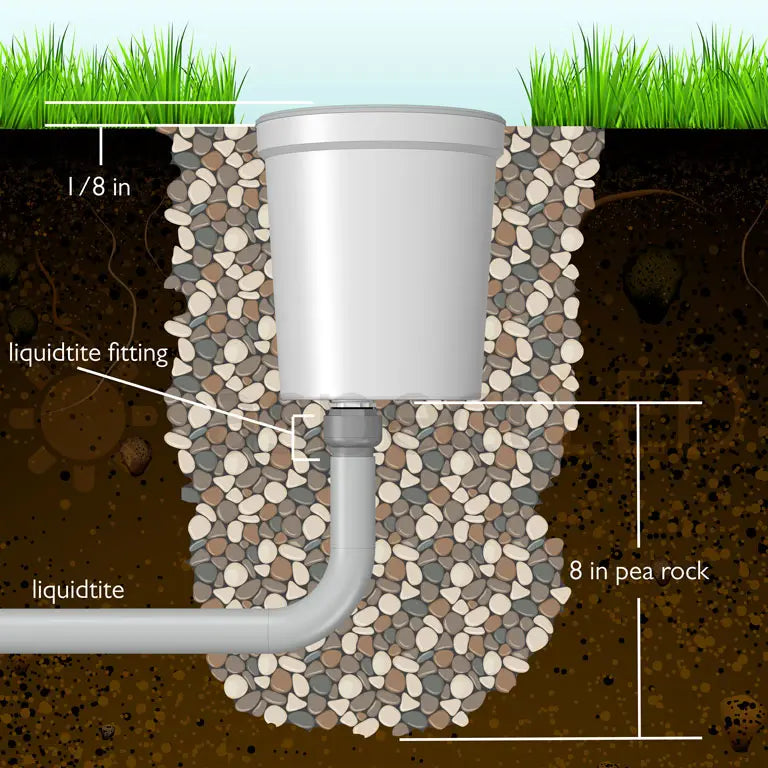

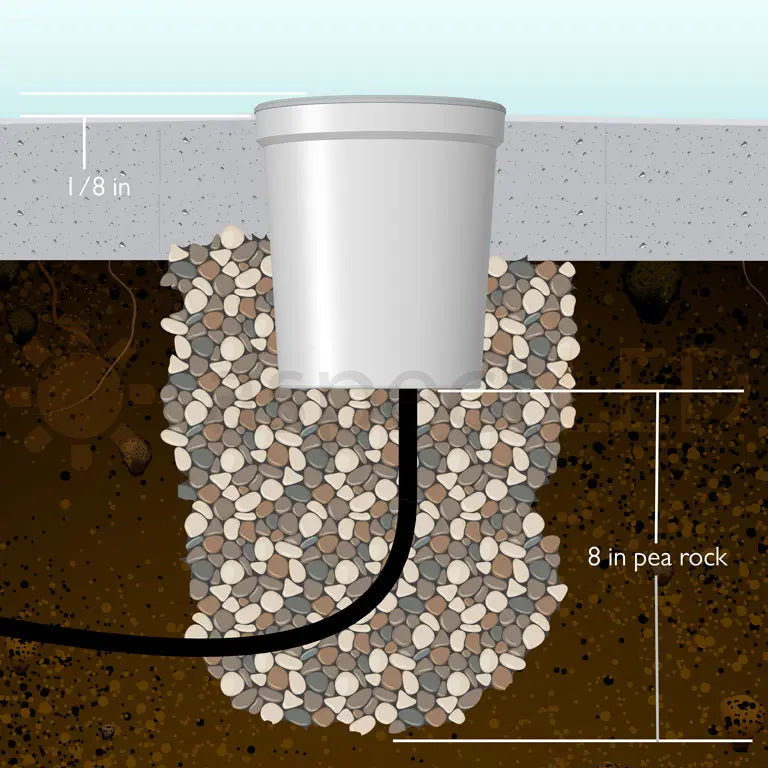

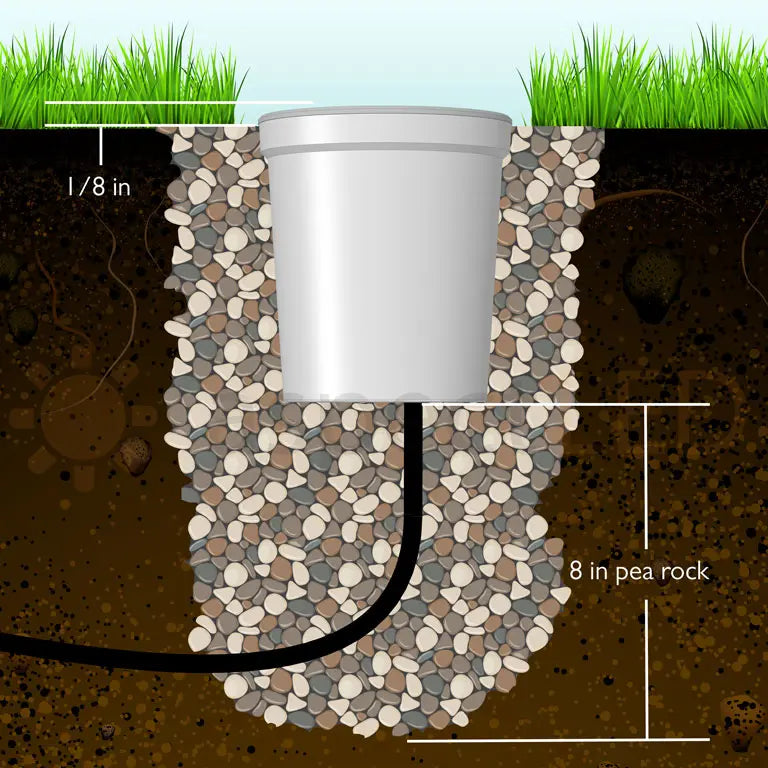

• Make sure trim is flush to 1/8” above finish grade to prevent water from accumulating on lens, appropriate drainage must be provided.
• Use of accessories not recommended by aspectLED may cause an unsafe condition and void warranty.
• Always use UL listed waterproof wire connectors when making electrical connections.
• Make sure to seal all conduit entries by using Teflon tape or silicone on threads.
• In-ground LED lights are rated for use outdoors where it will be exposed to rain, humidity, and moisture. However, fixtures are not to be submerged underwater.
• Always consult a wire gauge chart to determine the correct size wire for your application. Wire gauge is dependent on voltage drop, amperage rating, and environment. Incorrect wire selection could overheat systems and cause a fire.
• Always ground the fixture and conduit system in accordance with local and national electrical codes.
• This fixture is suitable for in-ground, concrete pour, brick, pavers, masonry, and direct in-soil/mulch installations.
• Low voltage options require a remote step down transformer

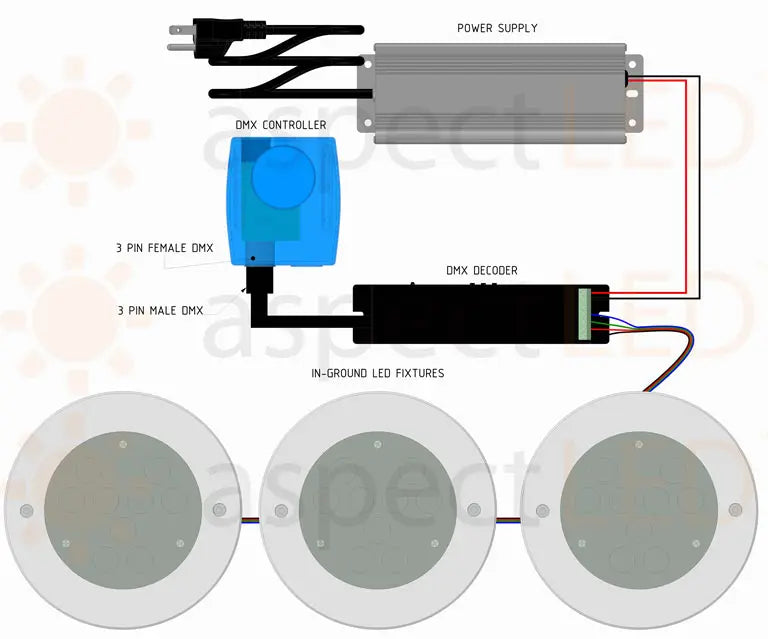

System Diagram: Color Changing - DMX Controlled.

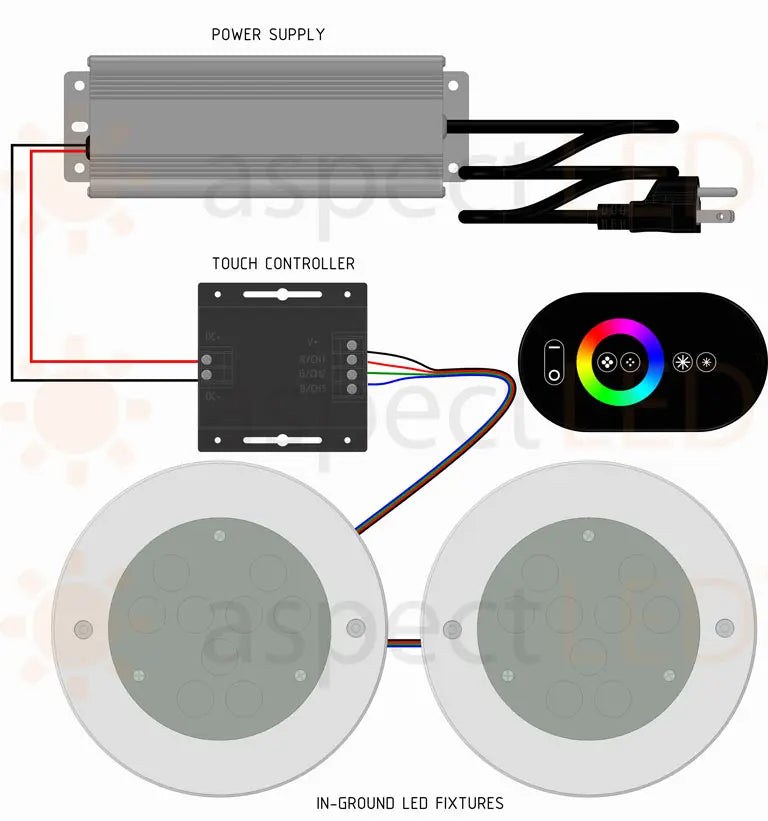

System Diagram: Color Changing - Touch Remote Controlled.

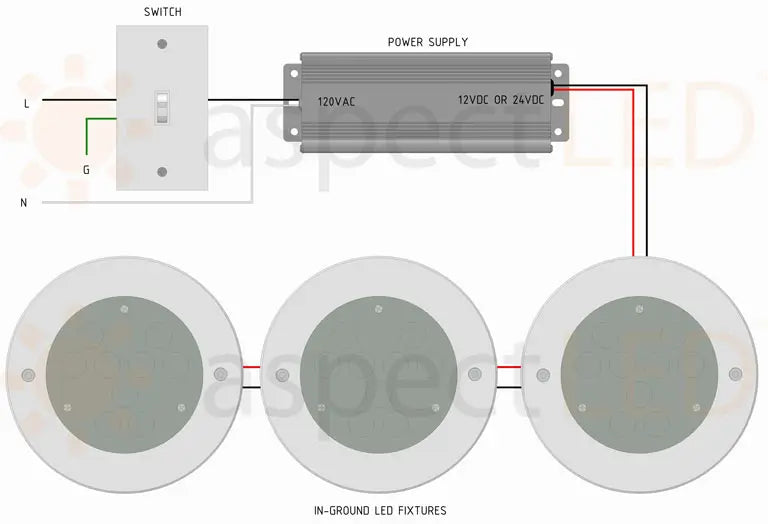

System Diagram: Single Color Low Voltage.

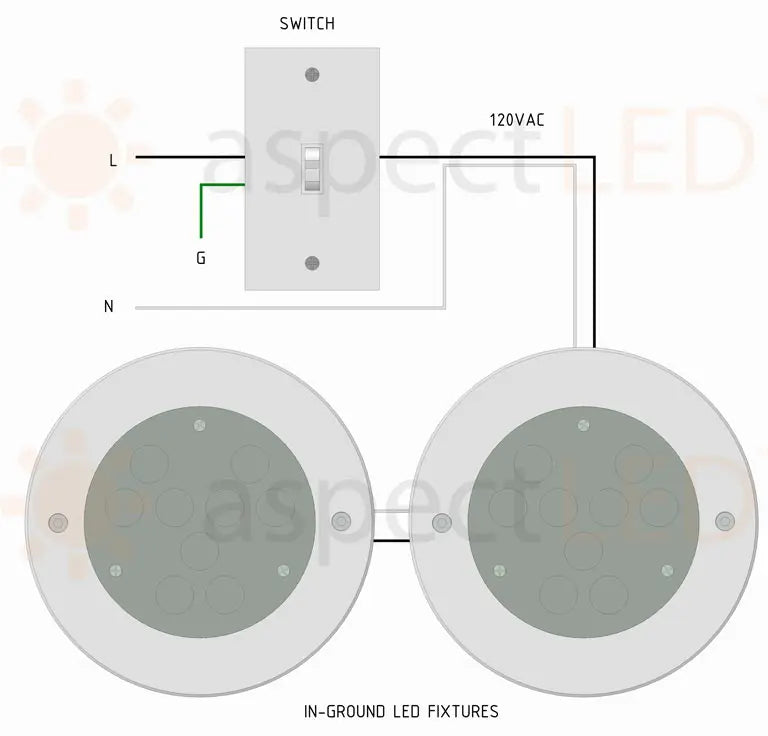

System Diagram: Single Color Line Voltage.
