100 Watt LED Power Supply
100 Watt LED Power Supply
In-Stock (778) - Ships Same or Next Business Day
Description

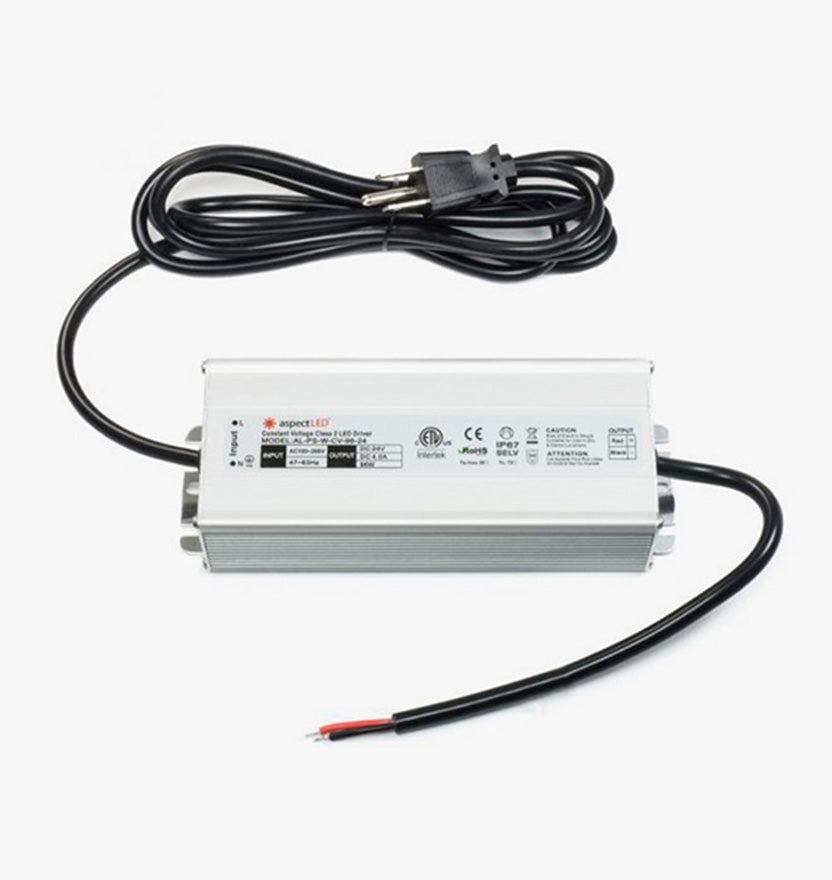

Engineered with professional-grade materials and designed for a smooth installation, the 100 Watt LED Power Supply is a great fit for any type of lighting project. Delivering consistent, stable power, this driver allows LED lights to run more efficiently, maintain optimal brightness, and maximize their lifespan. With a universal 100-265 VAC input and output options in both 12VDC and 24VDC, it adapts easily to residential and commercial applications alike. Its durable aluminum housing and IP67 rating mean it performs just as reliably in damp spaces as it does inside dry cabinetry.
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | |
|---|---|---|
| Part # | AL-PS-W-100 | AL-PS-W-100 |
| Physical | ||
| Dimensions | 6-7/16" Long (164mm) 2-11/16" Wide (68mm) 1-5/8" Tall (48mm) | 6-7/16" Long (164mm) 2-11/16" Wide (68mm) 1-5/8" Tall (48mm) |
| Housing Material | Aluminum | Aluminum |
| Mounting Method | Mounting Tabs | Mounting Tabs |
| Weight | 1.89 lbs (0.86 kg) | 1.89 lbs (0.86 kg) |
| Electrical | ||
| AC Current | 0.925A @ 110VAC | 0.92A @ 110VAC |
| AC Voltage Range | 100-265VAC | 100-265VAC |
| DC Voltage | 12VDC | 24VDC |
| Efficiency | >87% | >87% |
| Frequency Range | 47-63Hz | 47-63Hz |
| Inrush Current | 50A | 50A |
| Max Continuous Load | 76.8W | 76.8W |
| Max Output Current | 8.0A | 4.0A |
| Max Power Consumption | 96W | 96W |
| Environmental | ||
| IP Rating | IP67 | IP67 |
| Max Operating Temperature | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) |
| Max Storage Temperatures | -40°C to 80°C (-40°F to 176°F) | -40°C to 80°C (-40°F to 176°F) |
| Suitable Uses | Dry and Damp Locations | Dry and Damp Locations |
| Control | ||
| Dimmable | No | No |
| Compatibility | ||
| Recommended Box/Enclosure (Optional) | AL-PS-BX-LG | AL-PS-BX-LG |
| Standards / Certifications | ||
| Standards / Certifications | ETL Listed ROHS CE | ETL Listed ROHS CE Class 2 |
| Warranty | 1 Year | 1 Year |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
Is this product UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
