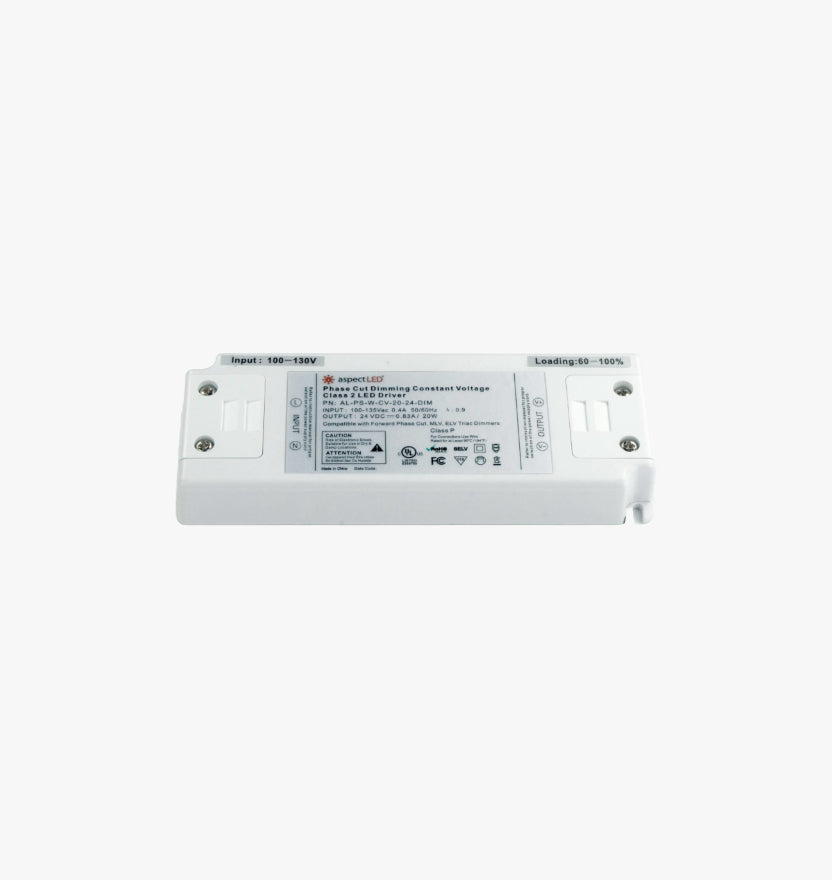

20W Dimmable Power Supply-24VDC
20W Dimmable Power Supply-24VDC
In-Stock (254) - Ships Same or Next Business Day
Description
Need precise control over your lighting levels? Our 20W Dimmable Power Supply lets you smoothly adjust the brightness of your low-voltage lighting to suit any application. This maintenance-free 24VDC transformer supports a continuous load of up to 16 watts for stable, energy-efficient lighting. It also offers an exceptionally long service life and is capable of withstanding high shock and vibration, making it a durable choice for demanding installations.
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-PS-W-D-20-24VDC |
| Physical | |
| Dimensions | 5-3/4" Long (146mm) 2-1/8" Wide (54mm) 3/4" Tall (19mm) |
| Housing Material | Plastic |
| Mounting Method | Mounting Tabs |
| Weight | 0.45 lbs (0.2 kg) |
| Electrical | |
| AC Current | 0.24A @ 120VAC |
| AC Voltage Range | 100-135VAC |
| DC Voltage | 24VDC |
| Efficiency | >79% |
| Frequency Range | 50-60Hz |
| Max Continuous Load | 16W |
| Max Output Current | 0.83A |
| Max Power Consumption | 20W |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Max Storage Temperatures | -40°C to 80°C (-40°F to 176°F) |
| Suitable Uses | Dry and Damp Locations |
| Control | |
| Dimmable | Yes |
| Compatibility | |
| Recommended Box/Enclosure (Optional) | AL-PS-BX-MD |
| Standards / Certifications | |
| Standards / Certifications | UL Listed ROHS Class 2 |
| Warranty | 1 Year |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
Is this product UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
