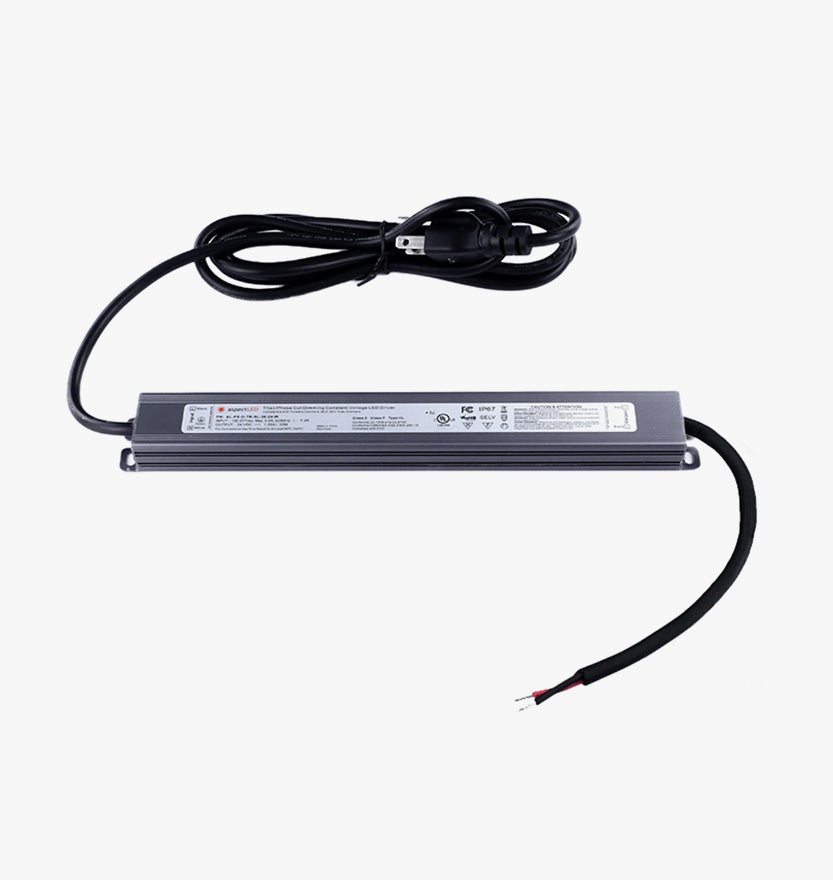

30W Dimmable LED Power Supply
30W Dimmable LED Power Supply
In-Stock (416) - Ships Same or Next Business Day
Description
Set the mood with a power supply made for dimming. The 30W Dimmable Power Supply pairs with most standard incandescent dimmer switches, giving you easy, flicker-free control over your single color LED strip lights. Its slim aluminum body and IP67 rating allow installation in dry, damp, and even wet locations, from kitchen cabinets to covered patios. With solid-state construction and a remarkably long lifespan, this power supply is built for dependable, hassle-free performance.
This power supply is only for use with single color LED strip lighting. Never use 30W Dimmable LED Power Supply with recessed lights, color controllers, or any product other than strip lighting.
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-PS-D-TR-SL-30-24-W |
| Physical | |
| Dimensions | 9-1/2" long (241mm) 1-1/4" wide (32mm) 3/4" tall (19mm) |
| Housing Material | Aluminum |
| Mounting Method | Mounting Tabs |
| Weight | 0.77 lbs (0.35 kg) |
| Electrical | |
| AC Current | 0.5A @ 100VAC |
| AC Voltage Range | 100-277VAC |
| DC Voltage | 24VDC |
| Efficiency | >81% |
| Frequency Range | 50-60Hz |
| Inrush Current | 7A |
| Max Continuous Load | 24W |
| Max Output Current | 1.25A |
| Max Power Consumption | 30W |
| Environmental | |
| IP Rating | IP67 |
| Max Operating Temperature | -40°C to 60°C (-40°F to 140°F) |
| Max Storage Temperatures | -40°C to 80°C (-40°F to 176°F) |
| Suitable Uses | Dry, Damp, and Wet Locations |
| Control | |
| Dimmable | Yes |
| Compatibility | |
| Recommended Box/Enclosure (Optional) | AL-PS-BX-XL |
| Standards / Certifications | |
| Standards / Certifications | UL Listed ROHS Class 2 |
| Warranty | 1 Year |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
Is this product UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
