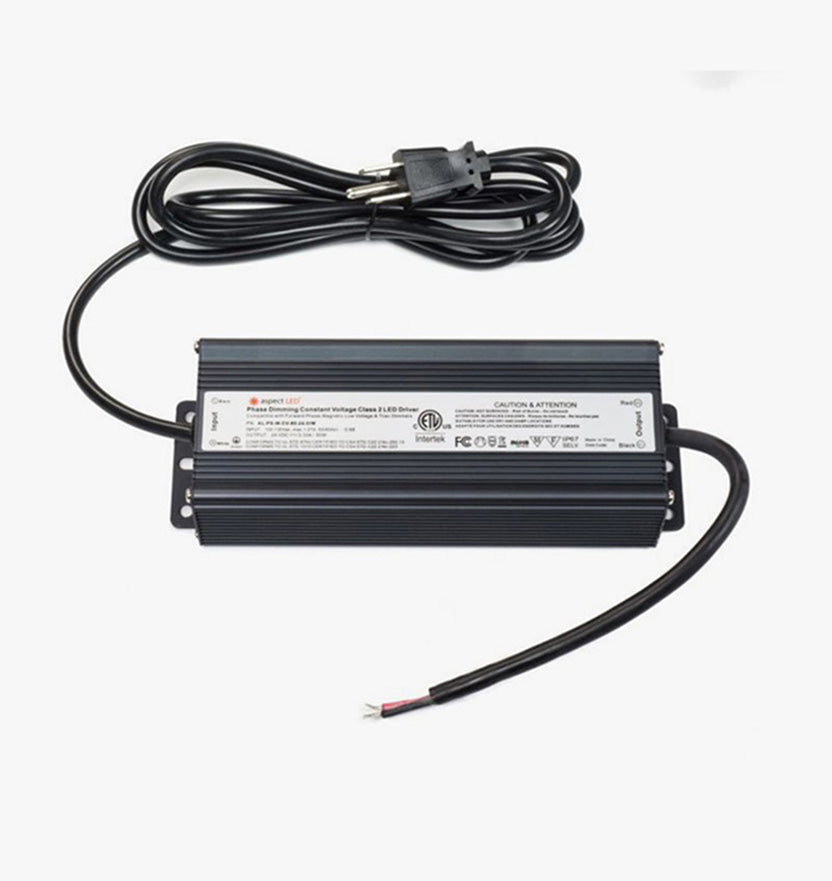

80W Dimmable LED Power Supply
80W Dimmable LED Power Supply
In-Stock (389) - Ships Same or Next Business Day
Description
This 80W dimmable power supply uses constant voltage technology to deliver steady, efficient power to your LED lights. Delivering steady power, this driver converts line voltage into low-voltage and helps your LEDs last longer and run brighter. It works with most standard incandescent dimmer switches, allowing you to adjust the brightness on demand without a separate controller. With an IP67 rating and a sturdy aluminum housing, it’s versatile enough for kitchens, bathrooms, and covered outdoor spaces.
The 12VDC power supply is only for use with single color LED strip lighting. Never use 12VDC 80W Dimmable LED Power Supply with recessed lights, color controllers, or any product other than strip lighting.
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | |
|---|---|---|
| Part # | AL-PS-W-D-80 | AL-PS-W-D-80 |
| Physical | ||
| Dimensions | 8" Long (203mm) 2-3/4" Wide (70mm) 1-5/8" Tall (41mm) | 6-13/16" Long (173mm) 2-3/4" Wide (70mm) 1-5/8" Tall (41mm) |
| Housing Material | Aluminum | Aluminum |
| Mounting Method | Mounting Tabs | Mounting Tabs |
| Weight | 2.77 lbs (1.26 kg) | 2.45 lbs (1.11 kg) |
| Electrical | ||
| AC Current | 1.33A @ 110VAC | 1.02A @ 120VAC |
| AC Voltage Range | 100-277VAC | 100-130VAC |
| DC Voltage | 12VDC | 24VDC |
| Efficiency | >82% | 85% |
| Frequency Range | 47-63Hz | 50-60Hz |
| Max Continuous Load | 64W | 64W |
| Max Output Current | 6.66A | 3.33A |
| Max Power Consumption | 80W | 80W |
| Environmental | ||
| IP Rating | IP67 | IP67 |
| Max Operating Temperature | -40°C to 60°C (-40°F to 140°F) | -40°C to 60°C (-40°F to 140°F) |
| Max Storage Temperatures | -40°C to 80°C (-40°F to 176°F) | -40°C to 80°C (-40°F to 176°F) |
| Suitable Uses | Dry, Damp, and Wet Locations | Dry, Damp, and Wet Locations |
| Control | ||
| Dimmable | Yes | Yes |
| Compatibility | ||
| Recommended Box/Enclosure (Optional) | AL-PS-BX-LG | AL-PS-BX-LG |
| Standards / Certifications | ||
| Standards / Certifications | UL Listed ROHS | ETL Listed ROHS Class 2 |
| Warranty | 1 Year | 1 Year |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
Is this product UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
