Bendable LED Channel, Narrow
Bendable LED Channel, Narrow
Out of Stock - Backorder Available
Description

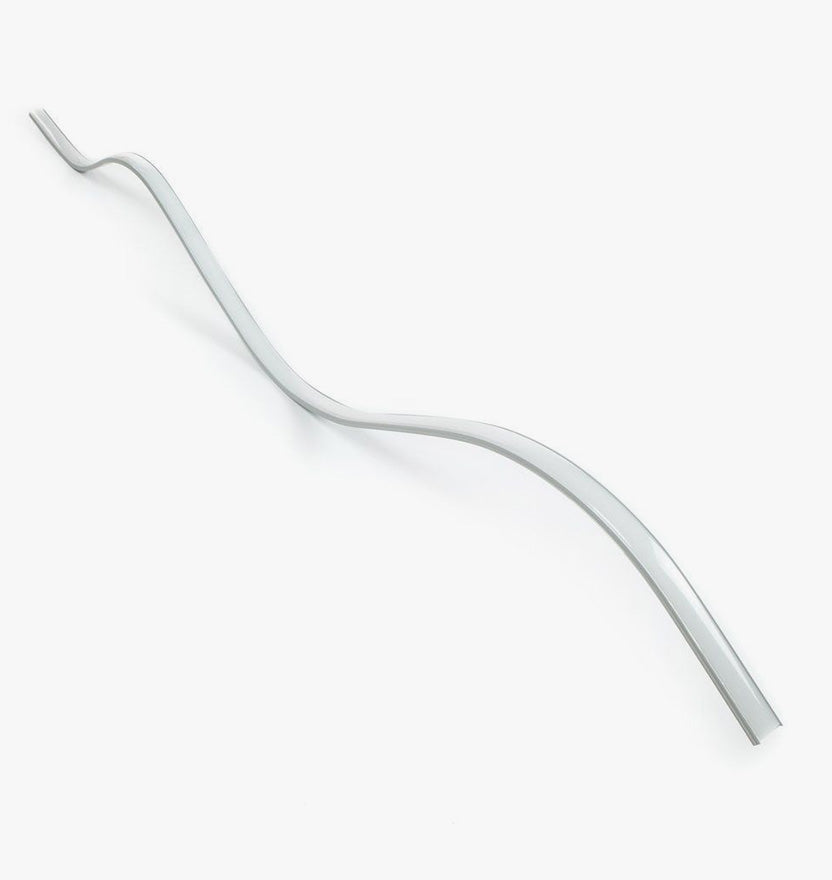

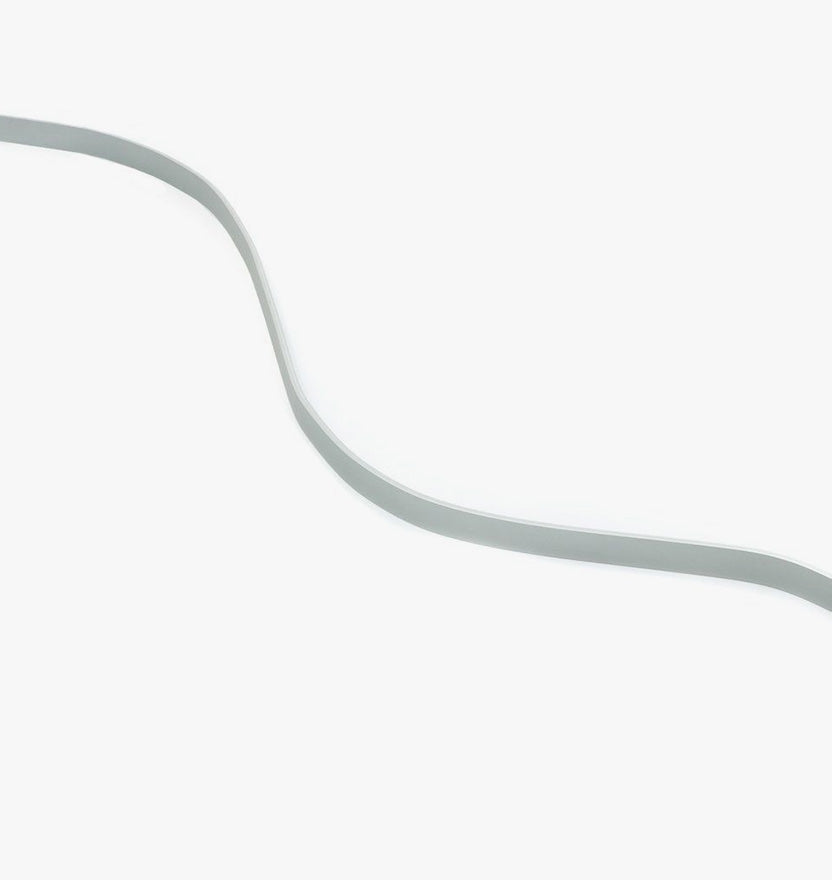

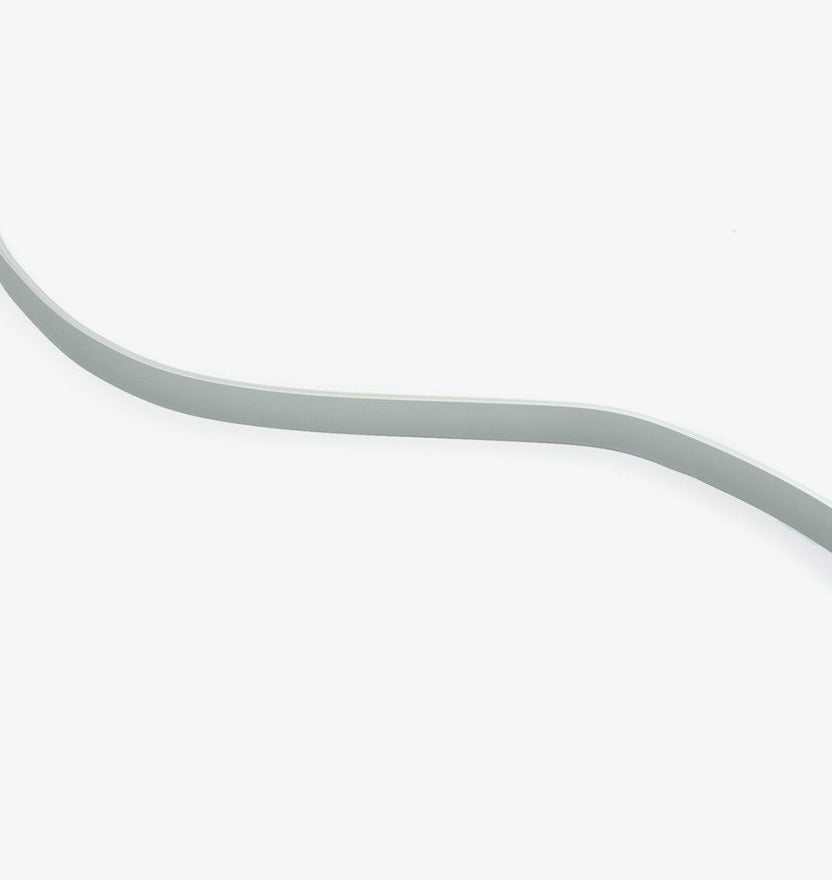

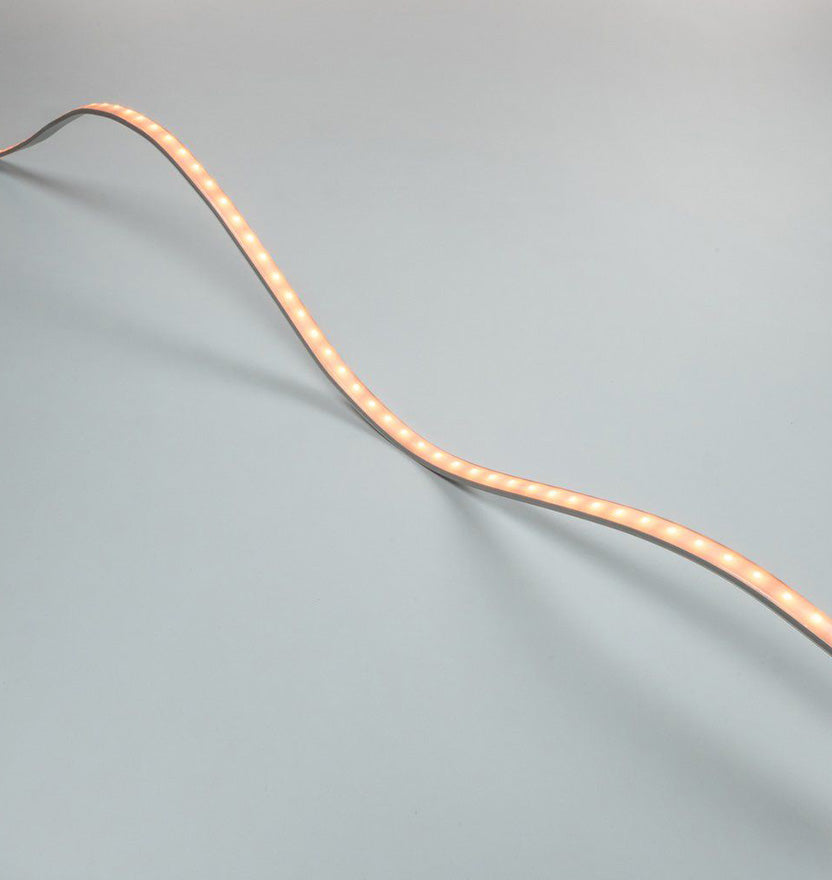

This bendable mounting channel is designed for maximum flexibility, allowing you to shape it around curves, contours, or custom layouts for unique installations and dramatic design features. Ideal for both creative applications and navigating existing structures, it adapts easily to your project needs. Available with clear or frosted lens options, it comes in 3.3 ft and 6.5 ft lengths that can be cut to your exact size. Its durable construction helps protect strip lights while supporting effective heat dissipation for long-term performance, making it a reliable solution for custom lighting designs.
Specifications
Specifications
| Part # | AL-TRK-BD |
| Physical | |
| Accommodates these | Interior Channel Dimensions | 0.53" (13.5mm) |
| Bend Type | Top bend |
| Channel Material | Anodized Aluminum |
| Dimensions | 0.70" (18mm) Wide 0.22" (5.7mm) Tall |
| Finish Options | Silver |
| Lens Material | Polycarbonate |
| Lens Options | Clear, Frosted |
| Mounting Method | Mounting Clip, Surface Mounted |
| Package Quantity | Accessory Pack (optional) 1 End Cap with Hole, 1 End Cap without Hole, 2 Mounting Clips per 3.3ft length |
| Weight | 0.7 lb (6.5ft Channel & Lens) |
| Photometric | |
| Lens Transmittance | Clear = 92% Frosted = 78% Smoke = 25% |
| Environmental | |
| IP Rating | IP20 |
| Load Rating | IK06 |
| Max Operating Temperature | -4 – 122°F (-20 – 50°C) |
| Max Storage Temperatures | -22 – 176°F (-30 – 80°C) |
| Suitable Uses | Dry, Indoor |
| Compatibility | |
| Compatible Strip Lights | Holds Strip Light up to 12mm wide, Not compatible with Strip Lights taller than 2.54mm |
| Standards / Certifications | |
| Standards / Certifications | RoHS |
| Warranty | 1 Year |
