Borealis SPI Addressable Strip Light – RGB Color Changing

Description

The Borealis SPI Addressable Strip Light delivers vibrant RGB color with smooth, fluid transitions, all easily controlled through the Casambi app. Each 16.4' reel comes with wire leads on both ends and can be cut every 4", giving you precise flexibility for custom installations. Pair it with our Casambi SPI Controller for seamless wireless setup, group management, and advanced scene control. With segment-based LED addressing, this strip light allows for intricate effects and highly customized lighting designs.

Key Features

Unlimited Colors
SPI addressable
Non Waterproof
6 LED's per pixel

Specifications

Part #	AL-SL-AD-SPI-IP20-24-RGB
Physical
Adhesive Backing	Yes
Beam Angle	120°

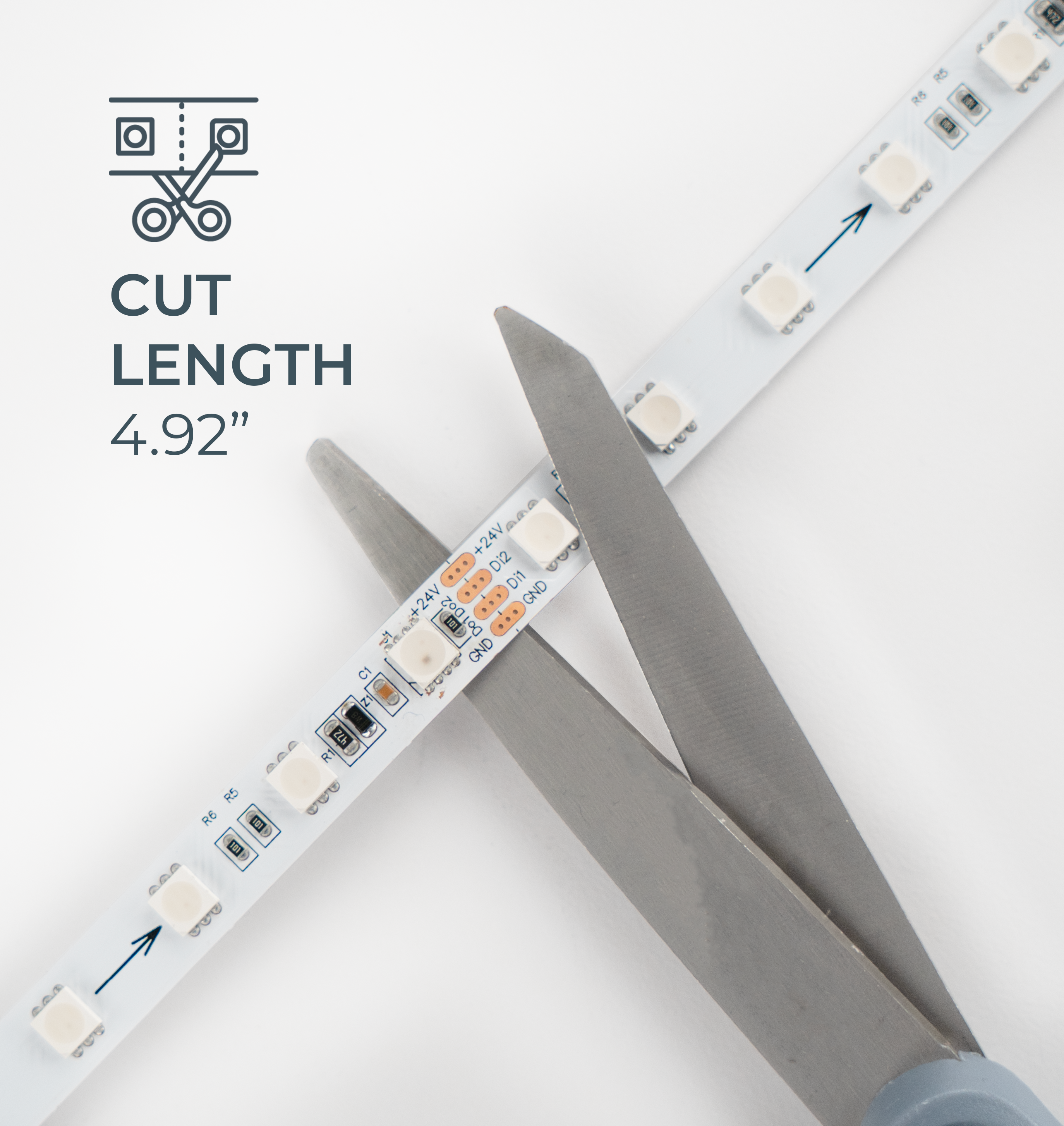

Cut Length	4.92" (125mm)
Dimensions	16.4' (5m) 0.394" (10mm) Wide 0.06" (2.1mm) Thick
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive
Weight	0.4lb (0.2kg)
Electrical
Efficacy (lumens per watt)	Up to 29.84 lumens per watt
Input Voltage	24VDC
LED Quantity	18 LEDs per foot (60 LEDs per meter)
LED Type	SMD 5050
Max Power Consumption	4.39W per foot (14.4W per meter)
Max Run Length	16.4' (5m)
Photometric
CRI	N/A
LED Color Options	RGB
Max Lumens	Up to 131 Lumens/ft (430 Lumens/m)
RGB Wavelength Ranges	Red: 0.44 Green: 0.37 Blue: 0.29
Environmental
IP Rating	IP20
Max Operating Temperature	-4°F to 122°F (-20°C to 50°C)
Max Storage Temperatures	-22°F to 176°F (-30°C to 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	SPI
Dimmable	Yes
IC Type	IC-P943F (WS2811)
# of Addressable Sections	50
Compatibility
Compatible Connectors	AL-SL-CN-WRGB-JUMPER AL-SL-CN-WRGB-PIGTAIL AL-SL-CN-WRGB-SPLICE
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 Years

Features

Individually Addressable Cut Lengths: Each group of LEDs can be controlled independently via Casambi, enabling advanced effects like color chases and gradients.
Controller Compatibility: Fully compatible with our Casambi SPI Controller and the Casambi app for seamless wireless setup, group control, and scene management.
Millions of Colors: Experience flawless, consistent illumination from start to finish with vibrant, full RGB color-changing capability.
Custom Fit, Every Time: Cut to length at every 4" mark for a fully tailored installation.
Full-Spectrum Color: Dynamic RGB design allows smooth transitions and precise hue control for any environment.
Peel and Stick Tape: Industrial-grade 3M VHB adhesive backing ensures quick, secure installation on most clean, dry surfaces.
For Indoor Environments: IP20-rated strip lights are ideal for retail, hospitality, and tradeshow applications where water and dust exposure are minimal.

Applications

Architectural Lighting: Enhance building features and interiors with dynamic, addressable color effects.
Entertainment Lighting: Ideal for stages, events, and installations requiring synchronized color control.
Hospitality Environments: Create immersive lighting scenes in hotels, restaurants, and lounges.
Retail Environments: Highlight products and displays with vivid, programmable lighting effects.
Tradeshow Exhibits: Draw attention with customizable color chases and gradients that stand out on the show floor.

Technical Documents

Download Cut Sheet

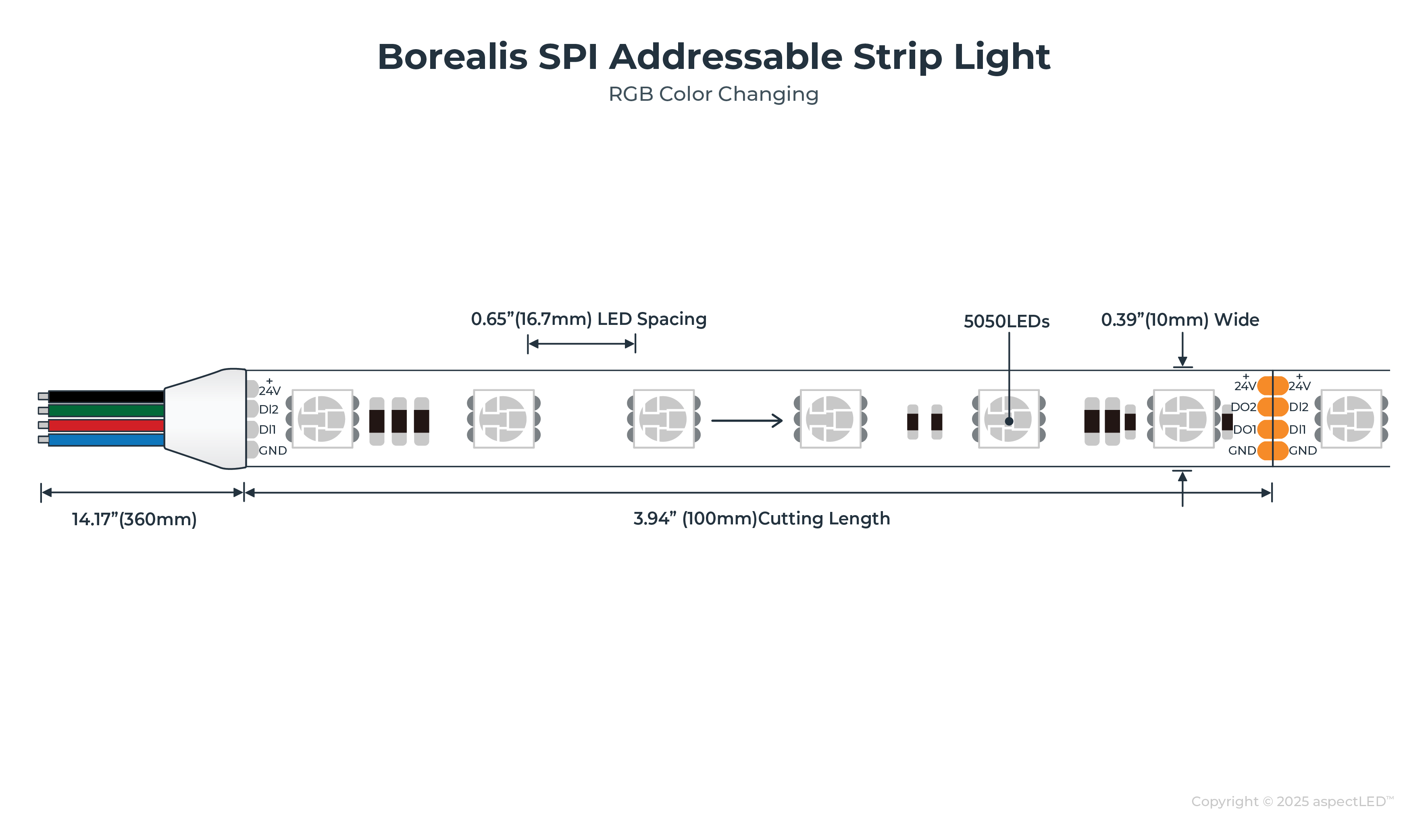

Download Technical Drawing

View Installation Guide

Download Photometric Report

Download IES File

Continuous Data Wiring Diagram
