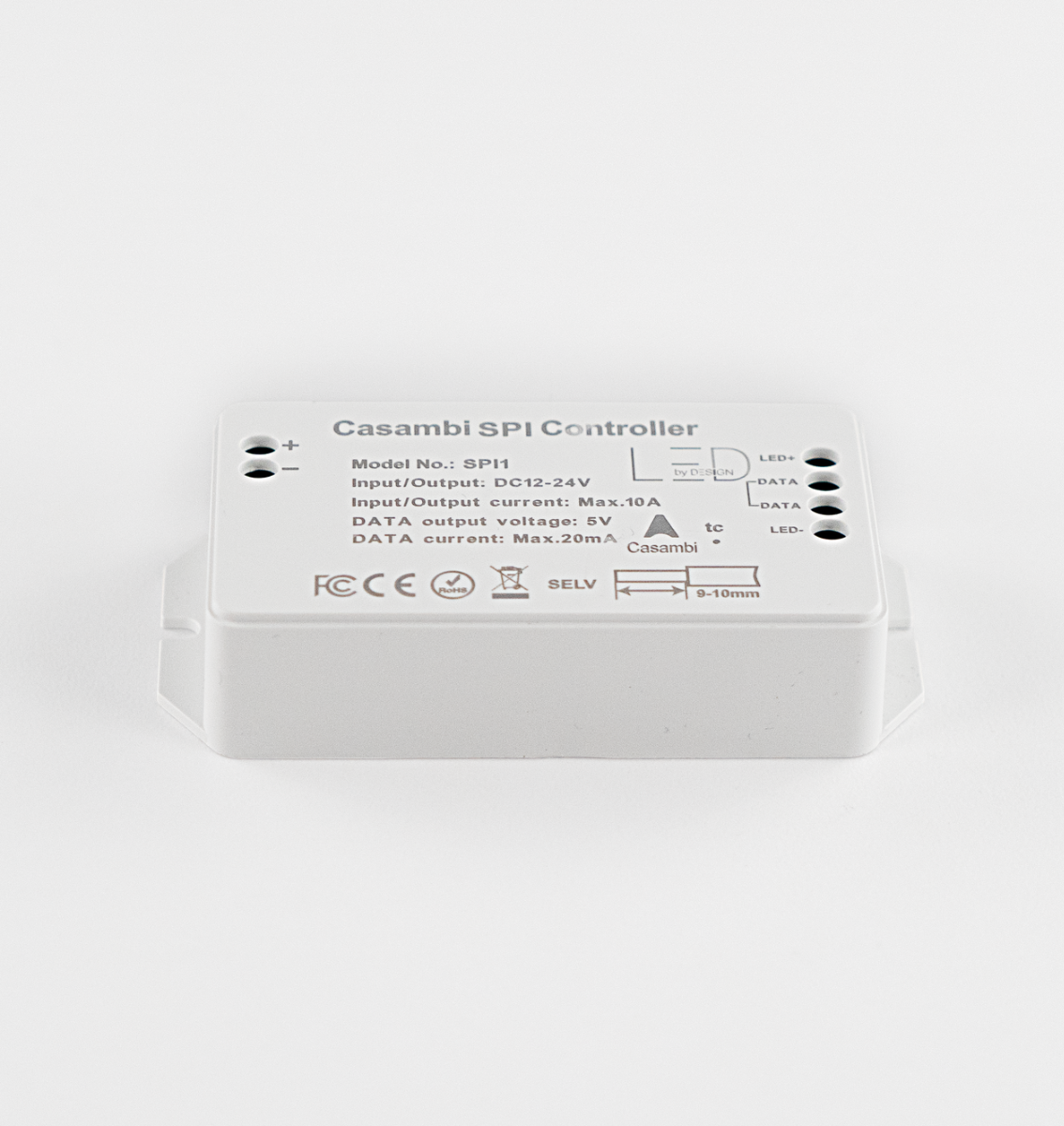

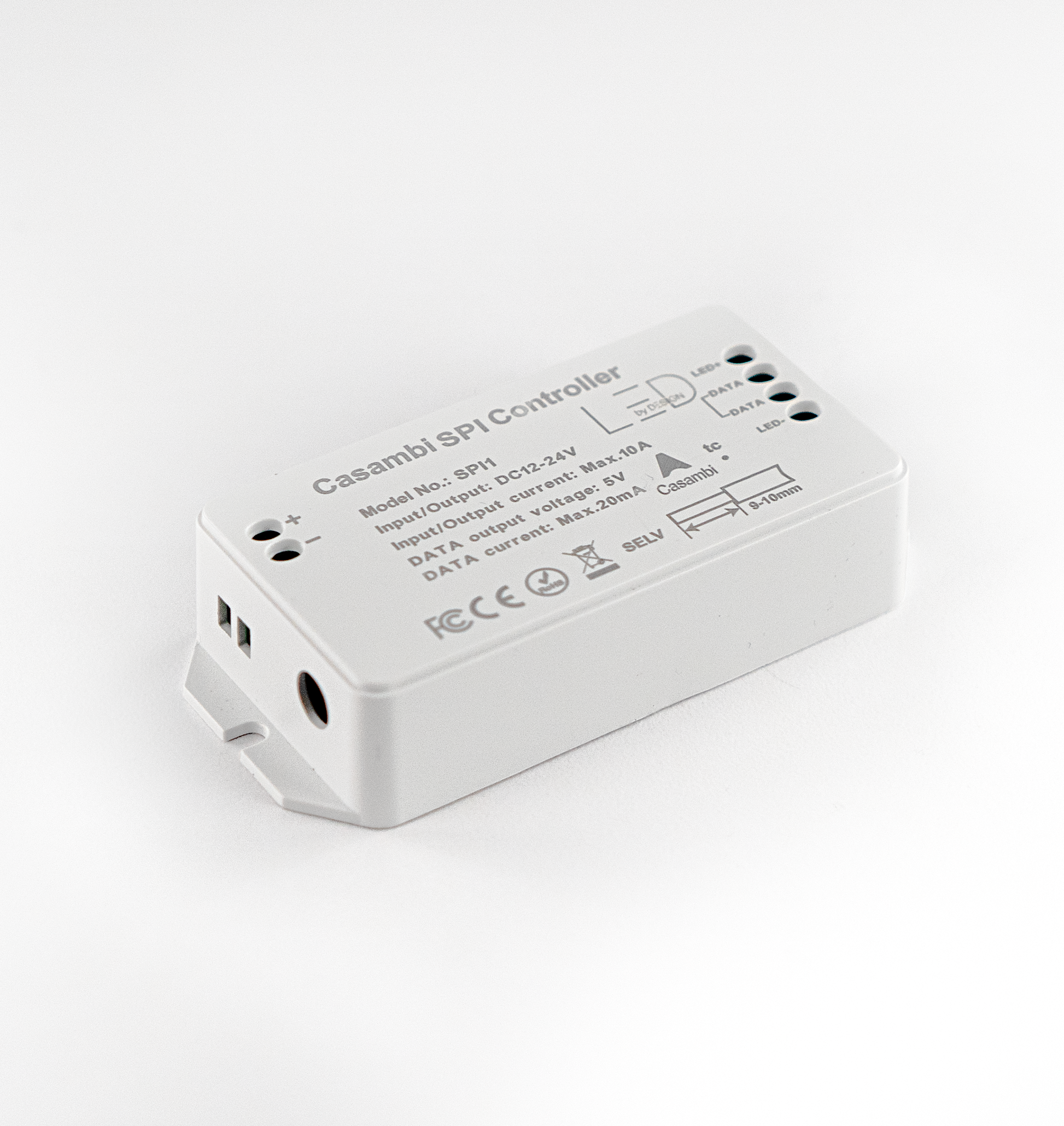

Casambi SPI Addressable LED Light Controller
Casambi SPI Addressable LED Light Controller
In-Stock (65) - Ships Same or Next Business Day
Description
The Casambi SPI Controller brings seamless wireless control to SPI addressable lighting, integrating directly into your Casambi mesh network utilizing Bluetooth; no Wi-Fi is needed. Designed for both RGB and RGBW fixtures, it supports multiple protocols to fit a wide range of projects. With the Casambi app, you can dim, adjust colors, and unlock up to 255 dynamic modes, including speed, direction, and custom effects, all from your smartphone or tablet. Casambi’s color picker and multi-slider widgets make it easy to fine-tune lighting for vibrant, dynamic results. Compact and easy to install, the controller delivers smooth, reliable performance for both small and large-scale projects. Powered by a 12–24VDC Class 2 supply, it’s built for efficiency with low power draw.
Key Features
Key Features
-
Space Saving
-
Mesh Network
-
Wireless
-
SPI addressable
Specifications
Specifications
| Part # | AL-CTLR-CBU-CAS-SPI |
| Physical | |

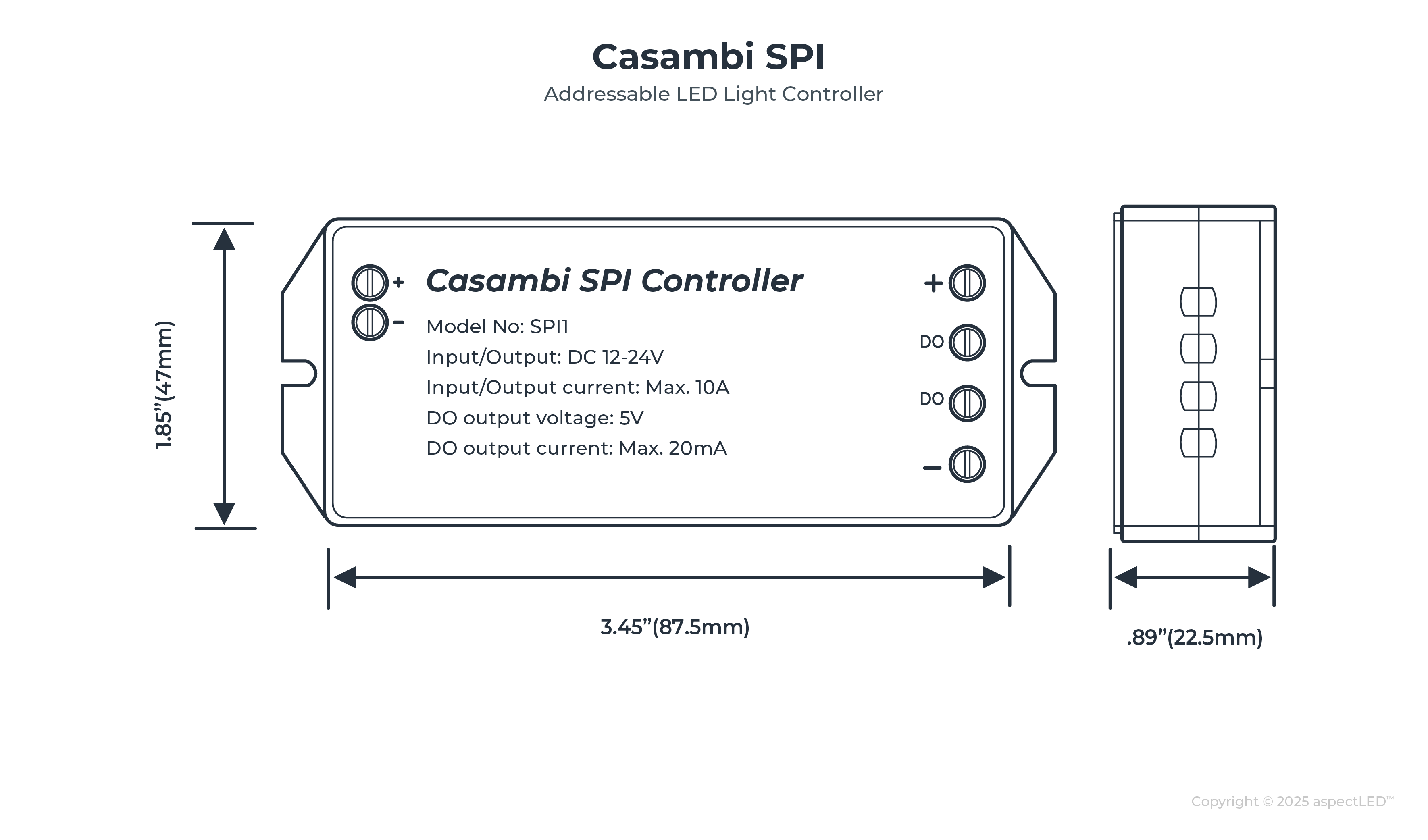

| Dimensions | 3.45" (87.5mm) Long 1.85" (47mm) Wide 0.89" (22.5mm) Tall |
| Weight | 0.12lb (0.05kg) |
| Electrical | |
| Max Power Consumption | 60W @ 12VDC 96W @ 24VDC |
| Wire Connections | 14–22AWG Solid or Stranded |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | 32°F to 122°F (0°C to 50°C) |
| Suitable Uses | Dry Locations Only |
| Standards / Certifications | |
| Standards / Certifications | UL cUL RoHS FCC |
| Warranty | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
