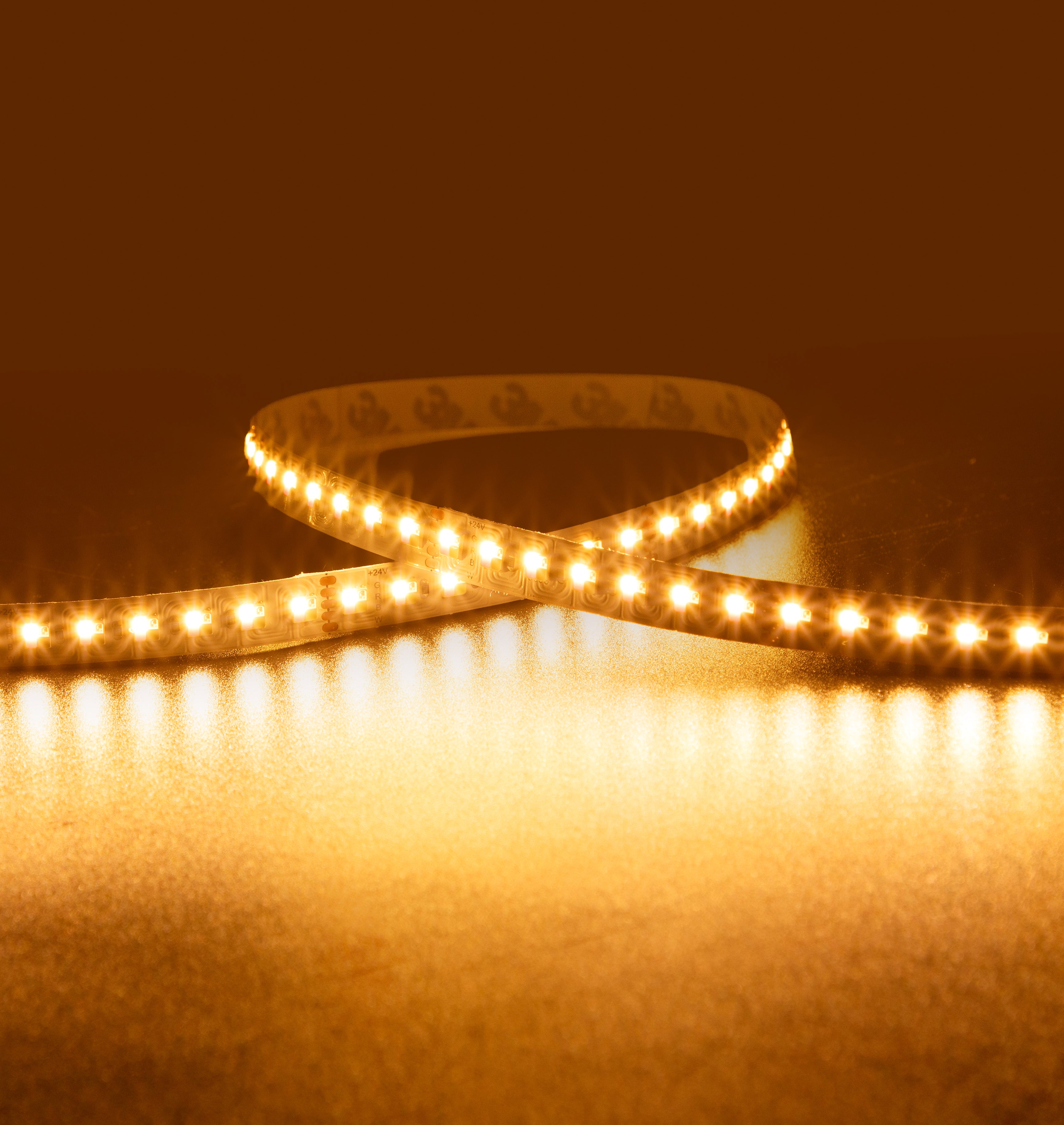

LED light strip on a reflective surface with a warm glow

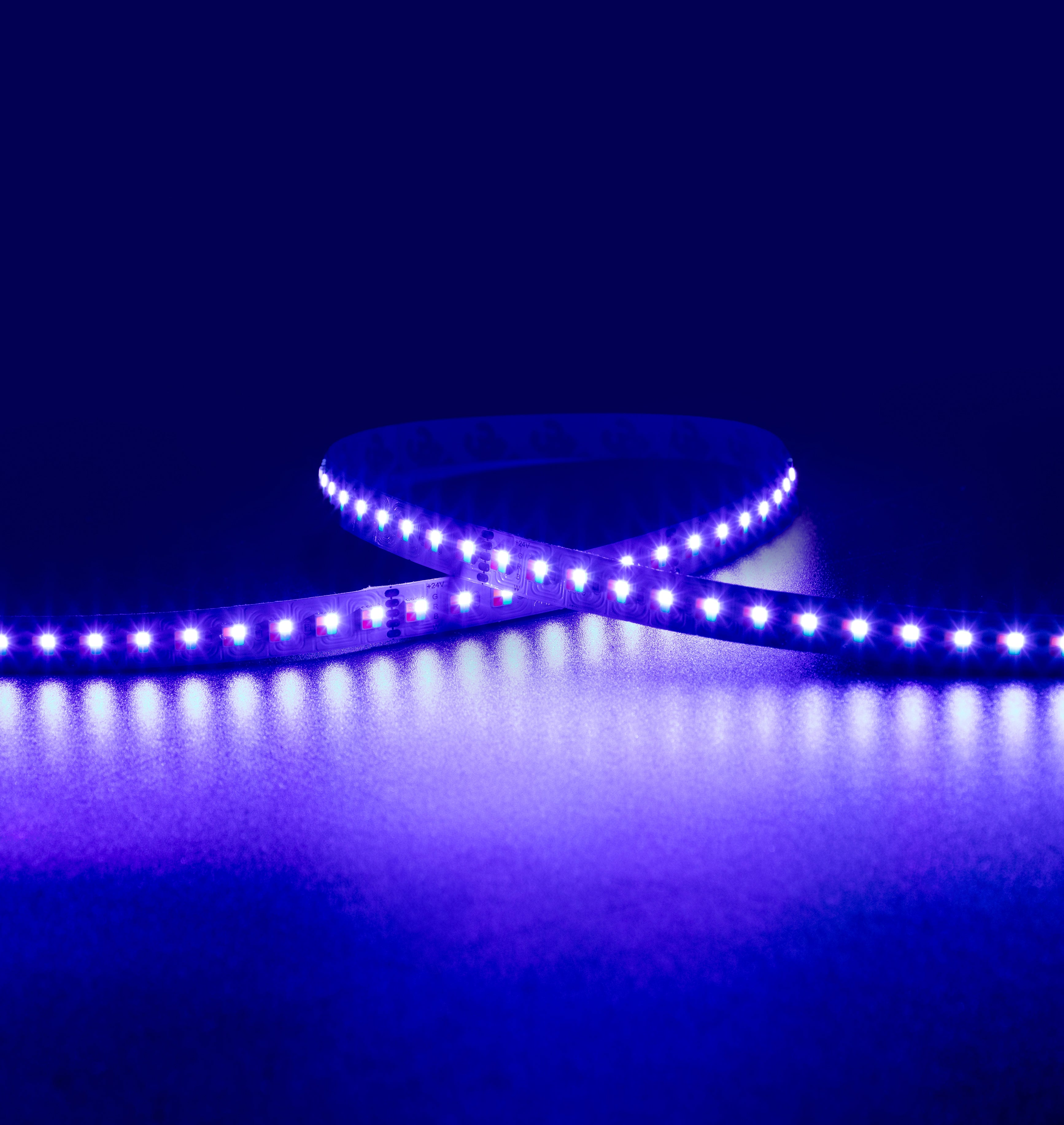

LED strip light emitting blue light on a dark background

Description

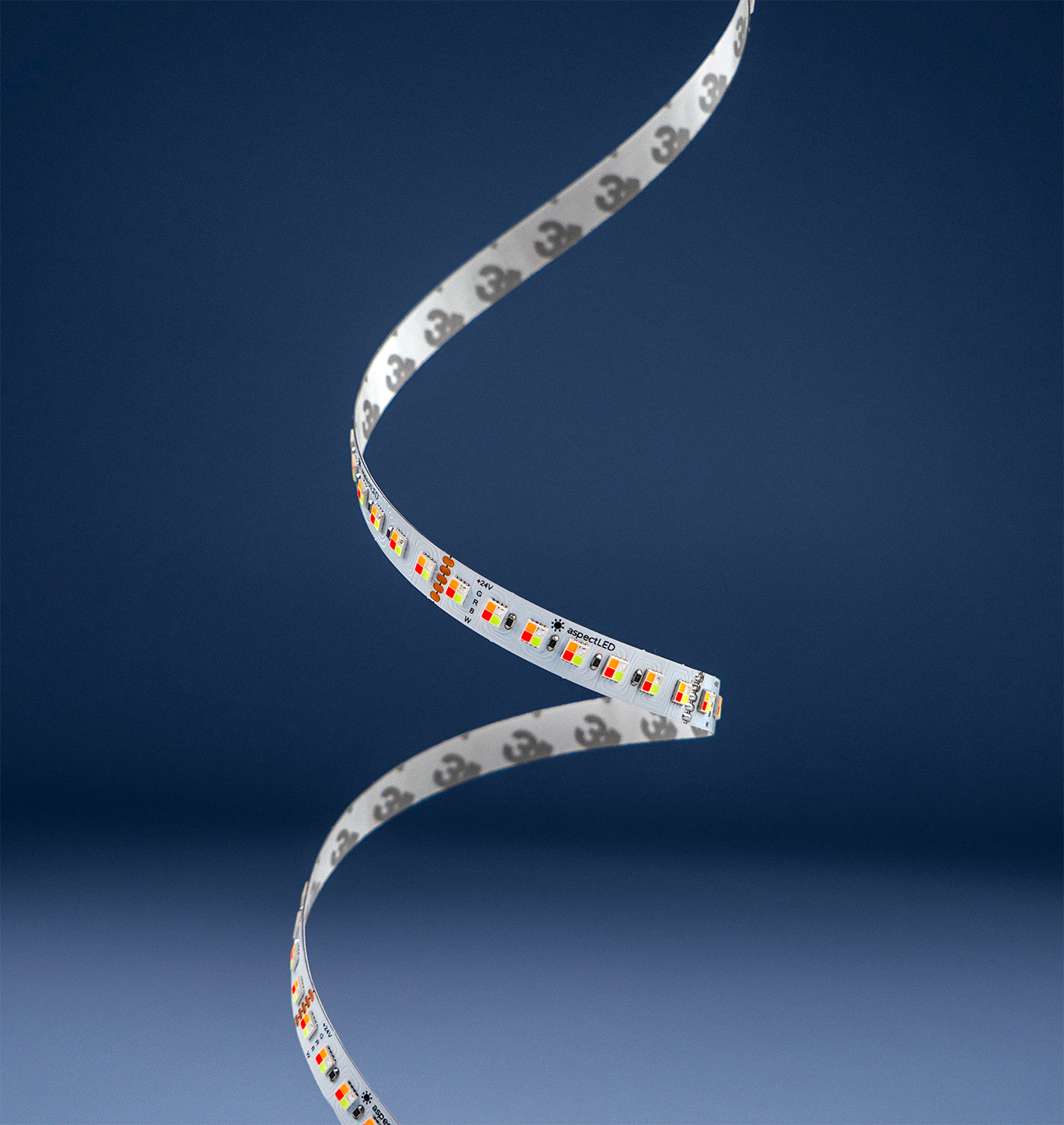

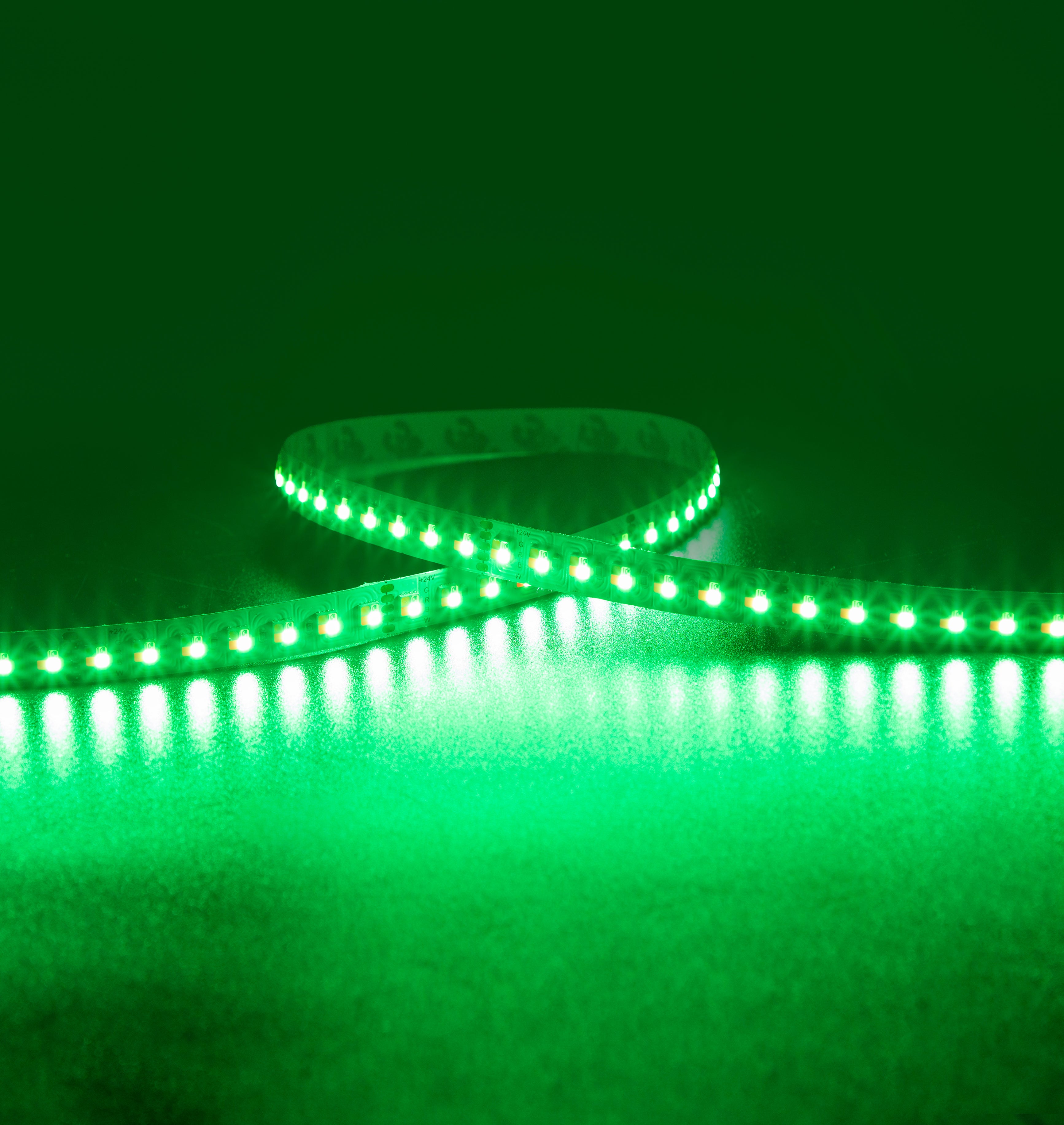

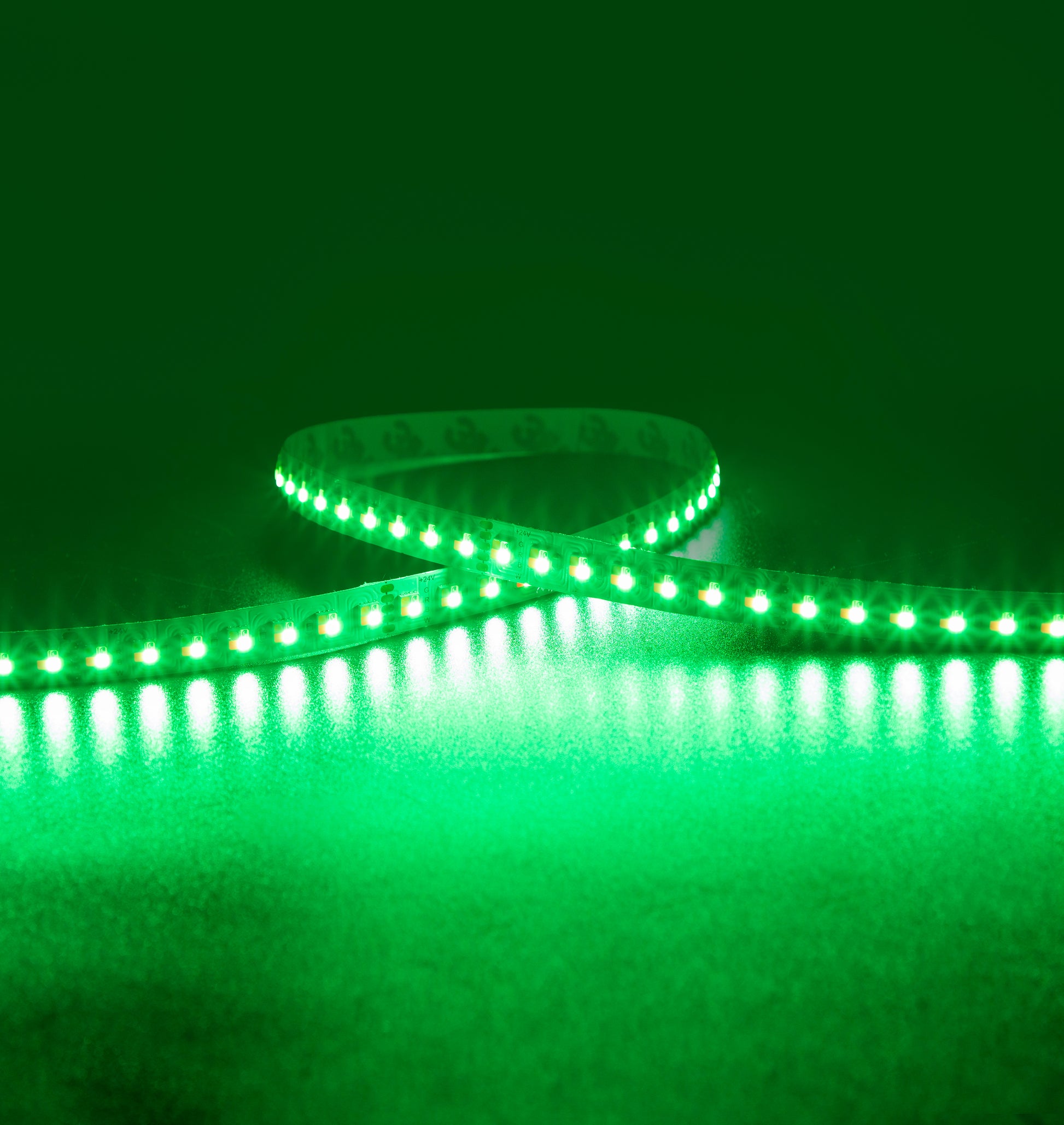

The Chroma LED Strip Light Kit RGBW is a complete, high performance lighting solution that delivers both precision white light and vibrant color in one easy to install system. Designed for seamless integration, this kit includes the strip light, controller, RF remote, and power supply, eliminating compatibility concerns and simplifying your setup. Engineered with true blackbody curve technology, Chroma produces exceptionally accurate, natural white light across the dimming range, far surpassing traditional RGBW strip lights. Easily transition from clean, architectural white lighting to bold, dynamic RGB scenes, giving you full flexibility for both functional and decorative applications. A 2.18 inch cut interval allows for precise layouts with minimal waste, while a 90+ CRI ensures accurate color rendering throughout the space.

Specifications

Part #	AL-SL-PR-IP20-24-RGB25K-KIT
Physical
Adhesive Backing	Adhesive Tape 3M 9080 in White

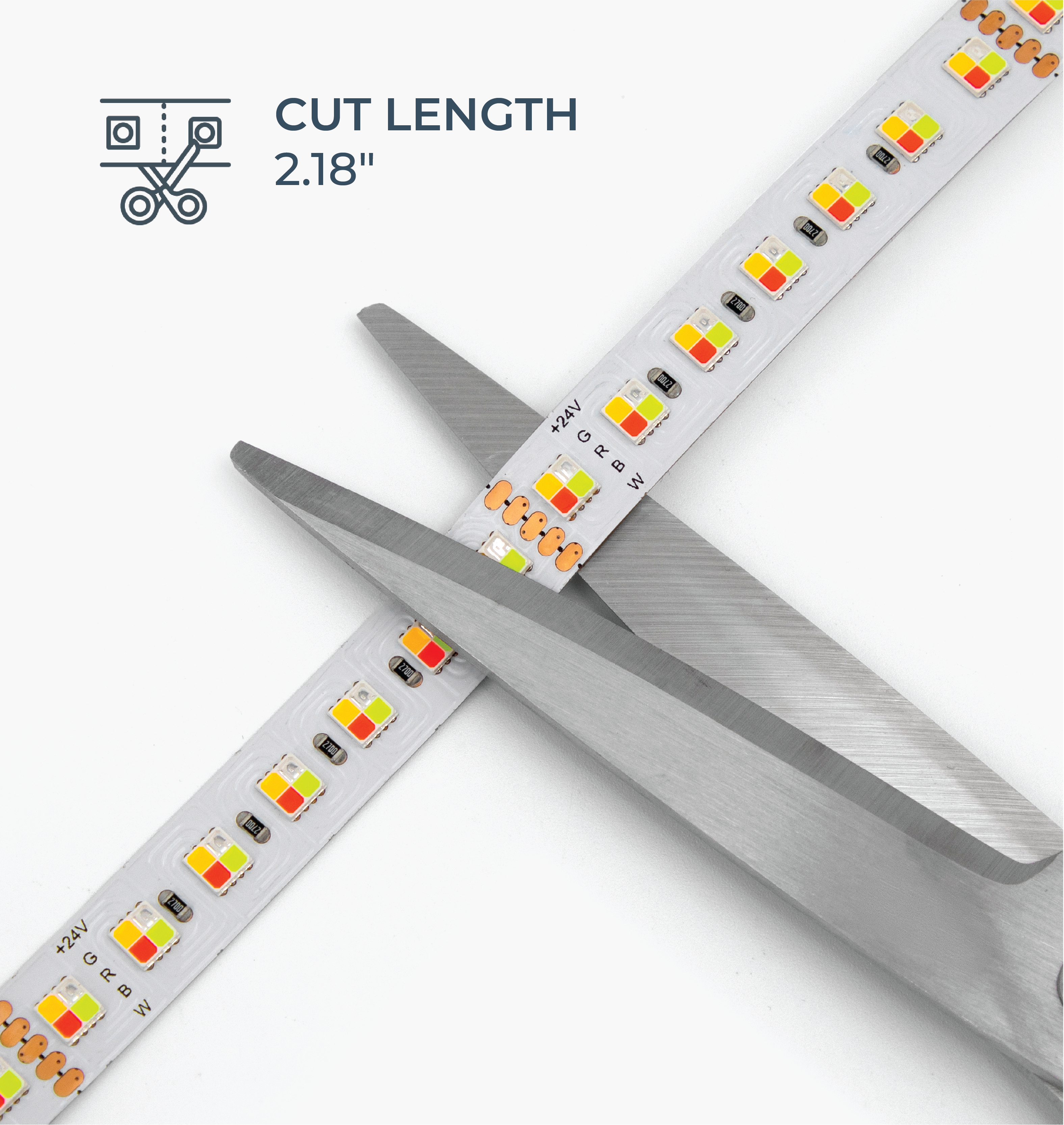

Cut Length	2.18" (55.55mm)
Dimensions	16.4' (5m) long 0.39" (10mm) wide 0.07" (1.9mm) high
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted
Electrical
Efficacy (lumens per watt)	Red: 11 Lumens/Watt Green: 44 Lumens/Watt Blue: 5 Lumens/Watt 2500K: 35 Lumens/Watt
Input Voltage	24VDC
LED Quantity	38 LED's/ft (126 LED's/m)
LED Type	SMD 3838

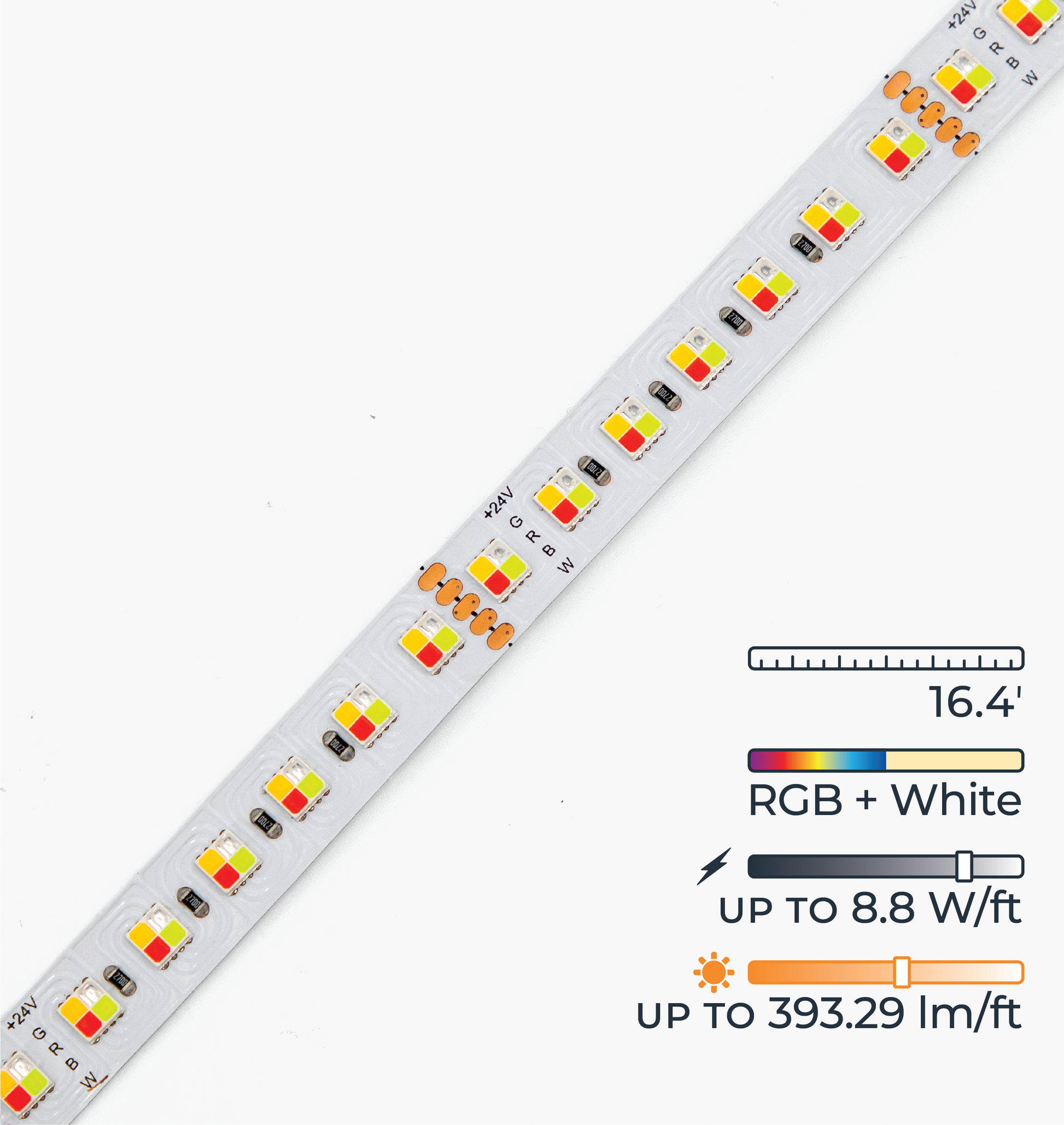

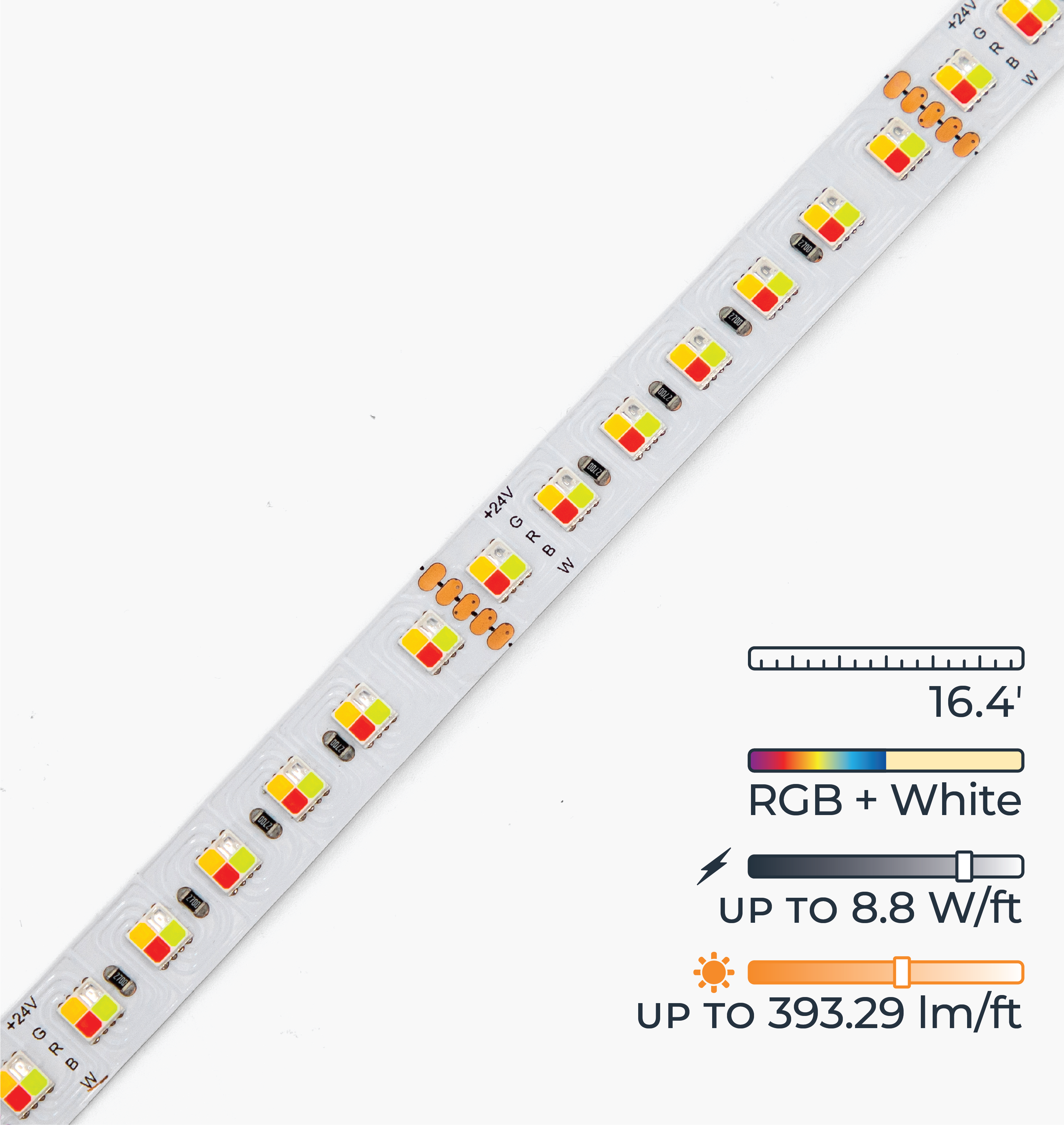

Max Power Consumption	8.8W/ft (29W/m)
Max Run Length	16.4' (5m)
Pin/Wire Count	2 pin
Power Source	2 x AAA batteries
Photometric
CRI	90
LED Color Options	RGB+2500K
Max Lumens	Red: 97 Lumens/ft Green: 393 Lumens/ft Blue: 44 Lumens/ft 2500K: 314 Lumens/ft
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry Locations Only
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes, with provided controller
Compatibility
Compatible Connectors	N/A
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

True Blackbody Curve White Accuracy: Engineered to follow the natural black body curve, delivering the most authentic, visually accurate white light across the dimming range unlike traditional RGBW strip lights.

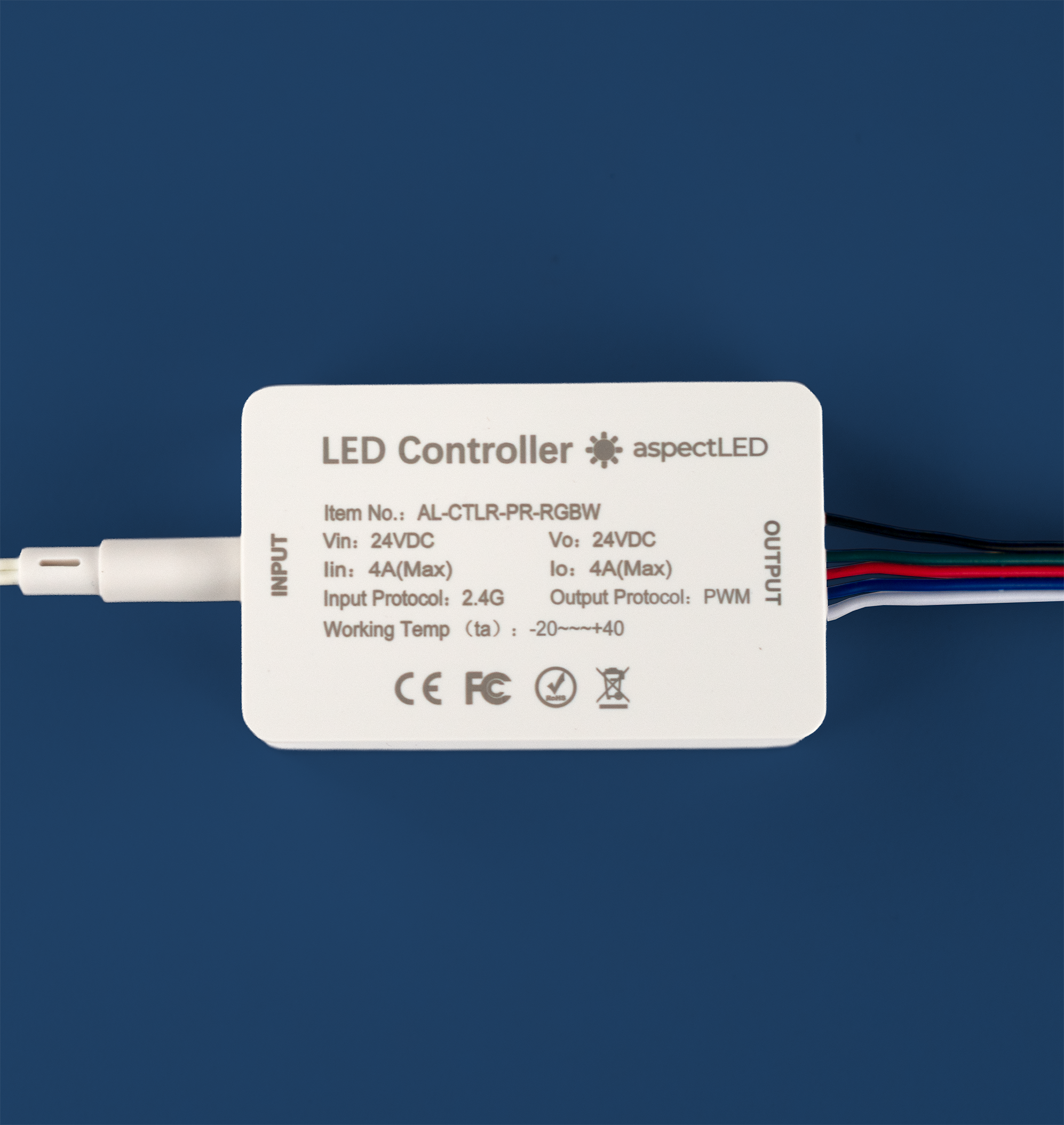

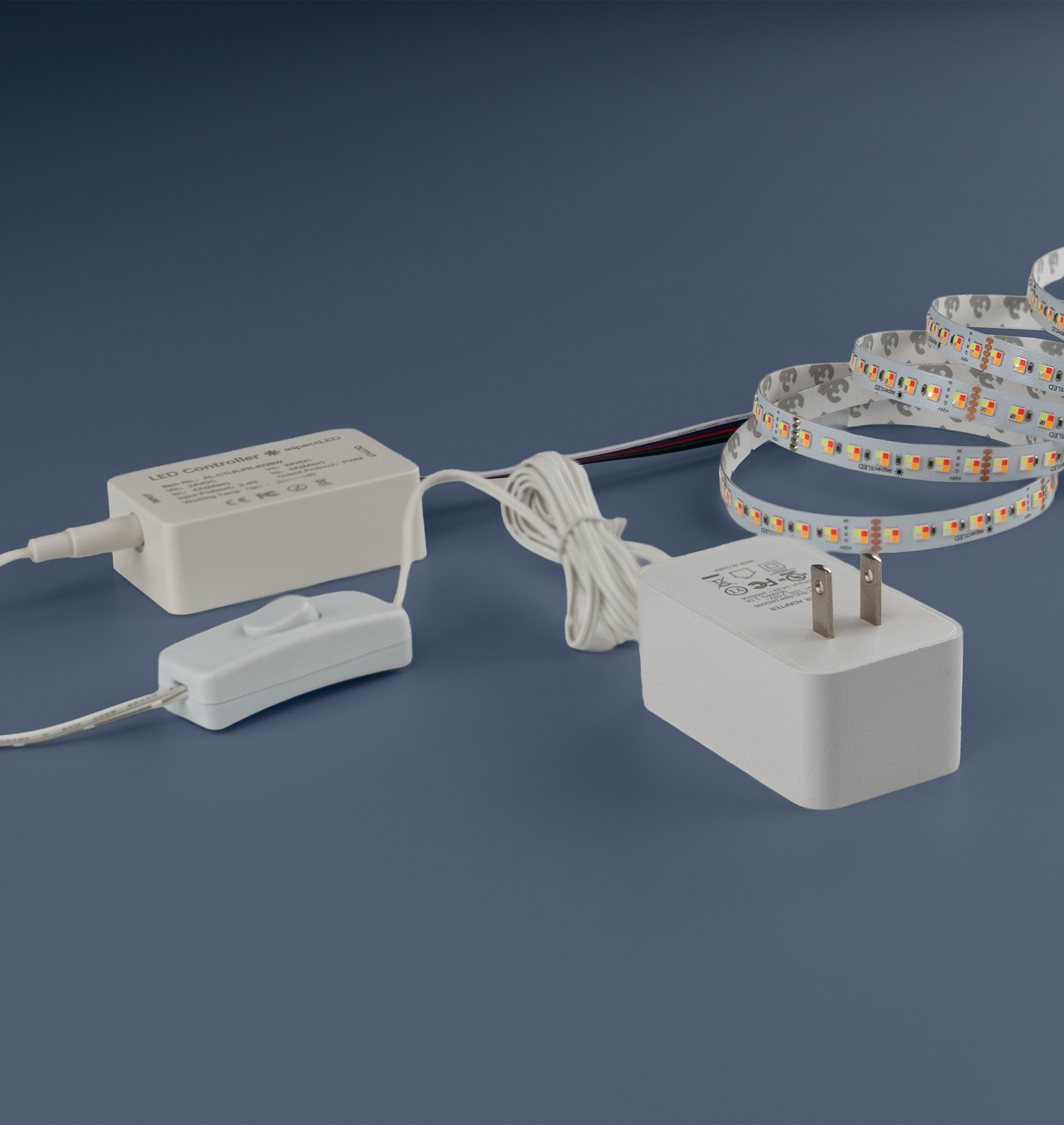

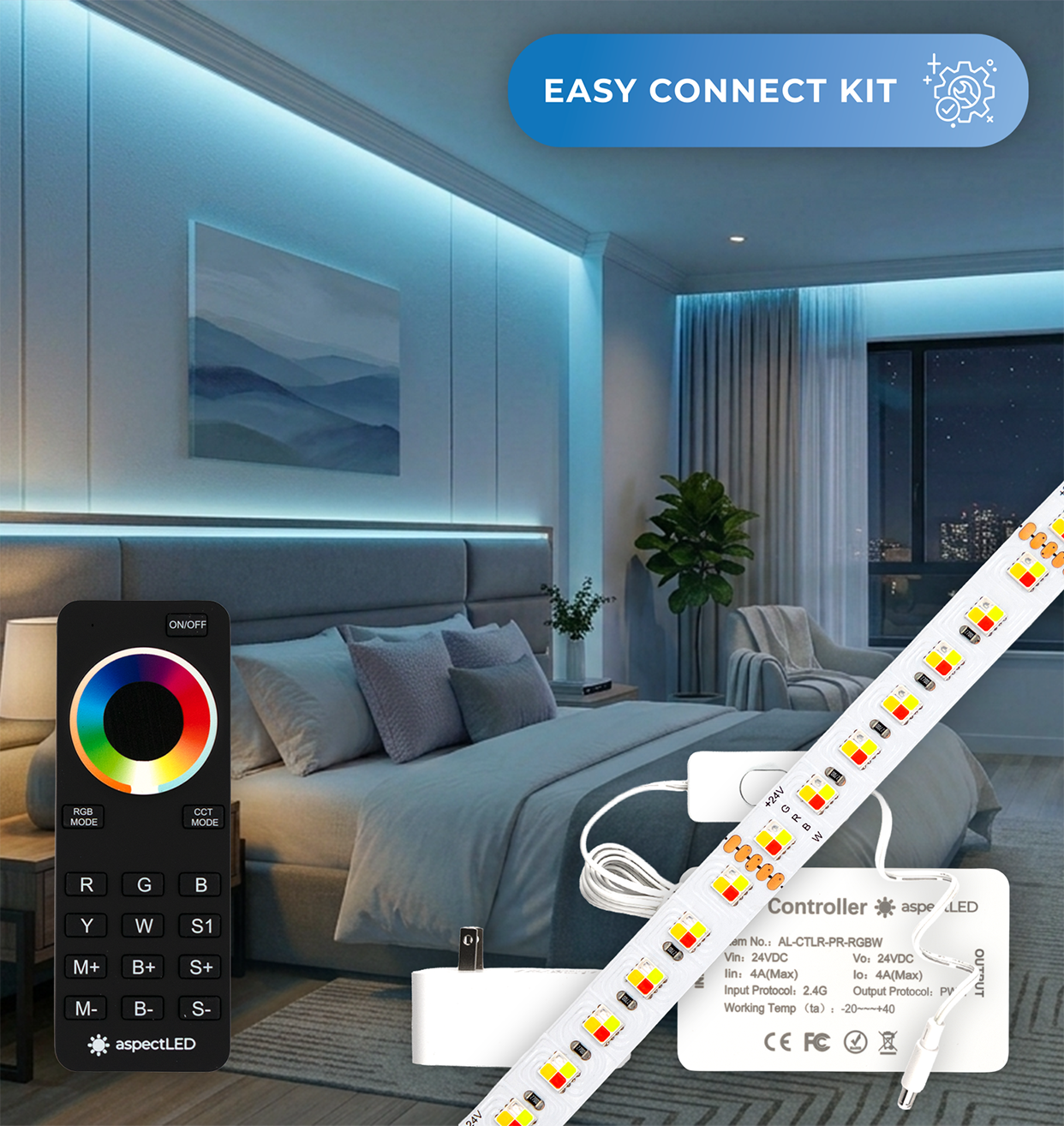

Complete Strip Light System: Everything you need all in one kit; strip light, controller, RF remote, and power supply. No compatibility concerns or surprises.
Easy transition from functional & decorative lighting: Switch effortlessly from high-quality architectural white light to bold, expressive RGB scenes, all from one system.
For Indoor Environments: IP20-rated strip lights are ideal for retail, hospitality, and tradeshow applications where water and dust exposure are minimal.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Architectural lighting
Tradeshow Exhibits
Hospitality lighting
Retail Environments
Restaurants
Seasonal & Holiday installations
