CoreLine Bold LED Strip Light - Single Color - Waterproof

Description

The IP68 CoreLine Bold LED Strip Light delivers powerful, energy-efficient illumination for architectural, landscape, and accent lighting applications in wet, damp, or dry environments. Built with a fully sealed IP68 design, it provides reliable outdoor durability while maintaining high performance and installation flexibility. The strip can be cut at precise intervals at 1.09 inches at 12V or 1.96 inches at 24V, allowing for accurate customization with minimal waste. Supporting runs up to 32.8 feet (24V) and 16.4 feet (12V), it is engineered for flexible installation across a wide range of project scales.

Specifications

Part #	AL-SL-NU-IP68
Physical
Adhesive Backing	Adhesive Tape 3M 9080
Cut Length	12VDC: 1.09" (25mm) 24VDC: 1.96" (50mm)
Dimensions	16.4' (5m) L x 0.39" (10mm) W x 0.17" (4.5mm) H 32.8' (10m) L x 0.39" (10mm) W x 0.17" (4.5mm) H
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted Mounting Straps
Weight	1.1 lb
Electrical
Efficacy (lumens per watt)	380 lumens/ft (1250 lumens/m)
Input Voltage	12VDC 24VDC
LED Quantity	43 LED's/ft (144 LED's/m)

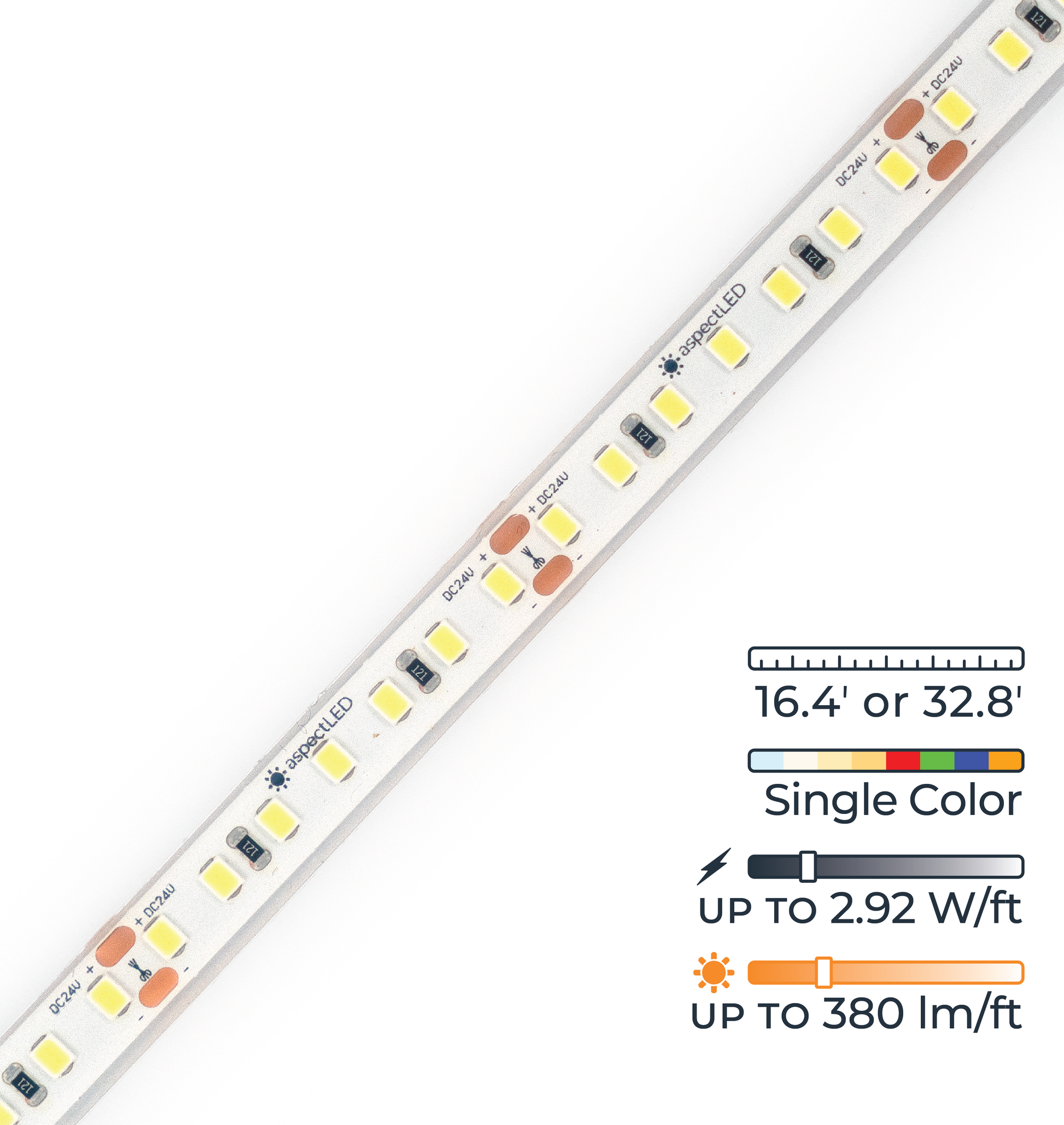

Max Power Consumption	2.92 W/ft (9.6W/m)
Max Run Length	12VDC: 16.4' (5m) 24VDC: 32.8ft (10m)
Pin/Wire Count	2 pin
Photometric
CRI	90

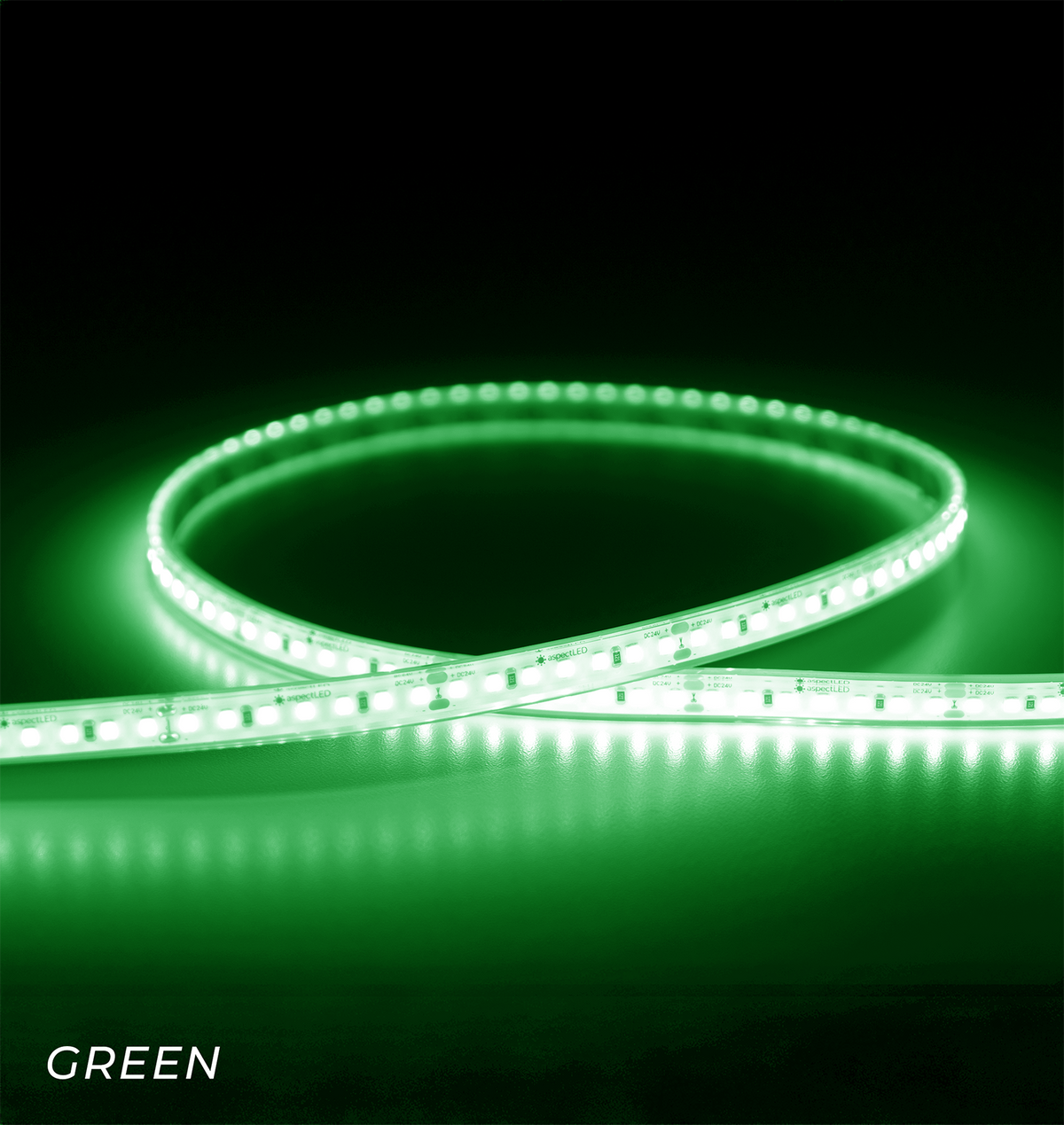

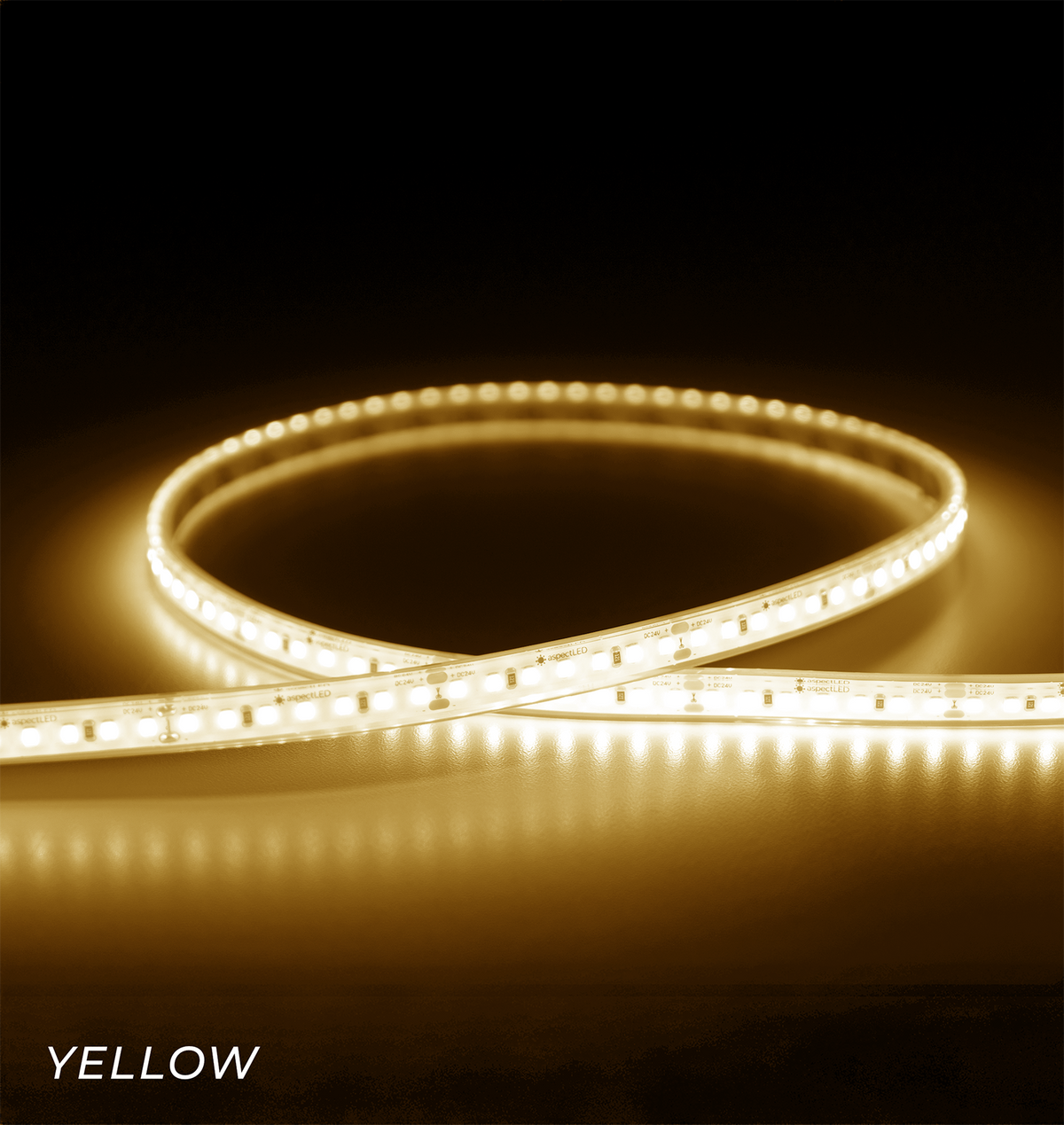

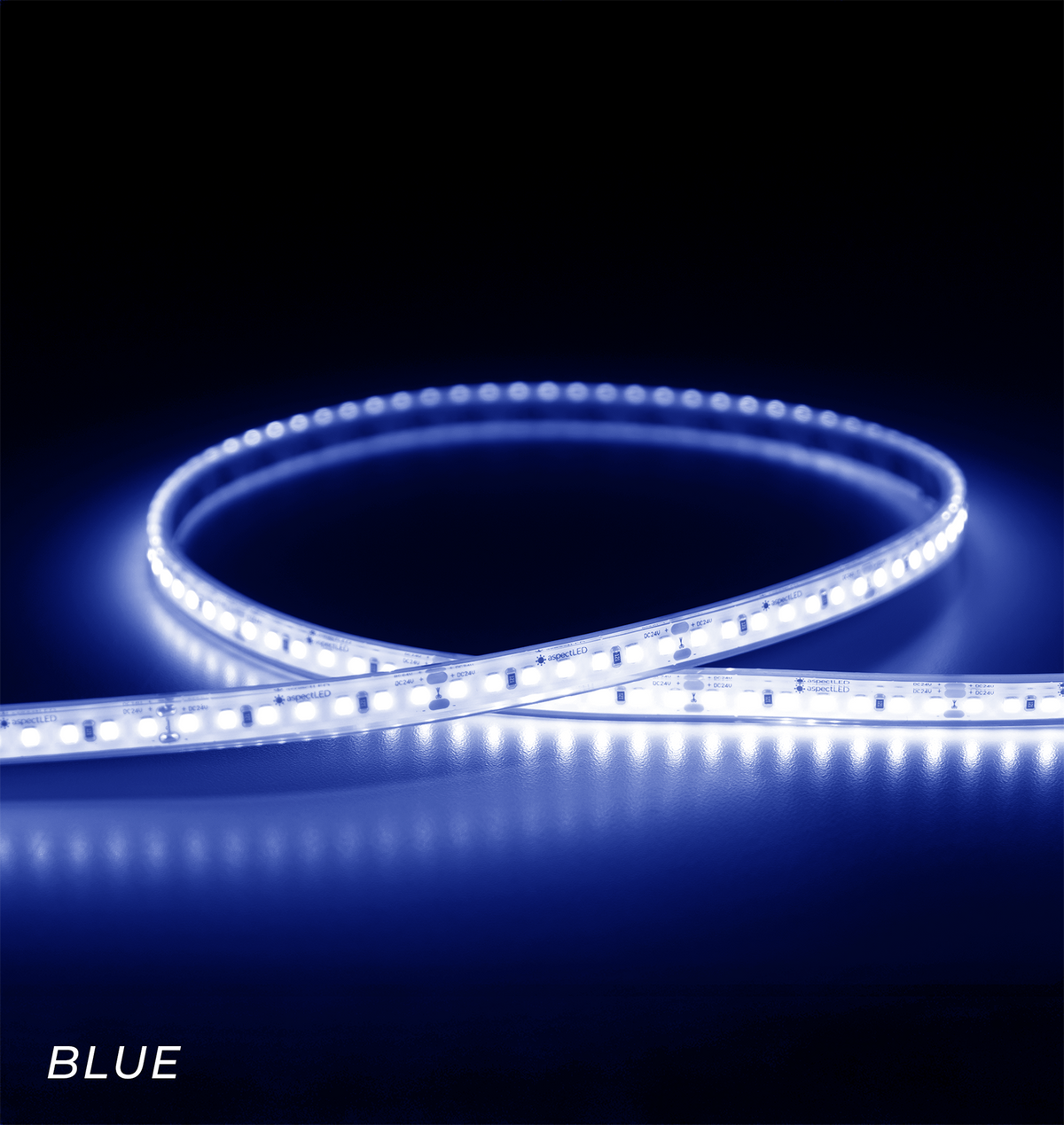

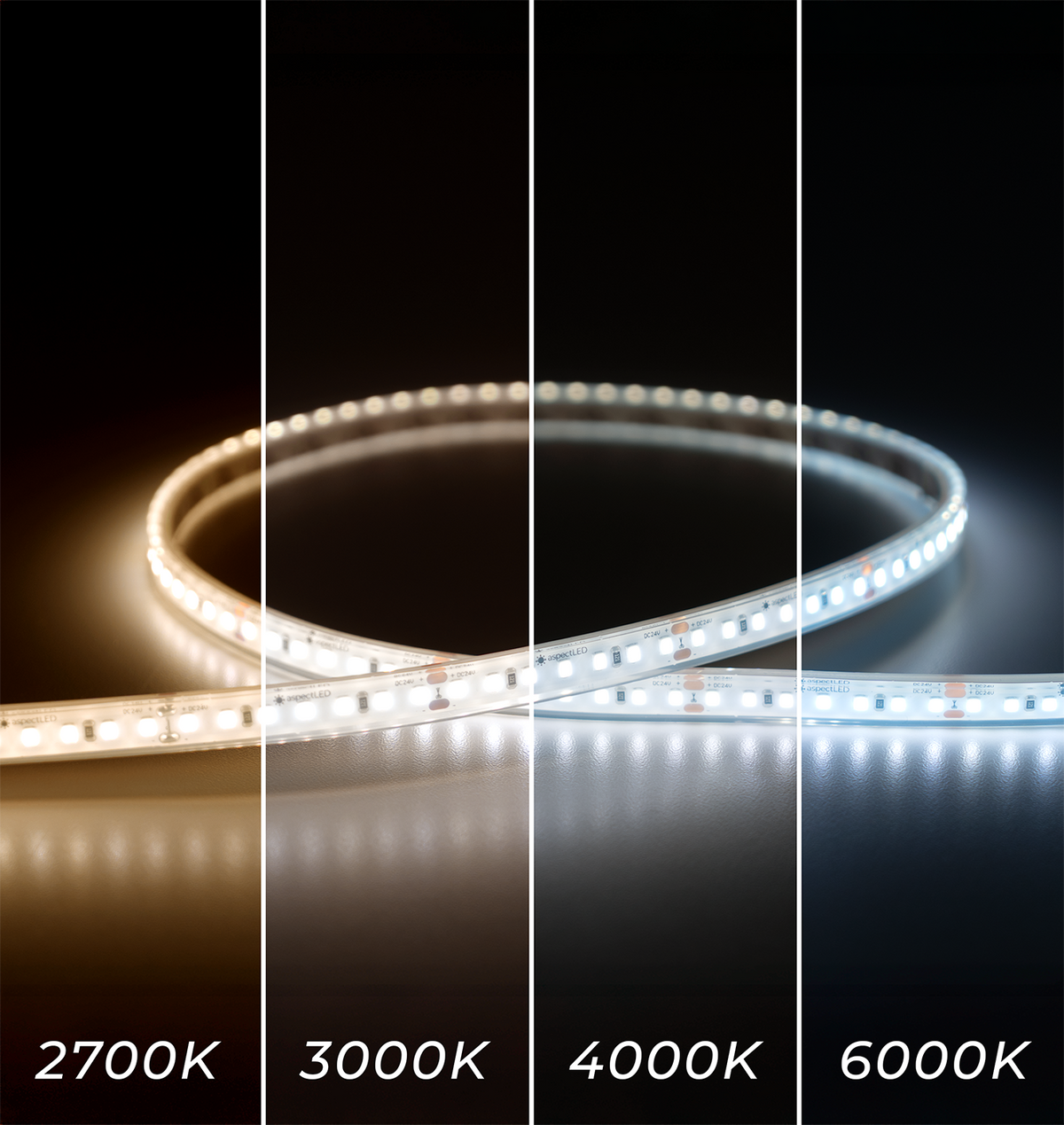

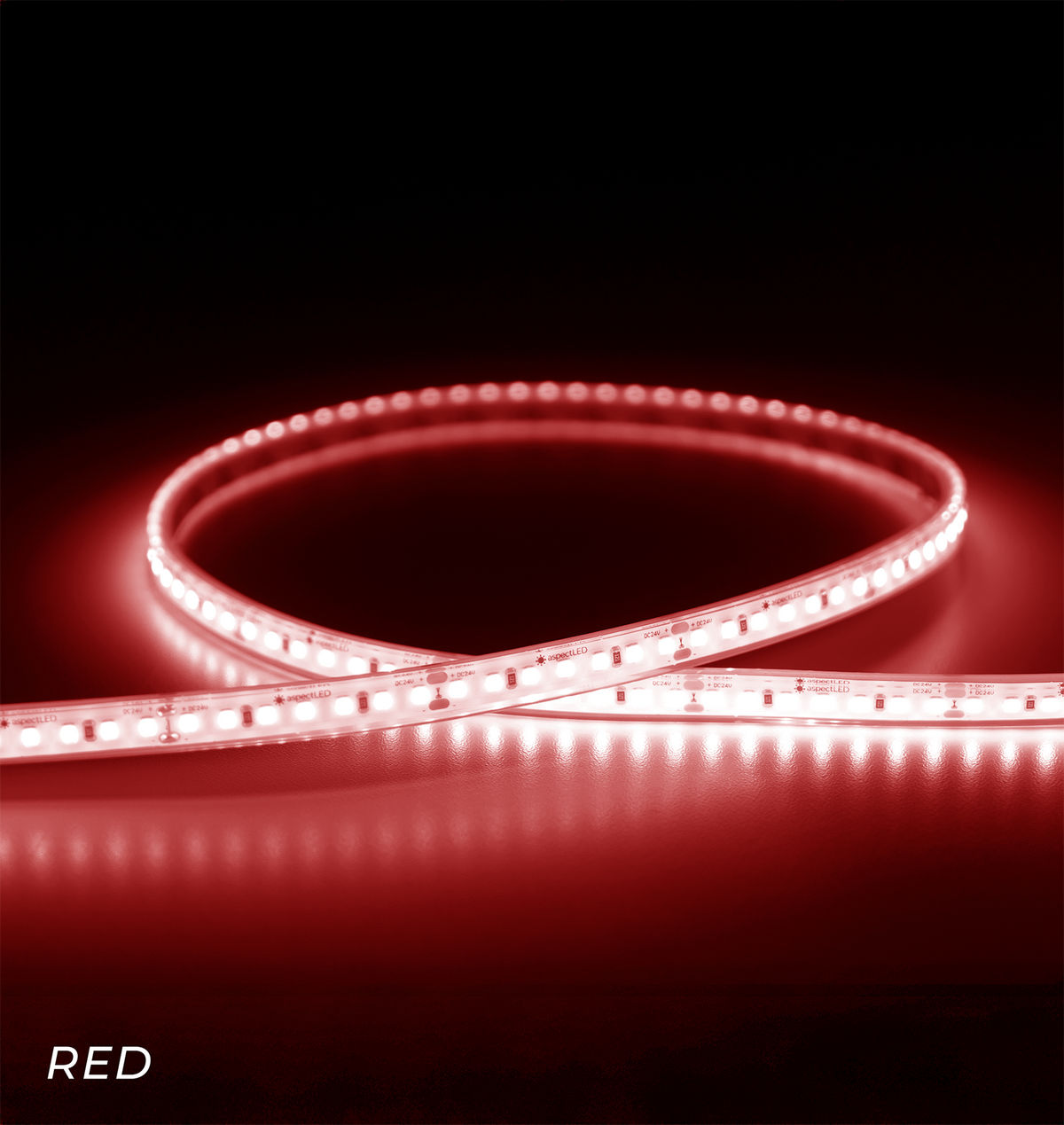

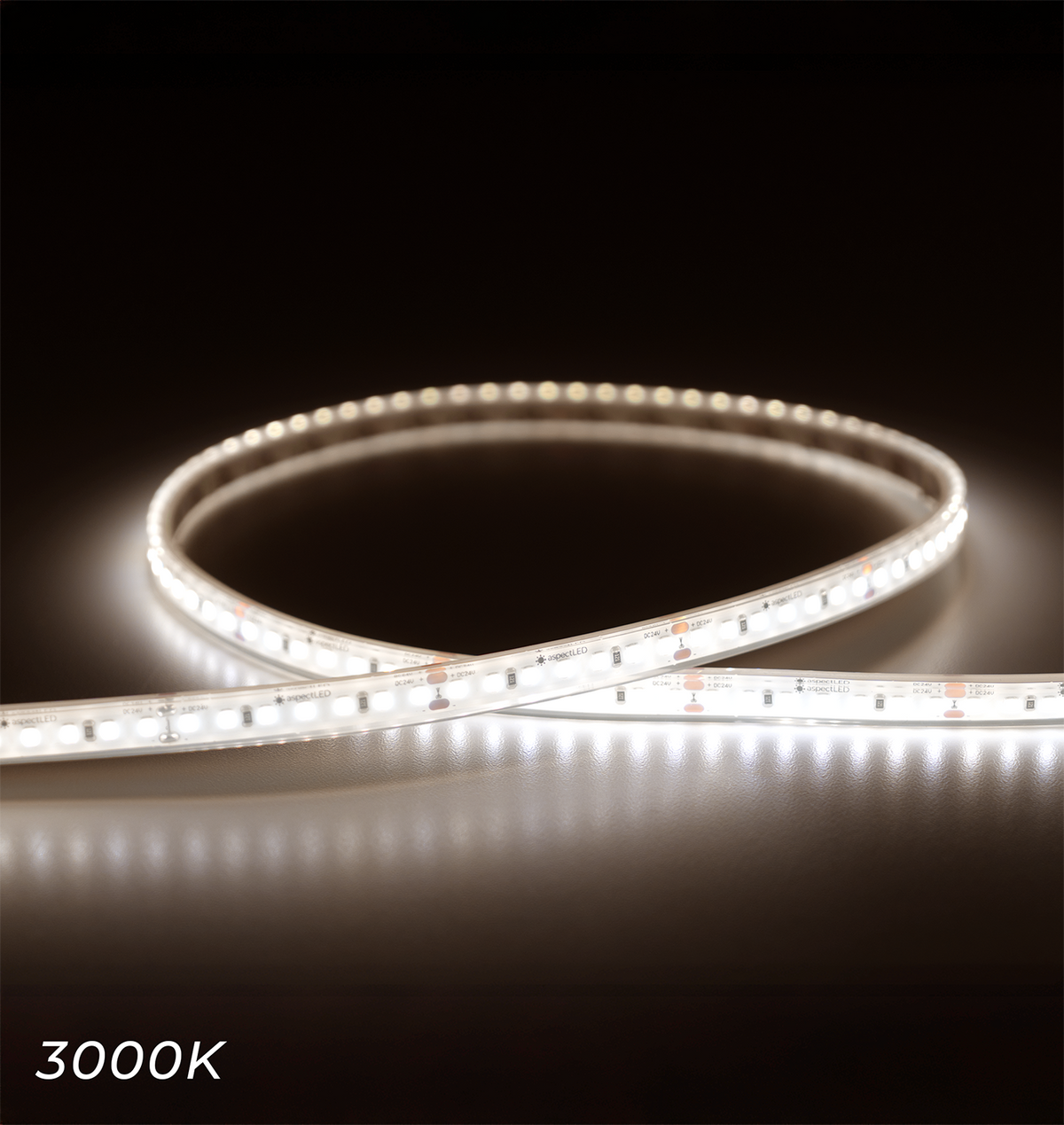

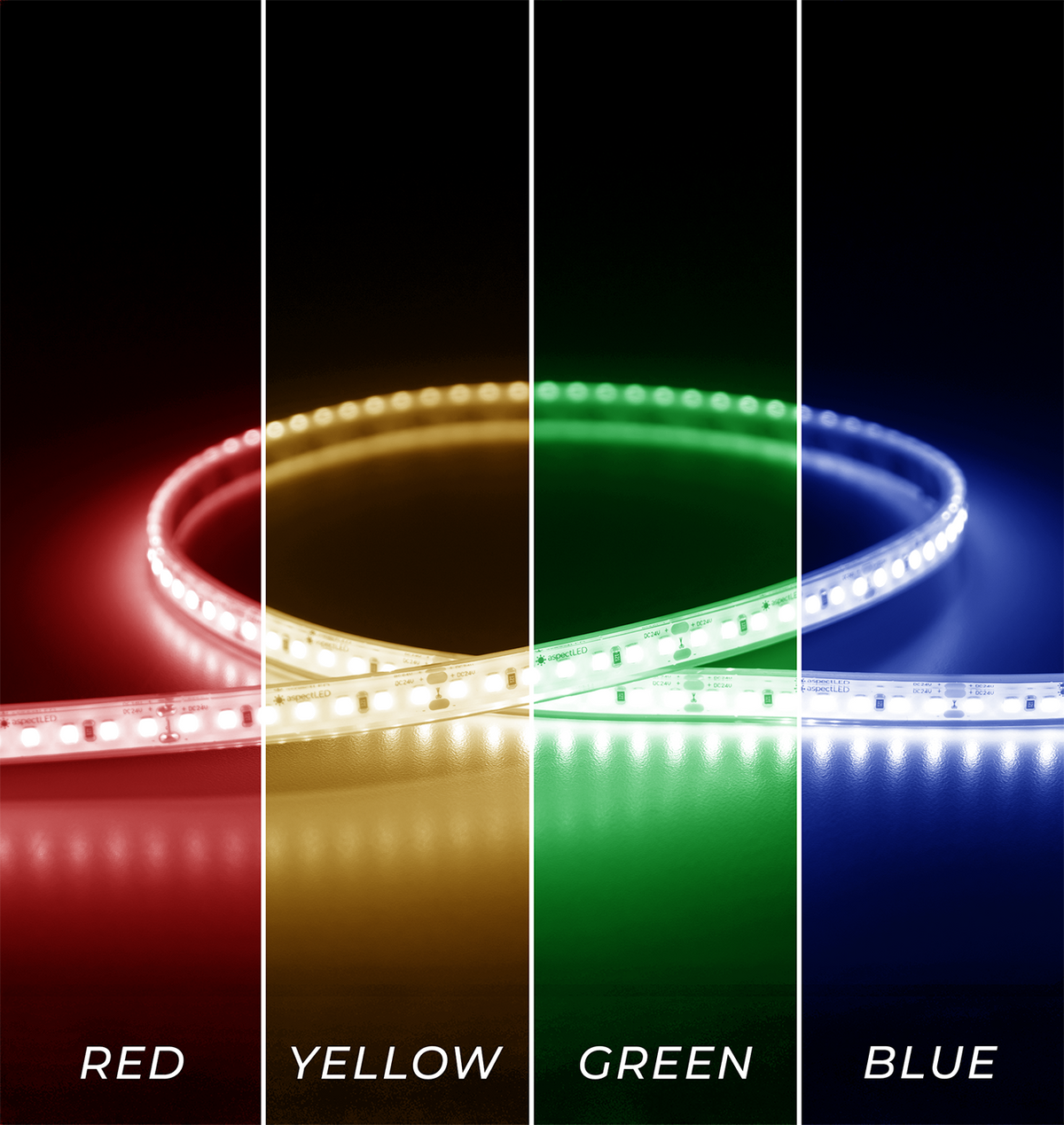

LED Color Options	2700K 3000K 4000K 6000K Red Green Blue Yellow
Max Lumens	380 lumens/ft (1250 lumens/m)
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP68
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry, Damp or Wet Locations
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes
Compatibility
Compatible Connectors	N/A
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

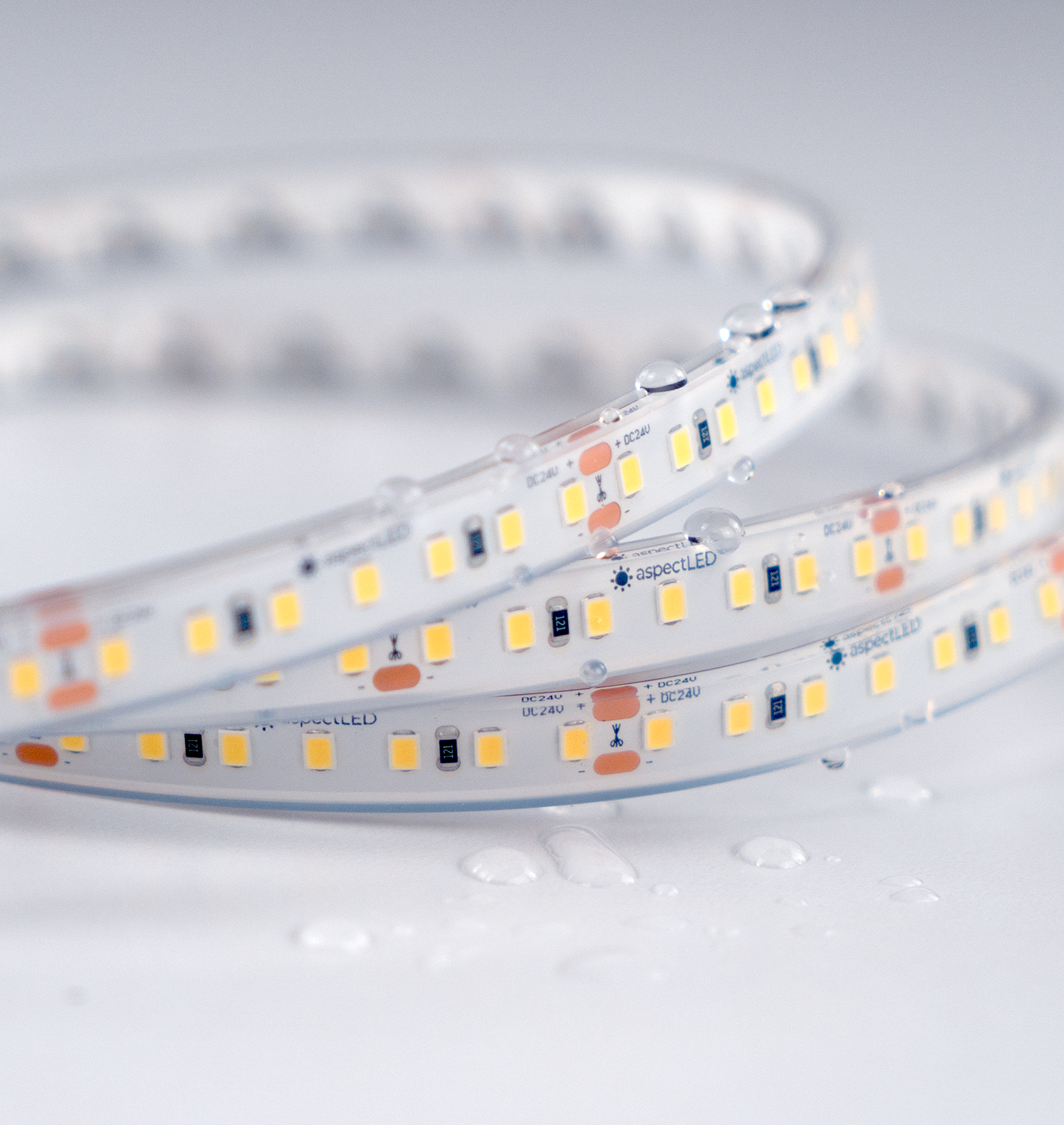

IP68 Waterproof Performance: Fully submersible and engineered for extreme conditions, perfect for exteriors, signage, and even marine projects.
True Color Fidelity: Proprietary manufacturing ensures the static white color is not altered by the silicone casing; what you specify is what you see, even in wet or variable lighting.
High CRI 90: Professional-grade light quality for applications demanding visual accuracy in architectural, retail, or residential spaces.
Fully Dimmable: Compatible with dimmable power supplies, allowing easy brightness adjustment to match your environment.

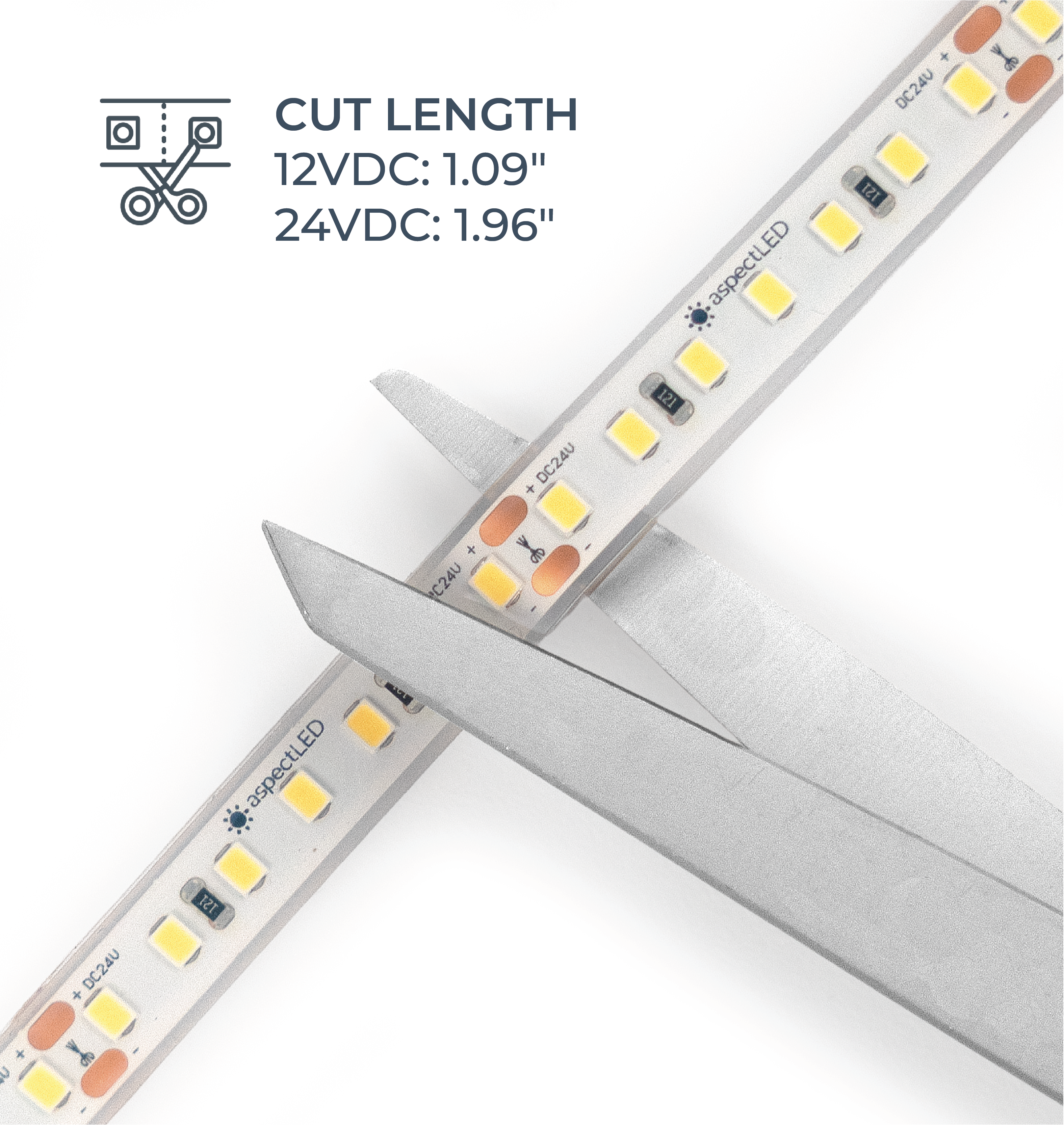

Cuttable Design: Cut every 1.09" (25mm) for 12VDC and 1.96" (50mm) for 24VDC.
Long Continuous Runs: Supports runs up to 32.8 feet (10 m) with 24V constant voltage power.
Long-Lasting: Rated for up to 50,000 hours of consistent performance.

Applications

Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Edge-lighting for glass
Under-cabinet, toe-kick, in-cove moldings
DIY projects
Safety stair tread and step marking Edge-lighting for glass
Decorative lighting for holidays, tradeshows, exhibitions

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

CoreLine Bold LED Strip Light - Single Color - Waterproof

SKU: AL-SL-NU-IP68-12-27K

Regular price $45.89

Sale price $45.89 Regular price ~~$45.89~~

Unit price

/per

In-Stock (60) - Ships Same or Next Business Day

LED Light Color: 2700K

2700K 3000K 4000K 6000K Blue Green Red Yellow/Amber

Roll Length: 16.4ft

16.4ftVariant sold out or unavailable 32.8ftVariant sold out or unavailable

Voltage: 12VDC

12VDCVariant sold out or unavailable 24VDCVariant sold out or unavailable

Quantity

This product requires a power supply.
