Description

The CoreLine Static White LED Strip Light delivers dependable, energy-efficient illumination for everyday architectural and accent lighting applications. Designed for dry indoor installations, it combines excellent color quality, reliable performance, and flexible installation. Available in four white color temperatures ranging from warm 2700K to crisp 6000K, CoreLine makes it easy to create the right lighting environment for residential, commercial, retail, and display applications. The strip can be cut every 3.94 inches, allowing for custom lengths with minimal material waste. Producing up to 167 lumens per foot at an efficient 115 lumens per watt, CoreLine provides consistent illumination while minimizing energy consumption. With a high 90+ CRI and compatibility with constant voltage dimming systems, it delivers natural, accurate light with smooth brightness control.

Specifications

Part #	AL-SL-NS-IP20-24
Physical
Adhesive Backing	Adhesive Tape 3M 9080

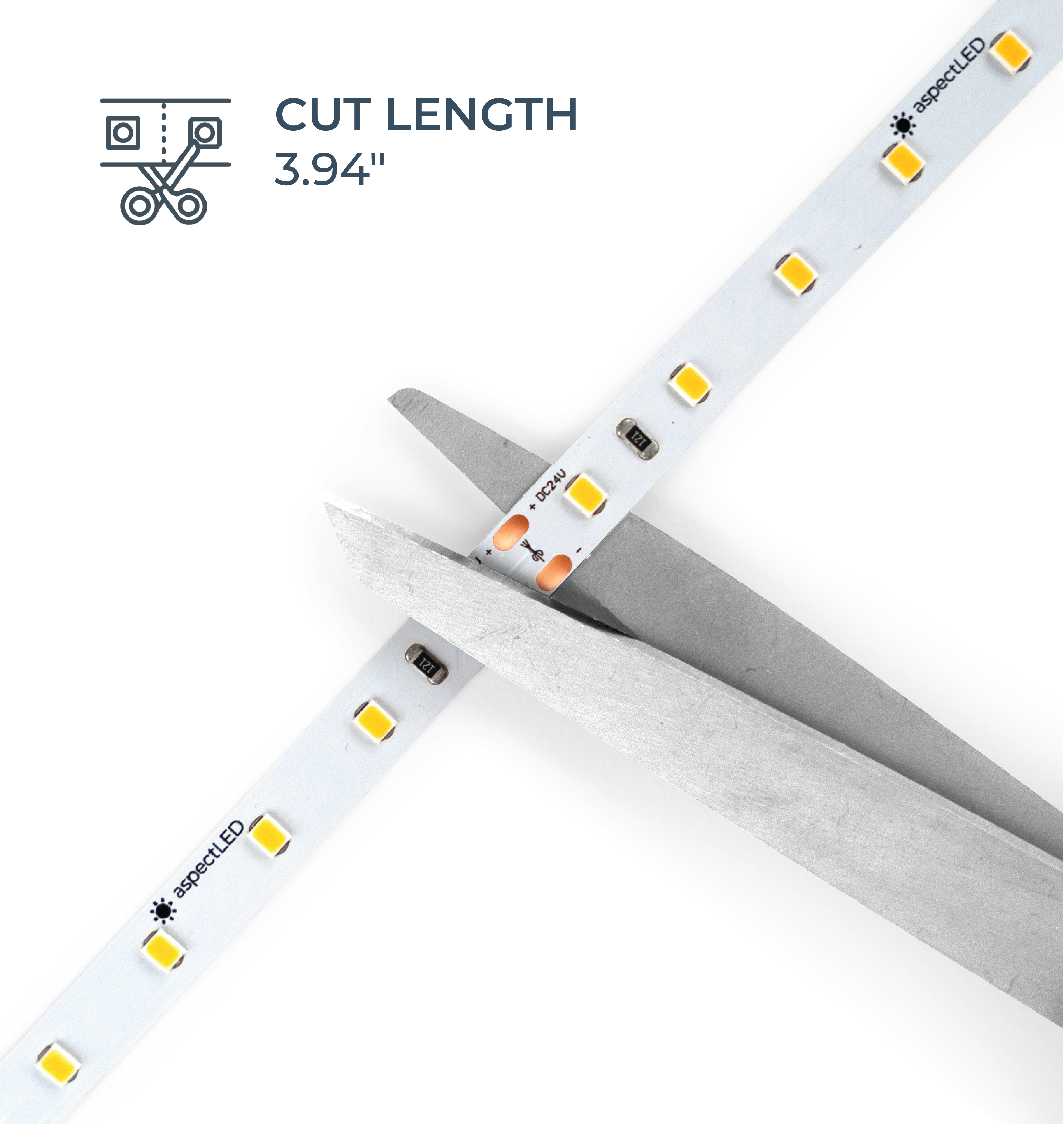

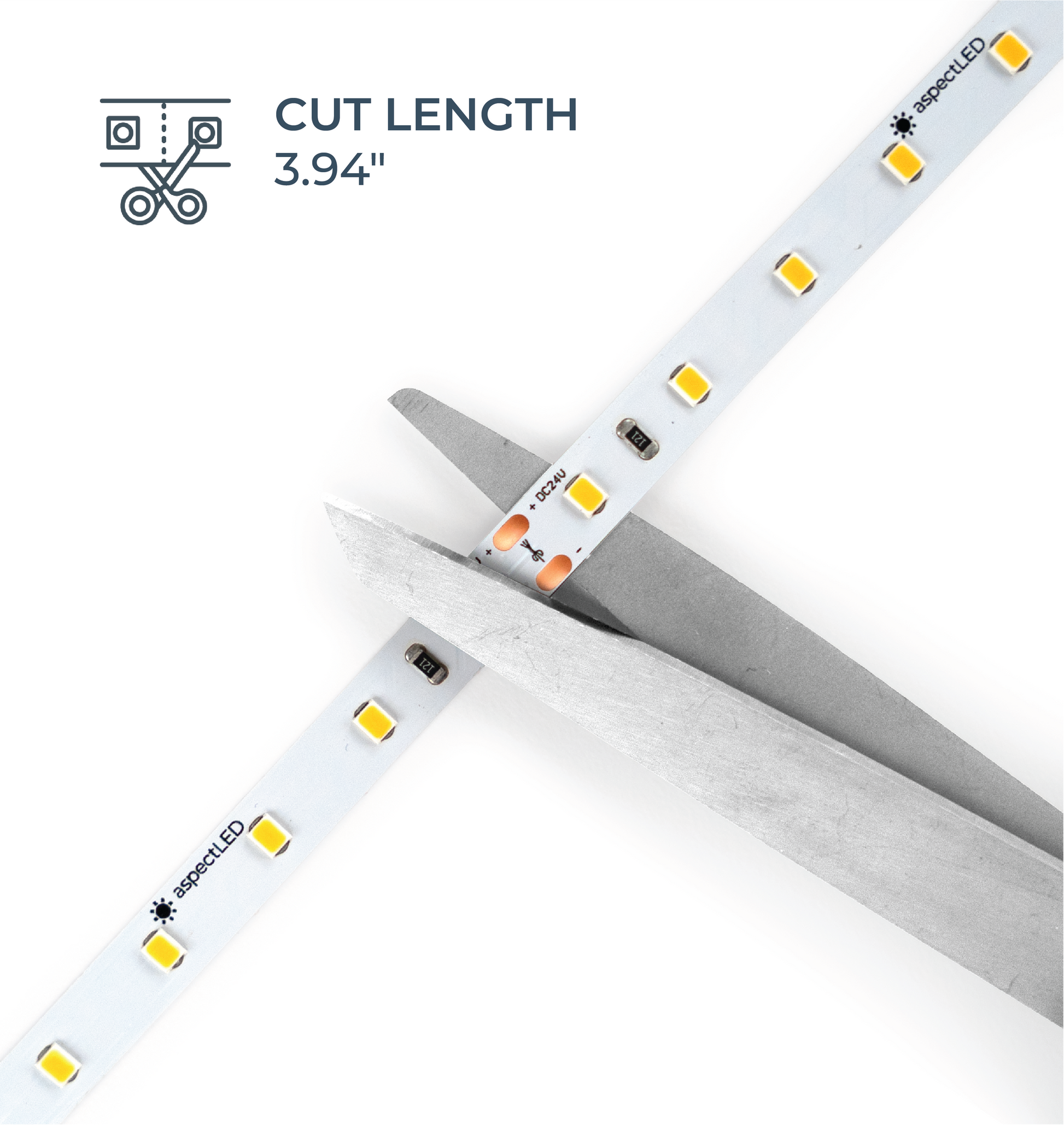

Cut Length	3.94" (100mm)
Dimensions	16.4' (5m) long 0.34" (8mm) wide 0.06" (1.4mm) high
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted
Weight	0.3 lb
Electrical
Efficacy (lumens per watt)	115 lumens/watt
Input Voltage	24VDC
LED Quantity	21 LED's/ft (70 LED's/m)
Max Power Consumption	1.46 W/ft (4.8 W/m)
Max Run Length	32.8' (10m)
Pin/Wire Count	2 pin
Photometric
CRI	90
LED Color Options	2700K 3000K 4000K 6000K
Max Lumens	167 lumens/ft (550 lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry Locations Only
Control
CV, CC, DMX or SPI	Constant Voltage
Compatibility
Compatible Connectors	AL-SL-CN-LN-JUMPER AL-SL-CN-LN-PIGTAIL AL-SL-CN-LN-SPLICE AL-SL-CN-N-ANGLESPLICE
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

Long Continuous Runs: Supports runs up to 32.8 feet (10 m) with 24V constant voltage power.
Color Range: Available in 2700K, 3000K, 4000K, and 6000K to match a wide range of residential and commercial applications.
Excellent Color Accuracy: 90+ CRI delivers vibrant, true-to-life color rendering for architectural and task lighting.
Flexible Installation: Cut every 3.94 inches (100 mm) to create custom lengths with minimal material waste.
Slim, Low-Profile Design: Measures only 8 mm wide and 1.4 mm high, making it easy to conceal in tight spaces.
For Indoor Environments: IP20 rated for indoor applications including under cabinets, shelving, coves, displays, and accent lighting.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Backlighting or edgelighting for signage
Edge-lighting for glass
Under-cabinet, toe-kick, in-cove moldings
DIY projects
Safety stairtread and step marking
Decorative lighting for holidays, tradeshows, exhibitions
Under counter lighting

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

CoreLine LED Strip Light - Static White

SKU: AL-SL-NS-IP20-24-27K

$31.89

$31.89 ~~$31.89~~

In-Stock (199) - Ships Same or Next Business Day

LED Light Color: 2700K

Roll Length: 16.4ft

16.4ft 32.8ft

This product requires a power supply.
Calculate your power supply
