Corner Mount LED Channel, Narrow - Silver - 10PK
Corner Mount LED Channel, Narrow - Silver - 10PK
Regular price
$247.89
Sale price
$247.89
Regular price
Low Stock (only 8 items left in stock) - Backorder Available
Description

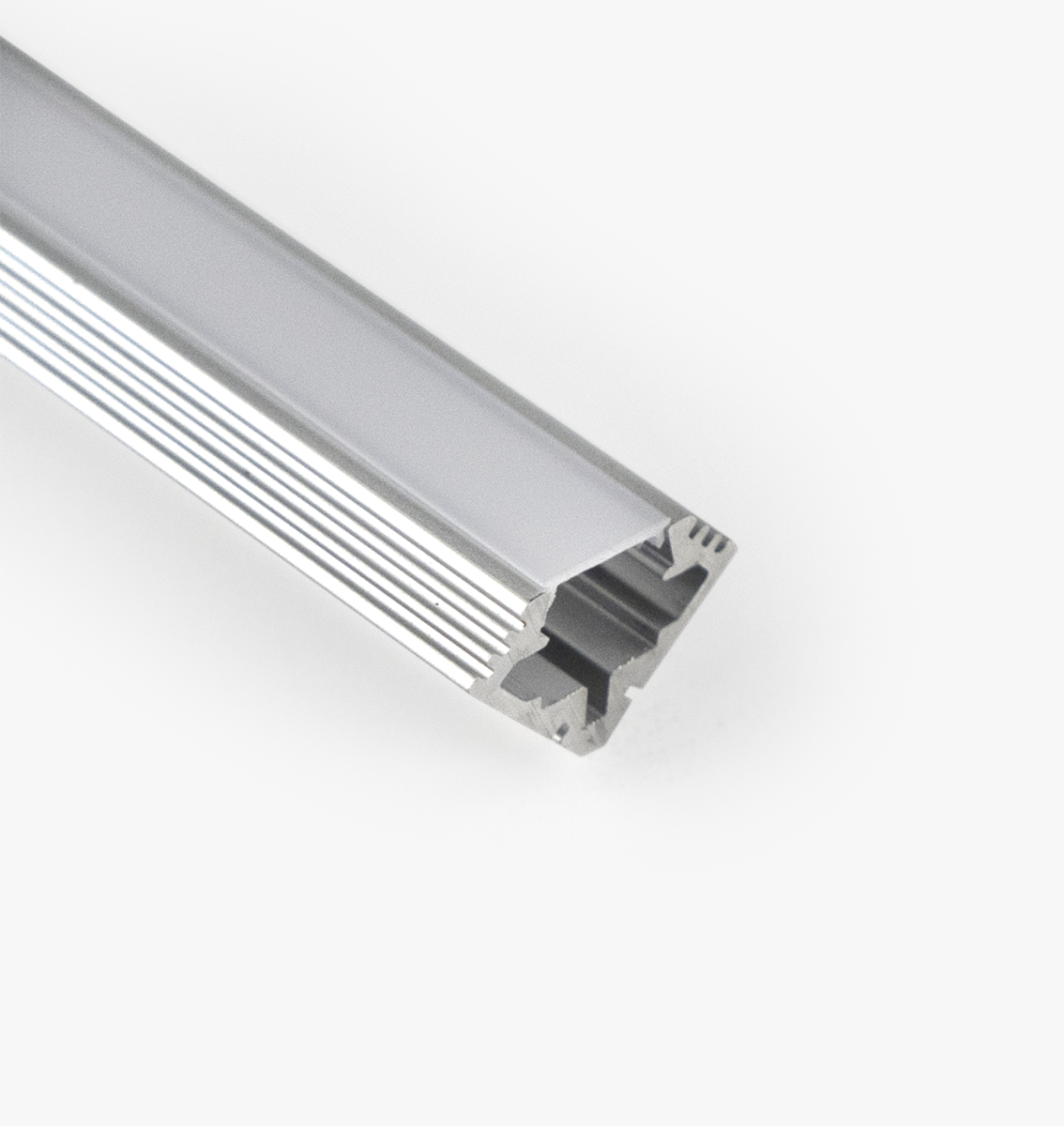

This narrow corner-mount channel is designed for strip lights 11mm wide or less. Its 90° profile makes it perfect for under-shelf, cabinetry, overhang, molding, and other corner installations. Built from durable aluminum, it shields your strip lights while ensuring smooth, even light diffusion. Customize your look with a clear, frosted or smoke lens. The smoke lens softens output for subtle accent lighting, while the clear and frosted lenses provide bright, clean illumination ideal for task lighting.
Key Features
Key Features
- The 90° corner design makes it easy to mount out of sight while providing maximum illumination
- It directs light at a 45 degree angle, reducing harsh shadow lines and spreading illumination across a larger surface area
- Low profile design is easily installed out of sight
- 1/2" visible lens
- Fits any strip light up to 11mm wide
- Compatible with SMD and COB light sources, including tunable white, color-changing, and static white options
- Available with clear, frosted, or smoke lenses for a customized, built-in look
- Offered in sleek black or silver aluminum finishes to blend seamlessly into any space
- End caps and mounting clips included for clean, easy installation
- Constructed from high-quality AL6063-T5 aluminum alloy for durability, heat dissipation, and extended LED lifespan
- Anodized finish adds extra protection against rust and oxidation
- Multi-pack options available for installers and large-scale projects
Specifications
Specifications
| Part # | AL-TRK-CRN-N |
| Physical | |
| Channel Material | Anodized Aluminum |
| Lens Material | Polycarbonate |
| Lens Options | Clear, Frosted, Smoke |
| Routing Width | N/A |
| Weight | 1.31lb (6.5ft Channel + Lens) |
| Standards / Certifications | |
| Standards / Certifications | RoHS |
| Warranty | 1 Year |
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
