Corner Mount LED Channel, Wide - 10PK - Silver

Description

This wide, corner mount channel is universally compatible with all of our LED strip lights. Its 90 degree design makes it ideal for under-shelf, cabinetry, overhang, molding, and other corner installations.

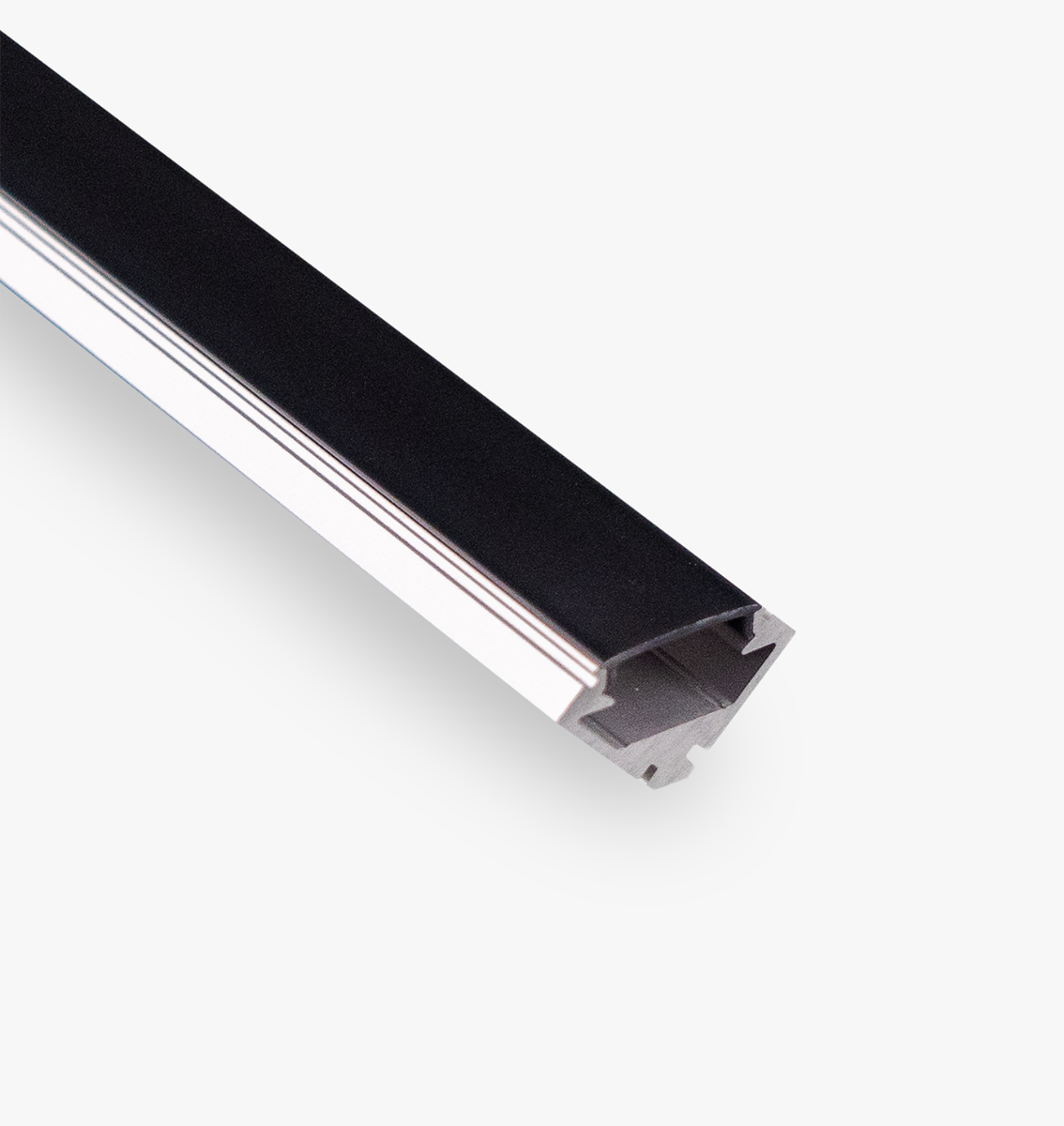

Crafted from durable aluminum, it protects your strip lights while providing smooth, even light diffusion. Choose between a frosted or smoke lens to customize the lighting effect - our smoke lens reduces light output by 70% for subtle accent lighting, while the frosted lens delivers bright, clean illumination perfect for task lighting.

Specifications

Part #	AL-TRK-CRN-W
Physical
Channel Material	Anodized Aluminum
Dimensions	0.89" Wide x 0.89" Deep
Lens Material	Polycarbonate
Lens Options	Frosted, Smoke
Weight	1.92 lbs (channel + lens)
Photometric
Lens Transmittance	Frosted - 78%, Smoke - 25% of total lumen output
Compatibility
Compatible Strip Lights	Compatible with all aspectLED strip light products (indoor or outdoor rated) – or other strip light products 18mm wide or less.
Standards / Certifications
Warranty	1 year

Features

Corner Mounting: This channel is specifically designed for installation into 90 degree corners with minimal intrusion or visual clutter.
Universal Compatibility: 15mm of strip space accommodates ALL aspectLED strip lights (indoor and outdoor rated) or 2x select strip products side-by-side.
Customizable: Mix and match channel and lens colors to get the perfect combo for any project.
DIY Friendly: Installation is made easy with simple mounting clips and easy-to-use end caps.
Durable Aluminum Construction: High-quality aluminum body enhances heat dissipation and extends LED lifespan.
Maintenance Free: No ongoing upkeep required.
Multi-Packs Available: Perfect for installers and larger projects.

Applications

Under Cabinet Lighting: Quickly mount below kitchen cabinets for nearly invisible task lighting.
Stairway & Step Lighting: Mount or embed channel into stair risers or under steps for both aesthetics and safety.
Retail Display Lighting: Create eye-catching product displays that make people stop in their tracks.
Restaurants & Bars: Add mood lighting along walls, counters, and seating areas with minimal effort.
Integrated Handrails & Railings: Provide subtle, functional illumination where guests and the public need it most.
Gallery & Museum Lighting: Seamlessly integrate high-quality lighting into exhibits and display cases to illuminate masterpieces.
Custom Furniture & Fixtures: Incorporate into custom built-ins, shelving, or bed frames.

Technical Documents

Technical Drawing

Cut Sheet

Compatibility Chart
