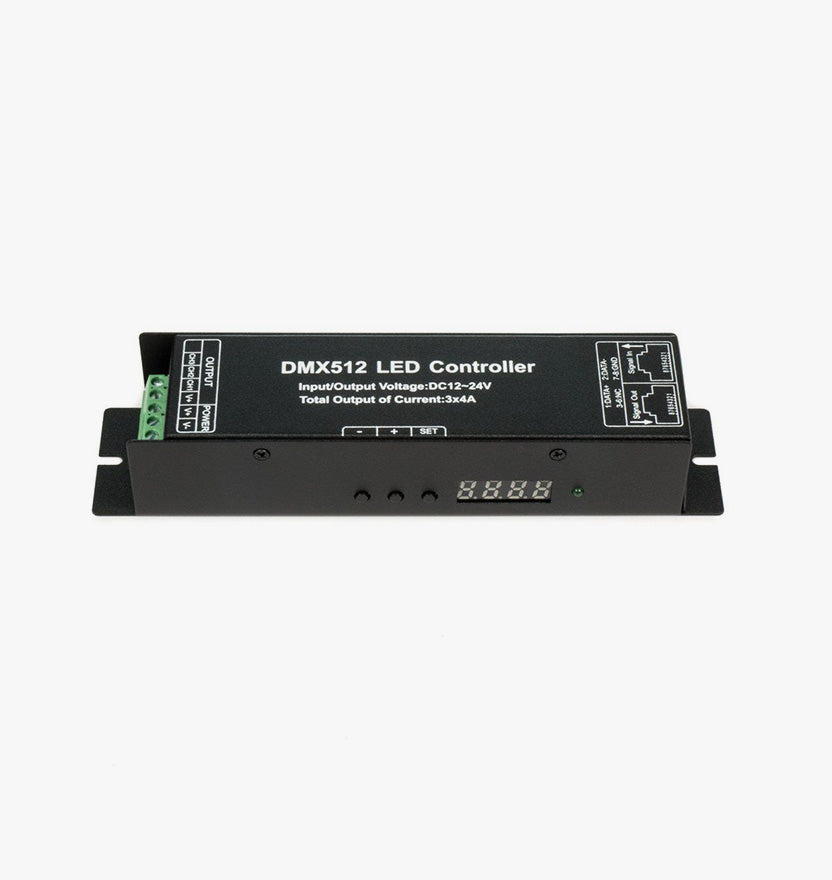

DMX512 Decoder and LED Driver
DMX512 Decoder and LED Driver
Regular price
$17.99
Sale price
$17.99
Regular price
In-Stock (60) - Ships Same or Next Business Day
Description
This DMX512 Decoder and Driver takes a DMX signal and uses it to drive your RGB LED fixtures, providing full color and brightness control. Simply connect the DMX input on this unit, assign its DMX channel ID using the dip switches on the product, and connect the red, green and blue wires on your LED fixture. Within minutes, you'll be controlling your LED fixtures via DMX. This DMX512 decoder/driver is compatible with all of aspectLEDs RGB LED fixtures.
According to the National Electrical Code (NEC), wiring exceeding 96 watts is no longer considered Class 2 wiring.
Key Features
Key Features
- DMX
-
512 Channels
- Preset Functions
Dimensions
Dimensions
7" Long | 1.12" Wide | 1.25" High
Specifications
Specifications
| Part # | AL-CTLR-DMXDEC |
| Physical | |
| Dimensions | 7" Long 1.12" Wide 1.25" High |
| Finish Options | Black |
| Mounting Method | Surface Mount |
| Weight | 0.9 lbs |
| Electrical | |
| Input Signal | DMX512/1990 digital |
| Input Voltage | 12VDC or 24VDC |
| Max Power Consumption | 180 Watts - 360 Watts |
| Output Signal | 3 channels @ up to 5A per channel |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Suitable Uses | Indoor Dry Locations |
| Compatibility | |
| Compatible Connectors | RJ45 |
| Standards / Certifications | |
| Standards / Certifications | RoHS |
| Warranty | 1 Year |
