Dotless™ CCT Solderless Splice Bite Connector
Dotless™ CCT Solderless Splice Bite Connector
Regular price
$1.00
Sale price
$1.00
Regular price
Low Stock (only 3 items left in stock) - Backorder Available
Description

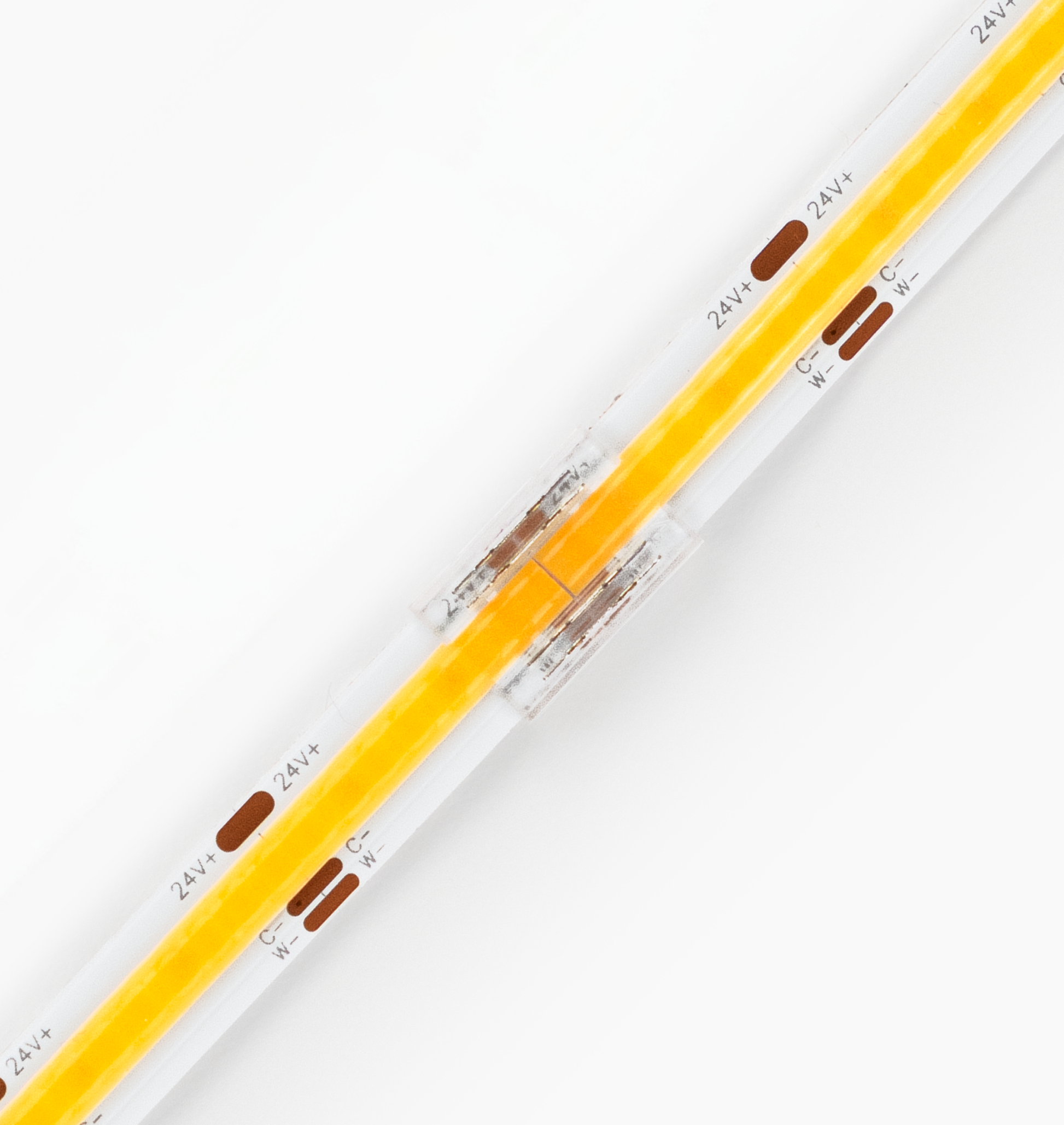

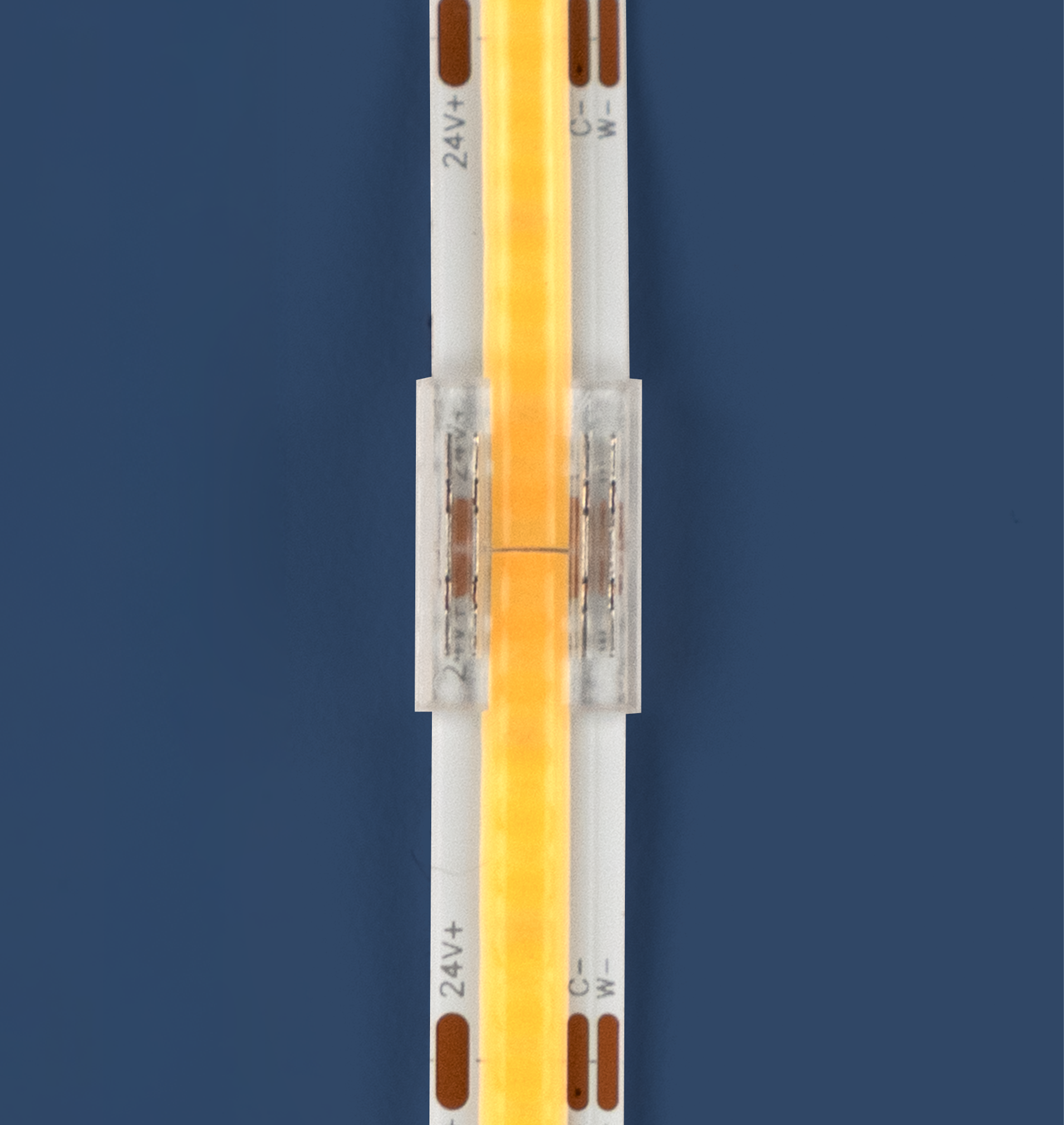

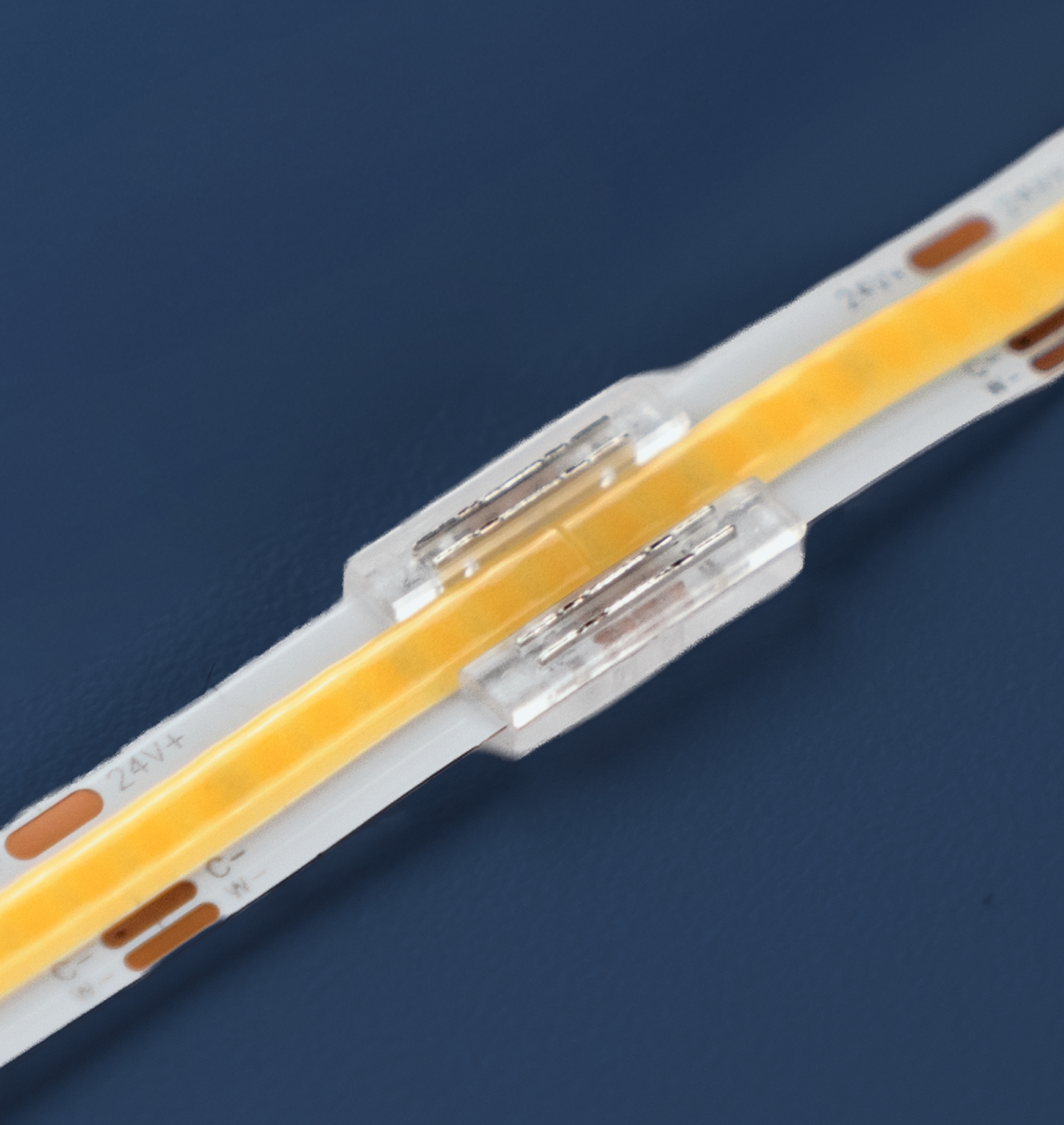

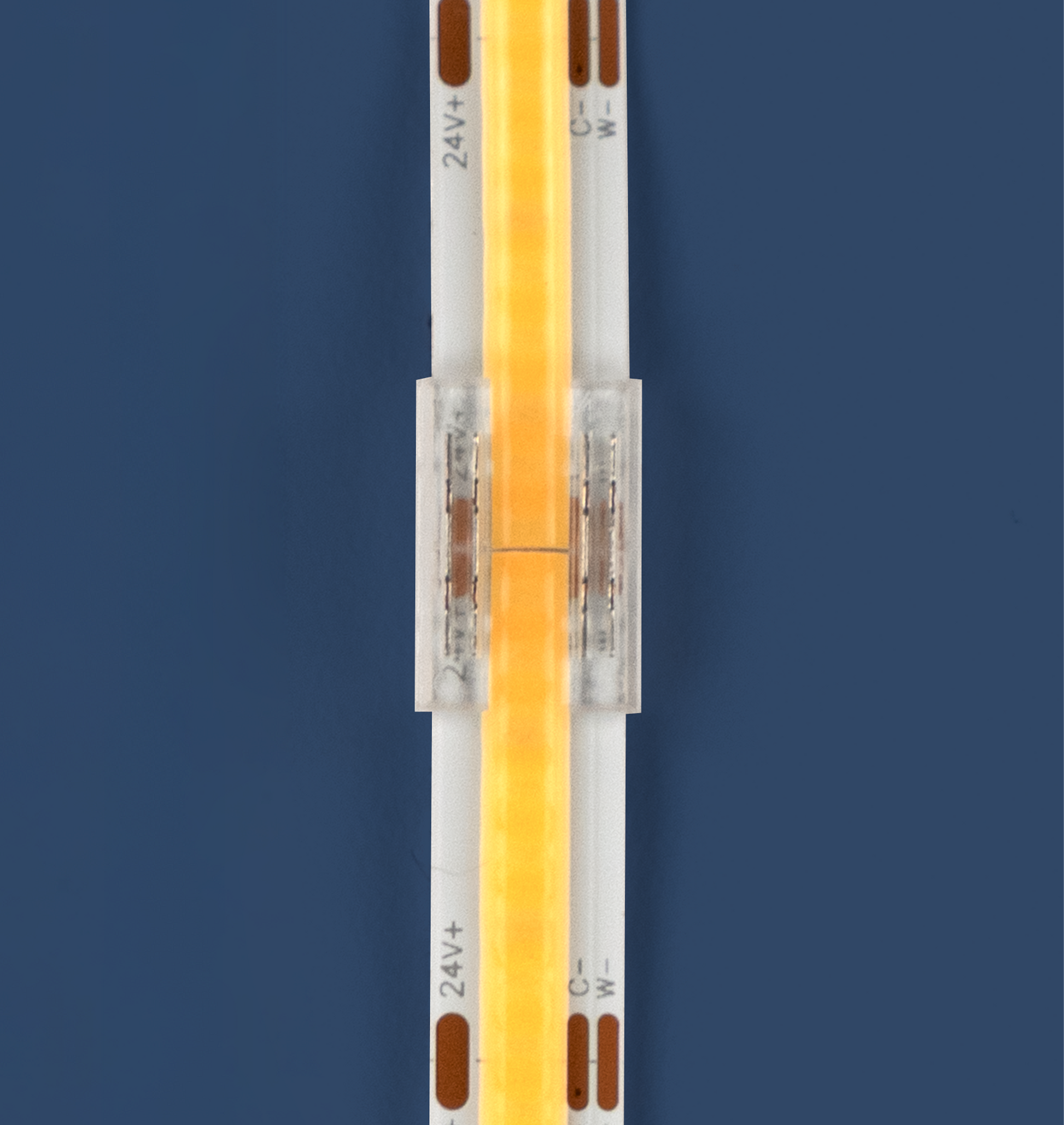

Easily join together two cut sections of an LED strip light with this bite connector, no soldering required. Simply cut the strip light to the desired length and splice it to another piece of strip light utilizing this connector. Ensure correct polarity at all connection points. Needle-nose or parallel-jaw pliers are recommended for a smooth installation.
Key Features
Key Features
-
Secure Connection
-
Compact Design
-
IP 20
NON WATERPROOF -
Easy To Use
Specifications
Specifications
| Part # | AL-SL-CN-LT-SPLICE |
| Physical | |
| Connector Type | Strip to Strip Splice |
| Dimensions | 0.67" Long (17mm) 0.455" Wide (11.56mm) 0.138" Deep (3.51mm) |
| Weight | 0.02 oz (0.9g) |
| Electrical | |
| Max Current | 24VDC-4A or 12VDC-5A |
| Pin/Wire Count | 4 pin |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-LN-U-CCT-24 AL-SL-AD-SPI-IP20-24-3K |
| Standards / Certifications | |
| Warranty | 1 year |
Features
Features
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
