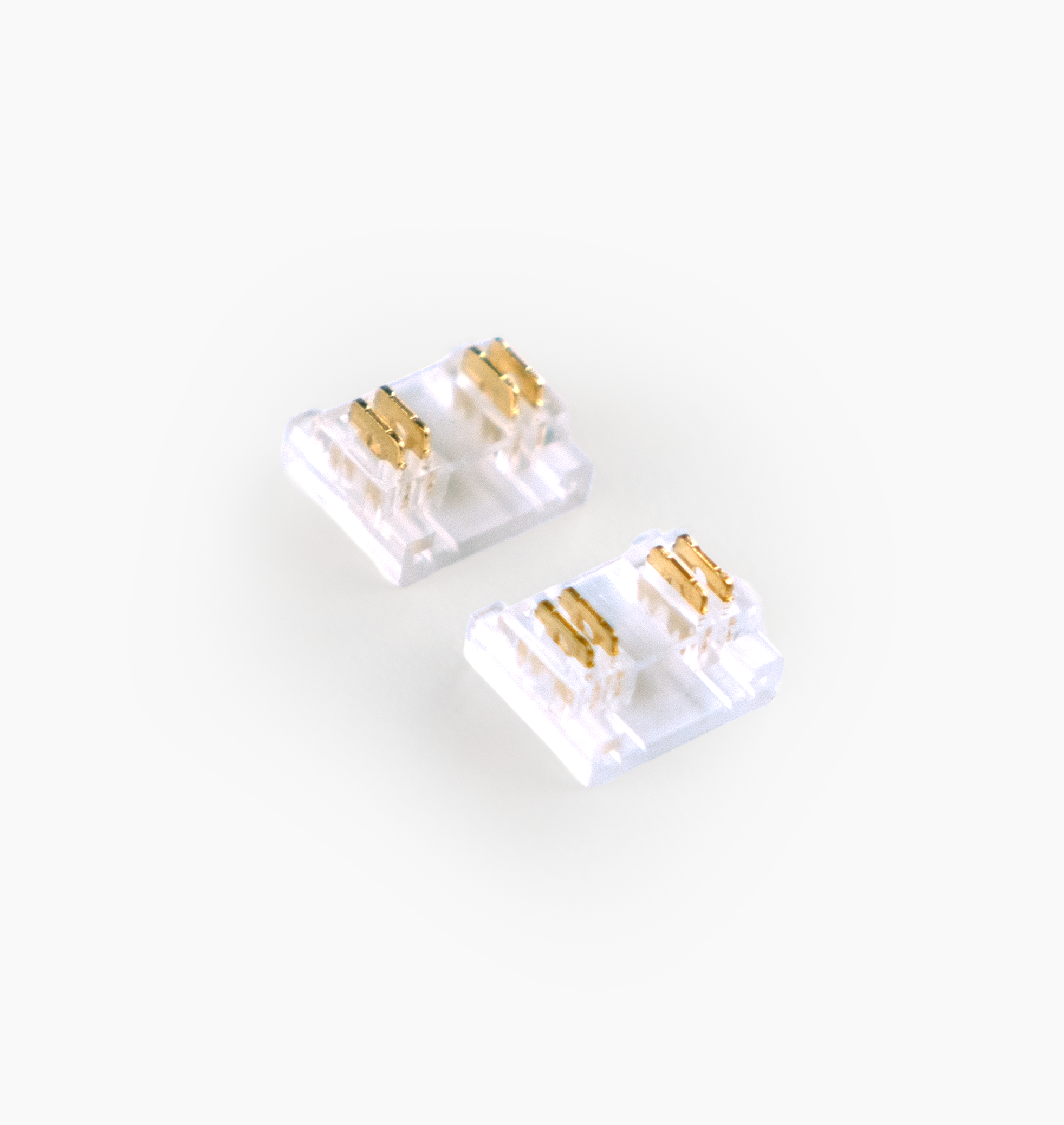

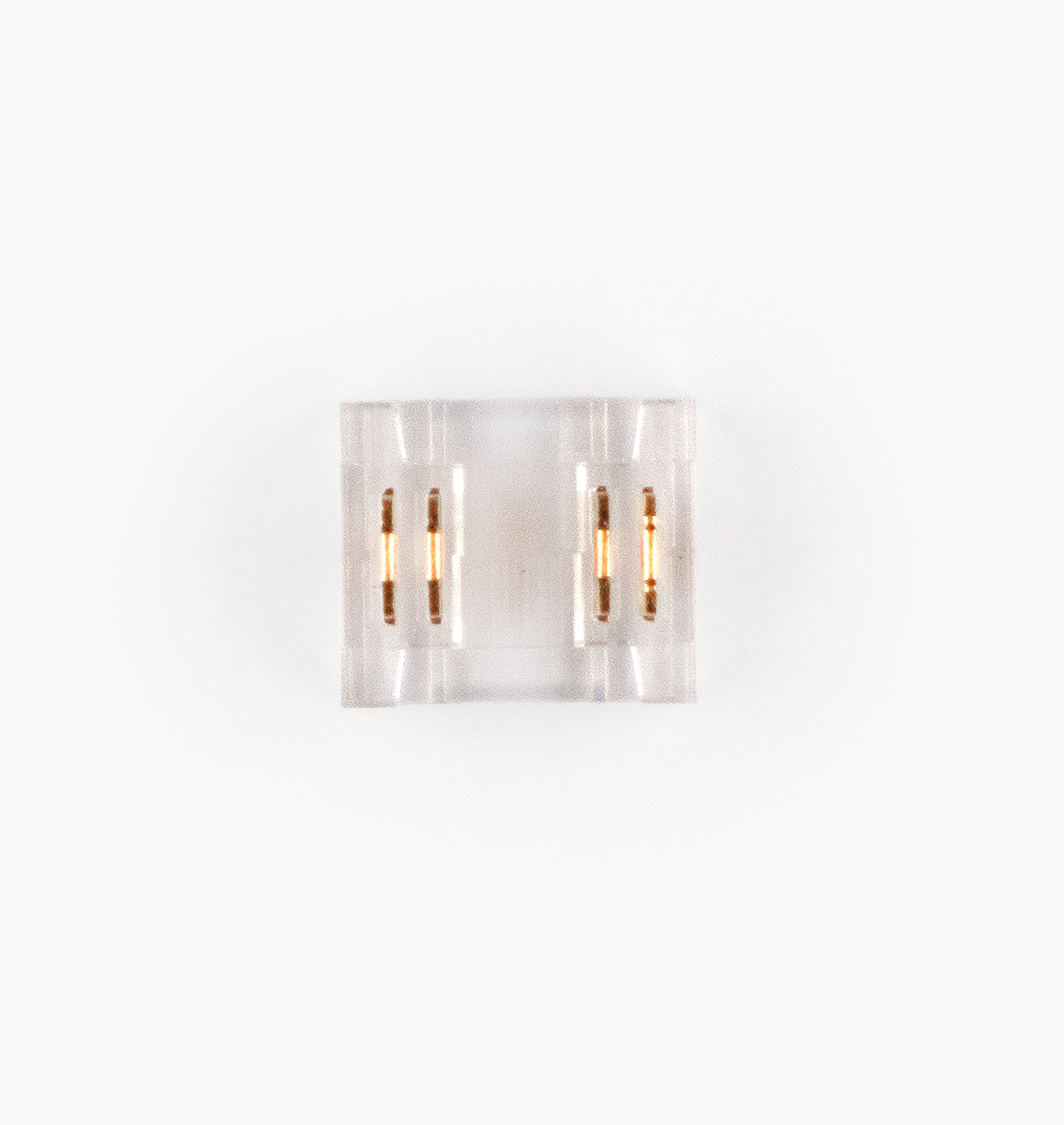

Dotless™ RGB Solderless Splice Bite Connector
Dotless™ RGB Solderless Splice Bite Connector
Regular price
$1.00
Sale price
$1.00
Regular price
$1.00
In-Stock (489) - Ships Same or Next Business Day
Description

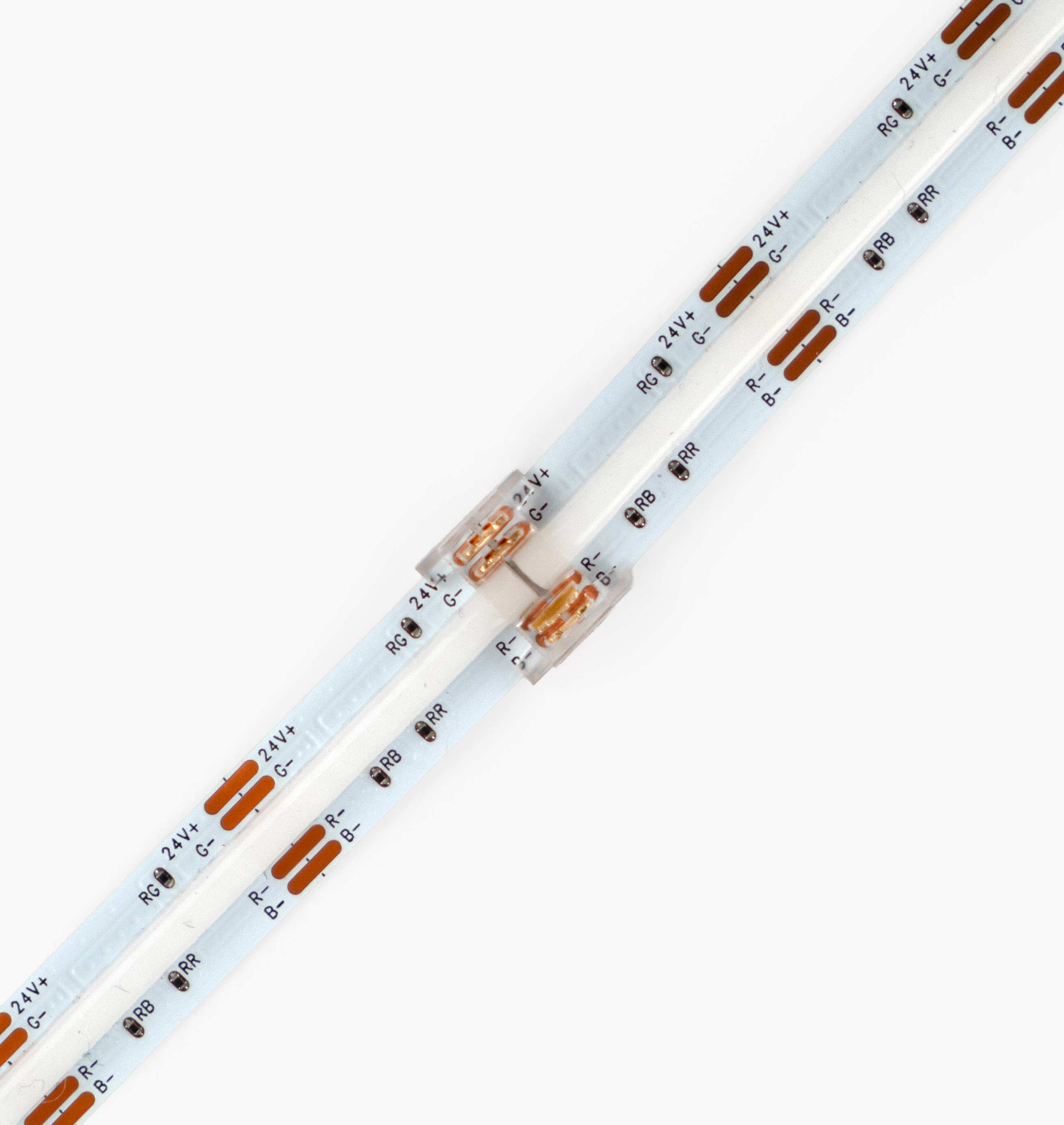

Easily join together two cut sections of an LED strip light with this bite connector, no soldering required. Simply cut the strip light to the desired length and splice it to another piece of strip light utilizing this connector. Ensure correct polarity at all connection points. Needle-nose or parallel-jaw pliers are recommended for a smooth installation.
Specifications
Specifications
| Physical | |
| Connector Type | Strip to Strip Splice |
| Maximum Wire Gauge | 22 AWG |
| Weight | 0.22 oz (6.3g) |
| Electrical | |
| Max Current | 4A at 24VDC |
| Pin/Wire Count | 4 pin |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-LN-IP20-24-RGB |
| Standards / Certifications | |
| Warranty | 1 year |
