Dotless™ LED Strip Lights – RGB Color Changing - Waterproof
Dotless™ LED Strip Lights – RGB Color Changing - Waterproof
Low Stock (only 8 items left in stock) - Backorder Available
This product requires a power supply.
Calculate your power supply
Description

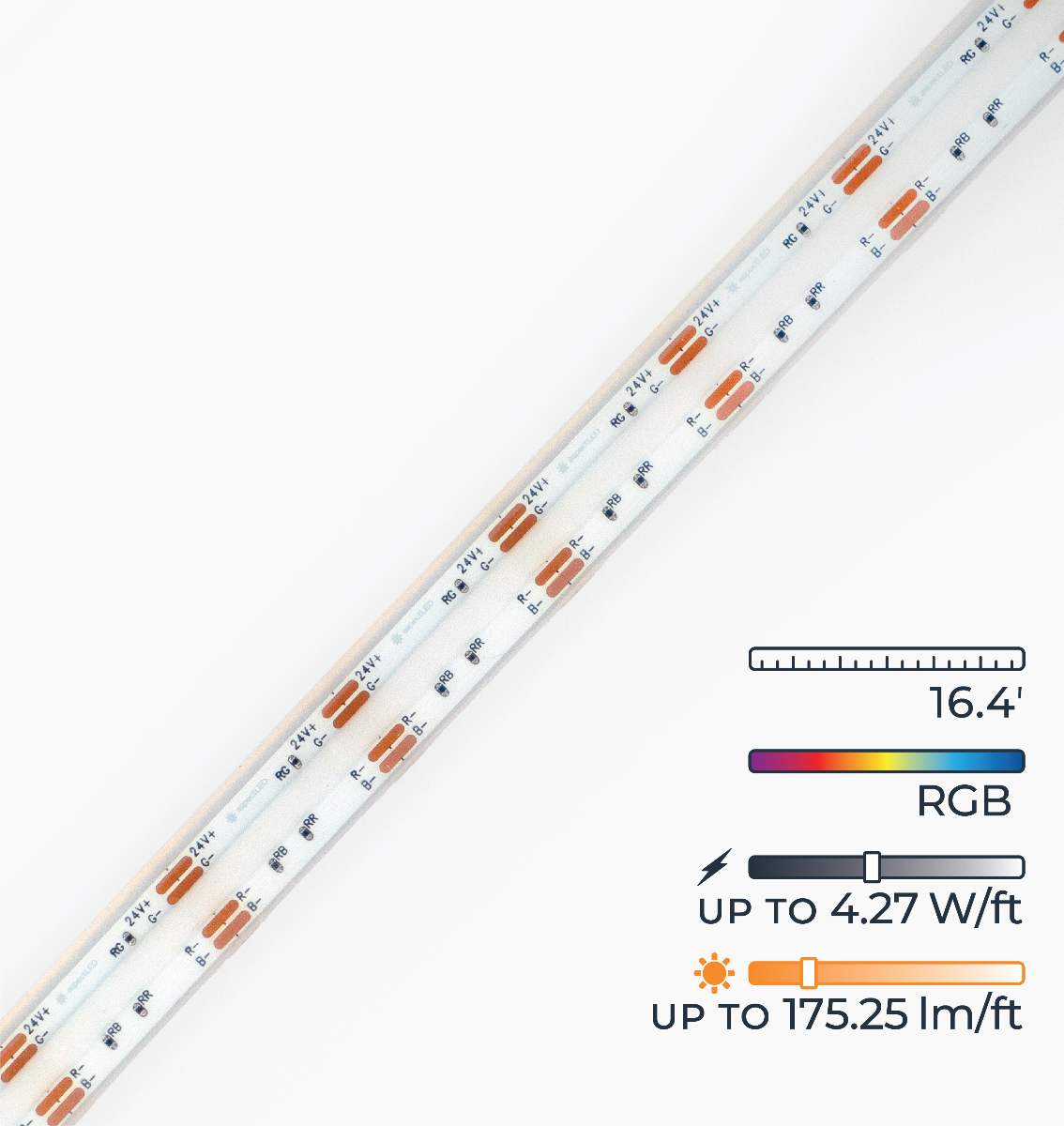

Color Changing Waterproof RGB Dotless Strip Lights deliver flawless, vibrant RGB color effects with smooth, even light distribution across the entire strip. Featuring a continuous COB (Chip-on-Board) design, these strips produce a clean, uninterrupted line of light with no visible diodes and no diffusion lens required, making them ideal for visible installations. With an IP68 waterproof rating, this strip is fully submersible and built to withstand demanding and extreme environments. Perfect for accent or task lighting, they provide bright, high-intensity output of up to 175.25 lumens per foot while maintaining uniform illumination. The flexible, cuttable design allows for precise customization, with cut points every 0.98" (25mm) to achieve the exact length your project requires.
Key Features
Key Features
-
Waterproof
-
Dotless COB
-
Reduced glare
-
CRI 90
Specifications
Specifications
| Part # | AL-SL-LN-IP68-24-RGB |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 180 |
| Cut Length | 0.98" (25mm) |
| Dimensions | 16.4' (5m) 0.472" (12mm) .019" (5mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive, Mounting Straps |
| Weight | 1.2 lbs (0.54 kg) |
| Electrical | |
| Efficacy (lumens per watt) | Up to 41 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 256 LED's/ft (840 LED's/m) |
| LED Type | COB |
| Max Power Consumption | 4.27W/ft (14W/m) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| LED Color Options | RGB |
| RGB Wavelength Ranges | Red 1.00 Green 0.84 Blue 0.67 |
| Environmental | |
| IP Rating | IP68 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176° F (-30 - 80° C) |
| Suitable Uses | Dry, Damp, Wet |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Dimmable | Yes |
| Compatibility | |
| Compatible Connectors | n/a |
| Standards / Certifications | |
| Standards / Certifications | CE UL RoHS LM80 |
| Warranty | 3 years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
