Element Neon SideFlex Light – Static White

Description

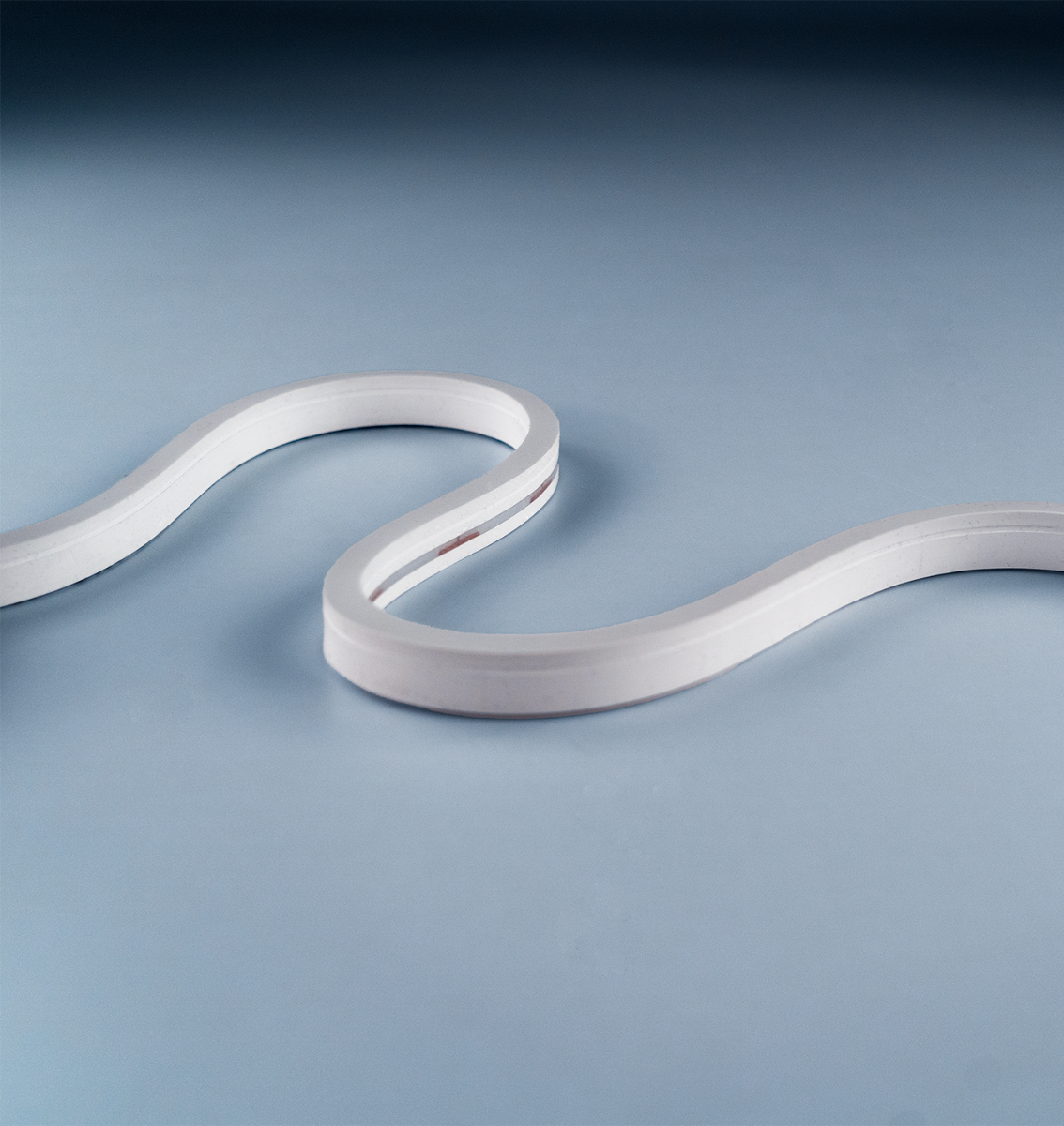

The Element Neon Static White SideFlex Light features flexible side-bending for smooth curves and clean lines across flat surfaces. With a maximum run length of up to 32 feet on a single power supply, it offers quick, cost-effective installation. The dotless design delivers a continuous, seamless neon glow, while the cuttability ensures a perfect fit for custom projects. Boasting a 90+ CRI and IP67 rating, it's built to perform in both indoor and outdoor environments.

Key Features

Max Run Length: 32ft
IP67
CRI 90
Side Bending

Specifications

Part #	AL-NF-1018-24
Physical
Beam Angle	120°
Bend Radius	3.14" (80mm)
Bend Type	Side
Cut Length	1.97" (50mm)
Dimensions	Up to 32.8' Long (10m) 3/8" Wide (10mm) 11/16" Thick (18mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Aluminum Profiles
Weight	4.6 lbs (2.08 kg)
Electrical
Efficacy (lumens per watt)	30
Input Voltage	24VDC
LED Quantity	36 per foot (120 per meter)
LED Type	SMD 2835 LED Chip

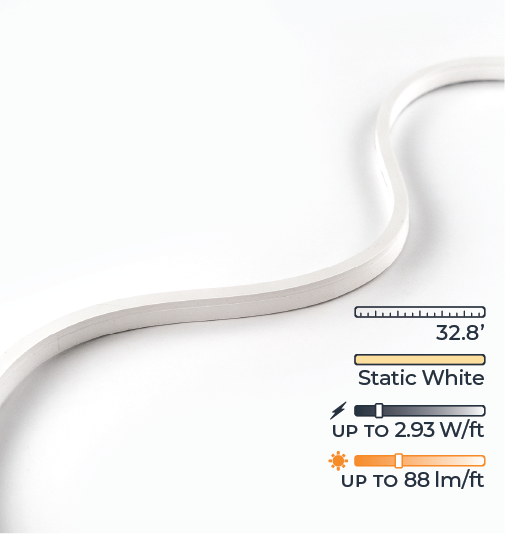

Max Power Consumption	2.93W per foot (9.6W per meter)
Max Run Length	32ft
Photometric
Color Consistency	1 bin (3 step MacAdam)
CRI	90+
LED Color Options	3000K, 4000K, 6000K
Max Lumens	Up to 88 lumens per foot
Environmental
IP Rating	IP67
Max Operating Temperature	-25°C to 60°C (-13°F to 140°F)
Max Storage Temperatures	-30°C to 80°C (-22°F to 176°F)
Suitable Uses	Dry and Damp Locations
Control
CV, CC, DMX or SPI	Constant Current
Dimmable	Yes
Compatibility
Compatible Connectors	AL-NF-1018-CN-1
Standards / Certifications
Standards / Certifications	UL/cUL Listed RoHS CE
Warranty	3 Years

Features

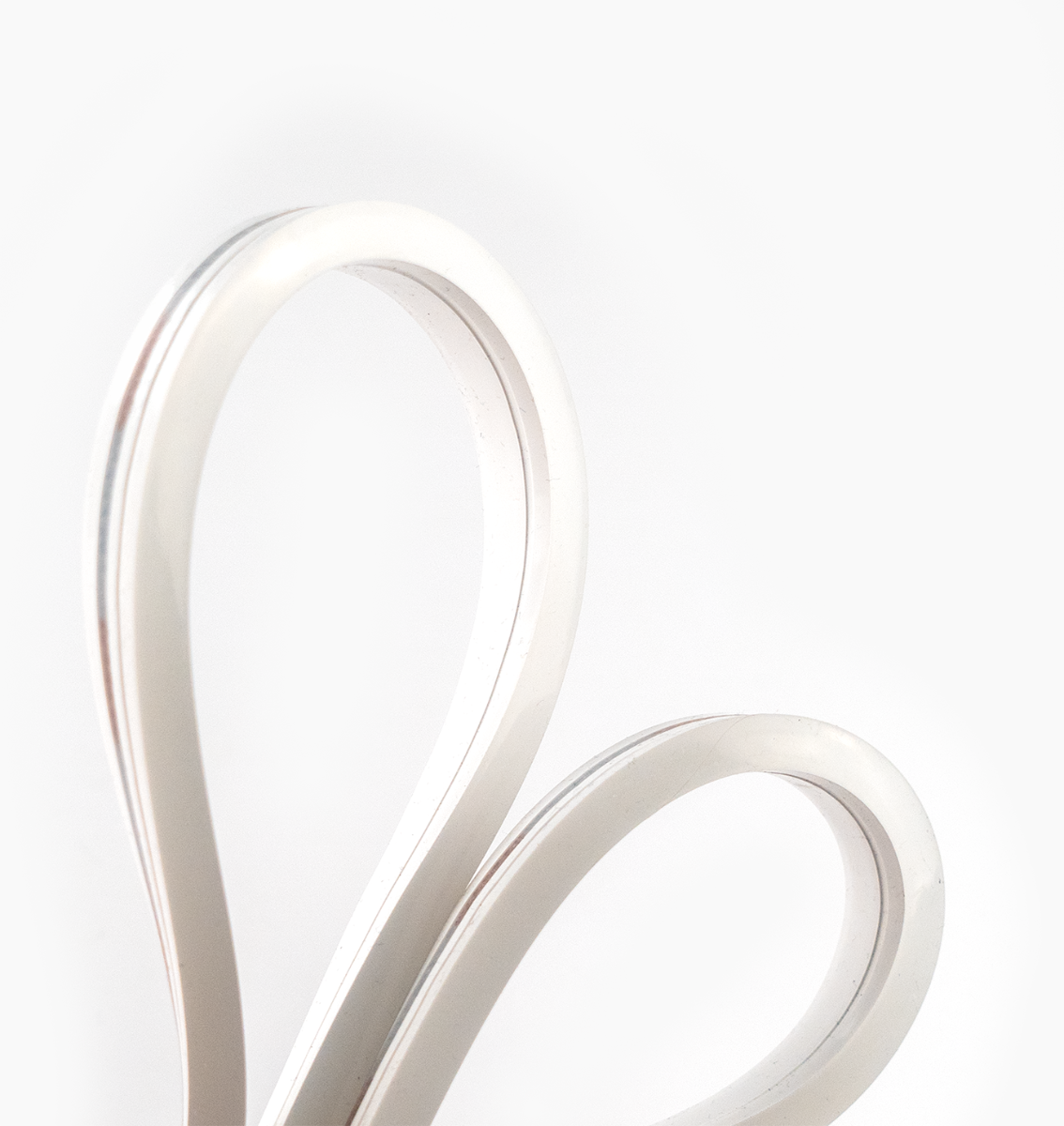

Side-Bend Flex: Flexes effortlessly for perfect curves and shapes on horizontal surfaces.
Extra-Long Power Run: Illuminate spaces up to 32ft with a single power supply - no need for multiple connections or extra hardware. Great for any large installation looking to save time and money.

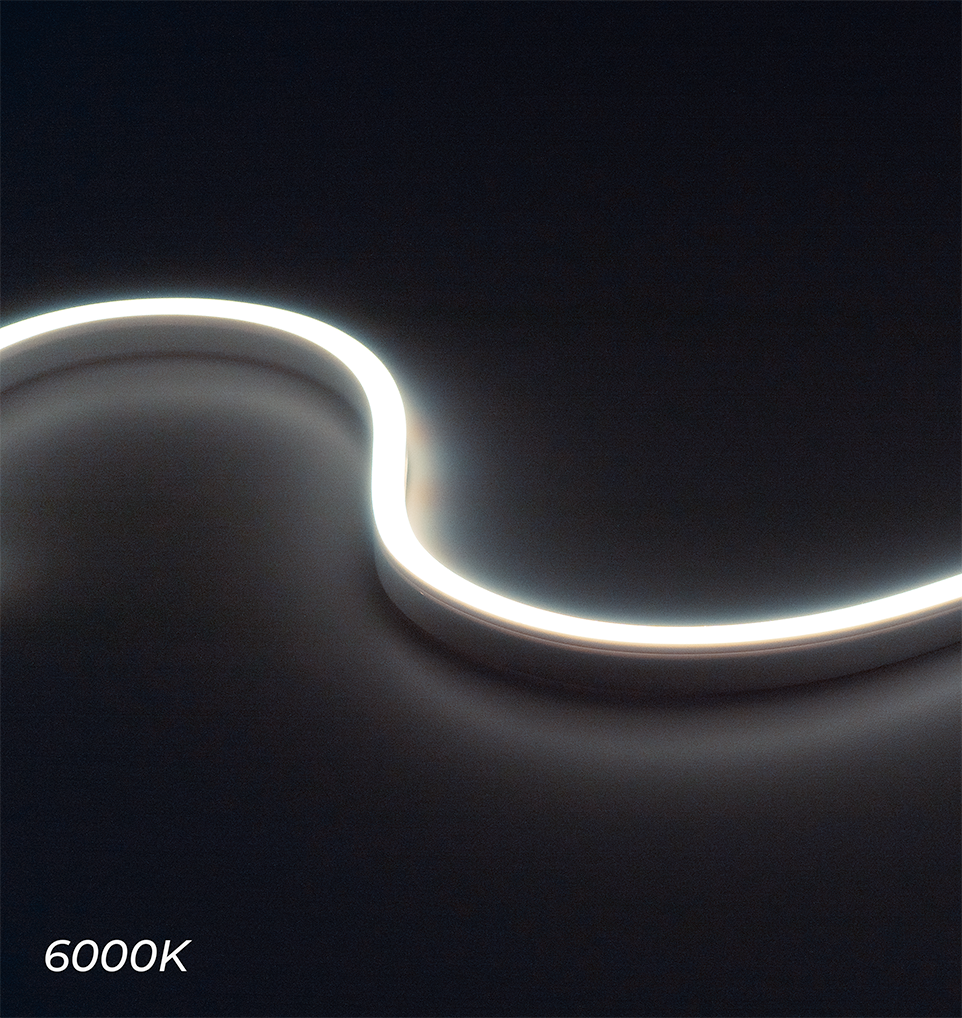

Seamless Glow: True dot-free diffusion ensures one continuous, flawless neon line.
Custom Fit, Every Time: Cut to length at every 2" mark for totally tailored installs.
Built for the Elements: IP67-rated, UV/ozone-resistant silicone housing stands up to rain, sun, snow, and more.
Superior Color Rendering (CRI 90+): See every detail as it’s meant to be seen with our CRI 90+ neon brings out the brightest, truest colors, so your space looks its absolute best.
Easy Install: Includes extra-long (13") wire lead, 10 brackets & screws, 4 end caps, 2 input caps and everything needed for hassle-free mounting.
Low Power, No Heat: Sips electricity, stays cool to the touch, and keeps operating costs way down.

Applications

Signage
Bathrooms
Saunas
Gas stations
Car washes
Decks
Patios
Restaurants
Game rooms
Hotels
Bars
Gymnasiums

Technical Documents

IES Files available upon request

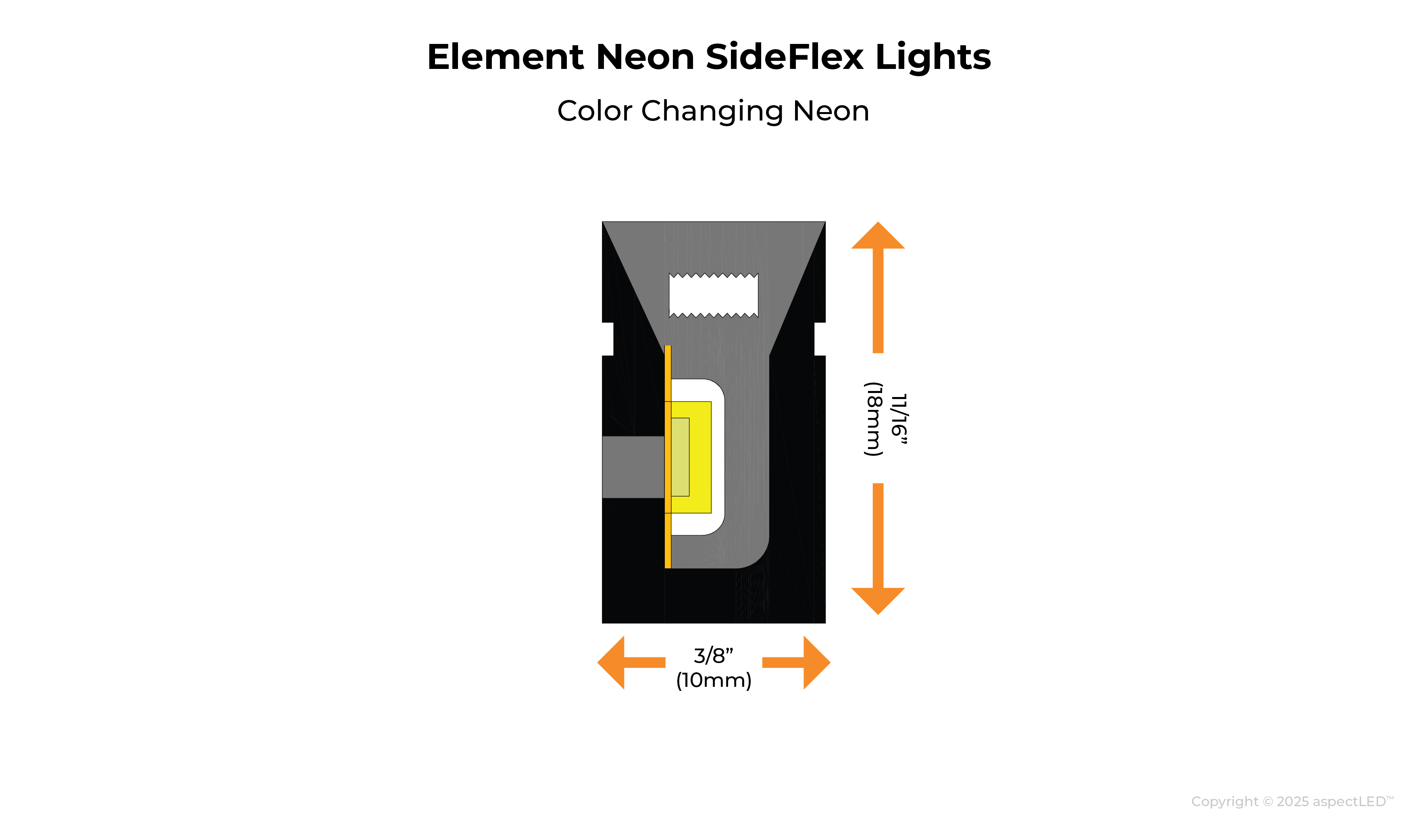

Technical Drawing

Cut Sheet

Photometric Report

View Installation Guide

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Neon Flexible Lights?
Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.

Do any accessories come with the Neon Flex Lights?
The Neon Flex Lights come with 10 brackets, 10 screws, 4 end caps, 2 input caps, 2 glue bottles so you are ready to install upon order arrival.

What if I want to sample this product?
Find the perfect fit for your project by ordering one of our neon sample lengths. Not sure what option to pick? Check out our comparison sample box.

Element Neon SideFlex Light – Static White

SKU: AL-NF-1018-24-3K

$425.89

$425.89 ~~$425.89~~

In-Stock (29) - Ships Same or Next Business Day

LED Light Color: Warm White (3000K)
