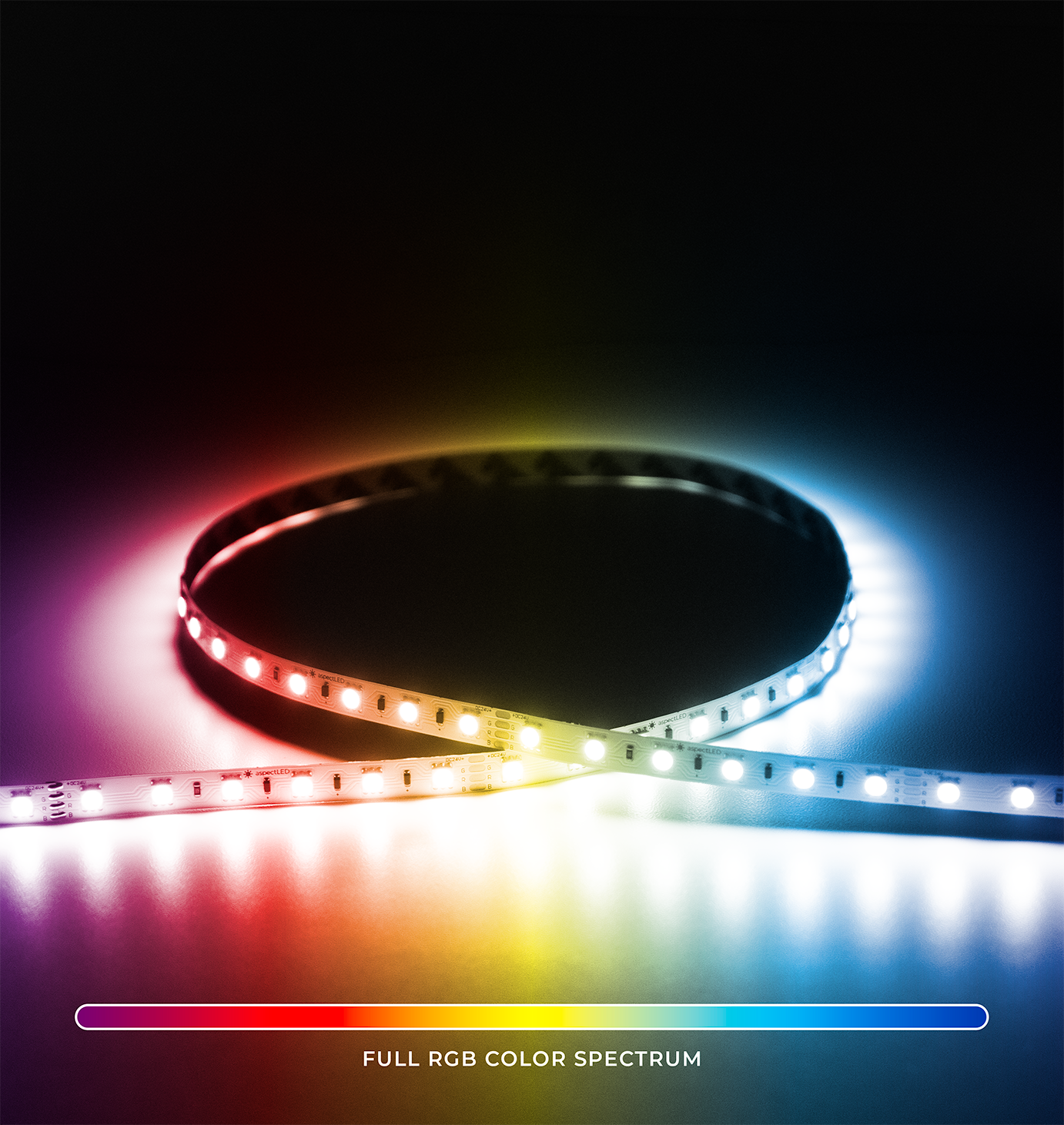

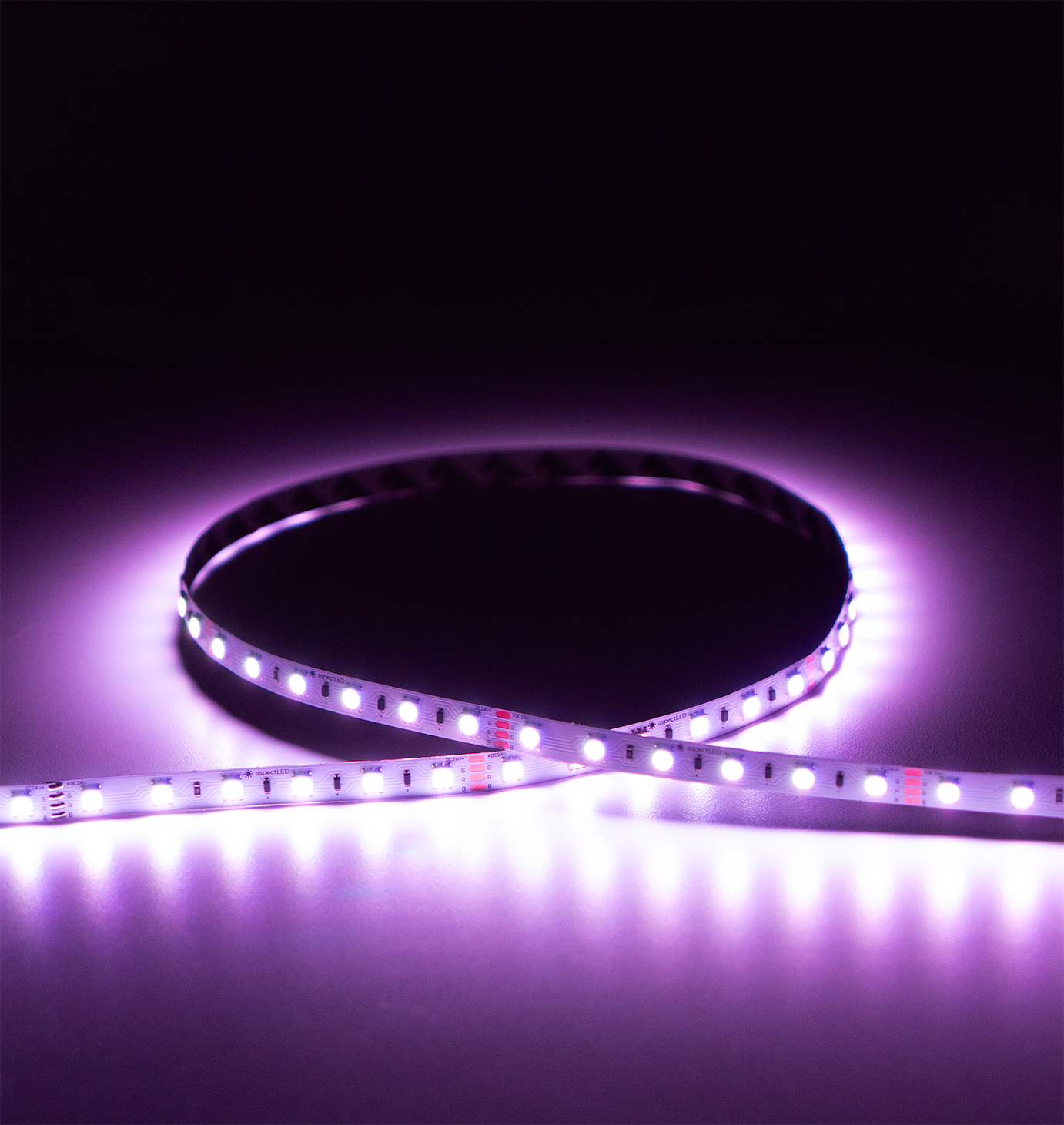

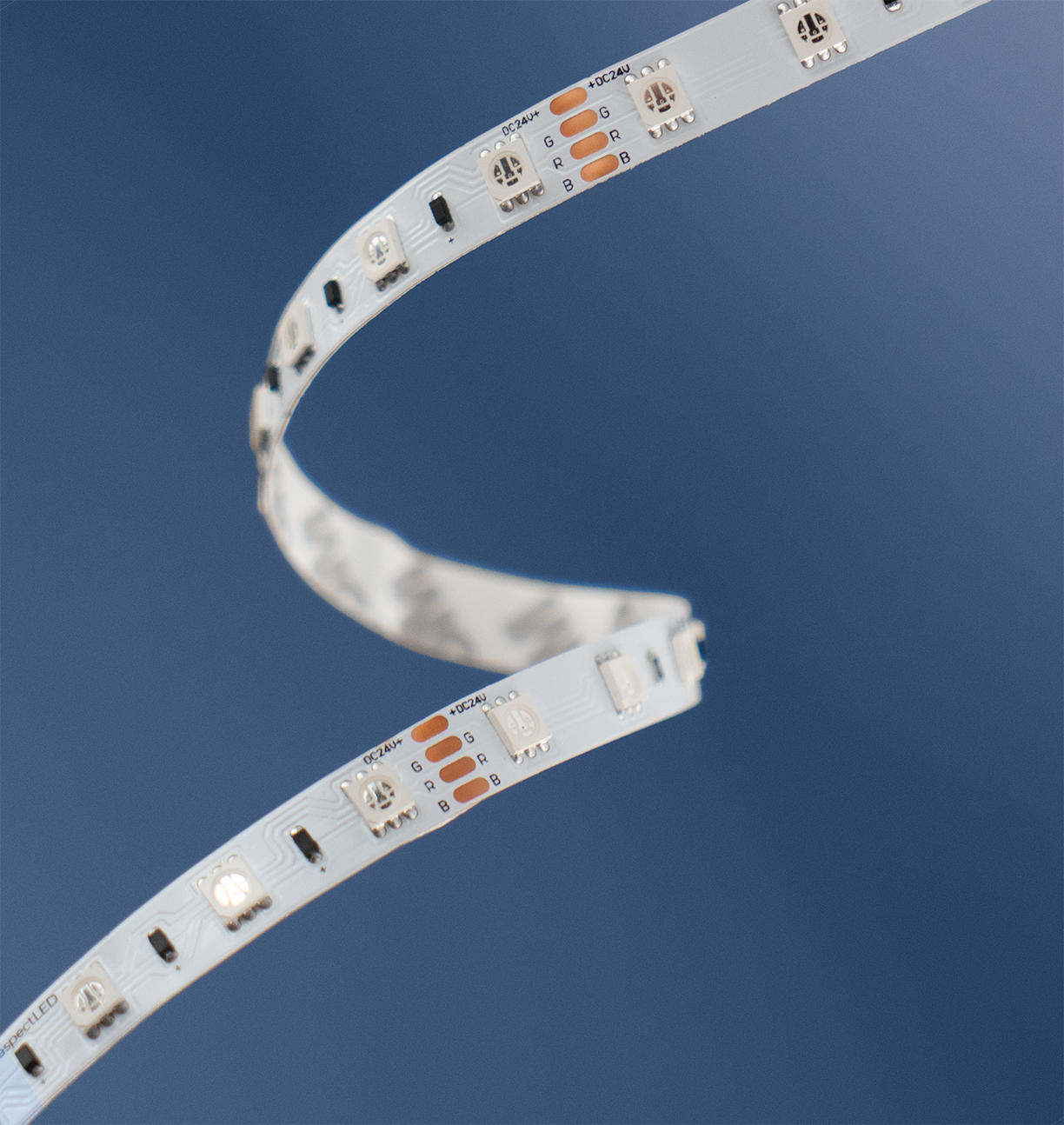

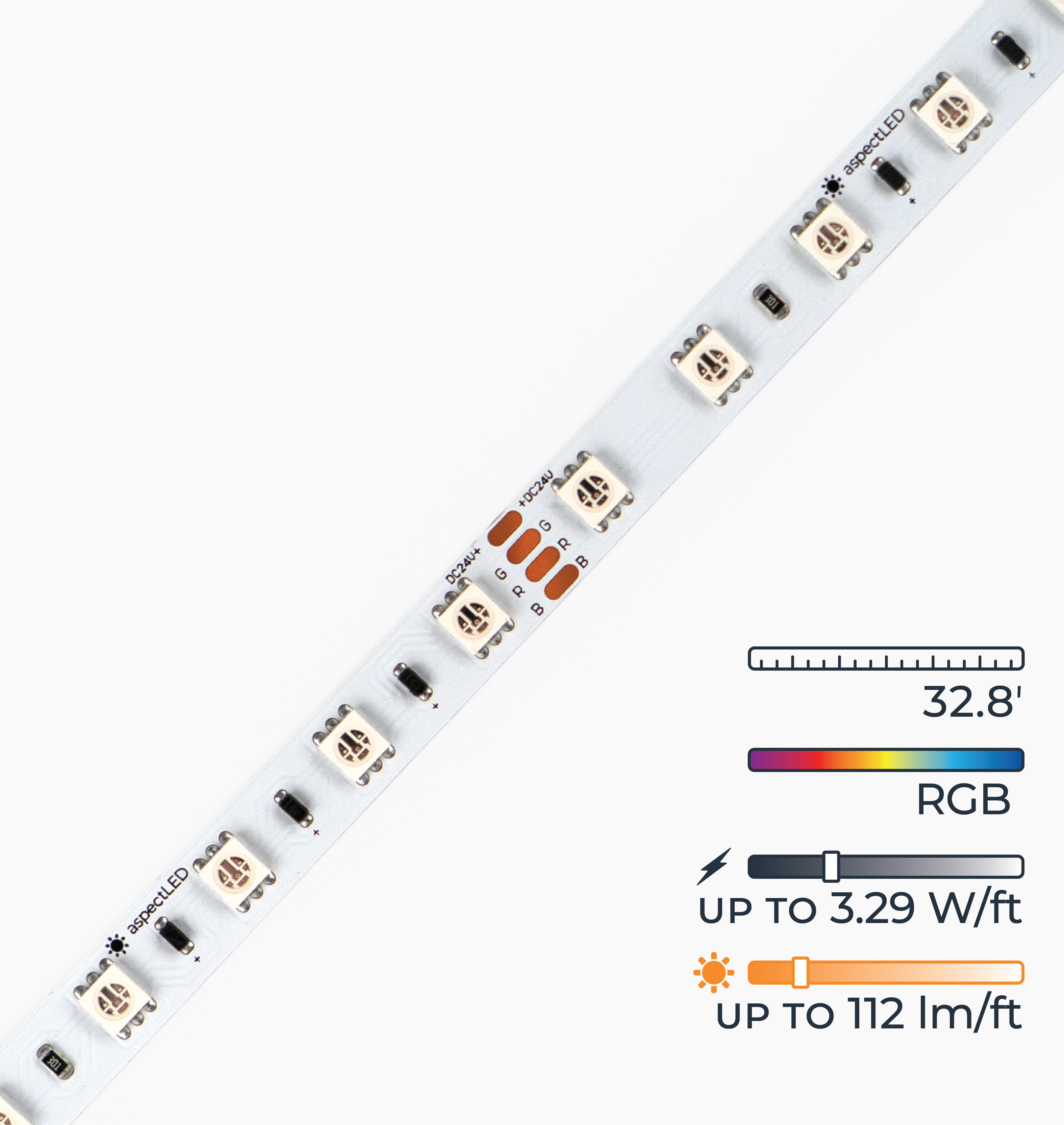

Endless LED Strip Light - RGB Color Changing, 32ft

Description

The RGB Endless™ LED Strip Light delivers smooth, even color-changing illumination for runs up to 32 feet with no dim spots or brightness loss. Integrated Chip (IC) technology allows for longer, seamless installations without the wiring complexity or voltage drop of traditional Constant Voltage (CV) strips, saving time and project costs. Ideal for accent, architectural, and decorative lighting applications including cabinets, crown molding, coves, shelves, toe kicks, signage, stair lighting, and wall washing. Compatible with non-dimmable power supplies and DC decoders/remotes for quick installation and easy upgrades.

Specifications

Part #	AL-SL-EN-CC-IP20-24-RGB-32
Physical
Adhesive Backing	Adhesive Tape 3M 9080 in White
Beam Angle	120 degrees

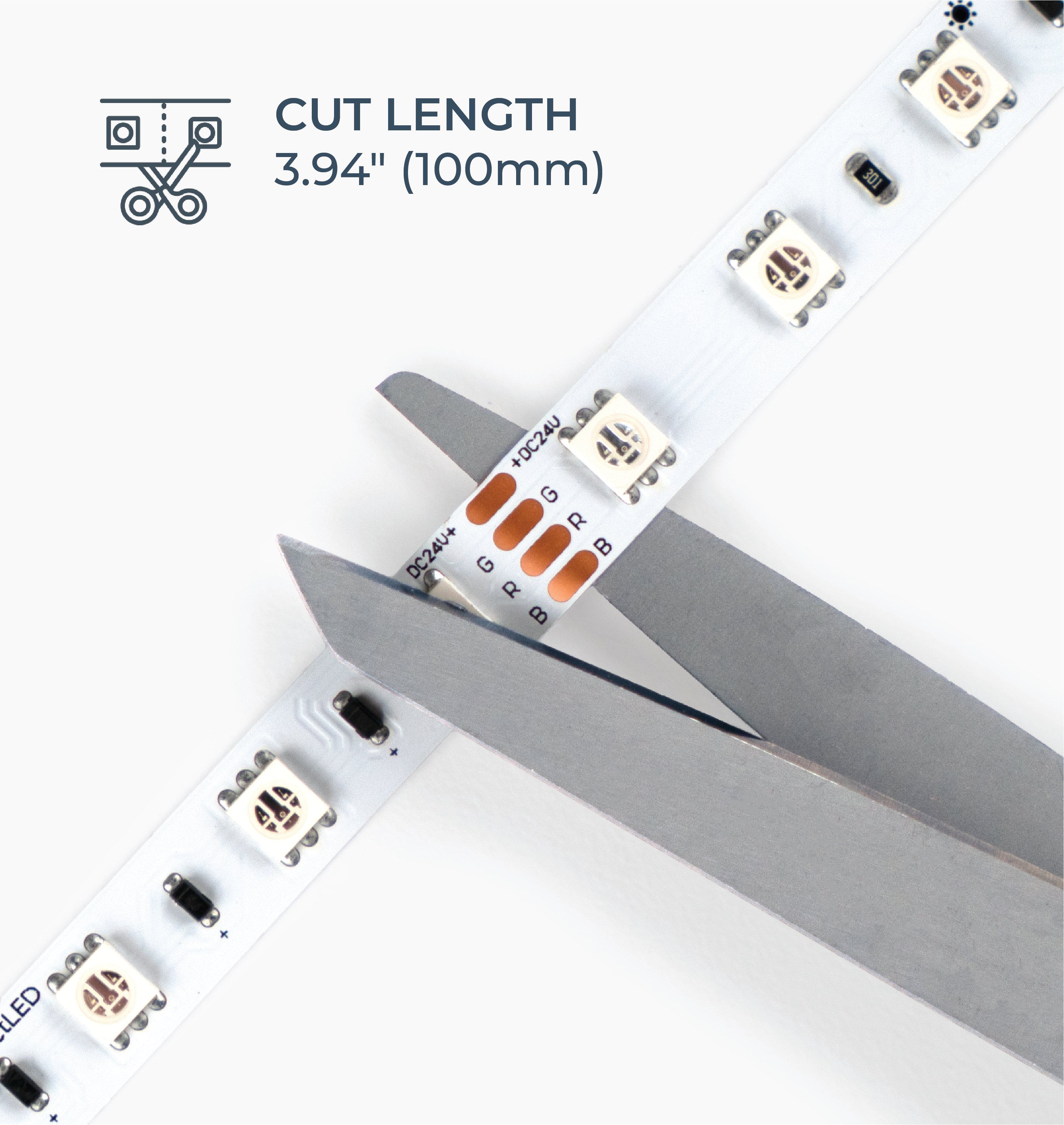

Cut Length	3.94" (100mm)
Dimensions	32.8' (10m) long 0.394" (10mm) 0.083" (2.1mm)
Estimated Lifespan	50,000 hours
Maximum Wire Gauge	22 AWG
Mounting Method	Surface Mounted
Electrical
Efficacy (lumens per watt)	Red: 12 lm/W Green: 34 lm/W Blue: 6 lm/W
Input Voltage	24VDC
LED Quantity	18 LED's/ft (60 LED's/m)
LED Type	SMD 5050
Max Power Consumption	3.29 W/ft (10.8W/m)
Max Run Length	32.8' (10m)
Pin/Wire Count	4 pin
Photometric
LED Color Options	RGB
Max Lumens	Red: 39 lm/ft Green: 112 lm/ft Blue: 22 lm/ft
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry Locations Only
Control
CV, CC, DMX or SPI	Constant Current
Compatibility
Compatible Connectors	AL-SL-CN-WRGB-JUMPER AL-SL-CN-WRGB-PIGTAIL AL-SL-CN-WRGB-SPLICE
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	5 years

Features

Extended Length: Install one reel of 32ft, or equivalent shorter runs wired in series, up to a total length of 32ft.
Integrated Chips: Regulate the light output across the entire run of Constant Current strip lights, giving an even level of light output from beginning to end.
Millions of Colors: Experience flawless, consistent illumination with our advanced constant current technology, ensuring an even light output from start to finish, regardless of length, and vibrant RGB color changing options.
Compatibility: Works seamlessly with the non-dimmable power supplies and DC decoders/remotes you already use, ensuring a hassle-free swap or upgrade.
Integrated temperature sensors reduce current output and protect products from damage in high temperature or variable temperature environments.
Extremely long life: up to 50,000 hours
Maintenance free
No RF interference

Applications

Accent lighting
Above cabinet lighting
Crown molding lighting
Cove lighting
Decorative lighting for tradeshows or exhibitions
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Safety stair tread and step marking
Shelf lighting
Toe kick lighting

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Endless LED Strip Lights?

Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.

Endless LED Strip Light - RGB Color Changing, 32ft

Name: Endless LED Strip Light - RGB Color Changing, 32ft
Brand: aspectLED
SKU: AL-SL-EN-CC-IP20-24-RGB-32
Price: 250.89 USD
Availability: InStock

SKU: AL-SL-EN-CC-IP20-24-RGB-32

$250.89

$250.89 ~~$250.89~~

This product requires a power supply.
Calculate your power supply
