Description

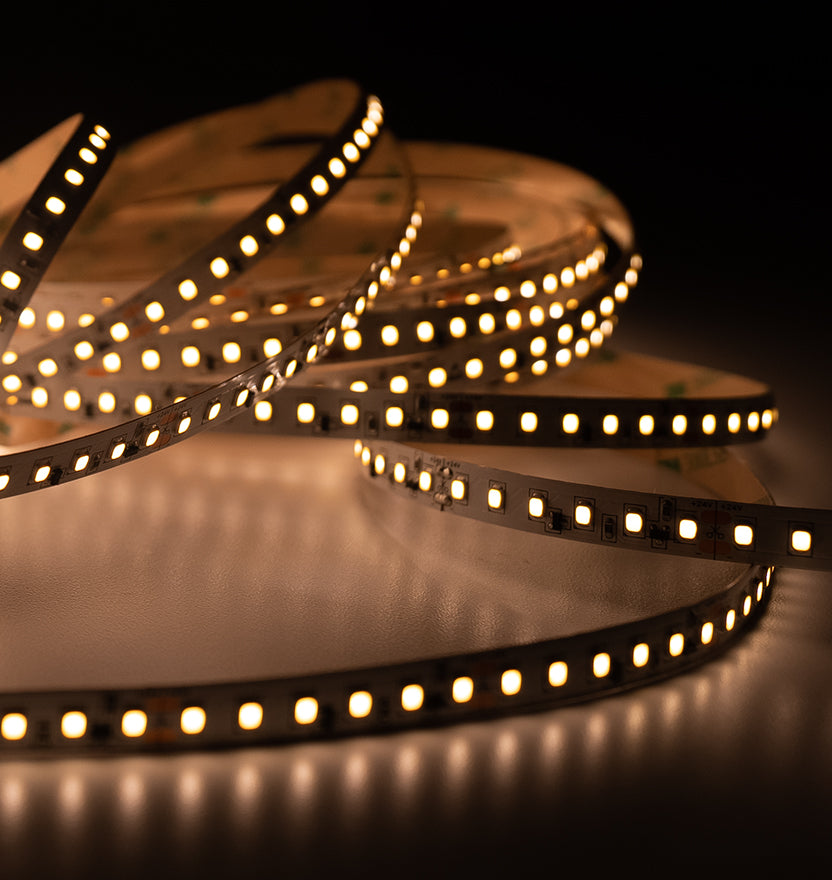

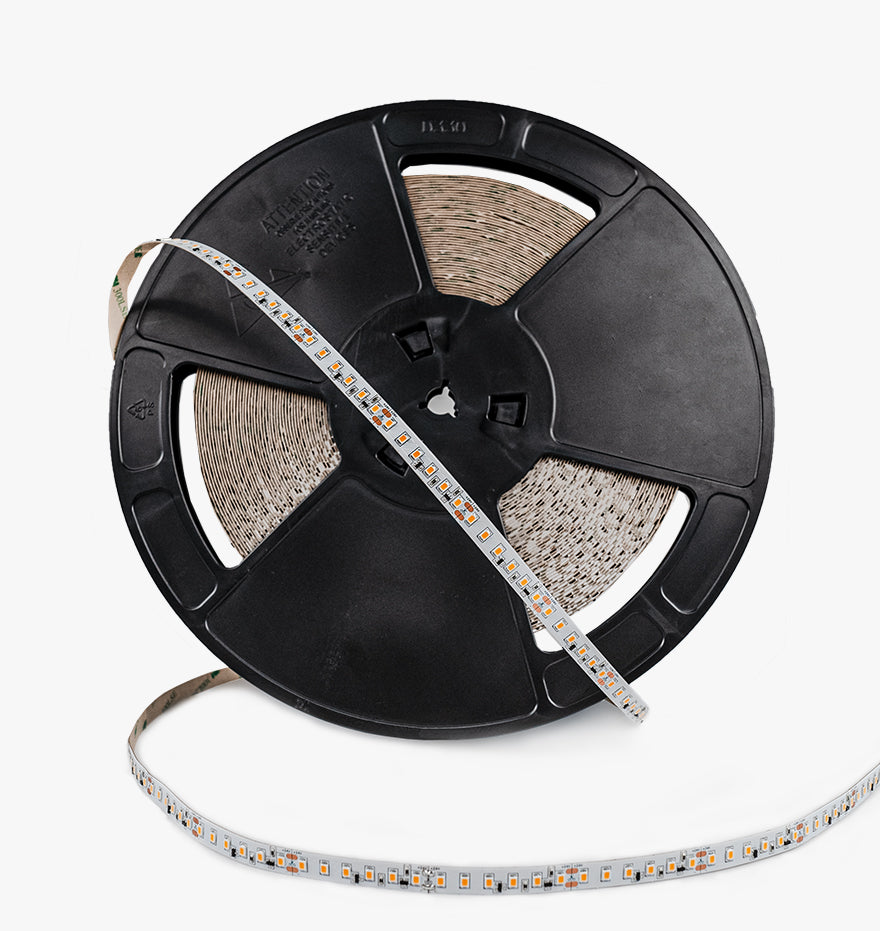

Bring new light to your projects like never before with our Endless™ LED Strip Light, the ultimate solution for any accent lighting challenge that comes your way. With Integrate Chip (IC) technology, you can install uninterrupted runs up to 98 feet (30 meters) with ease – and quickly eliminate the extra time and project costs associated with traditional Constant Voltage (CV) strip products. Each cut length has an integrated chip that regulates the strip’s current and delivers a 100% uniform lumen output from end to end. Ideal for projects with single, continuous runs, many short runs wired in series, or where other labor and material costs may be at a premium.

Designed with flexibility and efficiency in mind, this product redefines ease and performance. The Endless™ LED Strip Lights are available in four different color temperatures providing a tailored solution for any environment. Skip the extra cutting, wiring of parallel runs, and finish your next project faster. With aspectLED’s new Constant Current (CC) strip lights, the possibilities are Endless™.

Constant Current products require non-dimmable power supplies to operate.

Key Features

Max Run Length: 98ft
Lower (Labor and Material) Costs
Constant Current
Integrated Chip

Specifications

Part #	AL-SL-CC
Physical
Adhesive Backing	3M Adhesive Tape (300LSE)
Beam Angle	120°
Cut Length	2" (50mm)
Dimensions	1/4" (5.5mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Weight	1.68 lbs (0.76 kg)
Electrical
Efficacy (lumens per watt)	81.5
Input Voltage	24VDC
LED Quantity	37 per foot (120 per meter)
LED Type	SMD 2835 LED Chip

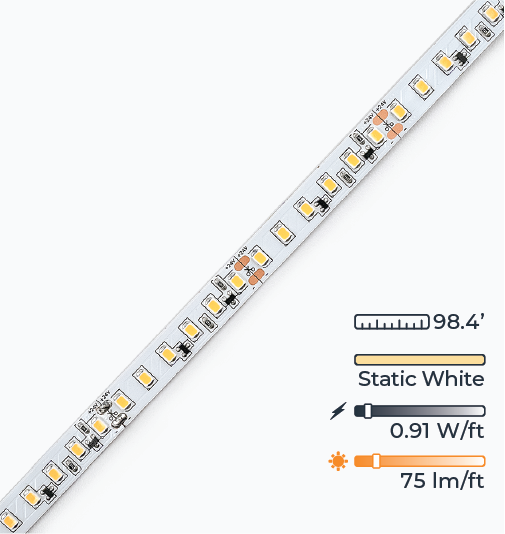

Max Power Consumption	0.91W per foot (3W per meter)
Max Run Length	98.4' Long (30m)
Photometric
CRI	95+
Max Lumens	Max Luminous Flux: Up to 75 lumens per foot
Environmental
IP Rating	IP20
Max Operating Temperature	-25°C to 60°C (-13°F to 140°F)
Max Storage Temperatures	-40°C to 80°C (-40°F to 176°F)
Suitable Uses	Dry Locations Only
Control
CV, CC, DMX or SPI	Constant Current
Dimmable	Yes, Non-Dimmable Power Supplies ONLY
Standards / Certifications
Standards / Certifications	UL/cUL Listed, RoHS, CE
Warranty	5 years

Features

Extended Length: From one power supply and connection, install single runs up to 98ft – or an equivalent length of shorter runs wired in series
Integrated Chips: Regulate the light output across the entire run of Constant Current strip lights, giving an even level of light output from beginning to end
Time Saving: Reduce installation time for large scale projects with less soldering and cutting, and in turn, save money
Reduce Costs: Simplify the design, purchase, and installation process with fewer accessories required for successful and long-lasting installs
Energy Efficient: Reduced watt per foot ratings with LED technology help improve overall project performance, making this a suitable choice for commercial or municipal projects
Compatibility: Works seamlessly with the non-dimmable power supplies and DC decoders/remotes you already use, ensuring a hassle-free swap or upgrade
Integrated temperature sensors reduce current output and protect products from damage in high temperature or variable temperature environments

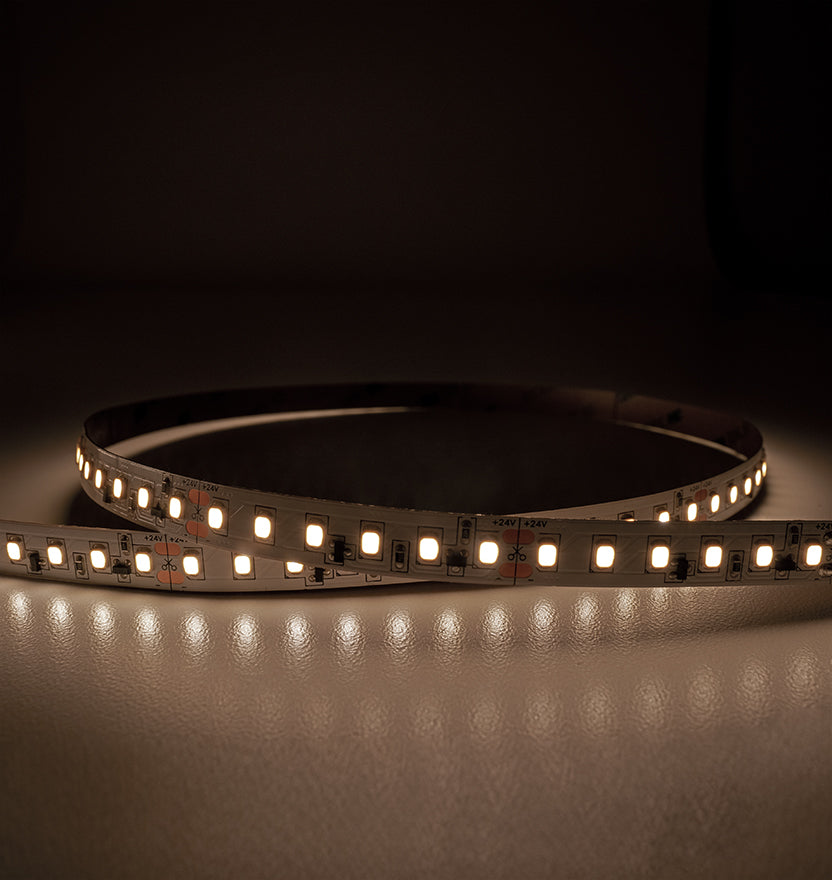

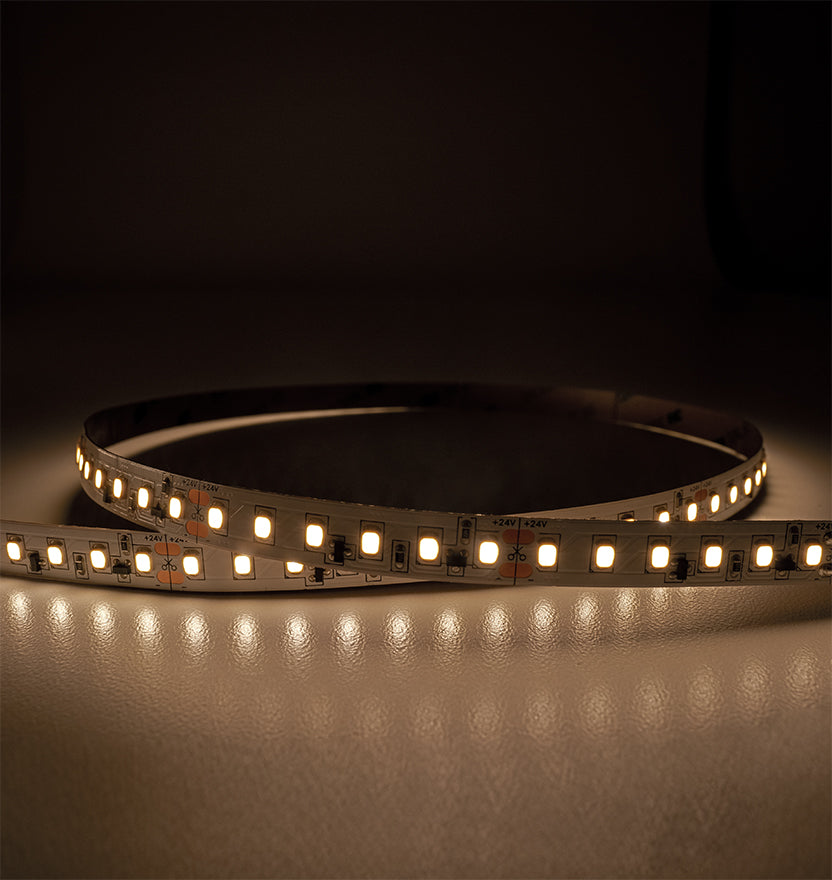

Available in four light temperatures: 2700K, 3000K, 4000K, 6000K, providing a tailor-made solution for any environment
Extremely long life: up to 50,000 hours
Maintenance free
No RF interference

Applications

Accent lighting
Corridors/hallway lighting
Crown molding lighting
Cove lighting
Safety stair tread and step marking
Toe kick lighting

Technical Documents

View Installation Guide

Mounting Channel Compatibility Chart

Download Cut Sheet

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Endless™ LED Strip Lights?

Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.

Endless™ LED Strip Light – Static White

SKU: AL-SL-CC-24-4000-IP20-120

$683.89

$683.89 ~~$683.89~~

In Stock (19) - Moving Fast!

LED Light Color: Cool White (4000K)

This product requires a power supply.
Calculate your power supply
