Endless RGB Solderless Splice Bite Connector
Endless RGB Solderless Splice Bite Connector
Regular price
$1.00
Sale price
$1.00
Regular price
Low Stock (only 7 items left in stock) - Backorder Available
Description

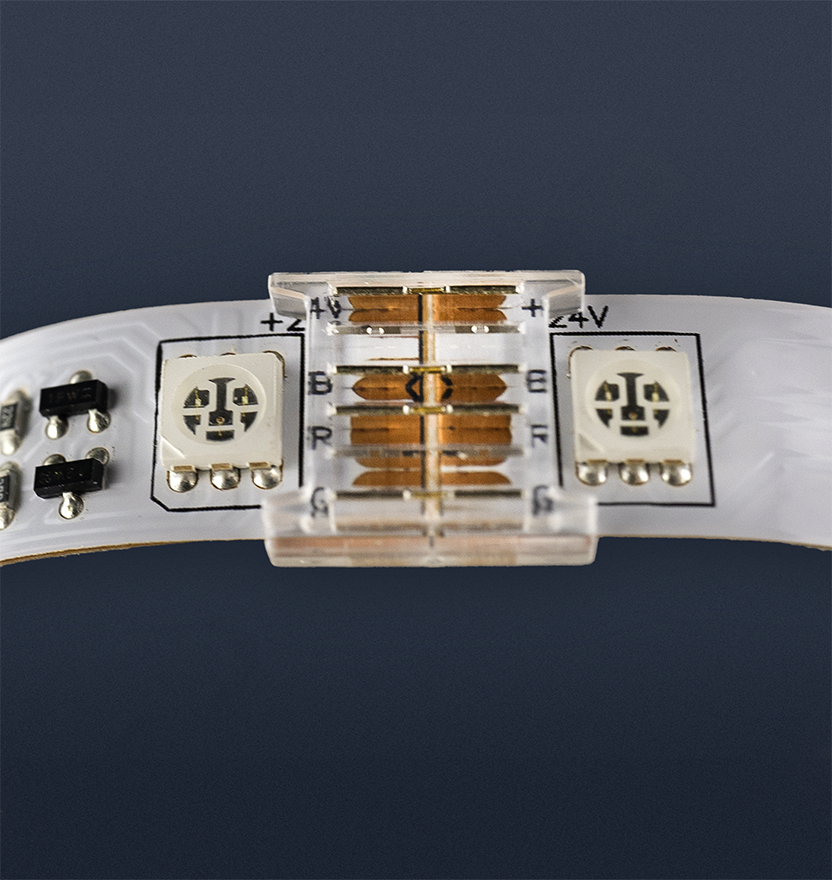

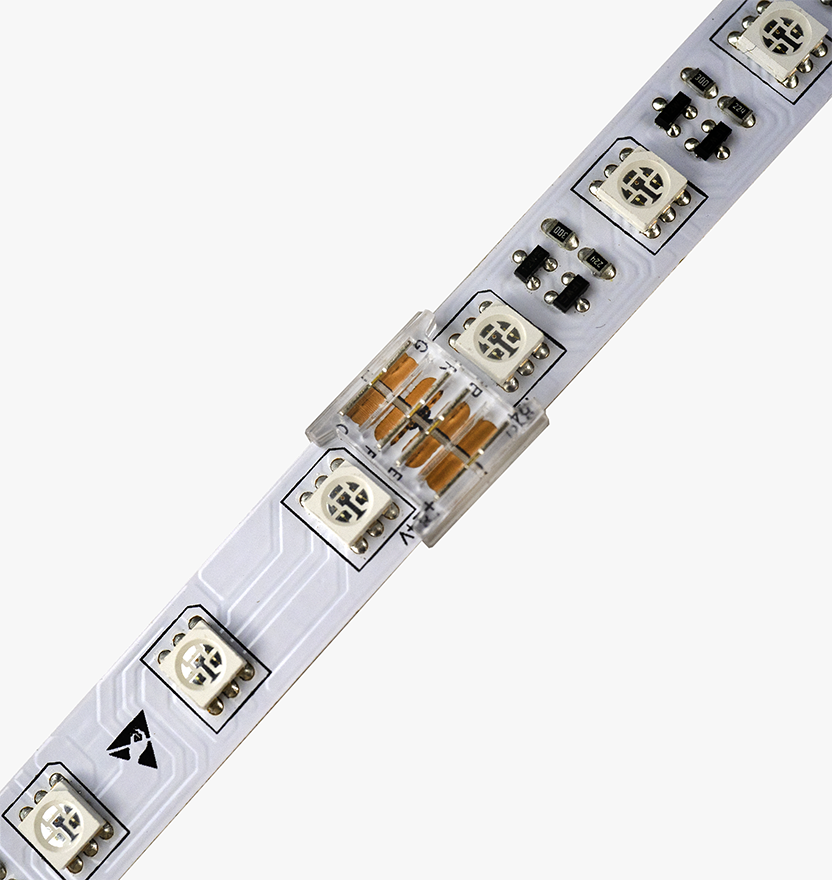

This connector allows you to cut your strip light to length and splice connect to another piece of the same strip light without soldering. FOR USE ONLY WITH aspectLED LED Strip Lights. This is only a splice connector and does not include any wire leads. Be sure to observe strip light polarity at all connection points. Needle Nose or Parallel Jaw Pliers are recommended for installation.
Key Features
Key Features
-
Secure Connection
-
Copmact Design
-
IP20 non-waterproof
-
Easy to use
Specifications
Specifications
| Part # | AL-SL-CN-CC-RGB-SPLICE-1 |
| Physical | |
| Connector Type | Strip to Strip Splice |
| Dimensions | 0.53" Long (13.5mm) 0.53" Wide (13.7mm) 0.2" Deep (5.2mm) |
| Weight | 0.03 oz (0.7g) |
| Electrical | |
| Max Current | 4A |
| Wire Connections | N/A |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-CC-RGB |
Features
Features
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
