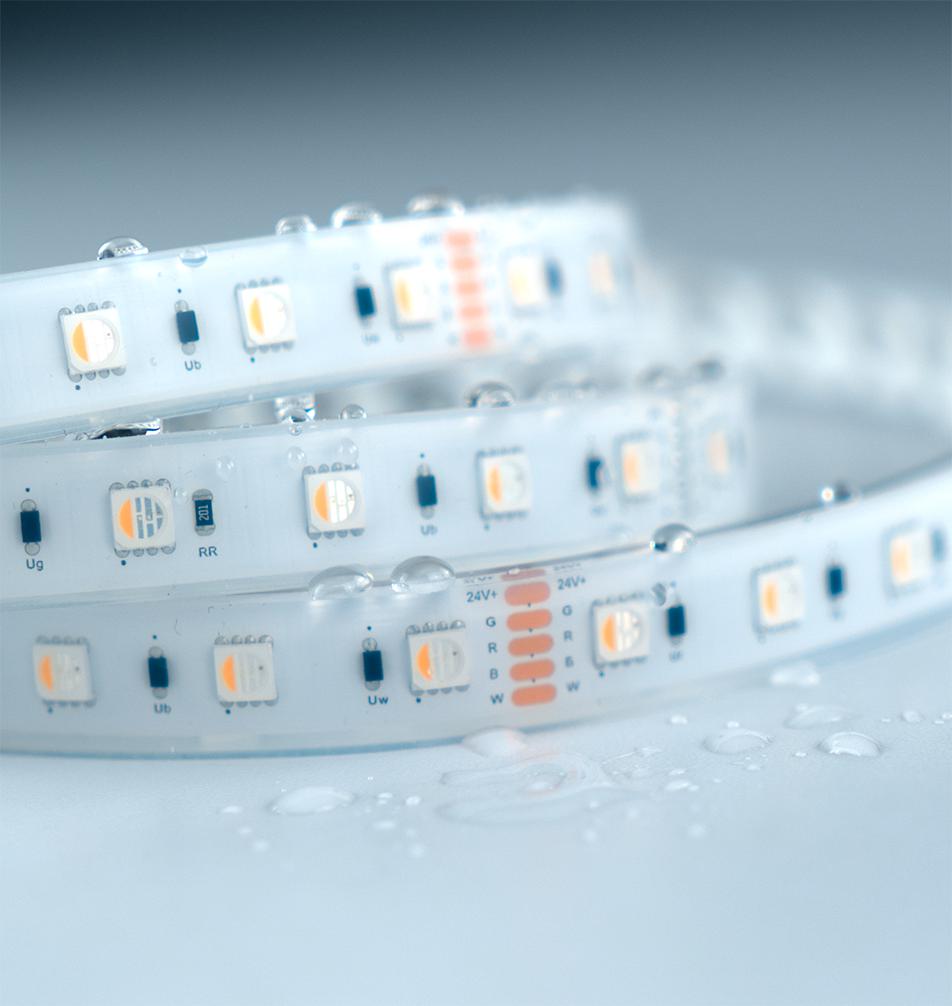

Endless RGBW Color Changing LED Strip Light - Waterproof

Description

The waterproof RGBW Endless™ LED Strip Light delivers smooth, even illumination for runs up to 32 feet, with no dim spots or brightness loss. Fully submersible, it’s ideal for wet environments both indoors and outdoors. With Integrated Chip (IC) technology, you can install long, continuous runs without the wiring complexity or voltage drop of traditional Constant Voltage (CV) strips, saving time and project costs. Producing up to 165 lumens per foot, it’s perfect for accent or task lighting. It is compatible with non-dimmable power supplies and DC decoders/remotes, making upgrades or replacements quick and hassle-free.

Key Features

Max Run Length: 32.8ft

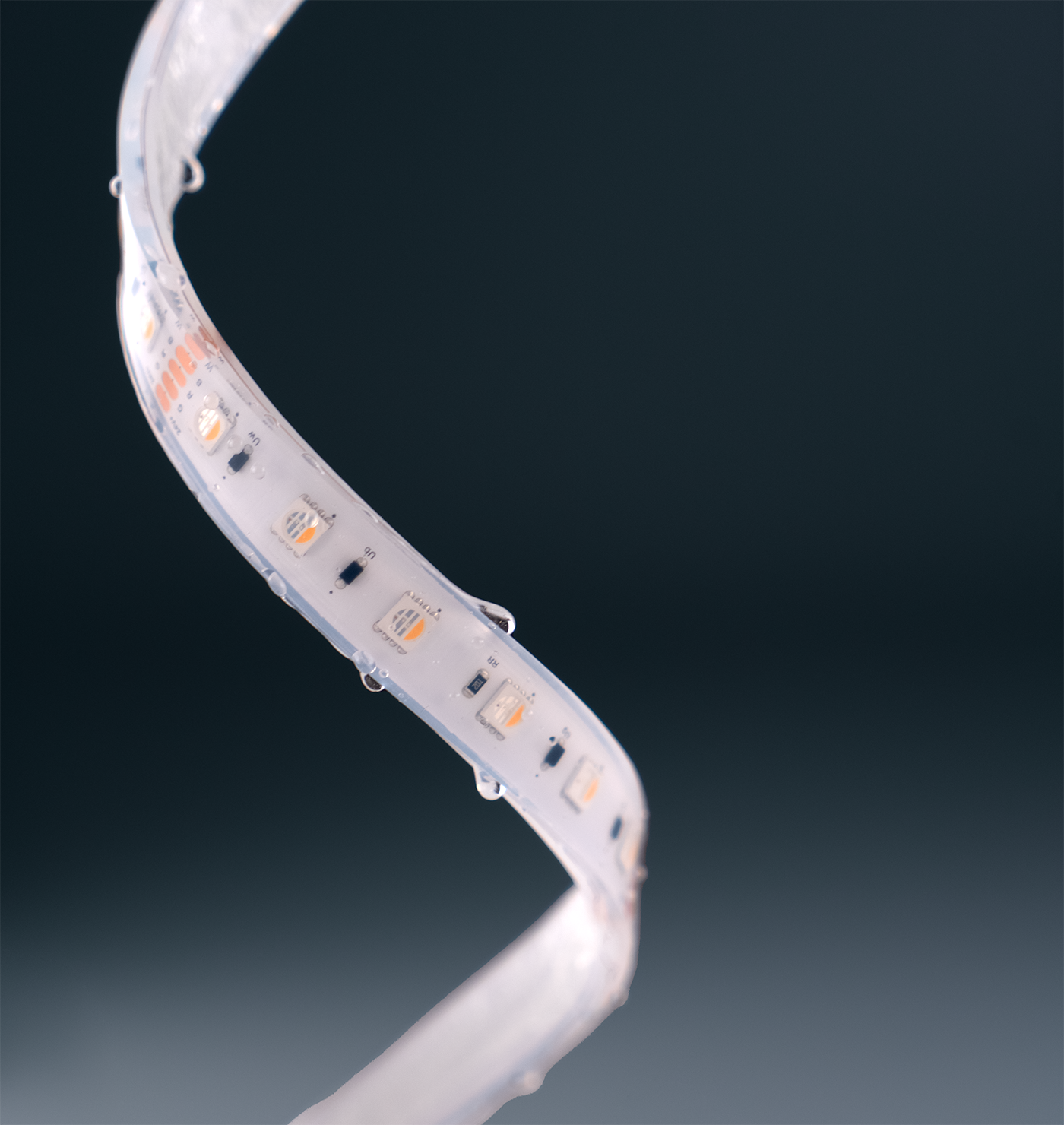

Waterproof IP68
Constant Current
Integrated Chip

Specifications

Part #	AL-SL-EN-CC-IP68-24-RGBW-32
Physical
Adhesive Backing	Yes
Beam Angle	120°

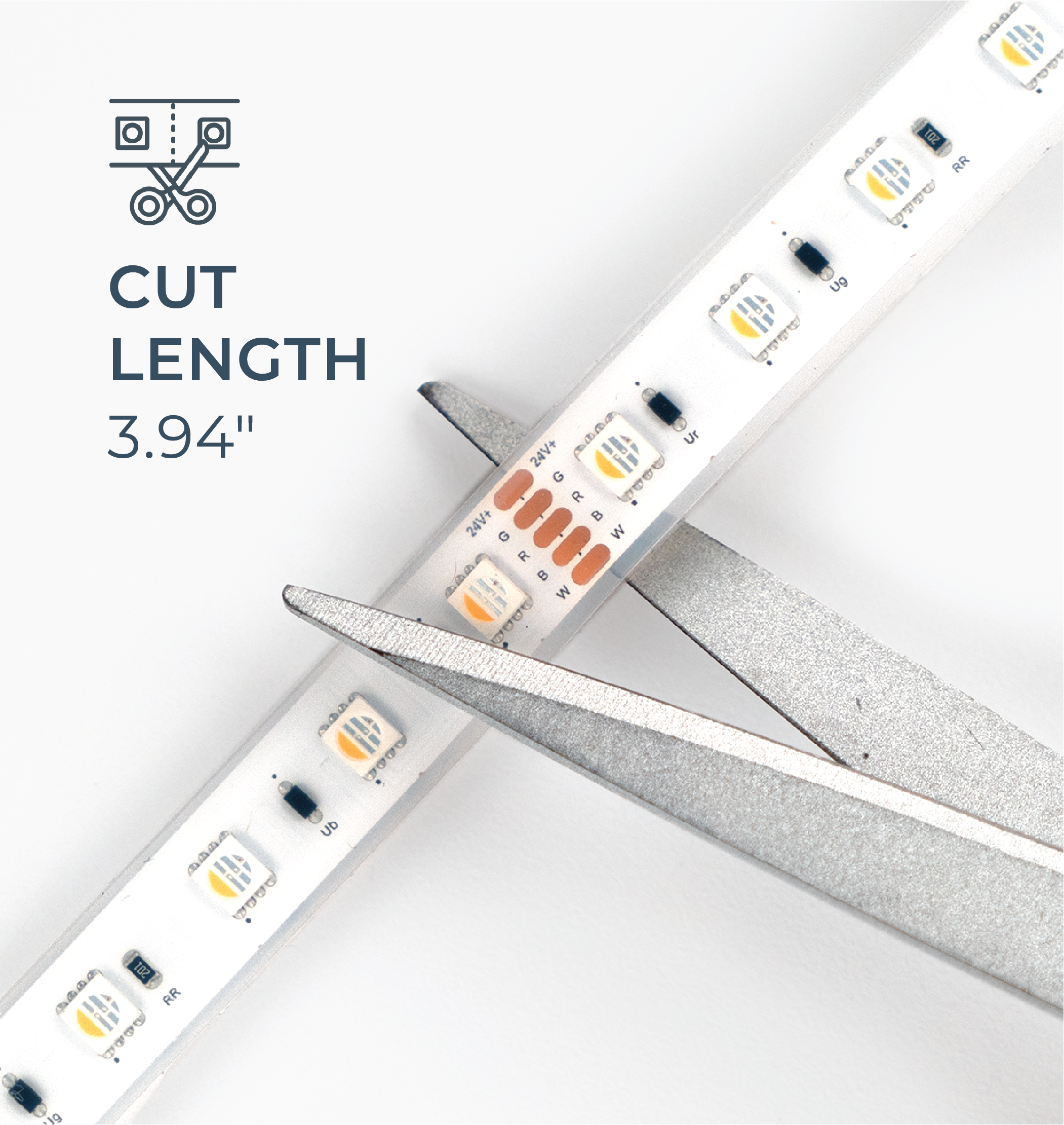

Cut Length	3.94" (100mm)
Dimensions	32.8' Long (10m) 0.579" (14.7mm) 0.206" (5.23mm)
Distance Between LEDs	N/A
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Backing, Mounting Straps
Electrical
Efficacy (lumens per watt)	57 Lumens/Watt
Input Voltage	24VDC
LED Quantity	18 LEDs per foot (60 LEDs per meter)
LED Type	SMD 5050 LED Chip

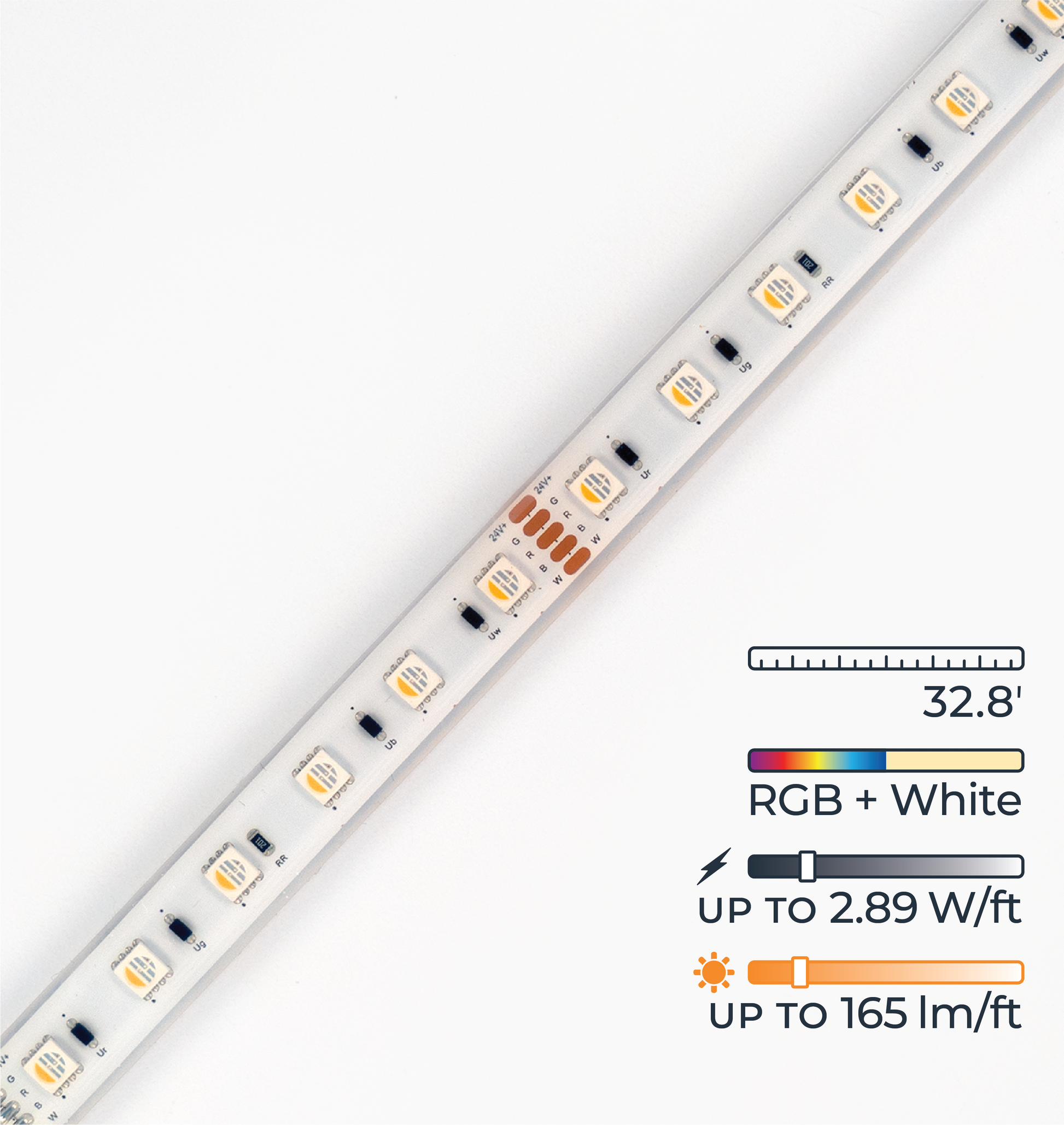

Max Power Consumption	2.9W per foot (9.5W per meter)
Max Run Length	32.8' (10m)
Photometric
CRI	90+ (White Only)

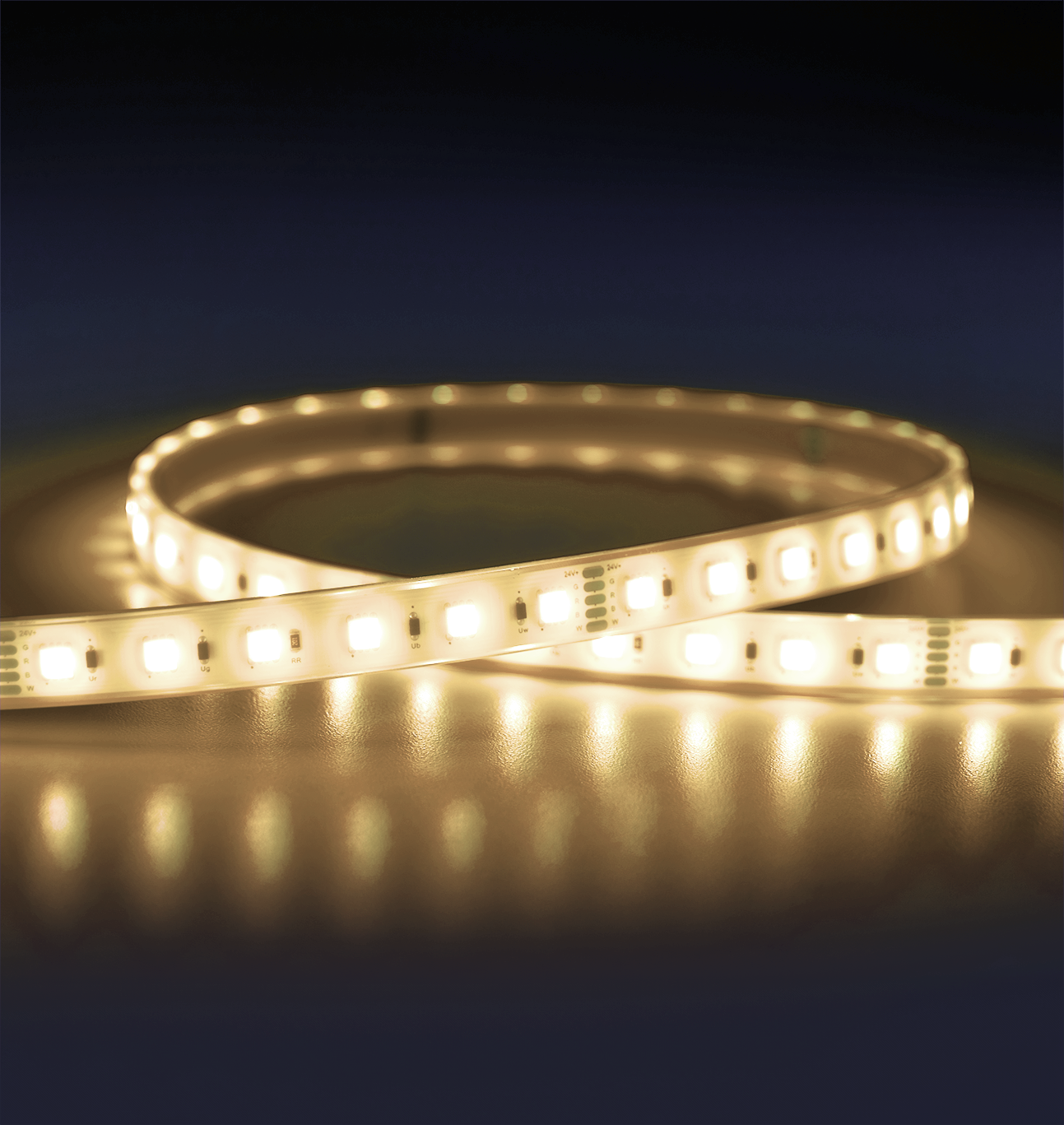

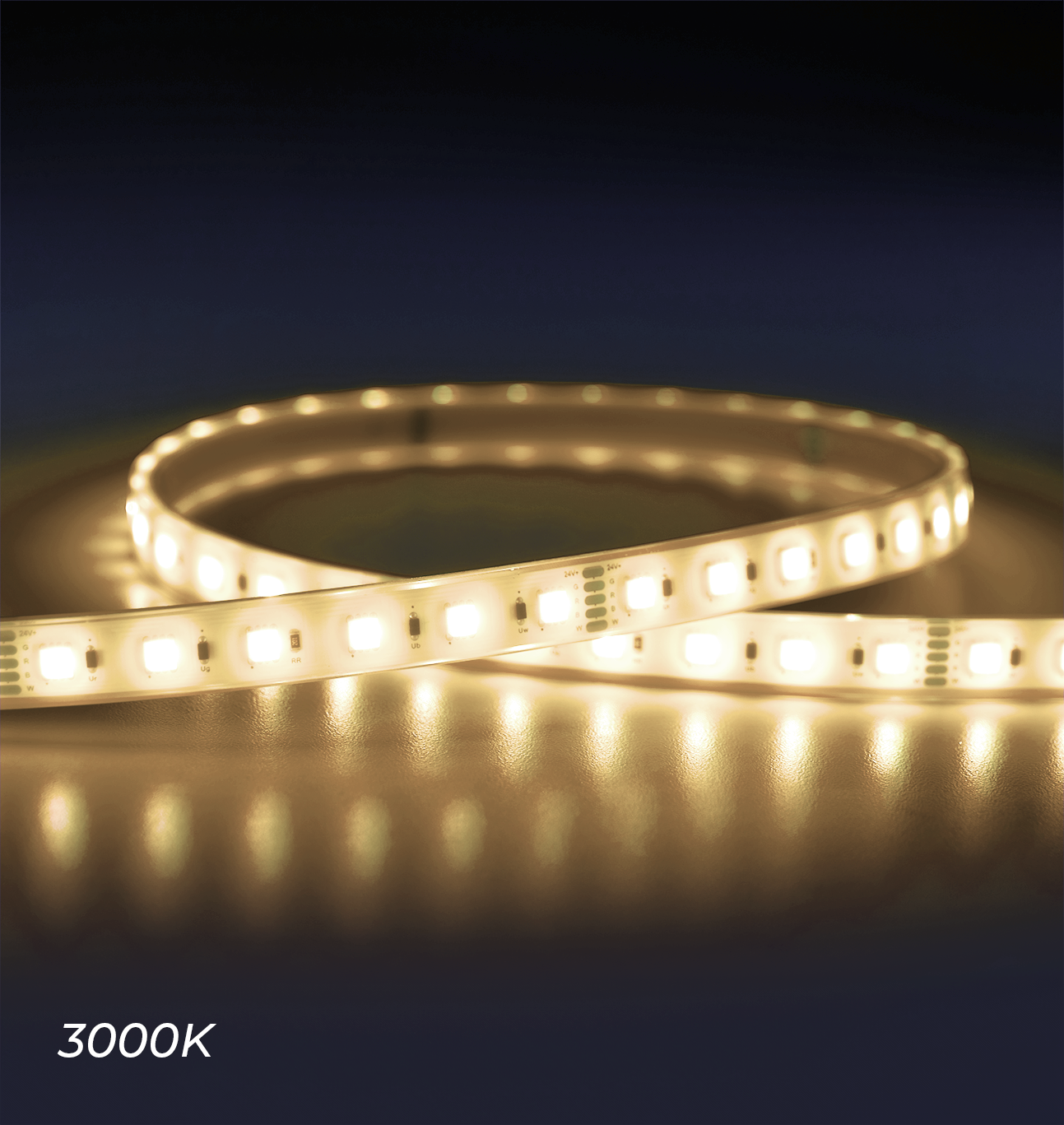

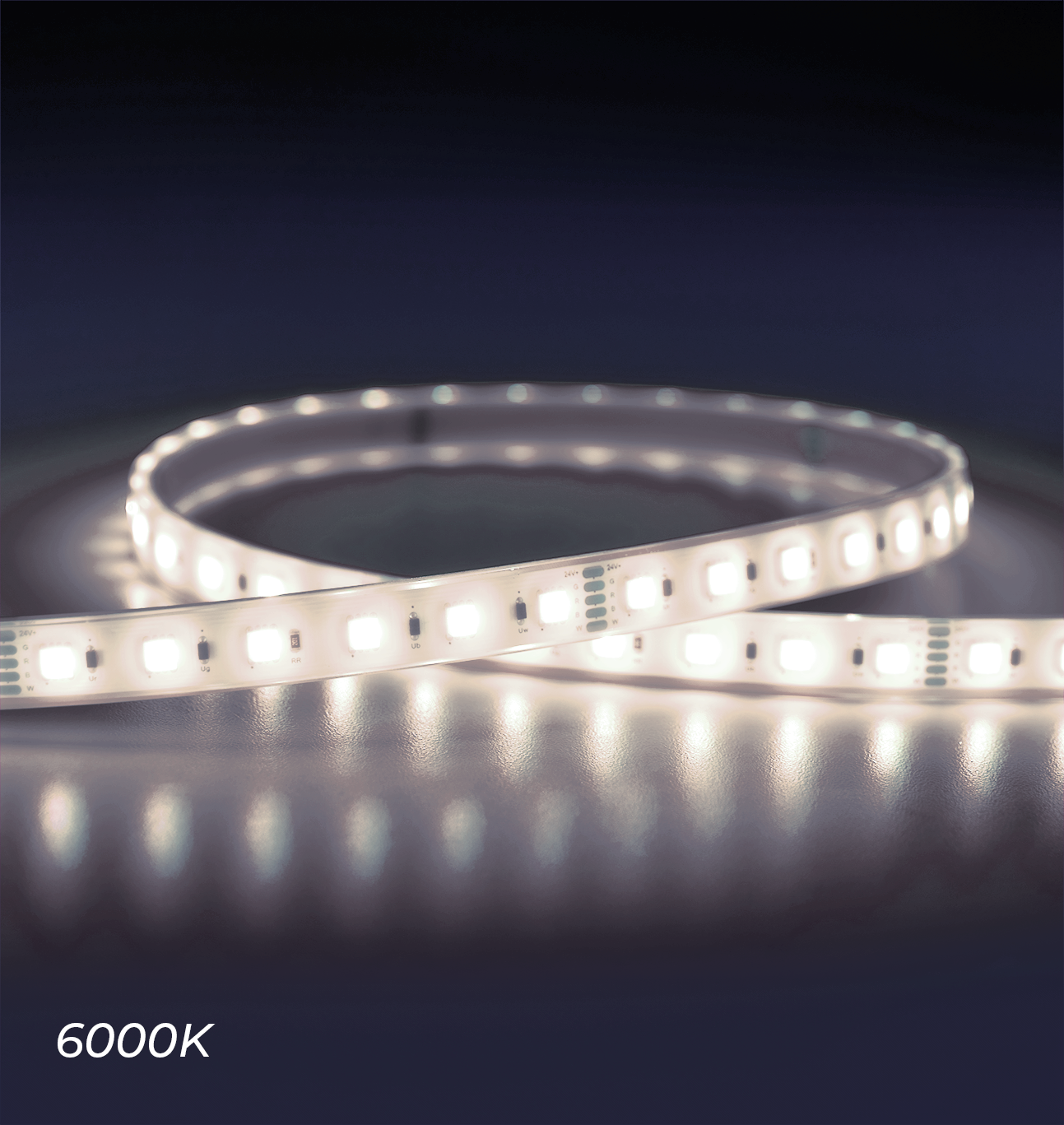

LED Color Options	RGB + 2700K RGB + 3000K RGB + 4000K RGB + 6000K
Max Lumens	Up to 165 Lumens/ft (533 Lumens/m)
RGB Wavelength Ranges	See Photometric Report
Environmental
IP Rating	IP68
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176° F (-30 - 80° C)
Suitable Uses	Dry, Damp, and Wet Locations
Control
CV, CC, DMX or SPI	Constant Current
Dimmable	Yes
Standards / Certifications
Standards / Certifications	UL/cUL Listed RoHS CE LM80
Warranty	5 years

Features

Extended Length: Install one reel of 32ft, or equivalent shorter runs wired in series, up to a total length of 32ft, making it our longest RGBW strip light yet.
Integrated Chips: Regulate the light output across the entire run of Constant Current strip lights, giving an even level of light output from beginning to end.
Waterproof IP68 strip light with adhesive backing make installs even faster.

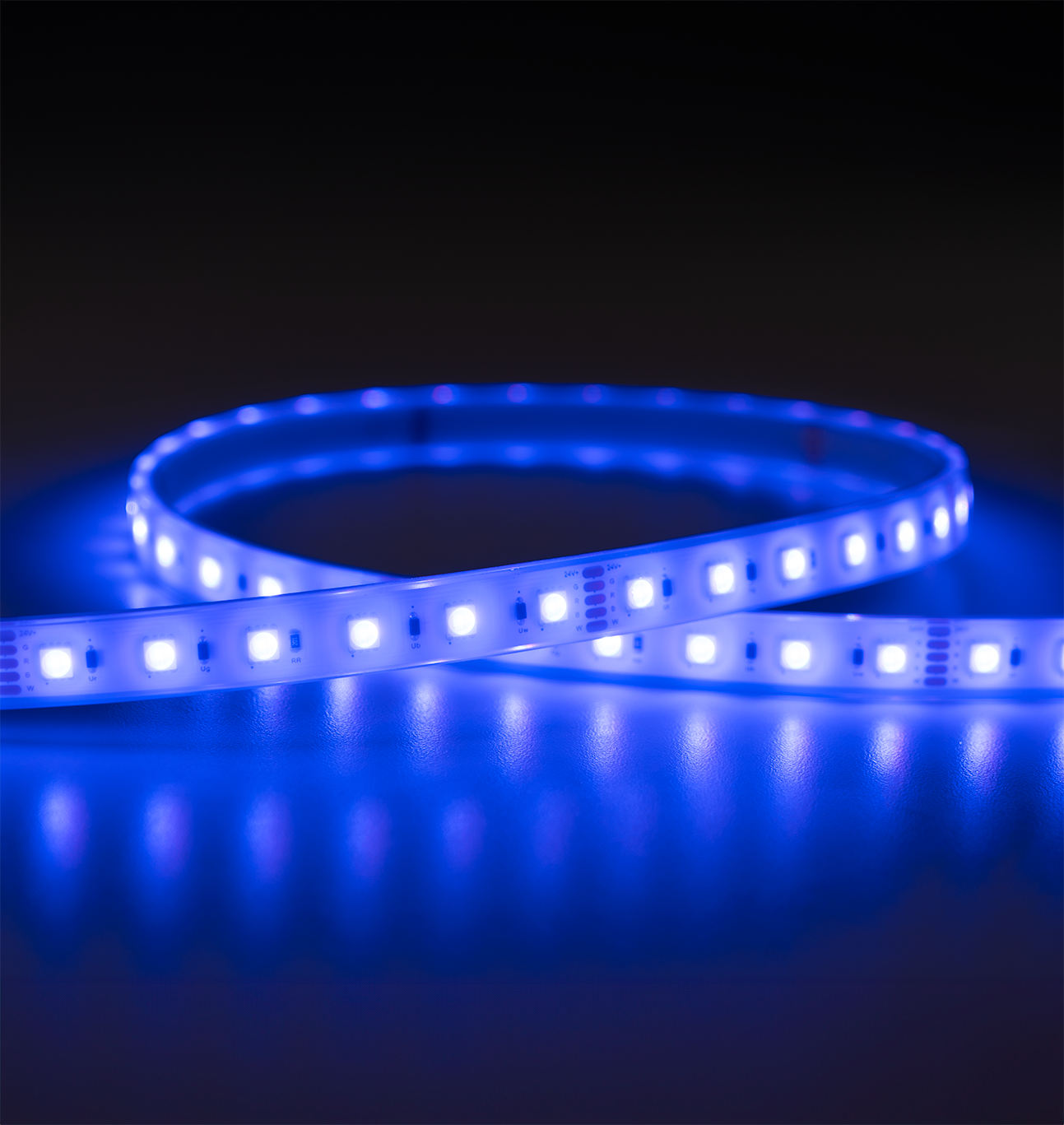

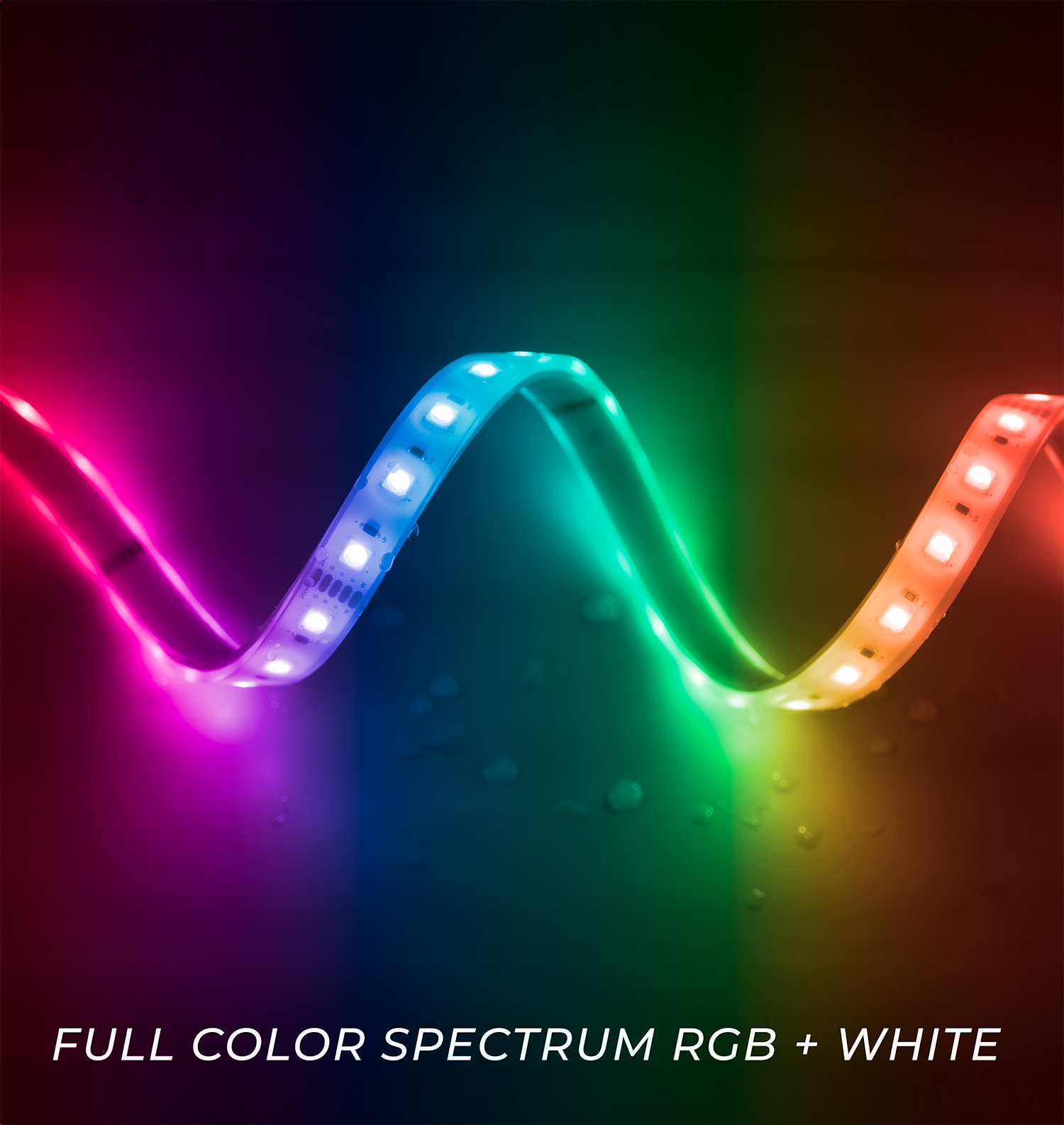

Millions of Colors: Experience flawless, consistent illumination with our advanced constant current technology, ensuring an even light output from start to finish, regardless of length, and vibrant RGBW color changing options.
Compatibility: Works seamlessly with the non-dimmable power supplies and DC decoders/remotes you already use, ensuring a hassle-free swap or upgrade.
Integrated temperature sensors reduce current output and protect products from damage in high temperature or variable temperature environments.
Extremely long life: up to 50,000 hours
Maintenance free
No RF interference

Applications

Accent lighting
Deck lighting
Decorative lighting for tradeshows or exhibitions
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Pergola lighting
Safety stair tread and step marking
Shower niche lighting

Technical Documents

Cut Sheet

Technical Drawing

Installation Guide

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Endless™ LED Strip Lights?

Only our Non-Dimmable Power Supplies are compatible.

Endless RGBW Color Changing LED Strip Light - Waterproof

SKU: AL-SL-EN-CC-IP68-24-RGB27-32

$310.89

In-Stock (190) - Ships Same or Next Business Day

LED Light Color: RGB+2700K

This product requires a power supply.
Calculate your power supply
