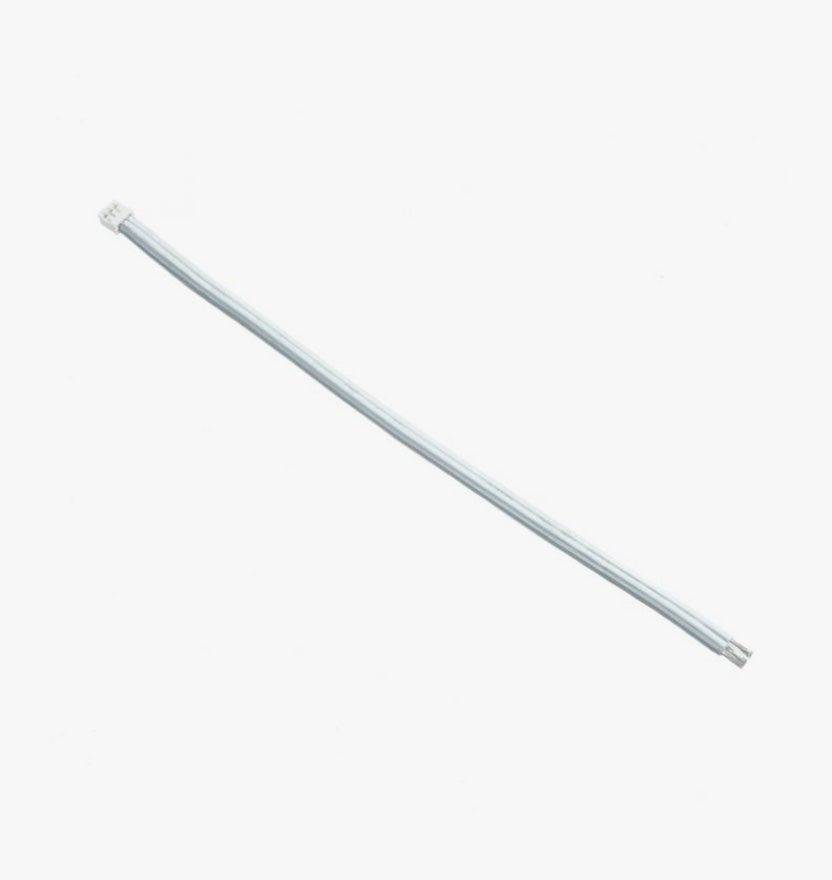

3-Pin Light Sheet Connector - Tunable White Pigtail
3-Pin Light Sheet Connector - Tunable White Pigtail
In-Stock (156) - Ships Same or Next Business Day
Description
These 3-pin light sheet connectors are the perfect Plug and Play option for wiring aspectLED’s Spectra™ AllSun light sheets. 2.75” long with XH connector heads on both ends, these ‘pigtails’ are the perfect choice for spanning larger gaps and/or connecting your power supplies or controllers directly to your light sheets. Skip the soldering and speed up your installs today. CAUTION: Always double check the polarity of the ports when laying out your light sheets and making your connections. Before powering on, always confirm that the wires are installed correctly between all system components.
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-LS-CN-CCT-1 |
| Physical | |
| Connector Type | Strip to Wire |
| Weight | 0.10 oz |
| Electrical | |
| Max Current | 4A |
| Wire Connections | 20 AWG (Red+/Black-) |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Light Sheets | AL-LS-WWDW-S-24 AL-LS-WWDW-U-24 |
| Standards / Certifications | |
| Warranty | 1 Year |
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
