Description

GloTread Channel is engineered to enhance stair safety and visibility. Made from durable aluminum, it protects strip lights, delivers even light diffusion, and is tough enough to withstand foot traffic. The included silicone lens creates a smooth, linear glow with minimal visible hot spots from the LEDs. With a low-profile height of just 0.87", it minimizes the risk of tripping hazards for foot traffic. This channel is compatible with aspectLED’s X-Series Strip Lights or any strip light 4mm wide or less.

Specifications


Part #	AL-TRK-TREAD1-M
Physical
Channel Material	Anodized Aluminum
Dimensions	1.69" (43mm) W x 0.87" (22mm) H
Lens Material	Flexible Silicone
Routing Width	Not applicable
Weight	1.66lb (6.5ft Channel + Lens)
Compatibility
Compatible Strip Lights	Compatible with aspectLED's X-Series Strip Lights – or other strip light products 4mm wide or less.
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 year

Features

3/16" visible lens improves visibility to hard-to-see steps and ledges with minimal visual intrusion
Low-profile design reduces tripping hazards for pedestrians
Compatible with aspectLED's X-Series Strip Lights or strip light products 4mm wide or less

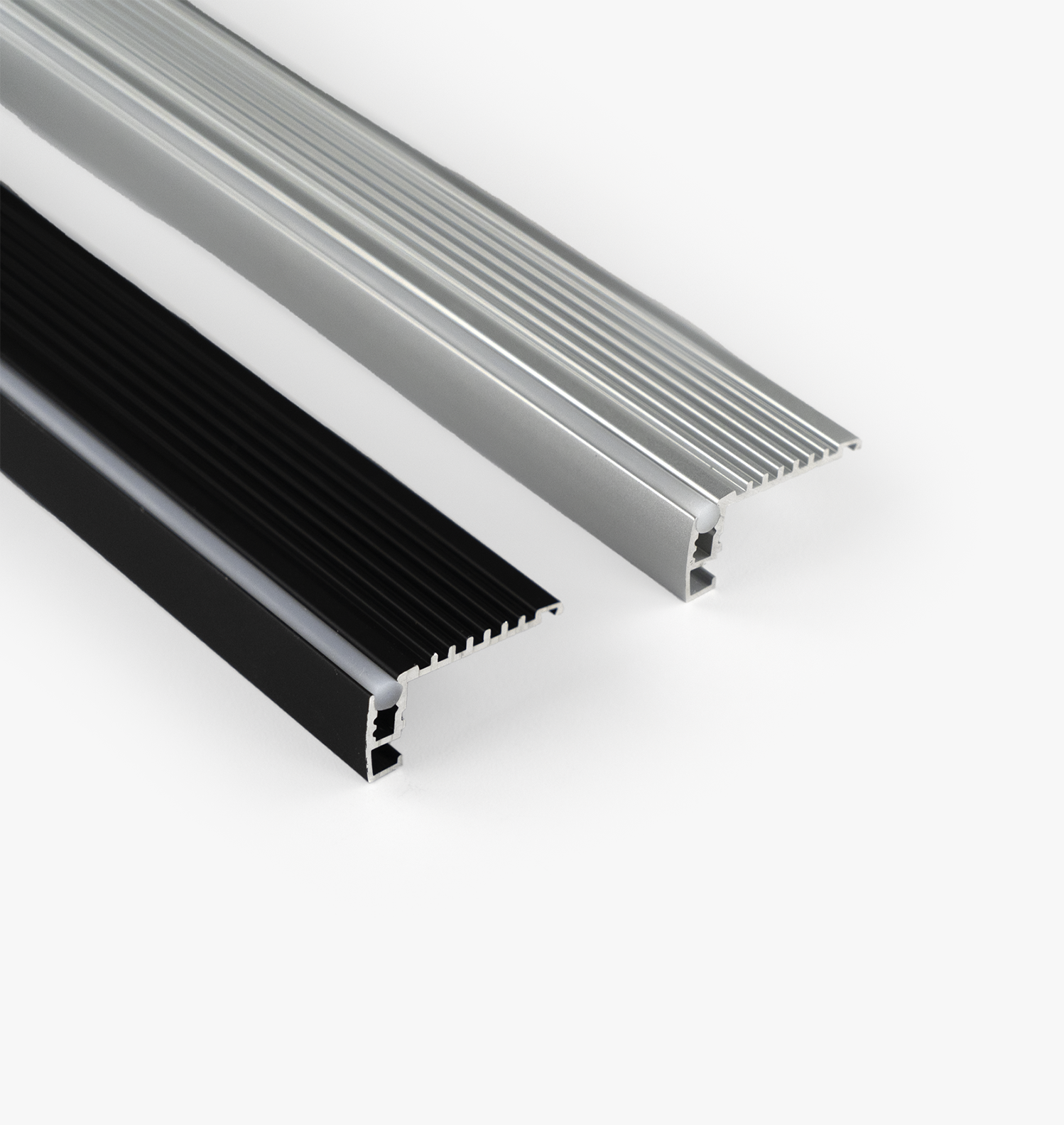

Offered in sleek black or silver aluminum finishes to blend seamlessly into any space
End caps included for clean, easy installation
Constructed from high-quality AL6063-T5 aluminum alloy for durability, heat dissipation, and extended LED lifespan
Anodized finish adds extra protection against rust and oxidation
Multi-pack options available for installers and large-scale projects
Flexible silicone lens available in 30M bulk rolls
IP20, not suitable for wet areas or heavy cleaning

Applications

Stairway + Step Lighting
Low-profile design reduces tripping hazards for pedestrians
Theater Lighting
Utility Lighting
Commercial Spaces
Gym Lighting
Entryways
Hotel Lighting

Technical Documents

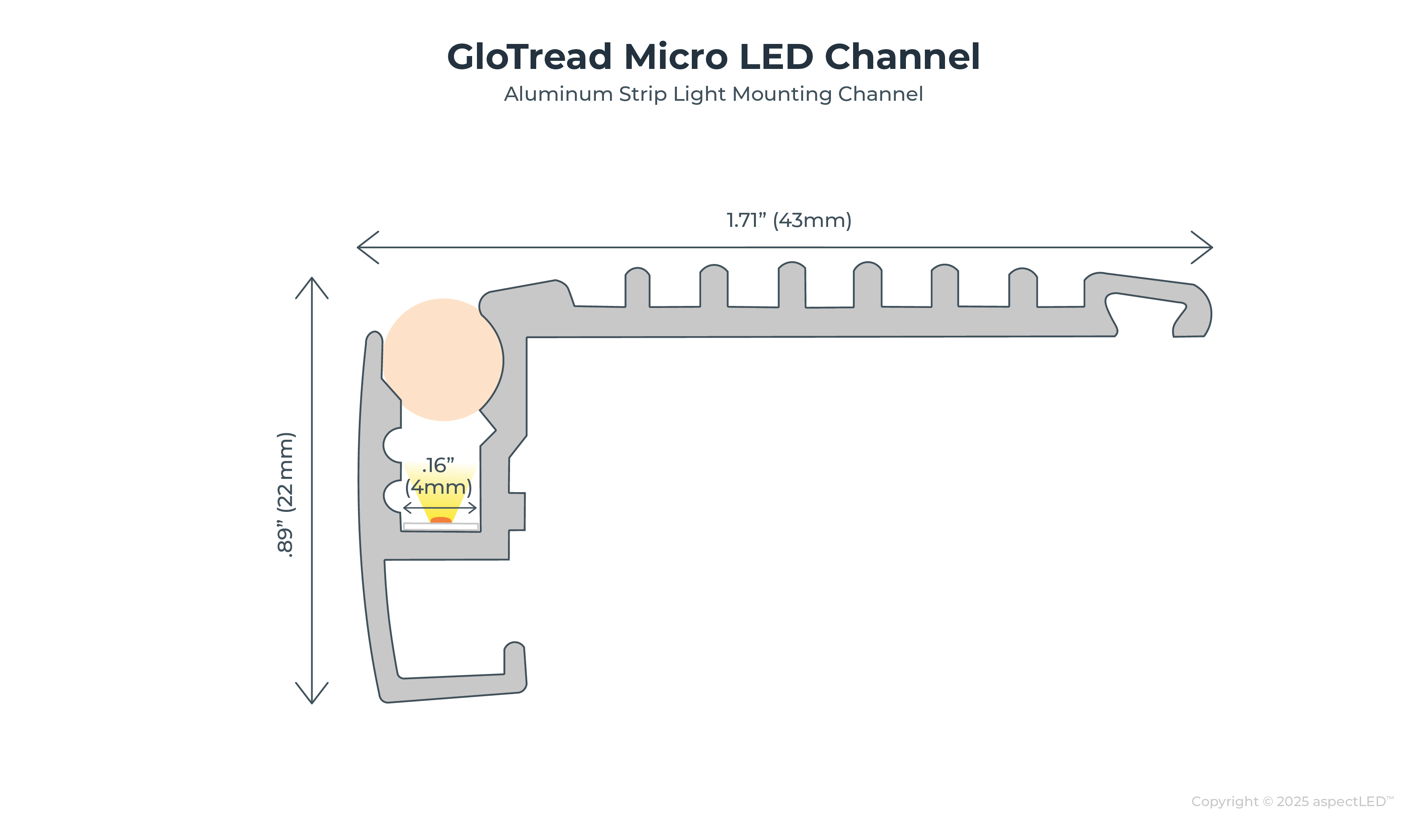

Technical Drawing

Cut Sheet

View Installation Guide

Compatibility Chart

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

GloTread Micro LED Channel - Black

SKU: AL-TRK-TREAD1-M-BFST-2M-10

$638.89

Low Stock (only 10 items left in stock) - Backorder Available

Channel Color: Black

Black Silver

Channel Length: 6.5 Feet

6.5 Feet 3.3 Feet

Include Accessories?: No

No Yes

Quantity: 10PK

10PK 5PK 1
