In-Floor Aluminum Mounting Channel for LED Strip Lights (Tile/Stone/Concrete/Wood)
In-Floor Aluminum Mounting Channel for LED Strip Lights (Tile/Stone/Concrete/Wood)
Low Stock (only 1 item left in stock) - Backorder Available
Description

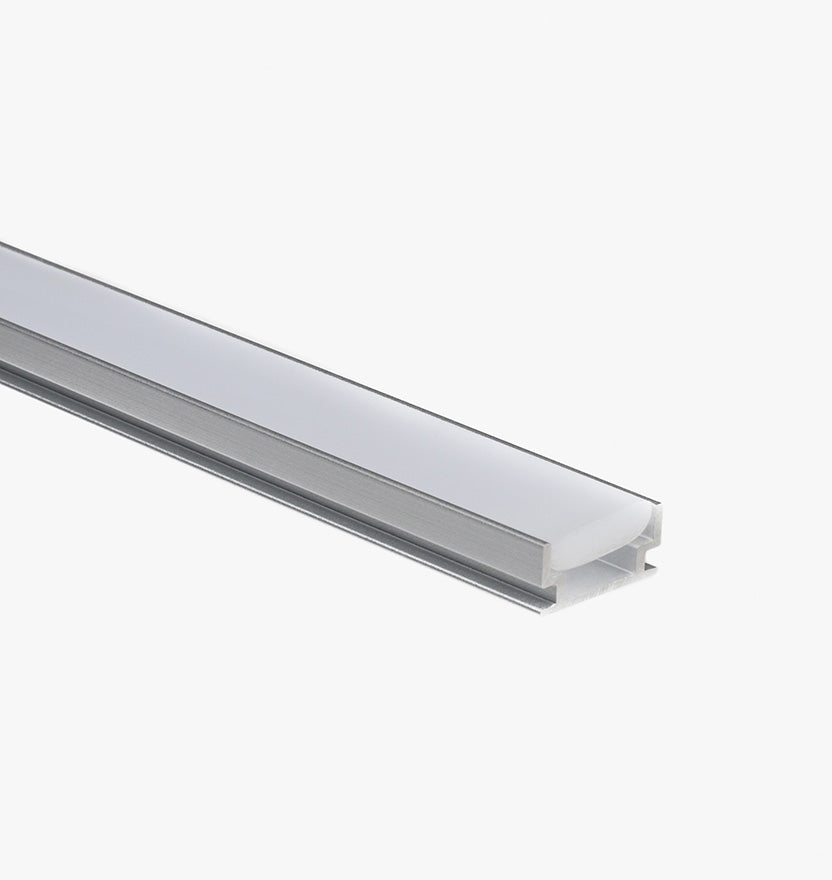

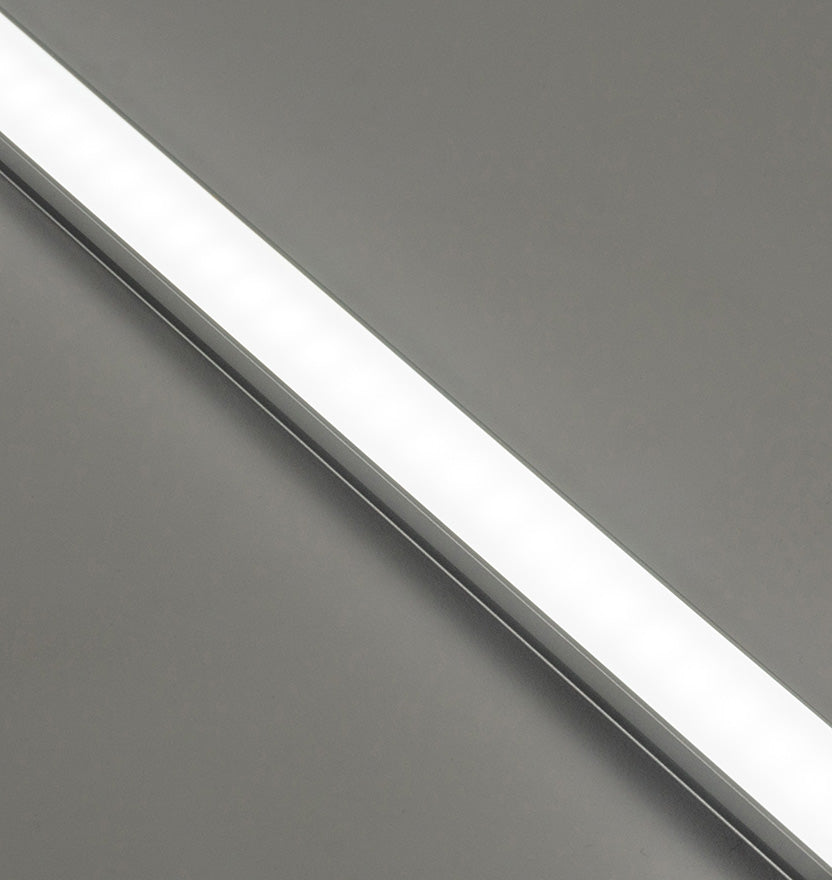

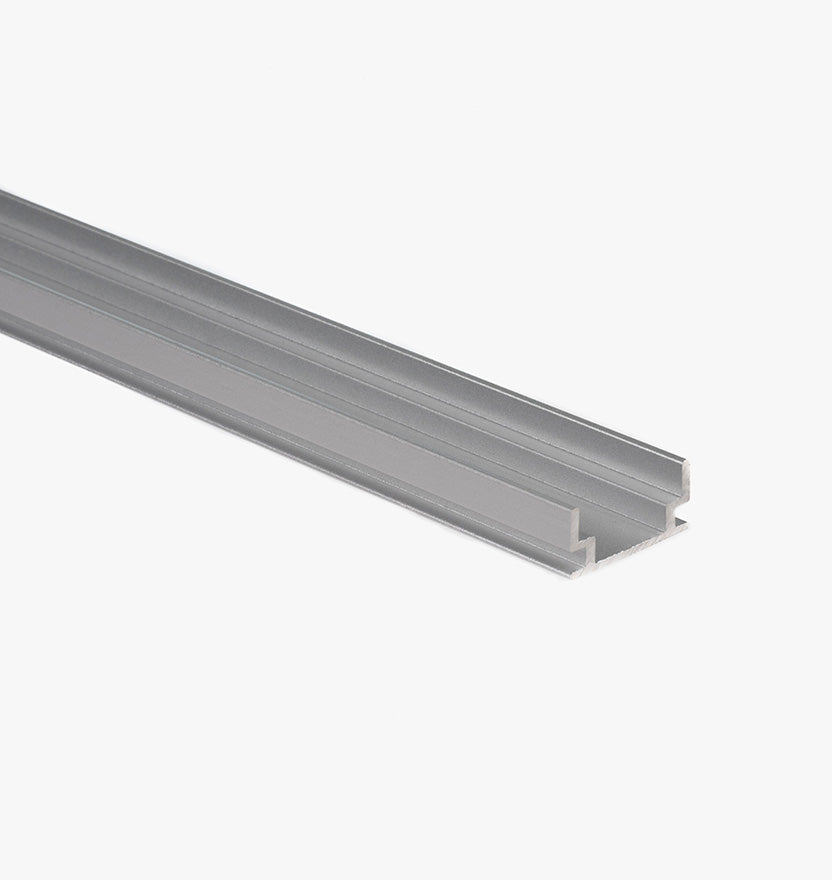

This in-floor and in-wall aluminum channel is built from durable anodized aluminum and designed for pathway lighting applications where added durability is required. Engineered to withstand both foot traffic and vehicle load, it is ideal for high-traffic environments. The included acrylic lens diffuses light evenly, creating a smooth, continuous line of illumination with no visible hot spots. Its sturdy construction protects strip lights while supporting efficient heat dissipation for long-term performance. Designed for architectural use, this channel delivers a clean, integrated look that enhances both durability and visual appeal.
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-TRK-INFLR |
| Physical | |
| Accommodates these | Interior Channel Dimensions | 0.43" (11mm) |
| Aluminum Channel | Routing Width | See Technical Drawing |
| Channel Material | Anodized Aluminum |
| Dimensions | 0.75" Wide 0.19" Tall |
| Finish Options | Silver |
| Lens | Frosted |
| Lens Material | Polycarbonate |
| Mounting Method | Recessed, Mounting Clip |
| Routing Width | 20mm |
| Strip Light Compartment | Dimensions | 0.437" Wide x 0.115" Deep |
| Weight | 1.8 lb (6.5ft Channel & Lens) |
| Photometric | |
| Lens Transmittance | Frosted = 78% |
| Environmental | |
| IP Rating | IP20 |
| Load Rating | IK06 |
| Max Operating Temperature | -4 – 122°F (-20 – 50°C) |
| Max Storage Temperatures | -22 – 176°F (-30 – 80°C) |
| Suitable Uses | Dry, Indoor |
| Compatibility | |
| Compatible Strip Lights | Holds Strip Light up to 12mm wide, Not compatible with Waterproof Strip Lights due to coating |
| Standards / Certifications | |
| Standards / Certifications | RoHS |
| Warranty | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
