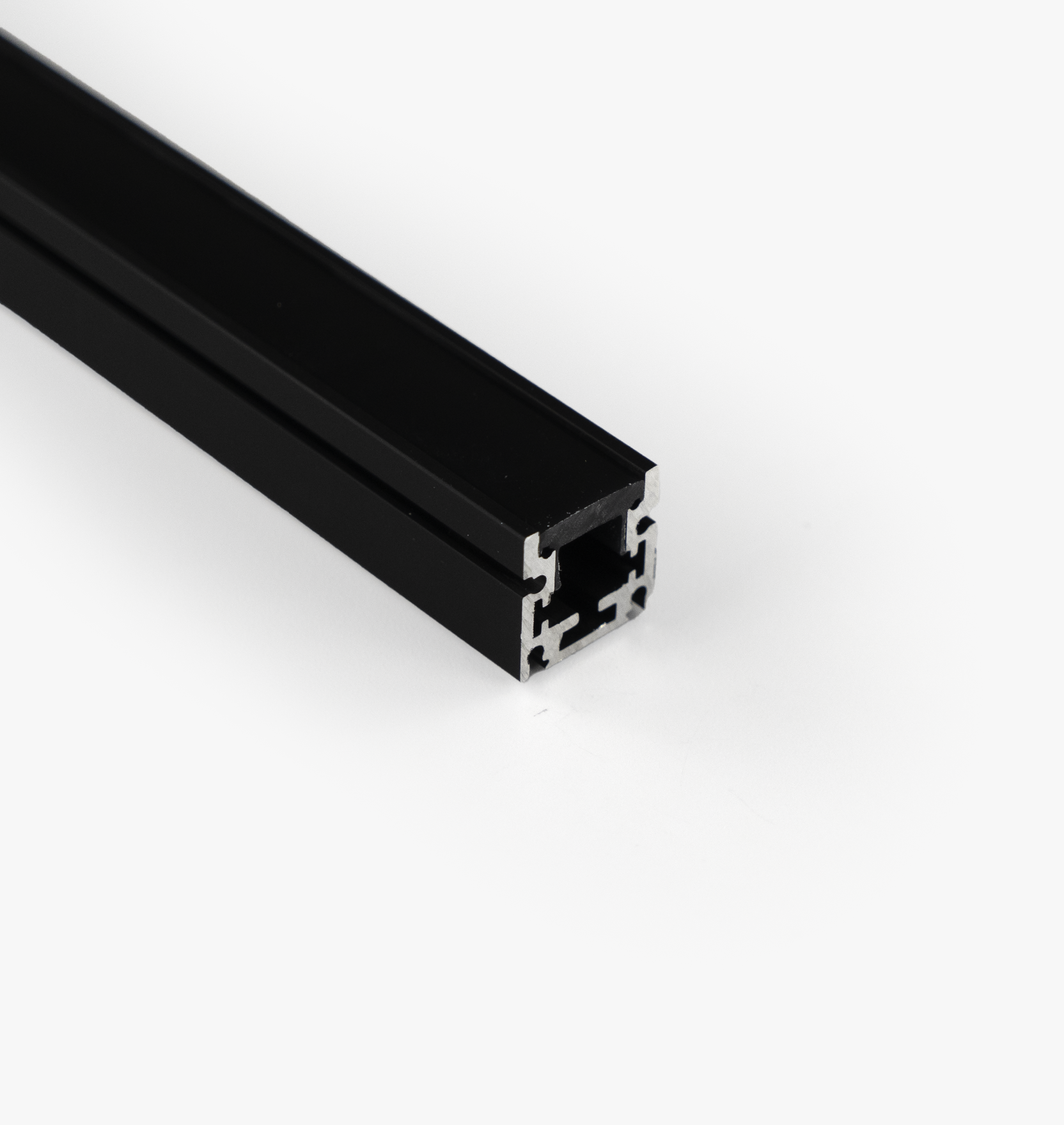

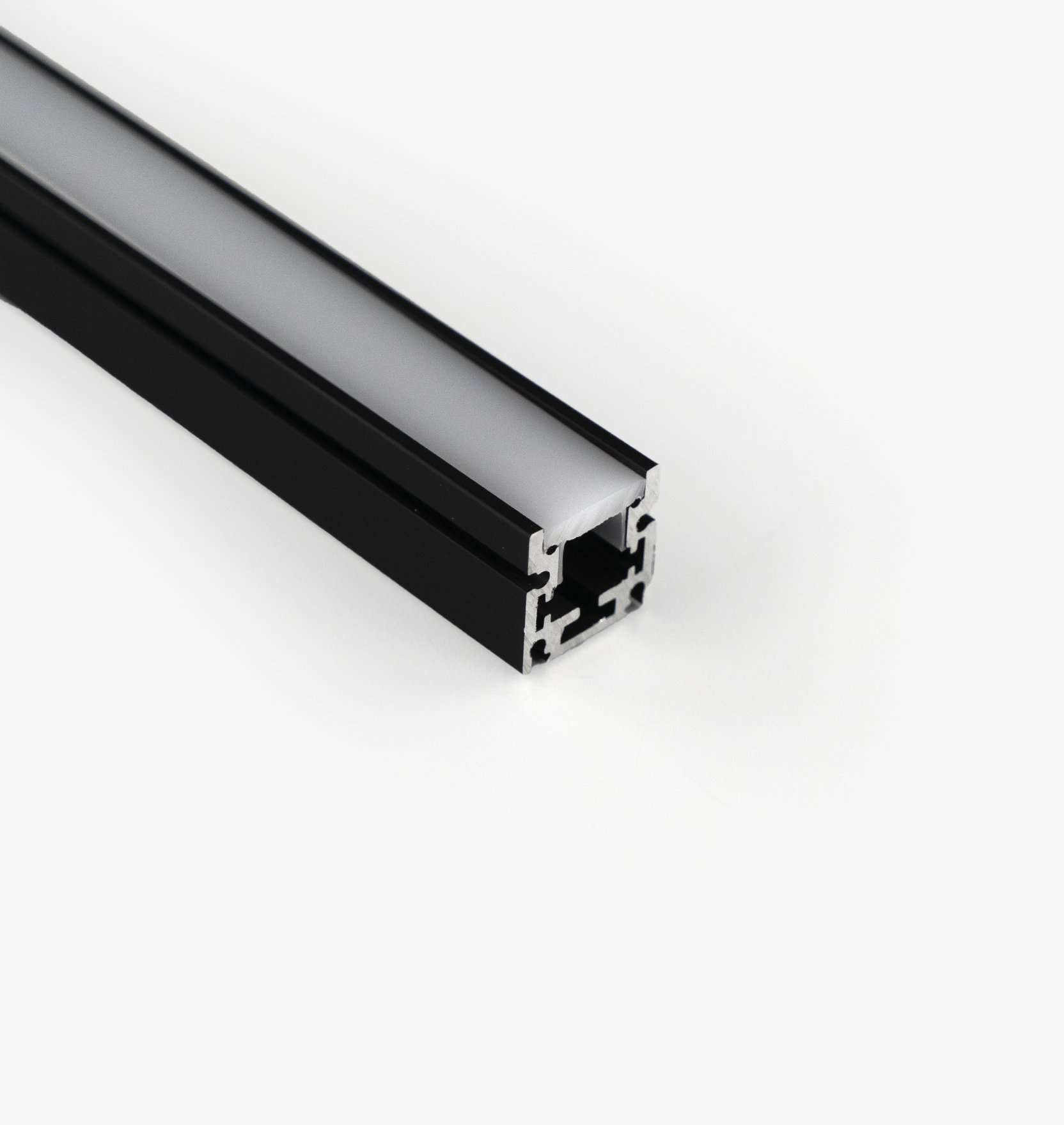

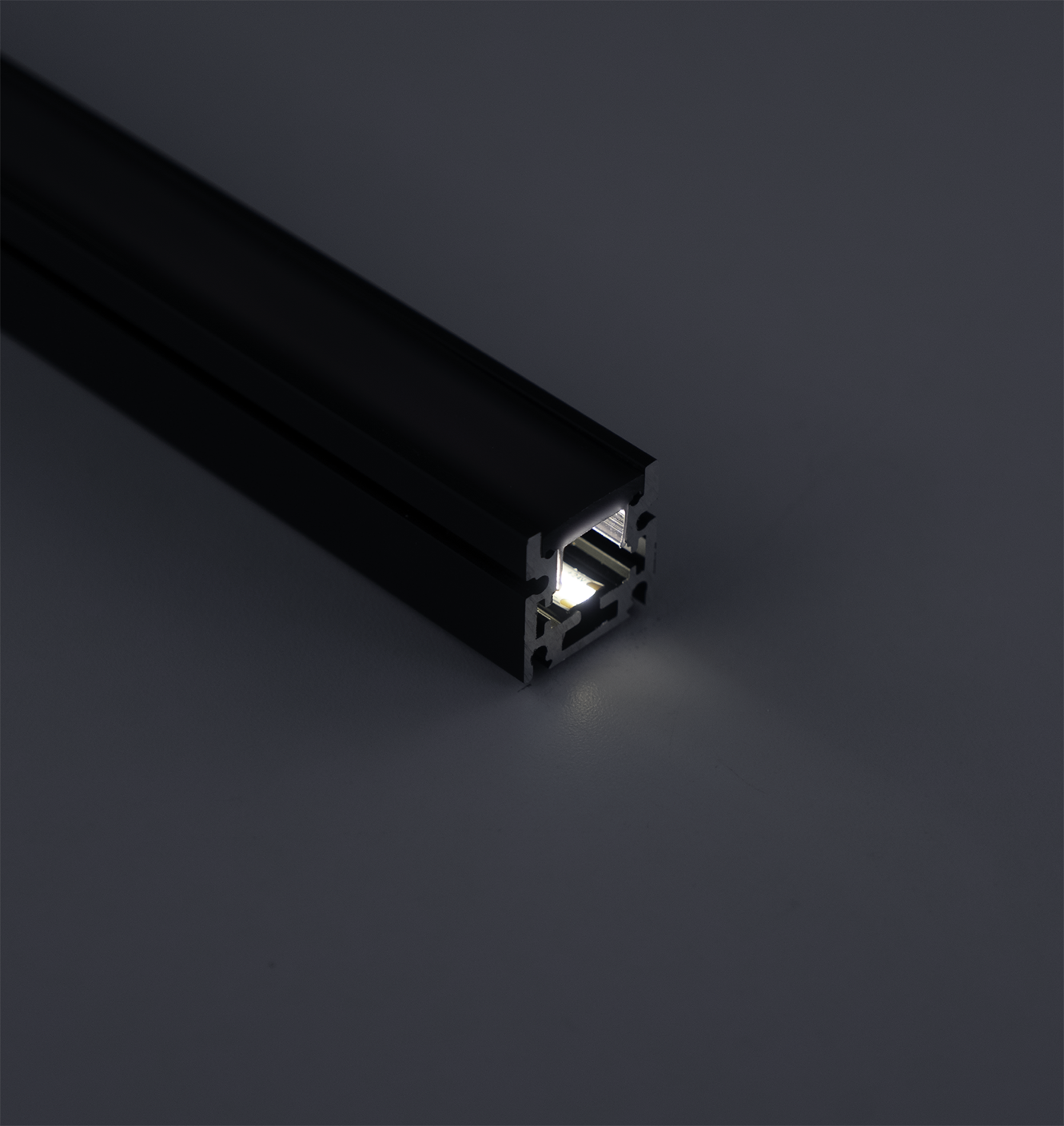

In Floor LED Channel, Universal Wide (IP65) - Black - 1

SKU: AL-TRK-INFLR-W-BSMK-1M-KIT

$59.89

In-Stock (100) - Ships Same or Next Business Day

Pack Size: 1

1 10PK 5PK

Channel Color: Black

Black Silver

Lens: Smoke

Smoke Frosted

Channel Length: 3.3 Feet

3.3 Feet 6.5 Feet

Include Accessories?: Yes

Yes No

Description

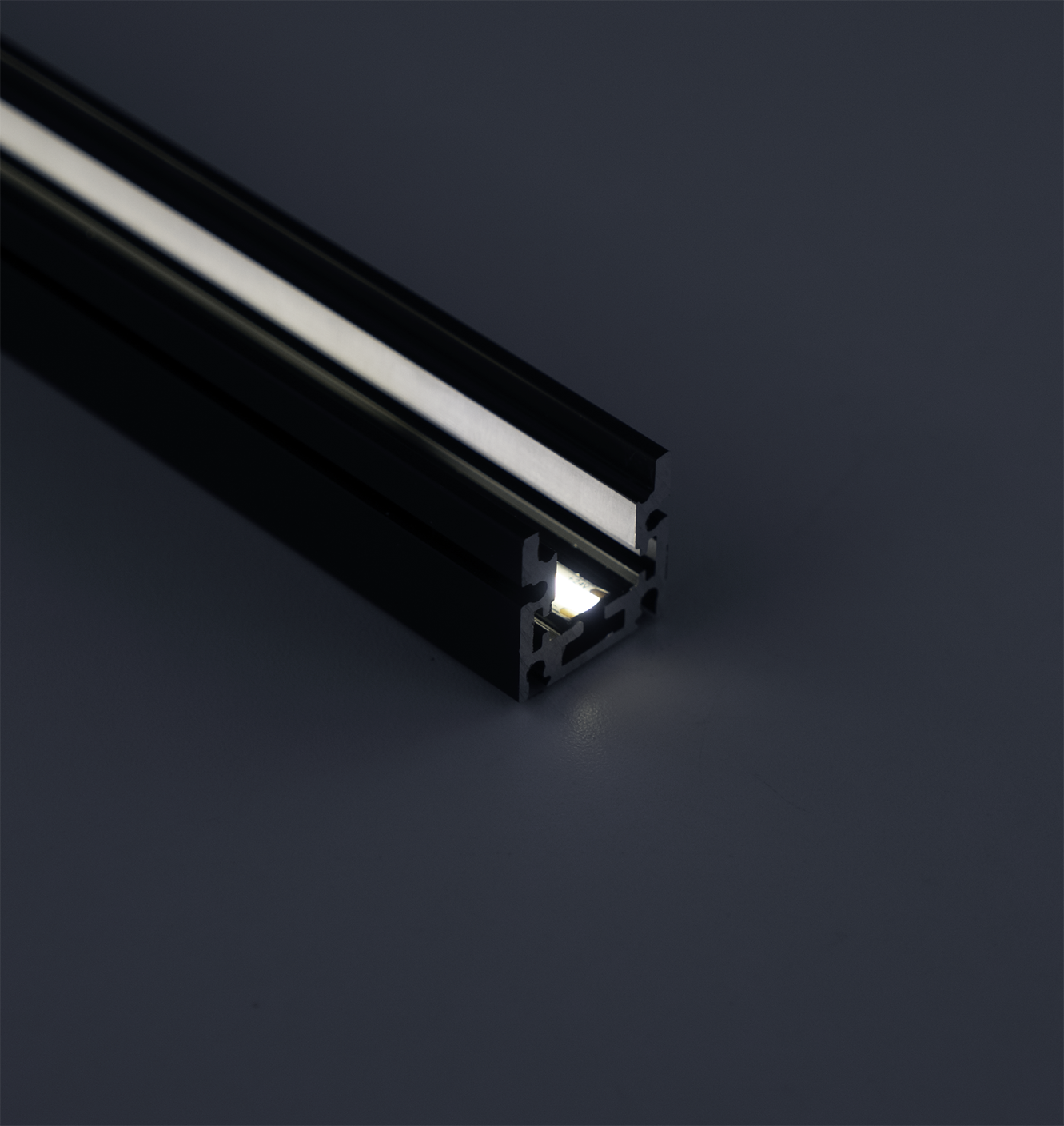

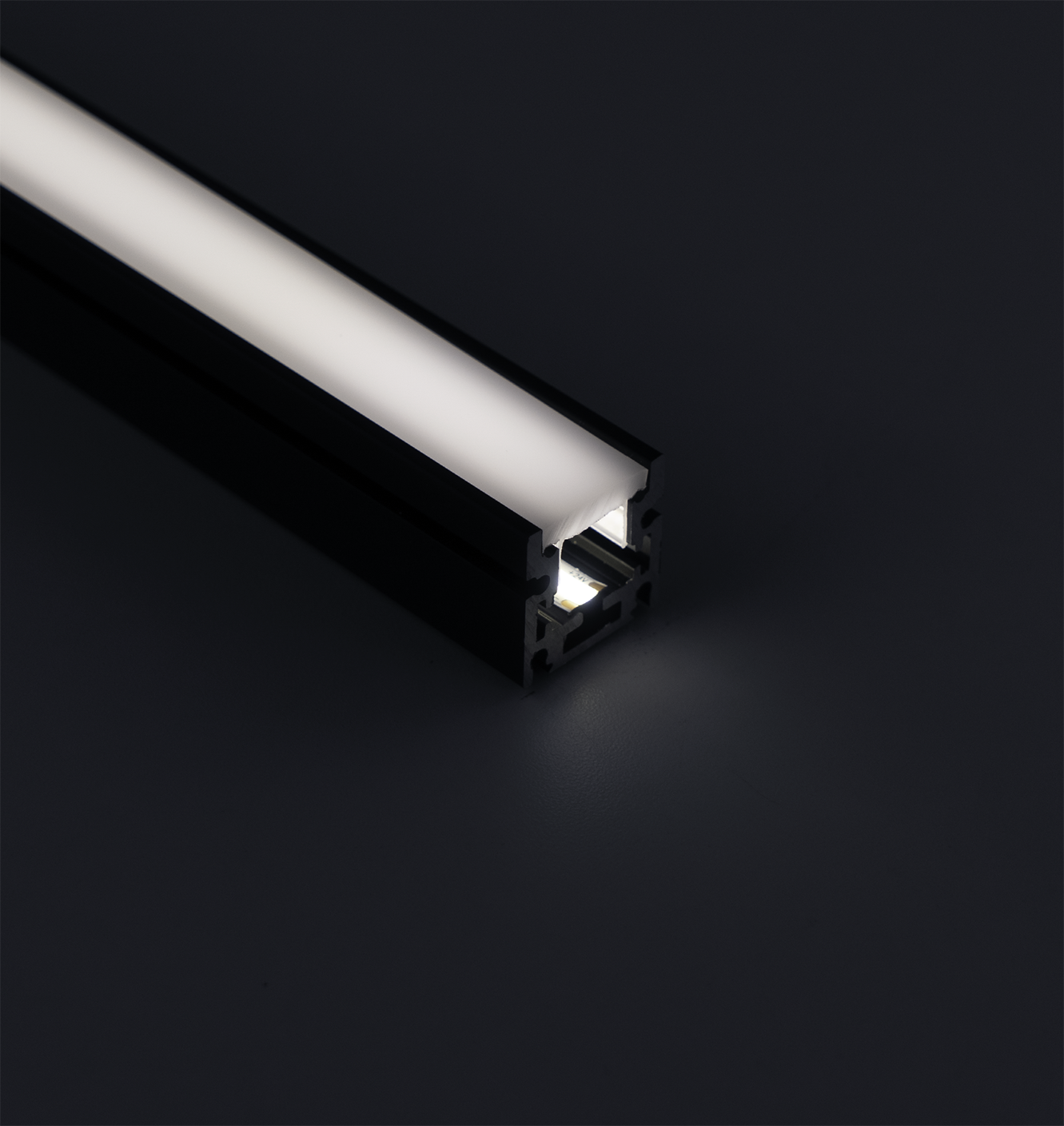

This Universal Wide In-Floor Channel accommodates strip lights up to 16mm wide, whether rated for indoor or outdoor use. Its extra-wide design can even fit two 8mm strips for enhanced brightness. Built from durable aluminum, it protects your strip lights, diffuses light evenly, and is strong enough to withstand foot traffic. Choose between a frosted or smoke lens to achieve your desired effect: the smoke lens reduces output for subtle accent lighting, while the frosted lens delivers bright, clean illumination ideal for task lighting.

Specifications

Part #	AL-TRK-INFLR-W
Physical
Channel Material	Anodized Aluminum
Lens Material	Polycarbonate

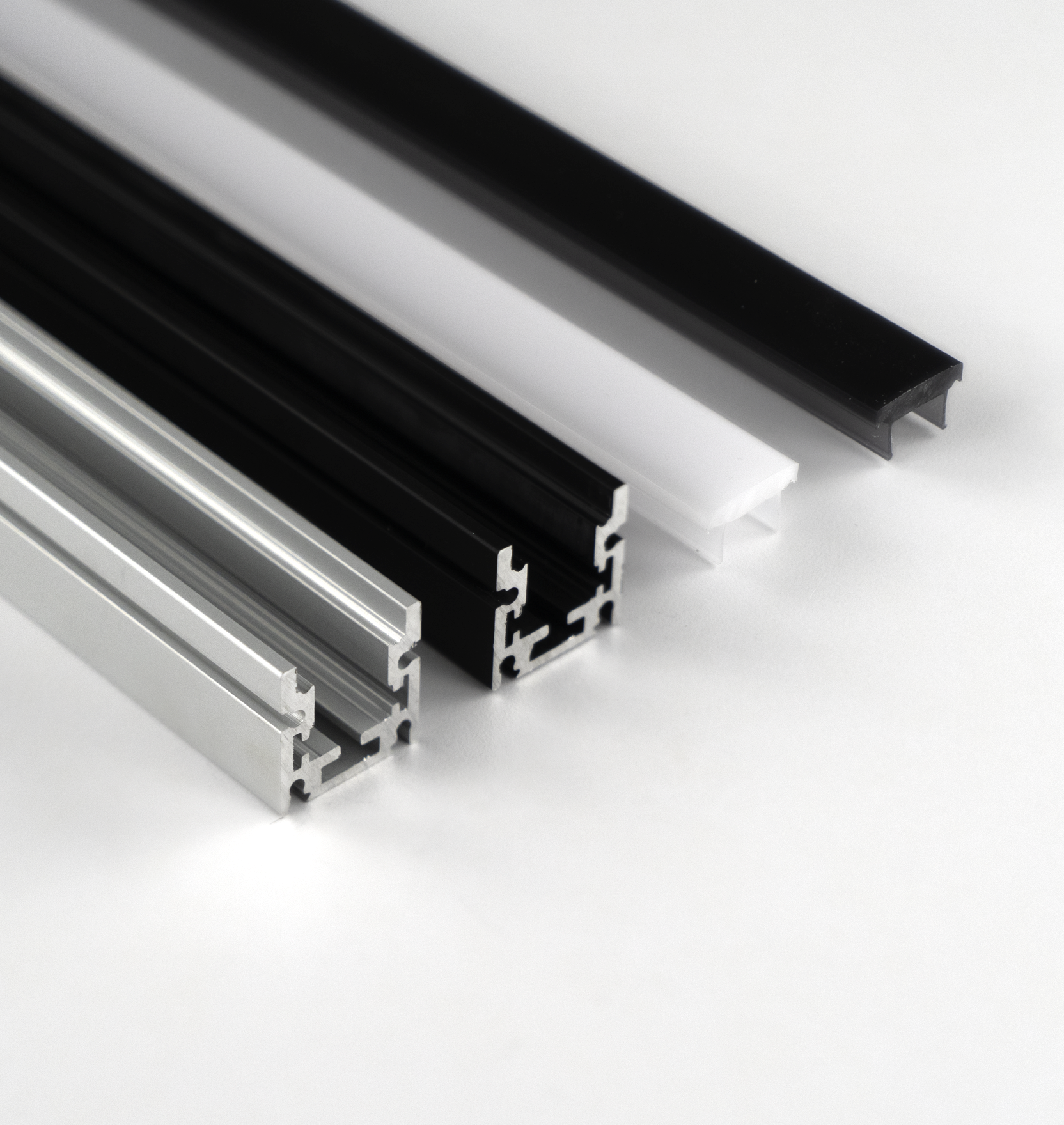

Lens Options	Frosted, Smoke
Routing Width	30mm
Weight	3.91lb (6.5ft Channel + Lens)
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Lens Thickness: 3/16" for added impact resistance and long-term durability.
Heavy Duty Construction: Extra stability and resistance against flexing, bending, and warping.
Outdoor Ready: Pair with waterproof end caps and silicone seals for IP65+ applications.
Visible Lens: 7/8" lens opening delivers broad, even illumination.
Strip Compatibility: Fits indoor or outdoor strip lights up to 16mm wide.
Versatile Light Sources: Compatible with SMD and COB strips, including tunable white, color-changing, and static white options.

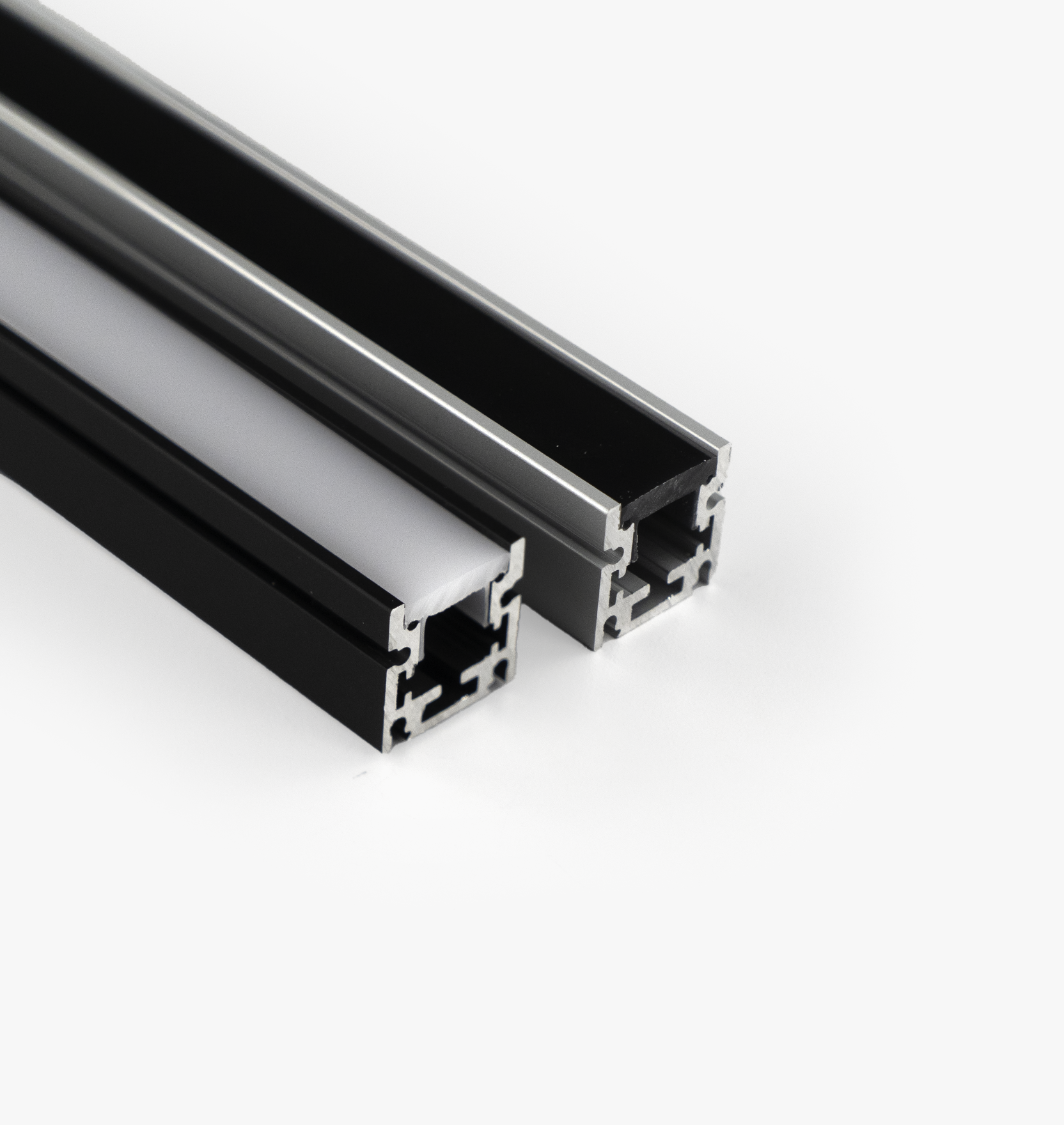

Customizable Appearance: Available with smoked or frosted lenses for a built-in, tailored look.

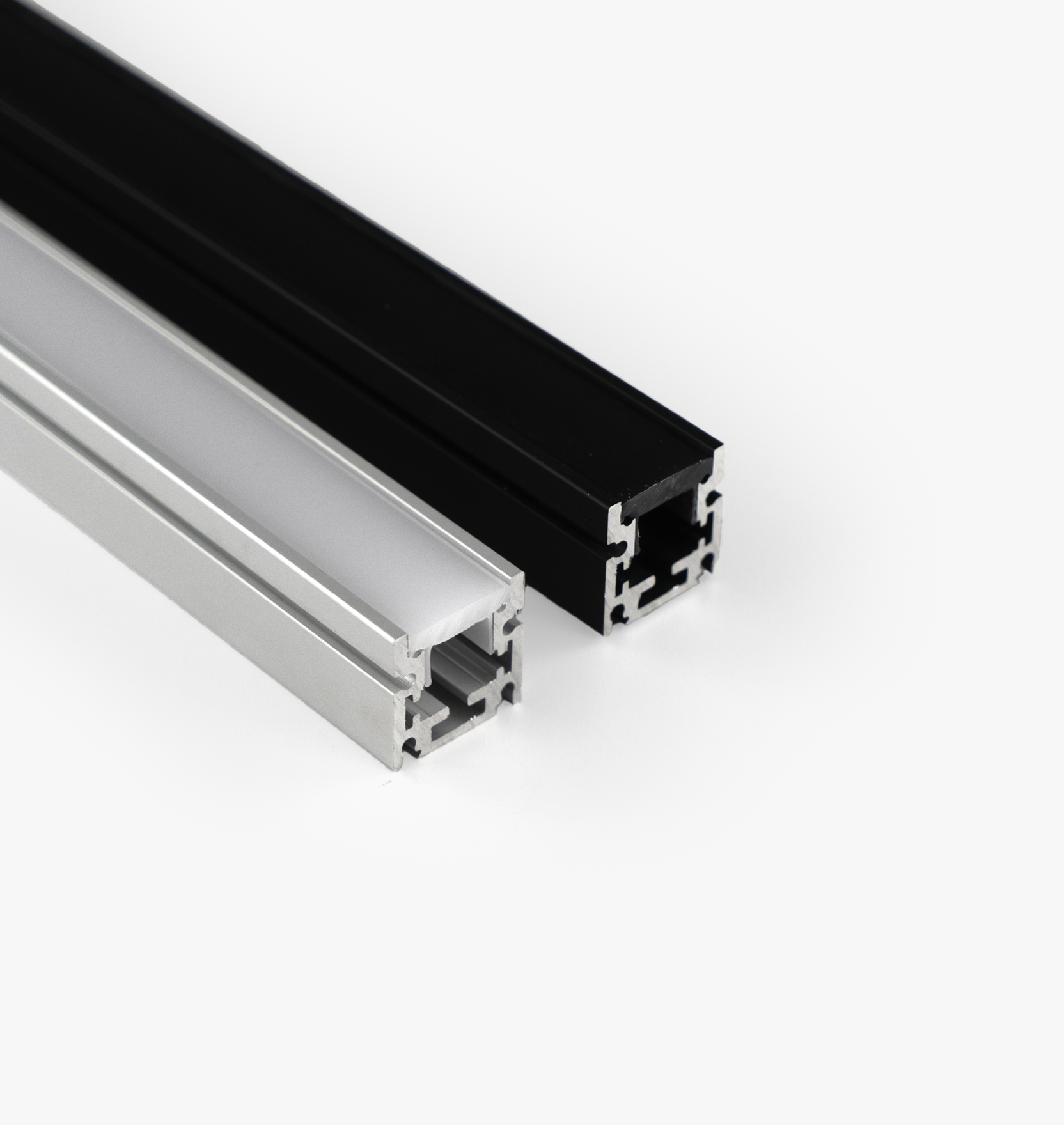

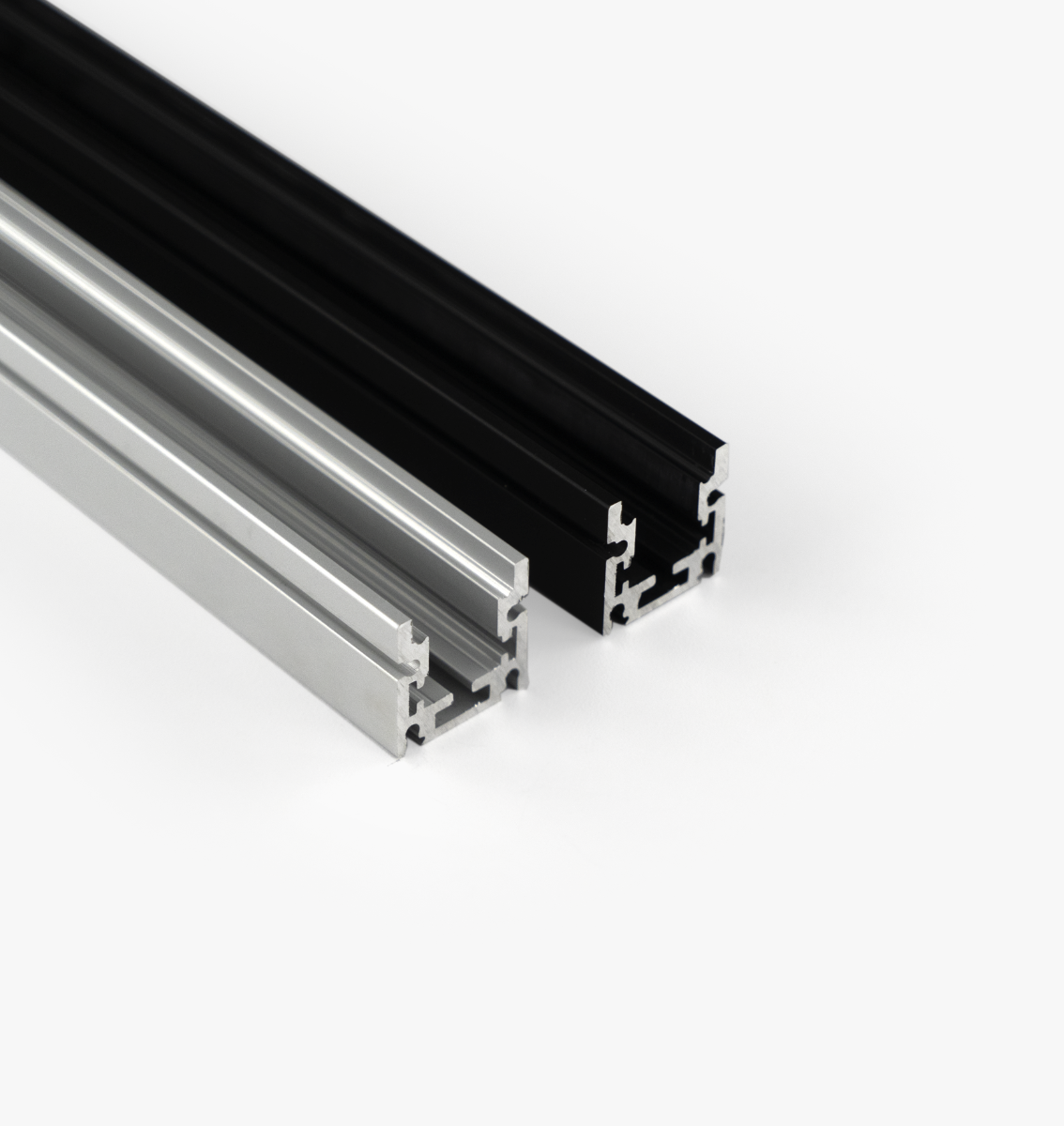

Finish Options: Offered in sleek black or silver aluminum to blend seamlessly into any space.
Easy Installation: End caps and mounting clips included for a clean, hassle-free setup.
Durability: Constructed from high-quality AL6063-T5 aluminum alloy for heat dissipation and extended LED lifespan.
Added Protection: Anodized finish guards against rust and oxidation.
Multi-Pack Options: Available for installers and large-scale projects.
Indoor & Outdoor Safe: Suitable for installation in both environments.

Applications

Outdoor & Indoor Pathway Lighting
Outdoor Hardscape Lighting
Border & Perimeter Lighting
Floor Transition & Demarcation Lighting
Commercial Lighting
Pool & Spa Lighting

Technical Documents

Technical Drawing

Cut Sheet

View Installation Guide

Compatibility Chart
