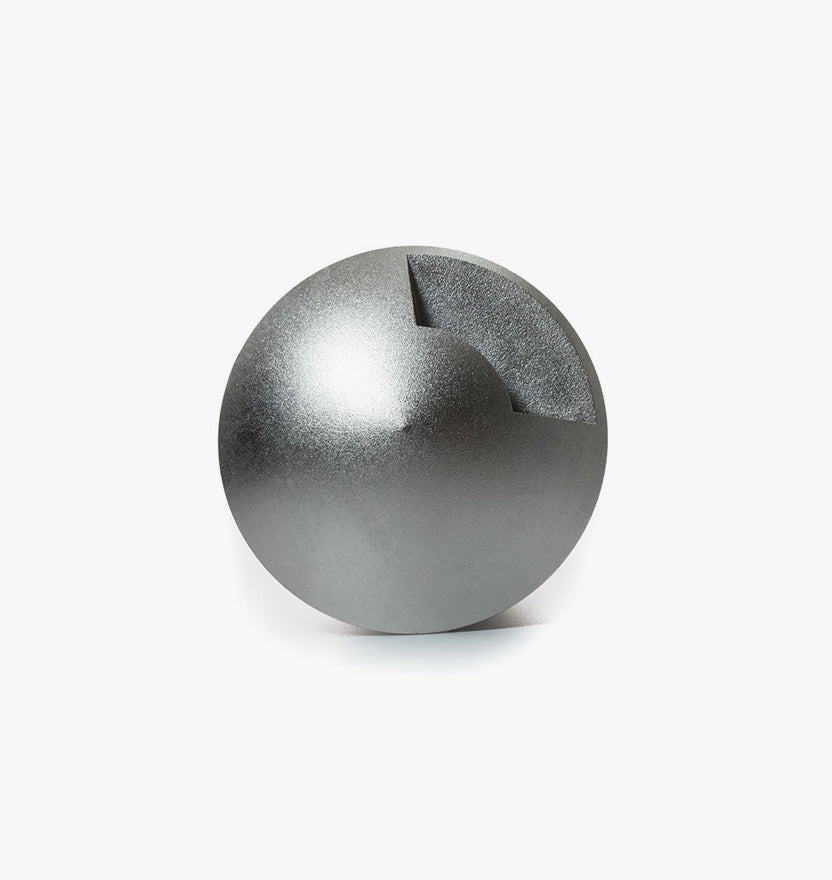

In-ground Stainless Steel Pathway Light (3W) - RGB
In-ground Stainless Steel Pathway Light (3W) - RGB
In-Stock (33) - Ships Same or Next Business Day
Description

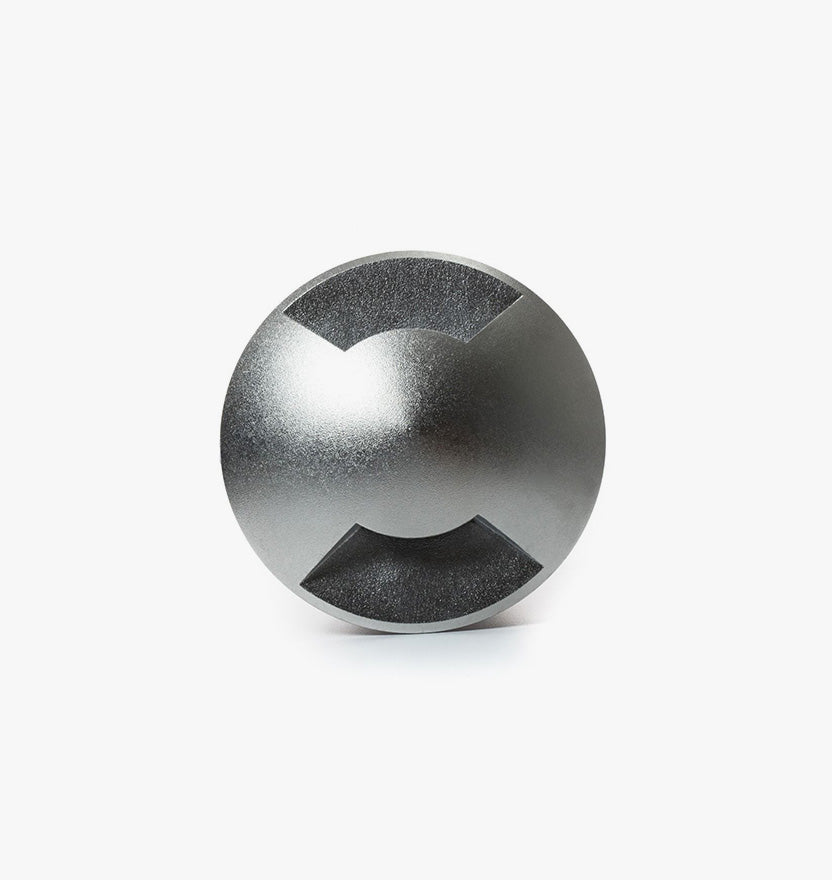

aspectLED's landscape LED lights are bright, energy efficient, and attractively styled, making them perfect for virtually any outdoor application. Ideal for installation along pathways, driveways, sidewalks, landscape edging, and other landscape/architectural features. A favorite of our golf course, resort and public park customers, these stainless steel pathway lights feature an ultra-bright 3W LED and their compact size make for easy installation in virtually any location. These are designed to be installed with their top trim piece flush with your finished surface (grass, mulch, asphalt, etc.). Perfect for gardens, patios, landscaping, garden wall tops, building entrances, pathways, decks, gazebos, public parks, and docks (fresh water). These pathway lights feature a stainless steel light-head and a stainless steel body and are designed to stand up in the toughest high-traffic environments and are waterproof with an IP65 rating. This fixture is available in several versions (single cutout, double cutouts on the same side, double cutouts on the opposite sides, and four cutouts). Withstands standard motor vehicle traffic (golf carts, cars, 3/4 ton pickup trucks). See photos for more details about cut-out options. Make your installation a breeze by using the included aspectLED mounting sleeve.
Key Features
Key Features
-
Up to 300 Lumens
-
3 Watts
-
12VDC, 24VDC, 12VAC
-
IP65
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | 12VAC | |
|---|---|---|---|
| Part # | AL-IG-PW | AL-IG-PW | AL-IG-PW |
| Physical | |||
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Fixture Material | Stainless Steel and Aluminum Alloy | Stainless Steel and Aluminum Alloy | Stainless Steel and Aluminum Alloy |
| Glass | Step-tempered glass | Step-tempered glass | Step-tempered glass |
| Lens | Optical, >85% efficient | Optical, >85% efficient | Optical, >85% efficient |
| Light Fixture Dimensions | (without mounting sleeve) | 3-9/16" Diameter 2-13/16" Deep 2.5" Cut out hole | 3-9/16" Diameter 2-13/16" Deep 2.5" Cut out hole | 3-9/16" Diameter 2-13/16" Deep 2.5" Cut out hole |
| Waterproof Seal | Silicone Seal | Silicone Seal | Silicone Seal |
| Weight | 1.6 lbs | 1.6 lbs | 1.6 lbs |
| Electrical | |||
| Input Voltage | 12VDC | 24VDC | 12VAC |
| LED Quantity | 3 - High Power 1 Watt LEDs | 3 - High Power 1 Watt LEDs | 3 - High Power 1 Watt LEDs |
| LED Type | SMD LED Chips | SMD LED Chips | SMD LED Chips |
| Max Power Consumption | Absolute Max: 3 Watts Normal: 1.5-2.2 Watts | Absolute Max: 3 Watts Normal: 1.5-2.2 Watts | Absolute Max: 3 Watts Normal: 1.5-2.2 Watts |
| Photometric | |||
| Max Lumens | Luminous Flux: 300 Lumens | Luminous Flux: 300 Lumens | Luminous Flux: 300 Lumens |
| Environmental | |||
| IP Rating | IP65 | IP65 | IP65 |
| Load Rating | 1,760 psi | 1,760 psi | 1,760 psi |
| Suitable Uses | Dry, Damp or Wet Locations | Dry, Damp or Wet Locations | Dry, Damp or Wet Locations |
| Control | |||
| Dimmable | No | No | No |
| Compatibility | |||
| Compatible Power Supplies | Non-Dimmable Power Supplies Never use with MLV power supplies! | Non-Dimmable Power Supplies Never use with MLV power supplies! | 12VAC Power Supplies. Not compatible with standard 12VDC power supplies. aspectLED does not currently supply 12VAC power supplies. |
| Standards / Certifications | |||
| Standards / Certifications | RoHS, CE | RoHS, CE | RoHS, CE |
| Warranty | 1 Year | 1 Year | 1 Year |
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
I want a white light but which white light color should I choose?
Warm White is equivalent to a standard incandescent light color and is most popular for residential applications. It has a slight warm yellow glow to it that many people find comfortable and we are all used to seeing in our homes. It is a 2700-3000K on the Kelvin Light Color Scale.
Cool White is equivalent to a standard CFL or Fluorescent light color and is most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without any yellow undertone. It is a 4000-4500K on the Kelvin Light Color Scale.
DayWhite™ most closely replicates natural daylight and does have a slight blue hue to the light output. This is rarely seen in residential applications as the light output can seem a bit harsh and bright, and is most commonly seen in exterior or commercial applications. This is the brightest of the White light color options. It is a 6000-6500K on the Kelvin Light Color Scale.
How does this fixture install? Does it come with a mounting sleeve?
This light drops into a hole in the floor or substrate. It does not come with or require a mounting sleeve, however, we do have an optional mounting sleeve available sold separately. The mounting sleeve can be very helpful if you are going to be pouring concrete or setting tile around the light location as a placeholder for the light to be installed later.
How is it installed?
The light is supplied with a wire pigtail that you will connect directly to your power source (12VDC, 24VDC or 12VAC). Connect the positive(+) wire to the positive wire on your power supply and the neutral(-) wire to the neutral(-) wire on your power supply.
Can I daisy chain or connect multiple lights together?
Yes, just make sure that your wire gauge and power source are adequate to support the distance you are running from your power source to the lights and the number of lights on your circuit.
How long is the wire lead on each light?
There is approximately 2' of wire lead that comes standard with these lights. You have the option to order longer wire lead lengths if needed.
Which voltage option should I choose?
12VDC: Popular for automotive, motorcycle, boat/marine applications, or anywhere where you are connecting to a 12VDC supply. Some applications may require a separate 12VDC power supply!
24VDC: This is the most popular option for residential and commercial applications. 24VDC is a safe low voltage, and is the most stable and reliable voltage for your aspectLED in-ceiling lights. Requires a separate 24VDC supply!
12VAC: Designed to connect directly to your 12VAC residential supply power. No additional power supply is required.
12VAC: For use with legacy 12VAC power supplies, which have been popular in outdoor applications and are still popular with incandescent power supplies. Be sure your power supply is 12VAC, as the product warranty does not cover using a DC power supply with an AC fixture, or vice versa.
If I choose a low voltage (12VDC or 24VDC) light; how do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply.It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
What gauge wire should I run to my lights?
We generally recommend using between 14ga or 16ga stranded wire. If you are installing these outdoors, you will need direct burial rated wire. Longer distances require larger gauge wire. Always consult a wire gauge chart to determine the correct size wire for your application.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
