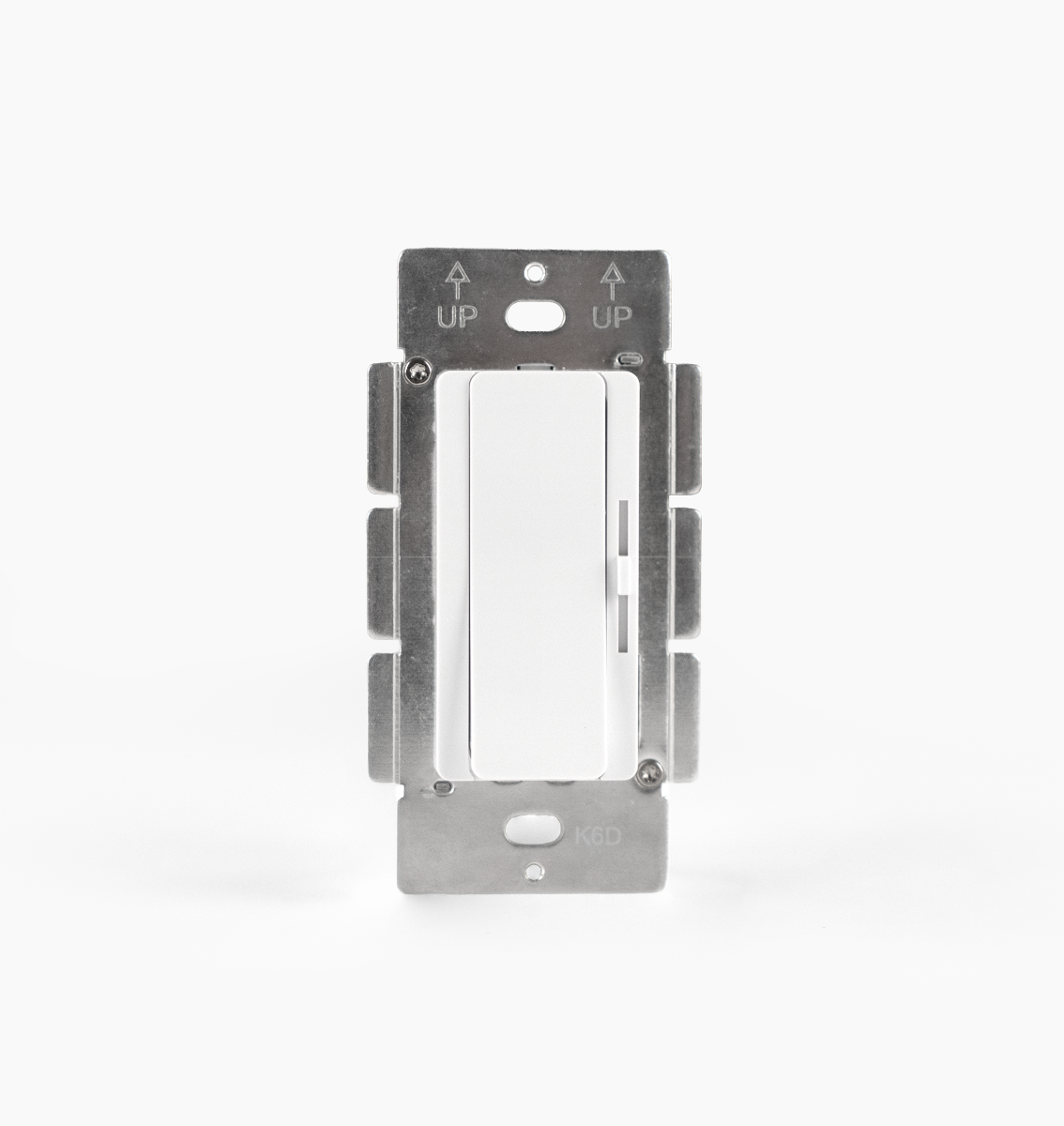

InDrive 2-in-1 Dimmer Switch + Driver, 96W - Single Color
InDrive 2-in-1 Dimmer Switch + Driver, 96W - Single Color
Regular price
$155.89
Sale price
$155.89
Regular price
Description
Compact, versatile, and efficient, this all-in-one dimmer and driver eliminates the need for a separate power supply. Adjust the brightness effortlessly to suit any task, from ambient lighting to bright task lighting. Compatible with single-pole and 3-way configurations, it dims smoothly down to 3% brightness. Streamline installation, reduce labor costs, and simplify your lighting setup.
Key Features
Key Features
-
2-in-1 (Integrated Power)
-
120VAC Input
-
Flicker Free
-
Multi-location Control
Dimensions
Dimensions
2.6" (66mm) Long | 1.28" (32.5mm) Wide | 1.42" (36mm) Deep
Specifications
Specifications
| Part # | AL-CTLR-DIMDR-SC |
| Physical | |
| Dimensions | 36 mm Deep (1.42"), 32.5 mm Wide (1.28"), 66 mm Tall (2.6") |
| Mounting Method | In-Wall Switch Box |
| Pole Type | Single or 3-pole |
| Weight | 9.38 oz (0.25 kg) |
| Electrical | |
| Input Voltage | 120 VAC |
| Max Power Consumption | 96 W |
| Output Signal | 16 kHz PWM Output |
| Environmental | |
| IP Rating | IP65 |
| Suitable Uses | Indoor, Dry, Damp locations |
| Compatibility | |
| Compatible Power Supplies | N/A — Power supply built in |
| Standards / Certifications | |
| Standards / Certifications | ROHS UL Listed FCC Class 2 Class P SELV REACH |
| Warranty | 3 year warranty |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
