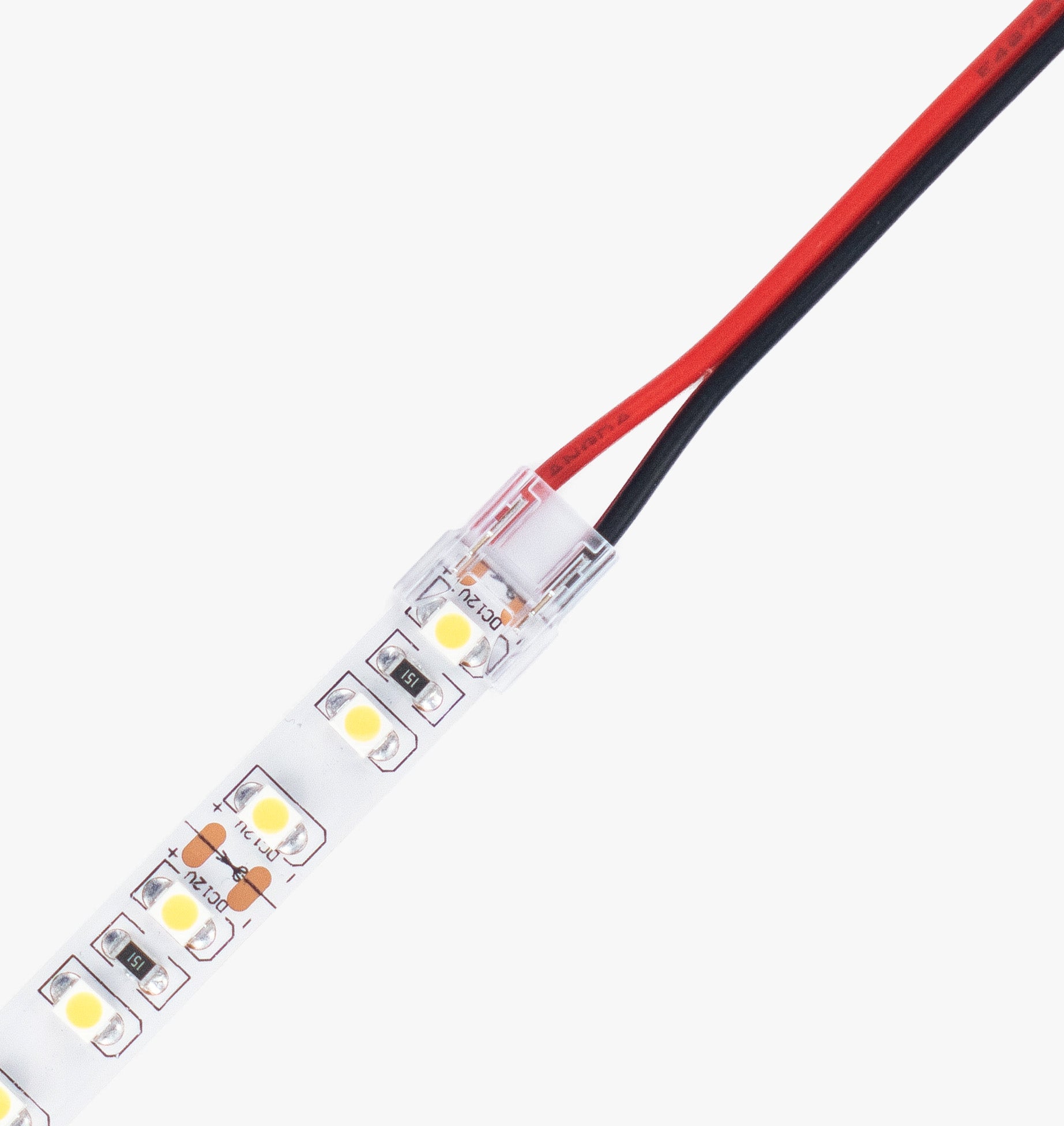

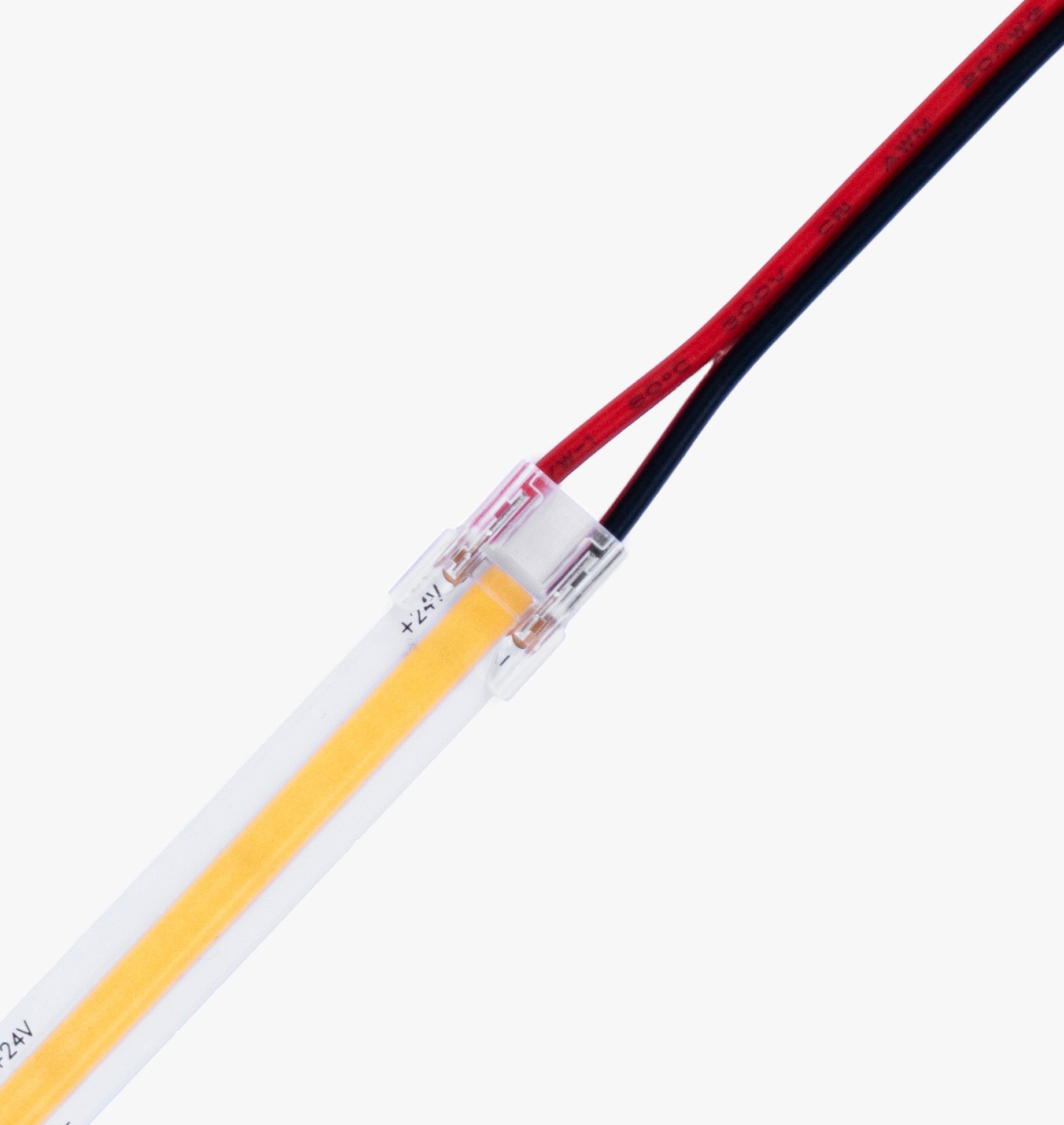

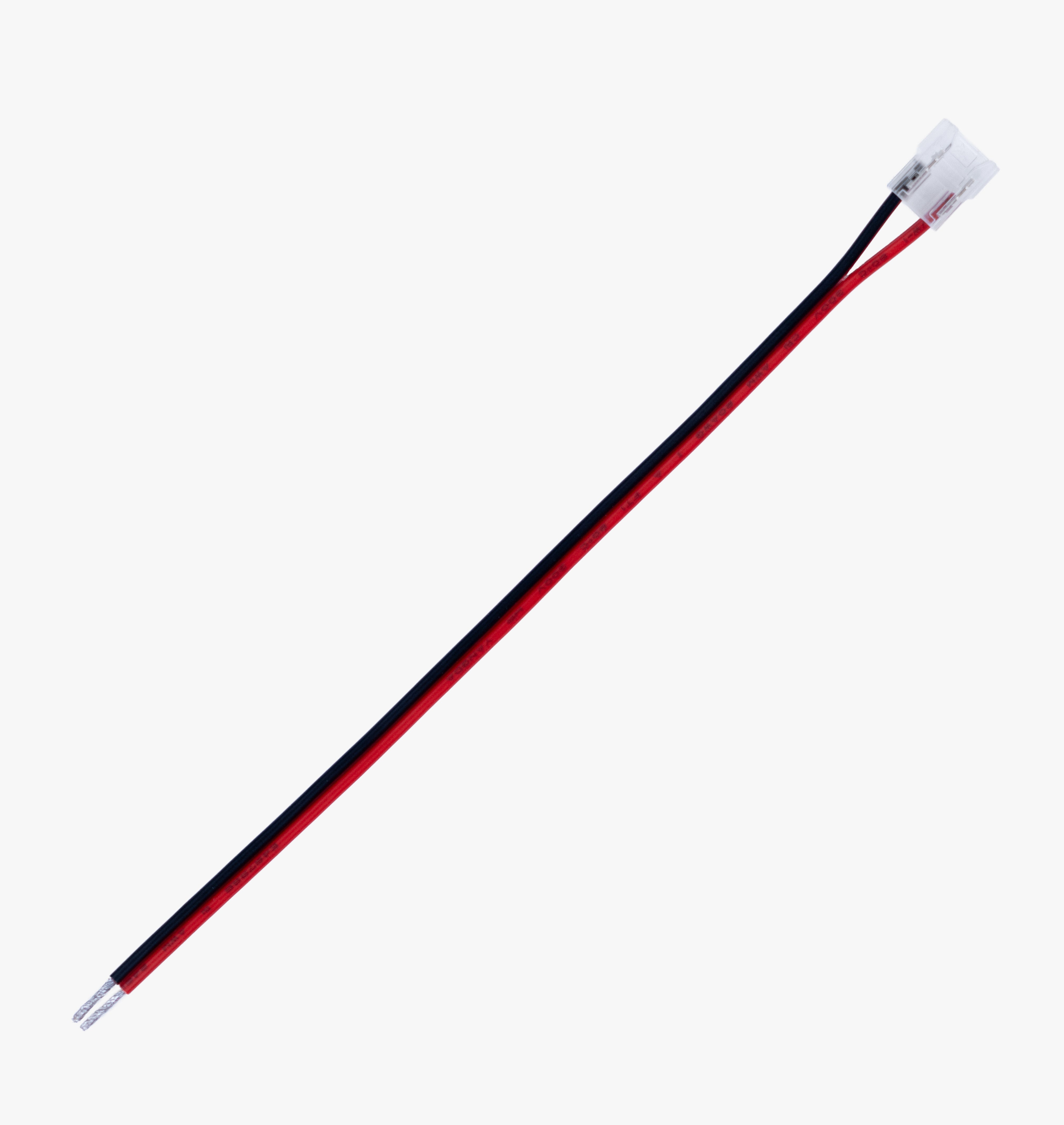

L & N-Series Single Color Solderless Pigtail Bite Connector
L & N-Series Single Color Solderless Pigtail Bite Connector
Regular price
$1.00
Sale price
$1.00
Regular price
In-Stock (7706) - Ships Same or Next Business Day
Description
This single ended connector allows you to cut your strip light to length and connect new wire leads without soldering. FOR USE ONLY WITH aspectLED LED Strip Lights. Be sure to observe strip light polarity at all connection points. Needle Nose or Parallel Jaw Pliers are recommended for installation.
Key Features
Key Features
-
IP20
Non-Waterproof -

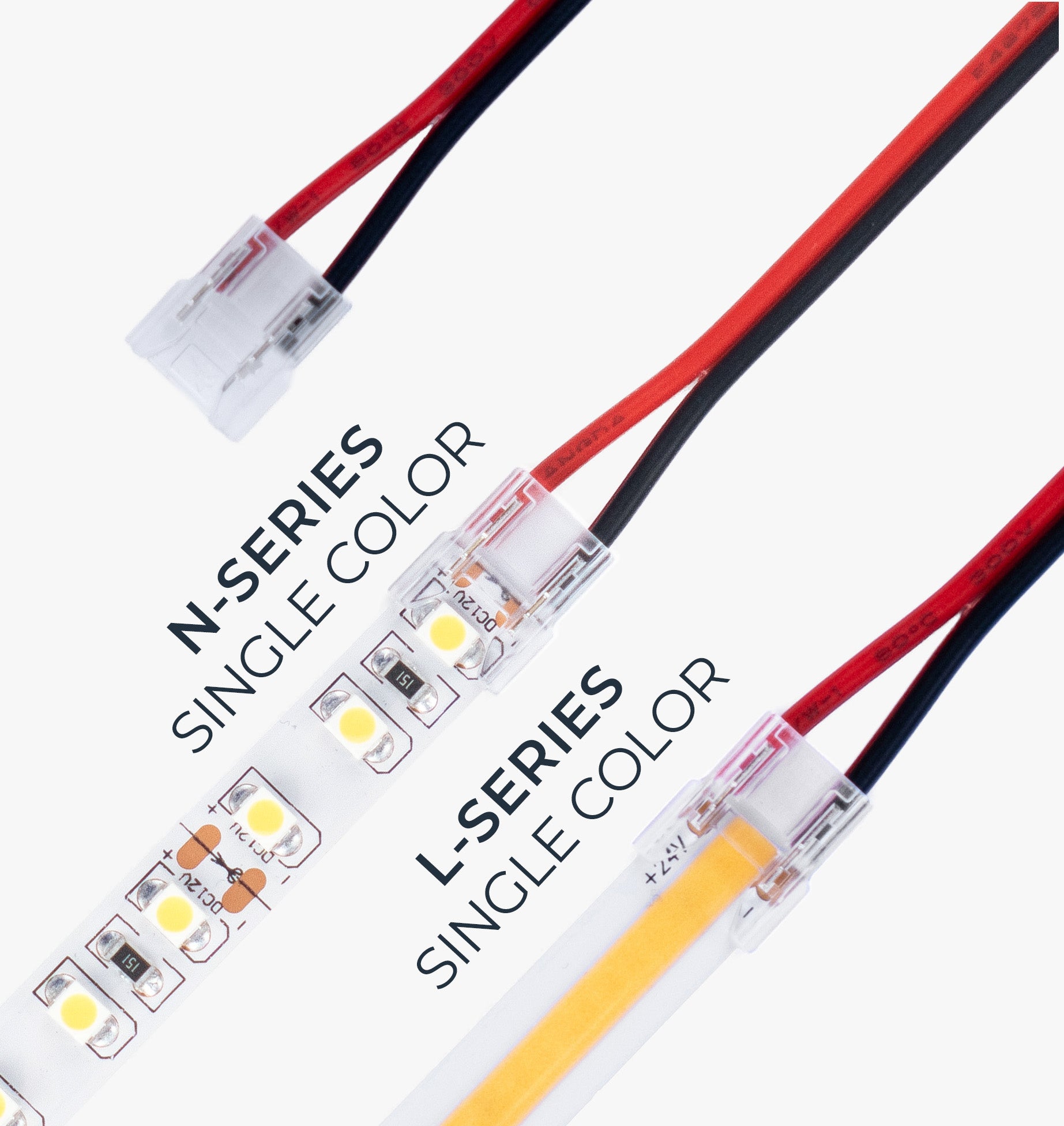

N-Series
+ L-Series
(Single Color)
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-SL-CN-LN-PIGTAIL |
| Physical | |
| Connector Type | Strip to Wire |
| Dimensions | 6.5" Long (165.1mm) 0.38" Wide (9.85mm) 0.21" Deep (5.5mm) |
| Weight | 0.10 oz (2.7g) |
| Electrical | |
| Max Current | 4A |
| Wire Connections | 20 AWG (Red+/Black-) |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-L95 AL-SL-LN-U AL-SL-LN-IP20-24 AL-SL-N90 AL-SL-NN-U AL-SL-NN-S |
| Standards / Certifications | |
| Standards / Certifications | CE |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
