Landscape Transformer 150W - 12VAC
Landscape Transformer 150W - 12VAC
Regular price
$233.89
Sale price
$233.89
Regular price
Description

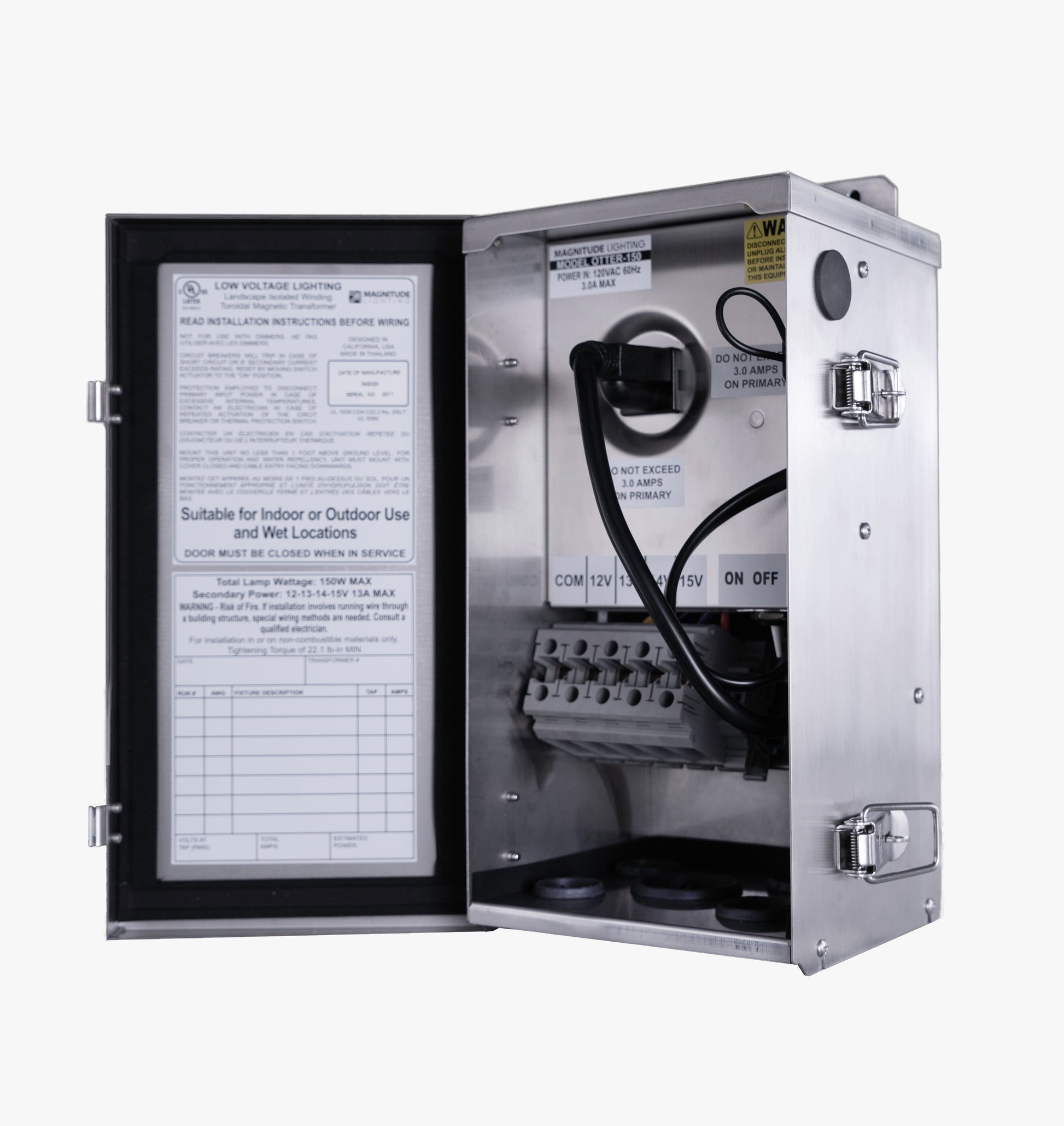

Magnitude Otter™ is a high-performance landscape transformer series for landscape lighting applications. Compact and waterproof, the Magnitude Otter™ hides easily and is engineered with features that reduce time, labor and profit-draining callbacks. Surge protector and photoelectric eye included in box.
THIS LANDSCAPE TRANSFORMER IS ONLY COMPATIBLE with Low Voltage Alternating Current (12VAC) loads.
Key Features
Key Features
-
Light Sensor
-
Surge Protection
-
150 Watts
-
12VAC
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-PS-W-150-LLT-12VAC |
| Physical | |
| Dimensions | 11-7/16" Long (291mm) 6-1/8" Wide (156mm) 5-11/16" Tall (144mm) |
| Housing Material | Stainless Steel (304) |
| Mounting Method | Mounting Tabs |
| Weight | 14.0 lbs (6.35 kg) |
| Electrical | |
| AC Current | 1.25A @ 120VAC |
| AC Voltage Range | 120VAC |
| Efficiency | >91% |
| Frequency Range | 50-60Hz |
| Max Continuous Load | 120W |
| Max Output Current | 13.44A (12VAC) |
| Max Power Consumption | 150W |
| Environmental | |
| IP Rating | IP65 |
| Max Operating Temperature | -20°C to 130°C (-4°F to 266°F) |
| Suitable Uses | Dry, Damp, and Wet Locations |
| Control | |
| Dimmable | No |
| Standards / Certifications | |
| Standards / Certifications | UL Listed cUL Listed |
| Warranty | 5 Years |
