Description

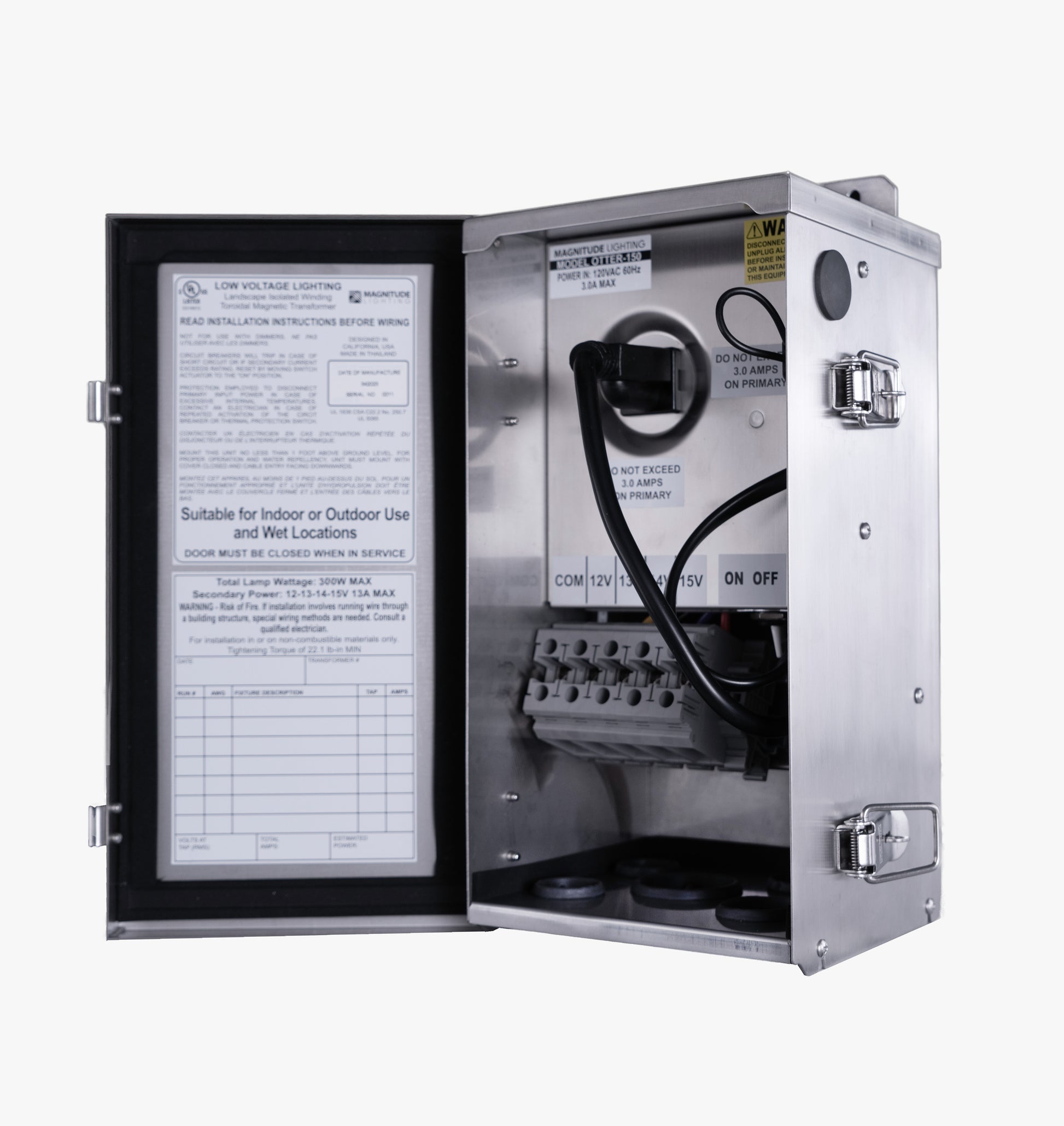

Magnitude Otter™ is a high-performance landscape transformer series for landscape lighting applications. Compact and waterproof, the Magnitude Otter™ hides easily and is engineered with features that reduce time, labor and profit-draining callbacks. Surge protector and photoelectric eye included in box.
This landscape transformer is only compatible with low voltage alternating current loads. It is NOT COMPATIBLE with Strips Lights, Recessed Lights, or any product marked for 12VDC, 24VDC or 12/24VDC.
Key Features
Key Features
-
Light Sensor
-
Surge Protection
-
300 Watts
-
12VAC
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-PS-W-300-LLT-12VAC |
| Physical | |
| Dimensions | 11-7/16" Long (291mm) 6-1/8" Wide (156mm) 5-11/16" Tall (144mm) |
| Housing Material | Stainless Steel (304) |
| Mounting Method | Mounting Tabs |
| Weight | 14.0 lbs (6.35 kg) |
| Electrical | |
| AC Current | 2.45A @ 120VAC |
| AC Voltage Range | 120VAC |
| Efficiency | >91% |
| Frequency Range | 50-60Hz |
| Max Continuous Load | 120W |
| Max Output Current | 24.67A (12VAC) |
| Max Power Consumption | 150W |
| Environmental | |
| IP Rating | IP65 |
| Max Operating Temperature | -20°C to 130°C (-4°F to 266°F) |
| Suitable Uses | Dry, Damp, and Wet Locations |
| Control | |
| Dimmable | No |
| Standards / Certifications | |
| Standards / Certifications | UL Listed cUL Listed |
| Warranty | 5 Years |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
