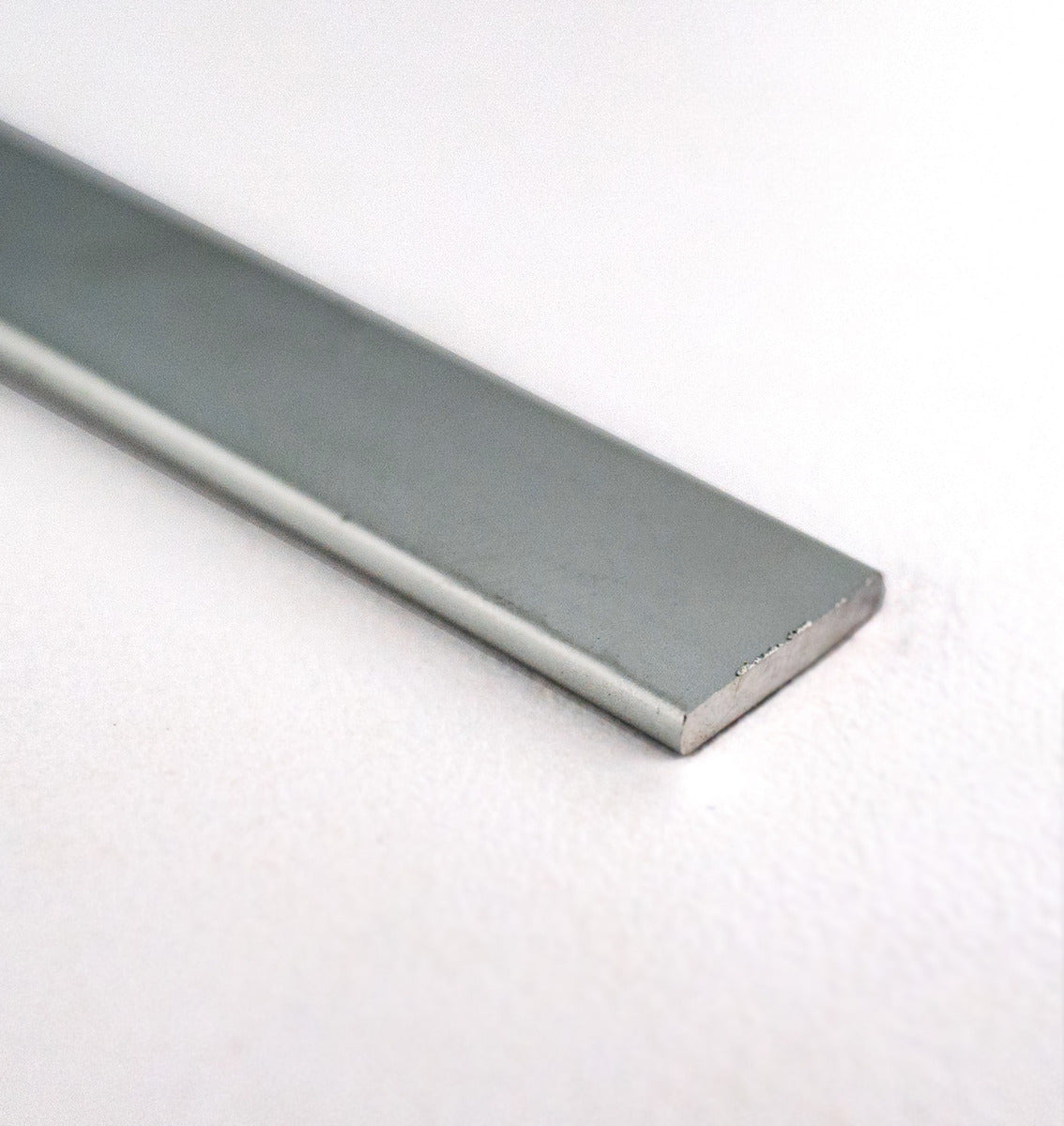

LED Heat Sink + Custom Fixture Component – 12mm

Description

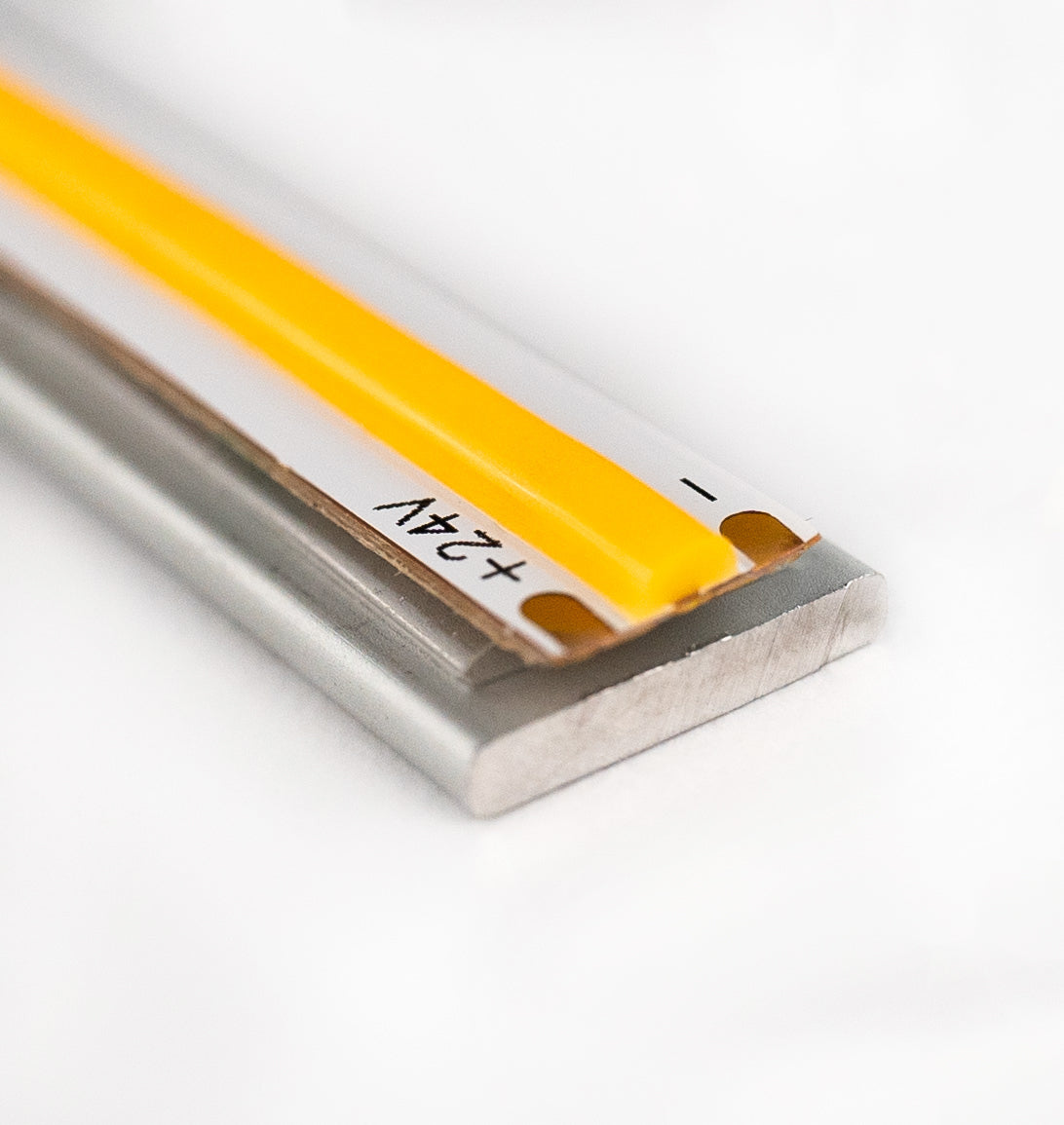

LED heat sinks make customizing your lighting projects simple and easy, while also extending the lifespan of your lights. At 12mm wide, this heat sink is perfectly sized to pair with all indoor (IP20) strip lights.

Best used for professional installation of LED strip lights onto surfaces with poor conductive and adhesive properties, they’re also a great choice for seamlessly integrating flexible LED strip lighting into your own custom LED fixture designs.

Inserted into core-drilled stone, suspended mid-air, or bent and cut to nearly any shape, these simple aluminum sinks will help breathe new creativity into your lighting projects.

Specifications

Part #	AL-TRK-SINK-12
Physical
Accommodates these \| Interior Channel Dimensions	0.39" (10mm)
Channel Material	Anodized Aluminum
Dimensions	0.47" (12mm) Wide 0.07" (2mm) Tall
Finish Options	Silver
Mounting Method	Surface Mounted
Weight	0.2 lb (6.5ft Channel)
Environmental
IP Rating	IP20
Load Rating	IK06
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light up to 12mm wide
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Heat Management: Conducts heat away from LED strips to extend the overall lifetime of the LED diodes
Overheat Prevention: Prevents overheating in enclosed, confined spaces where air circulation is limited
Enclosed Installation: Keeps LED strips cool in routed wood channels and enclosed furniture installations
Adhesive Support: Provides a clean surface for adhesive tape to adhere to, resulting in a stronger hold over time
Compatibility: Compatible with LED strips up to 12mm wide
Surface Mounted: Easily mounts to a variety of surfaces
Bendable: Conforms to different shapes, curves, and angles
Low Profile: Design allows for installation in tight spaces
Durability: Lightweight aluminum construction
Maintenance Free: No ongoing upkeep required

Applications

Restaurants & Bars: Add mood lighting along walls, counters, and seating areas with minimal effort.
Cove Lighting: Install along recessed ceiling coves for a modern light effect.
Gallery & Museum Lighting: Seamlessly integrate high-quality lighting into exhibits and display cases to illuminate masterpieces.
Custom Furniture & Fixtures: Incorporate into custom built-ins, shelving, or bed frames.
Retail Display Lighting: Create eye-catching product displays that make people stop in their tracks.
Boutique Showrooms: Achieve premium, high-end lighting effects for luxury merchandise.

Technical Documents

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

How do I attach LED heat sinks to another surface?

To achieve the best results, we recommend using a power drill to drill 2–4 holes along the length of the aluminum sink and attaching it with bevel-headed screws.

Can I install my strip lights without a heat sink?

While it is possible to install your strips using the adhesive tape backing alone, we always recommend using an aluminum heat sink or LED channel to ensure your LED strips stay cool and extend their life as long as possible.

LED Heat Sink + Custom Fixture Component – 12mm

SKU: AL-TRK-SINK-12-1M

$5.89

In-Stock (179) - Ships Same or Next Business Day

Channel Length: 3.3 Feet

3.3 Feet 6.5 Feet

Pack Quantity: 1 Pack

1 Pack 5 Pack 10 Pack
