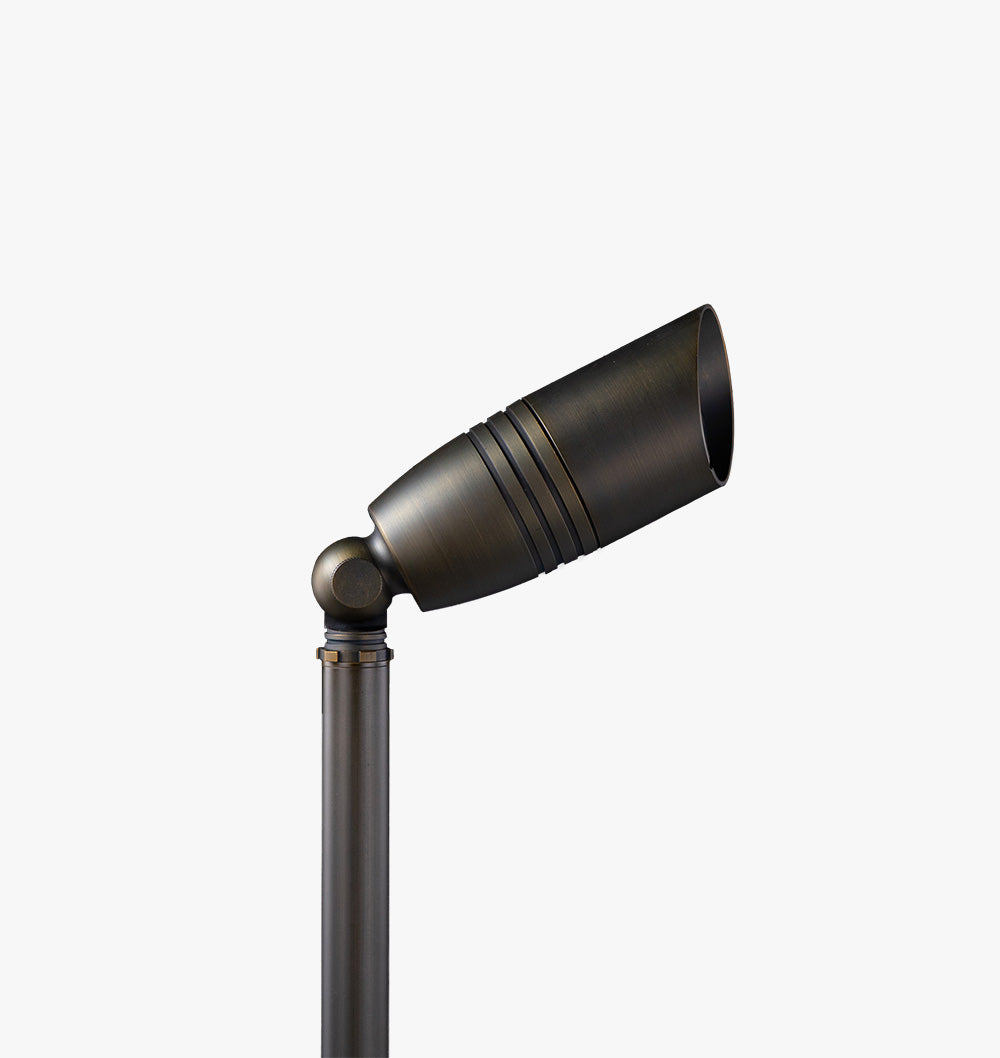

Classic Brass LED Spotlight - 38º
Classic Brass LED Spotlight - 38º
Low Stock (only 2 items left in stock) - Backorder Available
Description

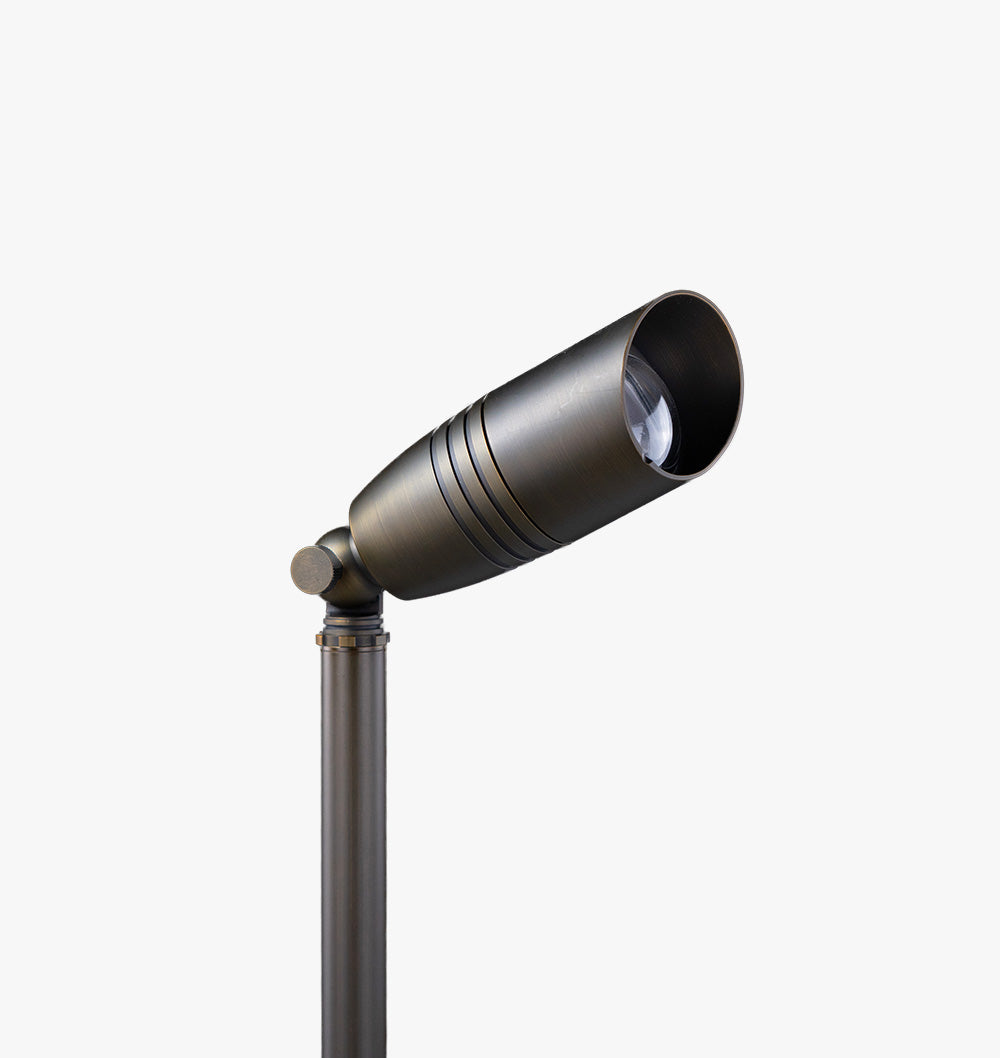

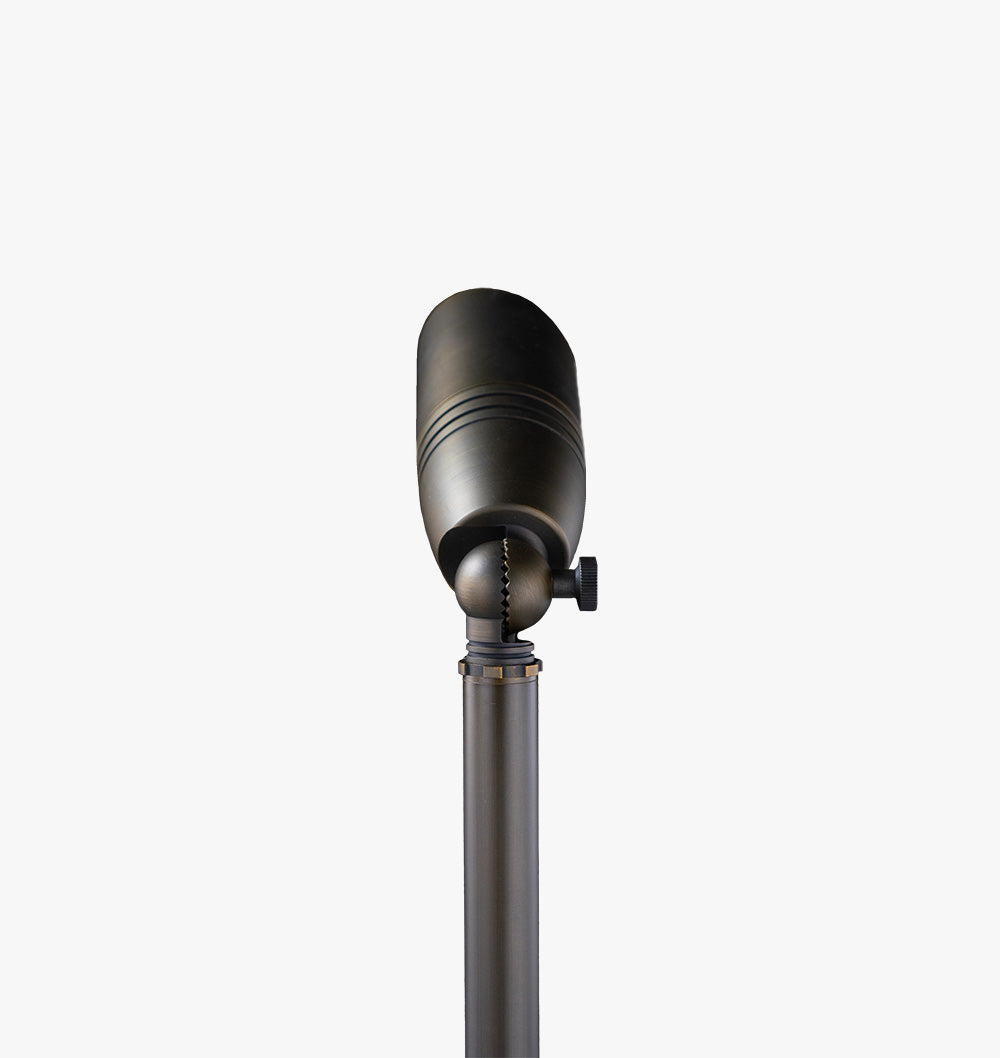

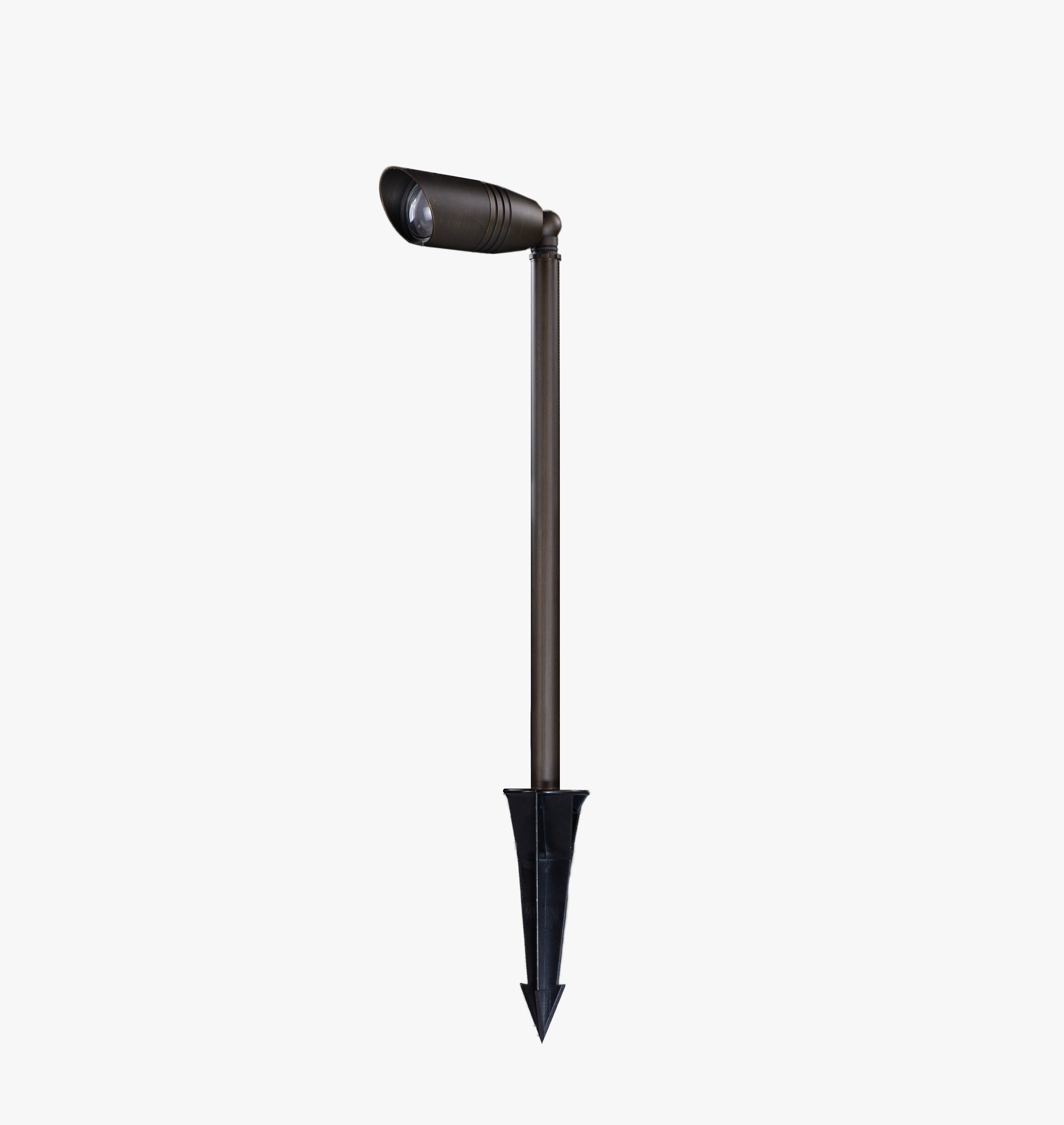

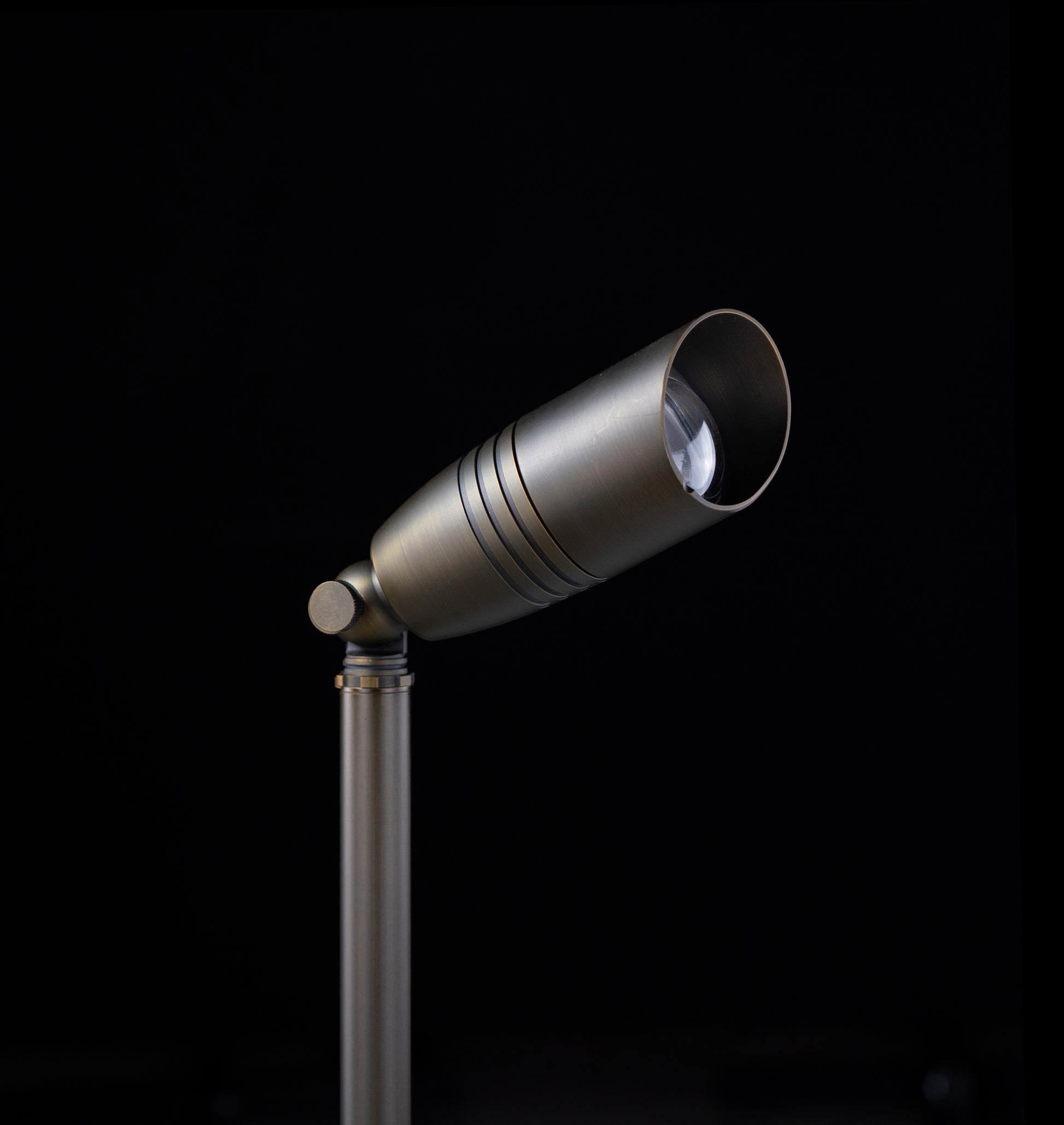

This premium Classic Brass LED Spotlight has a dark bronze housing and 2700k LED light color. Crafted from solid brass, this low voltage fixture combines durability and sophistication. These spotlights offer a 360 degree horizontal and 180 degree vertical rotation allowing you to adjust to any angle you want. With these choices, you can achieve comprehensive coverage, highlighting outdoor walls, pathways, driveways, and trees. This spotlight is integrated, meaning there is no bulb you need to replace. The integrated design ensures hassle-free installation and zero maintenance while enhancing weather resilience. Includes a plastic stake mount, with Heavy Duty Brass Stake mount available for purchase.
Key Features
Key Features
-
Up to 840 Lumens
-
Beam Angle
38° -
12 VDC or Low Voltage AC
-
IP65 Weather Resistant
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-LL-ADJ-SPOT-1 | AL-LL-ADJ-SPOT-1 | AL-LL-ADJ-SPOT-1 |
| Physical | |||
| Beam Angle | 38 degrees | 38 degrees | 38 degrees |
| Dimensions | 8.5" Long (216mm) 2.43" Diameter (61.7mm) | 8.5" Long (216mm) 2.43" Diameter (61.7mm) | 8.5" Long (216mm) 2.43" Diameter (61.7mm) |
| Estimated Lifespan | 30,000 hours | 30,000 hours | 30,000 hours |
| Finish Options | Antique Bronze | Antique Bronze | Antique Bronze |
| Fixture Material | Die-cast Brass | Die-cast Brass | Die-cast Brass |
| Lens | Clear convex glass | Clear convex glass | Clear convex glass |
| Stake Dimensions | 8.5" Long (216mm) 1.96" Diameter (50mm) | 8.5" Long (216mm) 1.96" Diameter (50mm) | 8.5" Long (216mm) 1.96" Diameter (50mm) |
| Wire Lead Length | Wire Lead: 72" long (1.8m) , 18 AWG | Wire Lead: 72" long (1.8m) , 18 AWG | Wire Lead: 72" long (1.8m) , 18 AWG |
| Wire Length | 72" long (1.8m) , 18 AWG | 72" long (1.8m) , 18 AWG | 72" long (1.8m) , 18 AWG |
| Electrical | |||
| Input Voltage | 12 VDC or Low Voltage AC | 12 VDC or Low Voltage AC | 12 VDC or Low Voltage AC |
| Max Power Consumption | 12W | 12W | 12W |
| Photometric | |||
| CRI | 80 | 80 | 80 |
| Max Lumens | Luminous Flux: 840 Lumens | Luminous Flux: 840 Lumens | Luminous Flux: 840 Lumens |
| Environmental | |||
| IP Rating | IP65 | IP65 | IP65 |
| Max Operating Temperature | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) | -30°C to 50°C (-22°F to 122°F) |
| Suitable Uses | Dry and Damp Locations | Dry and Damp Locations | Dry and Damp Locations |
| Control | |||
| Dimmable | Adjustable via internal dip switch | Adjustable via internal dip switch | Adjustable via internal dip switch |
| Standards / Certifications | |||
| Standards / Certifications | ETL | Warranty | 5 Years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
