Micro Series LED Strip Light - Static White

Description

At just 3mm wide, the Micro Series LED Strip Light is designed for applications where space is limited but bright, high-quality illumination is essential. Featuring high-density LEDs, this strip delivers smooth, uniform, dot-free light, making it ideal for visible-edge, accent, or task lighting without hotspots. With a 90+ CRI, it produces crisp, accurate color and natural white tones that enhance any space. The ultra-slim profile allows for seamless installation in places traditional strip lights can’t fit, including furniture, cabinetry, retail displays, and architectural details. The strip is cuttable every 0.49" (12.5mm), making it easy to customize for virtually any installation. Compatible with dimmable power supplies, brightness can be adjusted effortlessly to suit your environment.

Key Features

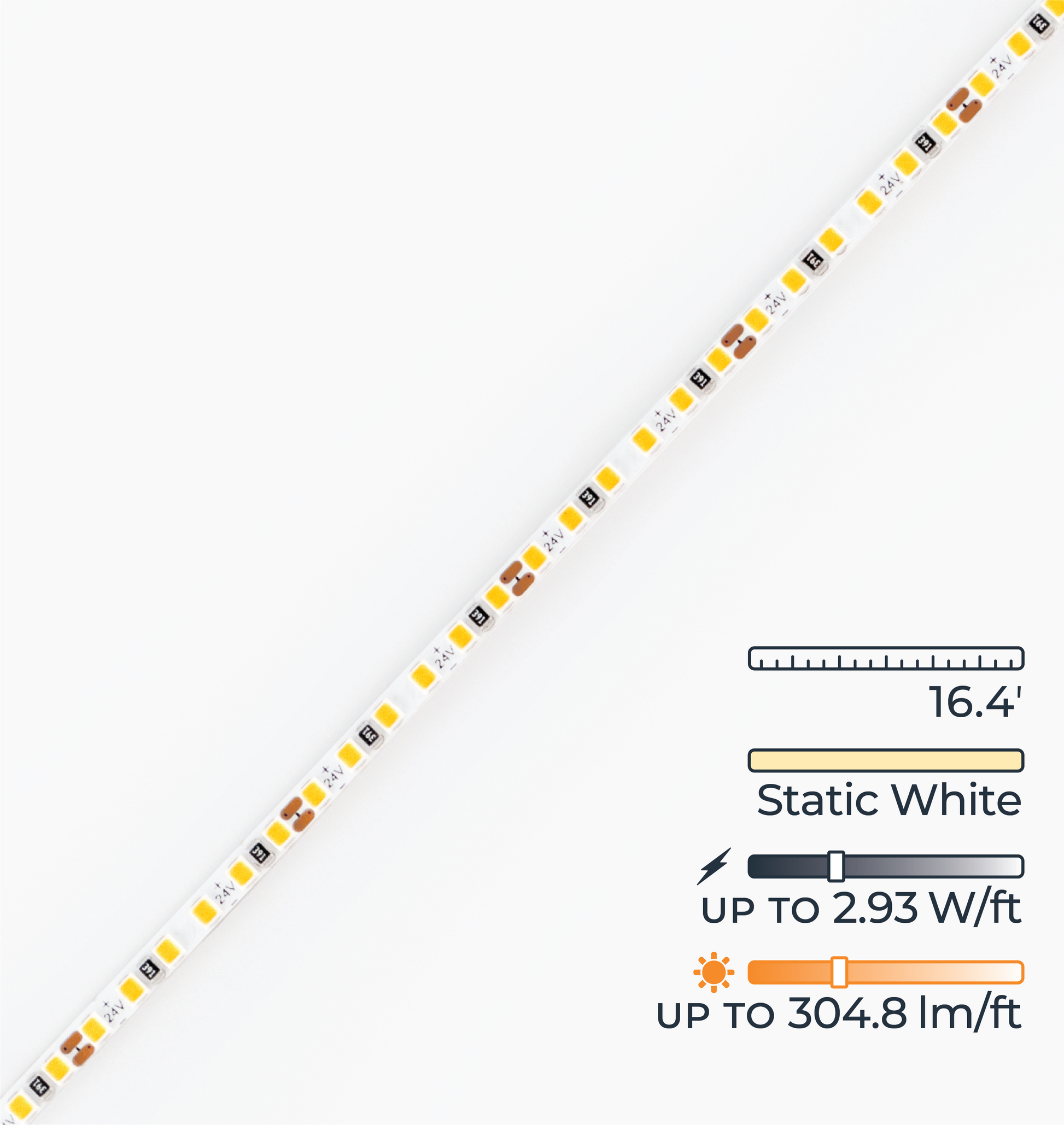

Lumens per foot: 304
IP20
Non-Waterproof
Ultra Slim

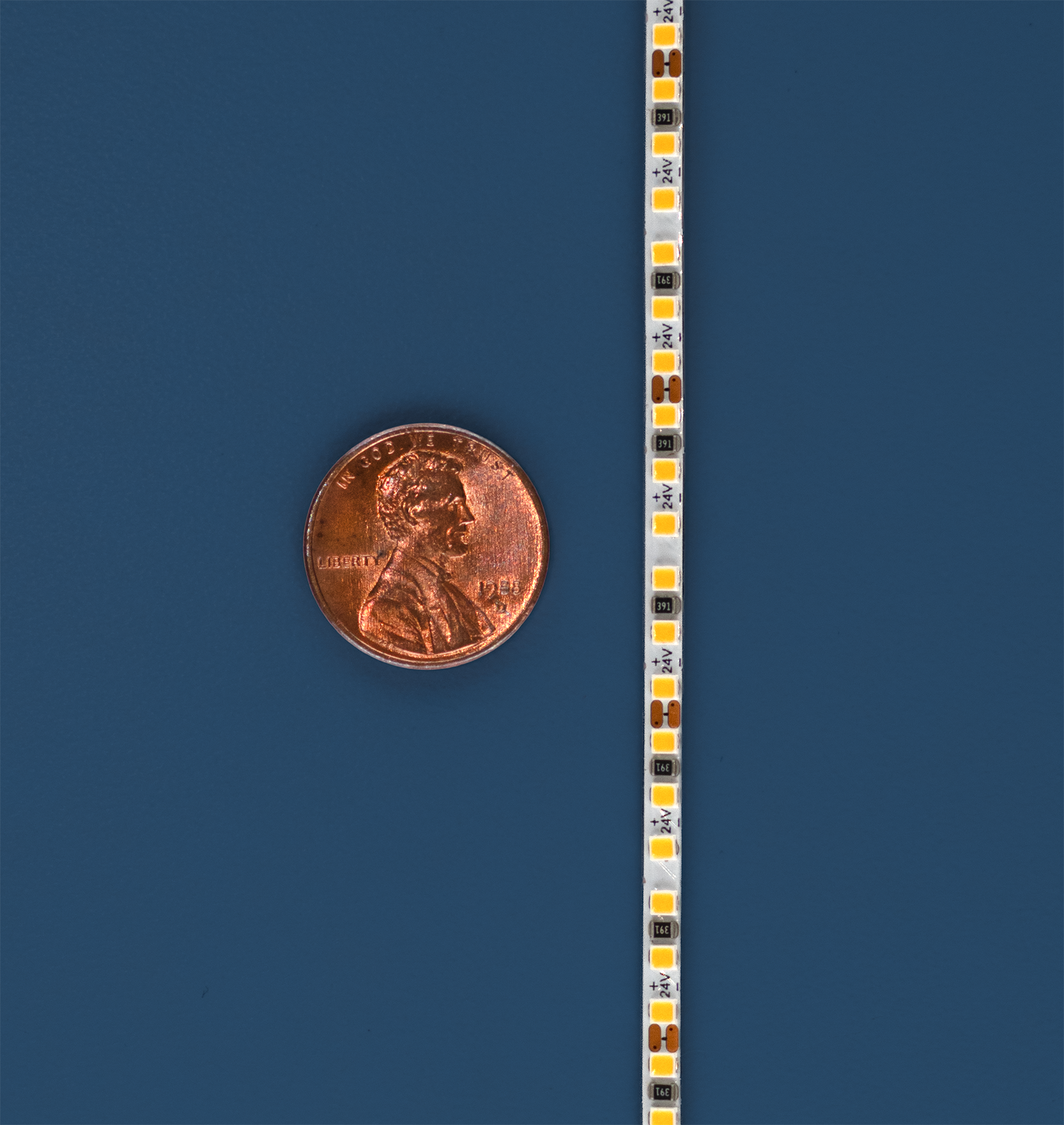

3mm Wide
CRI 90

Specifications

Part #	AL-SL-XM-IP20-24
Physical
Adhesive Backing	Yes
Beam Angle	120°

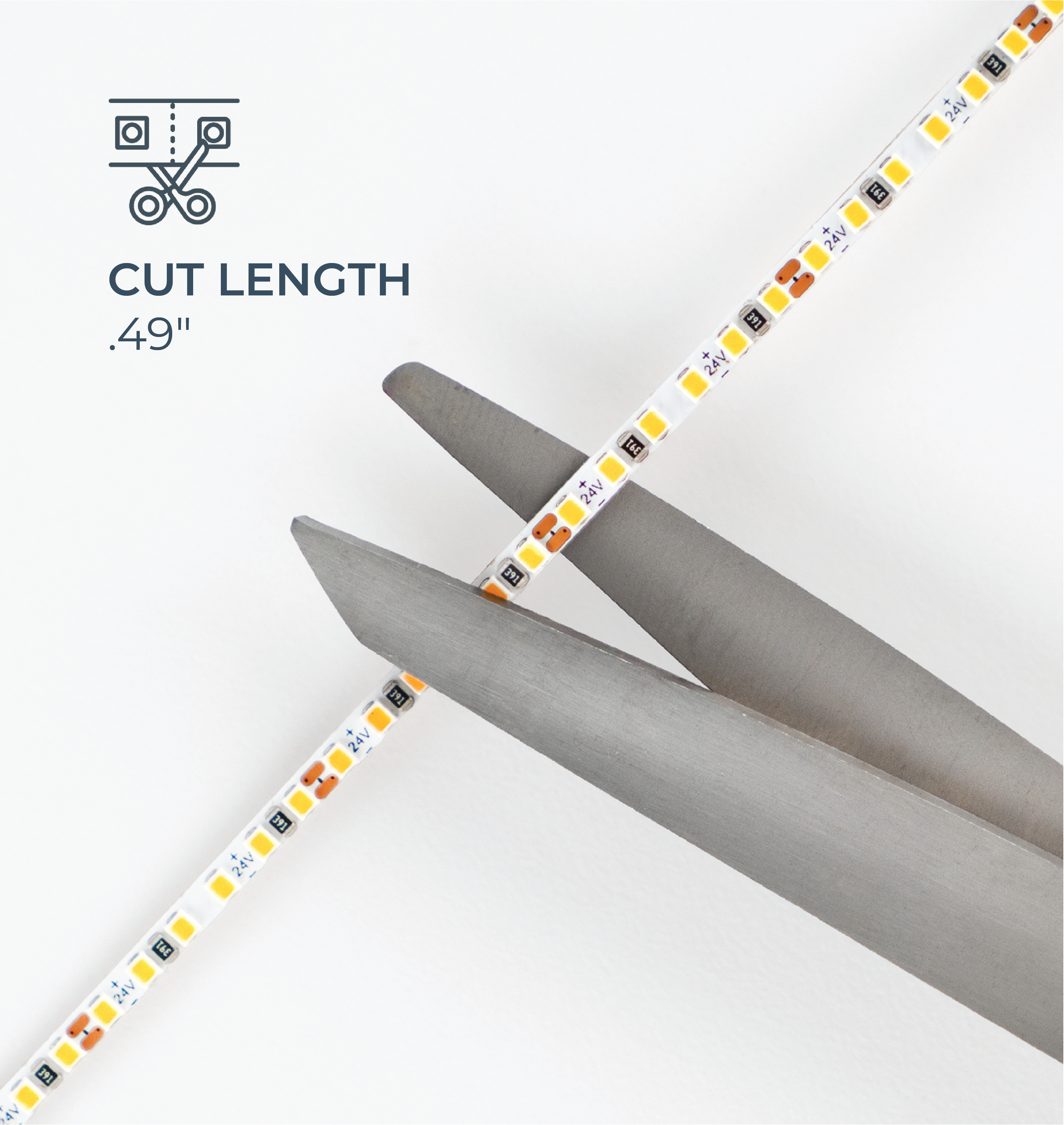

Cut Length	0.49" (12.5mm)
Dimensions	16.4' (5m) 0.12" (3mm) 0.06" (1.4mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive
Weight	0.29 lbs (0.132 kg)
Electrical
Efficacy (lumens per watt)	Up to 104.17 Lumens/Watt
Input Voltage	24VDC
LED Quantity	72 LED's/ft (240 LED's/m)
LED Type	SMD 2022
Max Power Consumption	2.93W/ft (9.6W/m)
Max Run Length	16.4' (5m)
Photometric
CRI	90

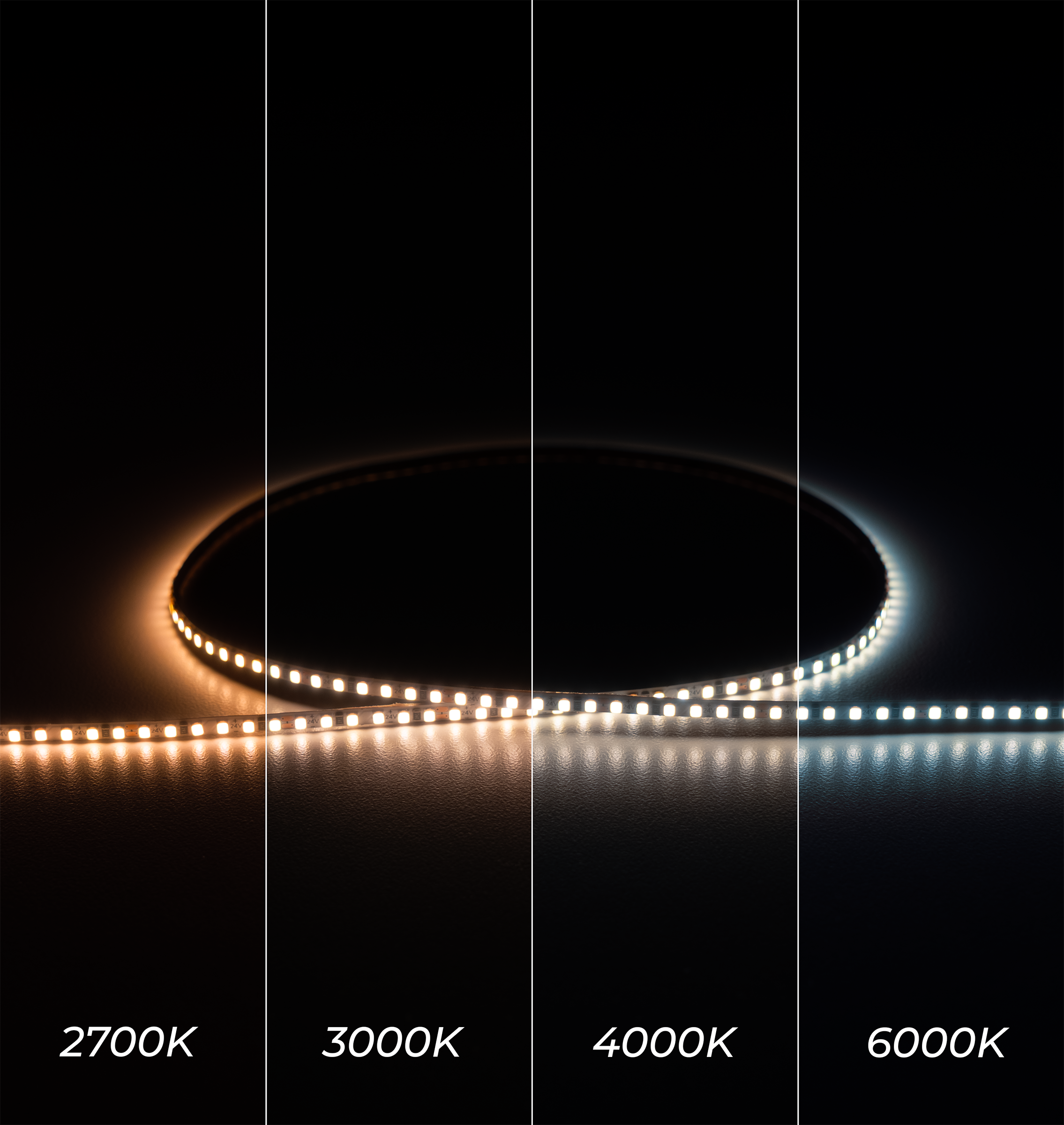

LED Color Options	2700K, 3000K, 4000K, 6000K
Max Lumens	Up to 305 lumens per foot
Environmental
IP Rating	IP20
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes
Compatibility
Compatible Connectors	N/A
Standards / Certifications
Standards / Certifications	CE UL RoHS LM80
Warranty	3 Years

Features

Ultra-Slim Profile: At just 3mm wide, supports installations where other strips can’t fit, enabling seamless integration into furniture, architectural accents, retail displays, and more.
Ultra High-Density LEDs: Delivers uniform, dot-free illumination even at close range, ideal for visible-edge or task lighting with no hotspots.
High Color Accuracy: With a 90+ CRI, colors in your space appear more vibrant and true to life.
Fully Dimmable: Compatible with dimmable power supplies, allowing easy brightness adjustment to match your environment.
Cuttable Design: Cut every 0.49" (12.5mm) for a customized fit on any project.
Simple Installation: Industrial-grade adhesive backing ensures a quick and reliable mount to most clean, dry surfaces.
Long-Lasting: Rated for up to 50,000 hours of consistent performance.
Maintenance-Free: Built for long-term use with no ongoing upkeep required.
No RF Interference: Operates cleanly without affecting nearby electronic equipment.

Applications

Architectural lighting for canopies, corridors, archways, and windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Edge-lighting for glass installations
Under-cabinet, toe-kick, and in-cove moldings
Safety stair tread and step marking
Decorative lighting for holidays, tradeshows, and exhibitions

Technical Documents

View Installation Guide

Download Cut Sheet

Download Technical Drawing
