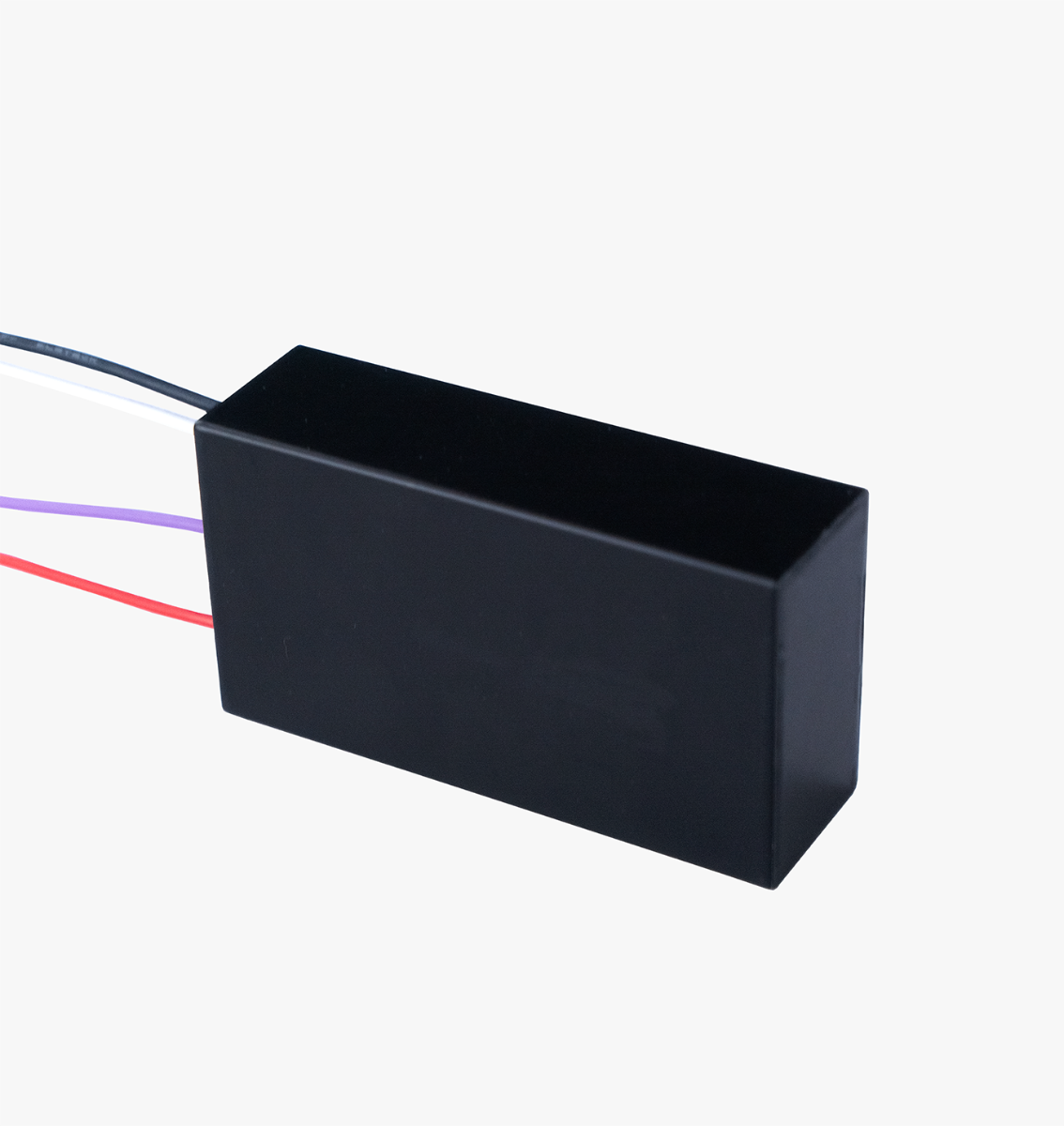

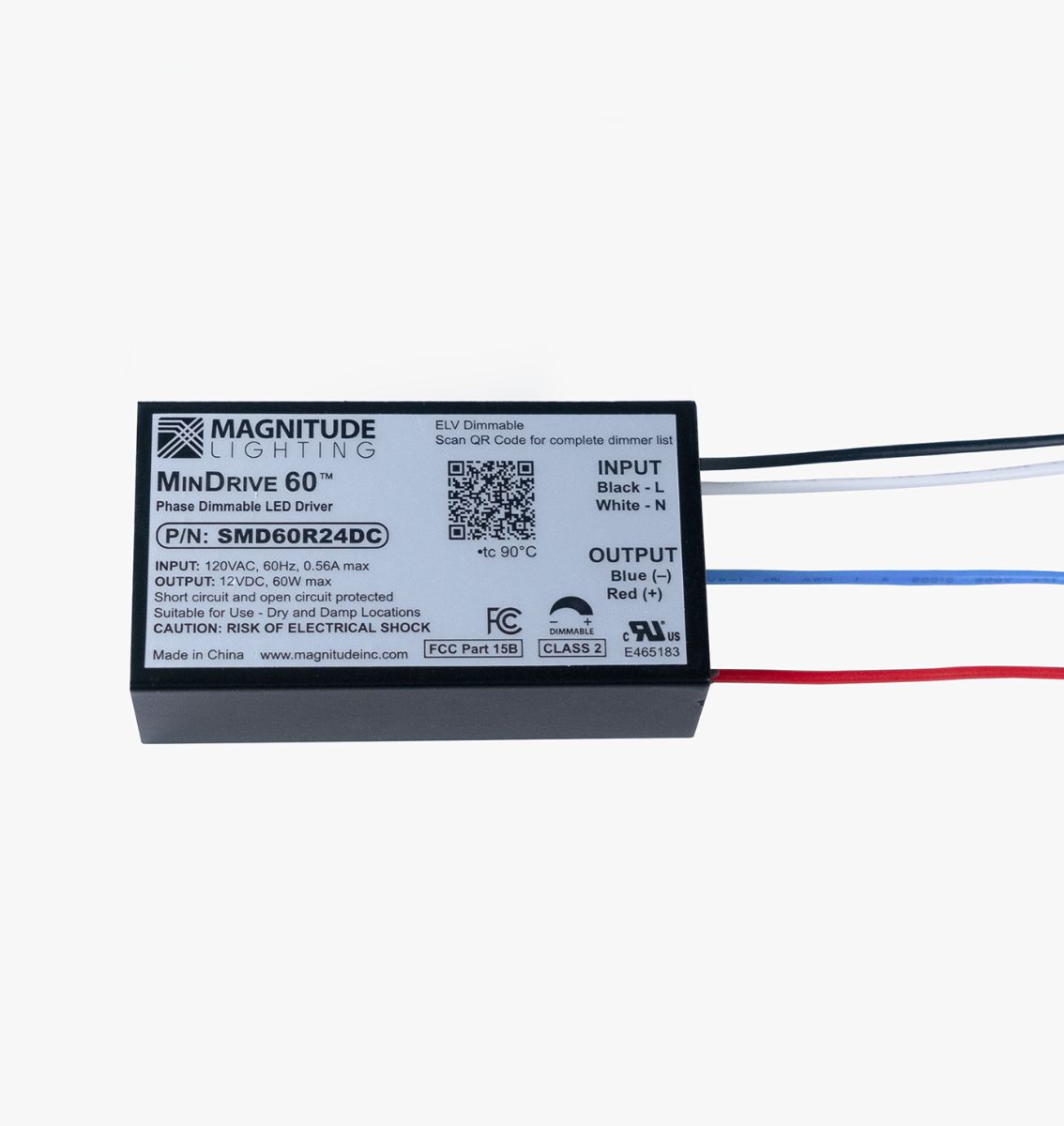

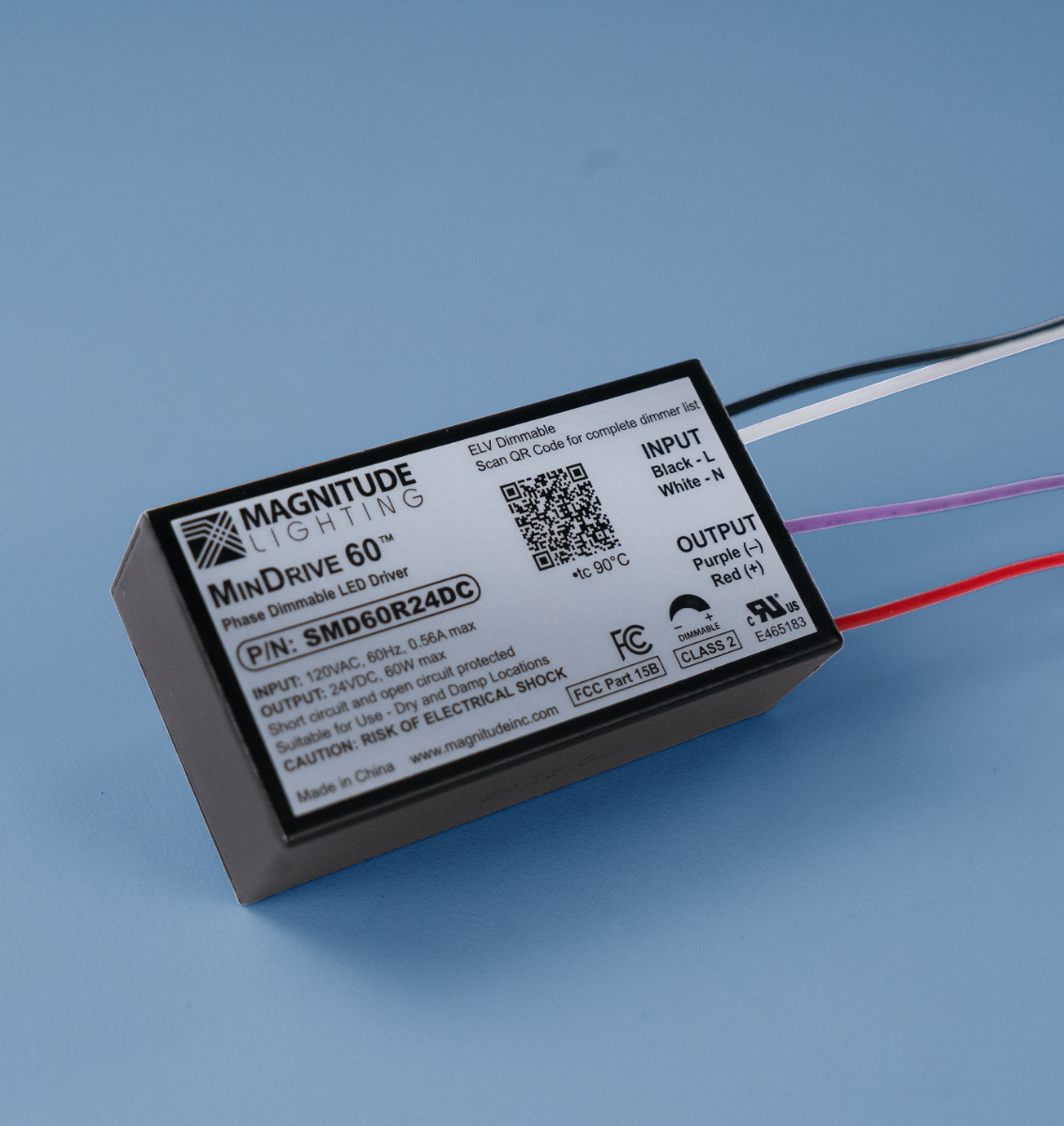

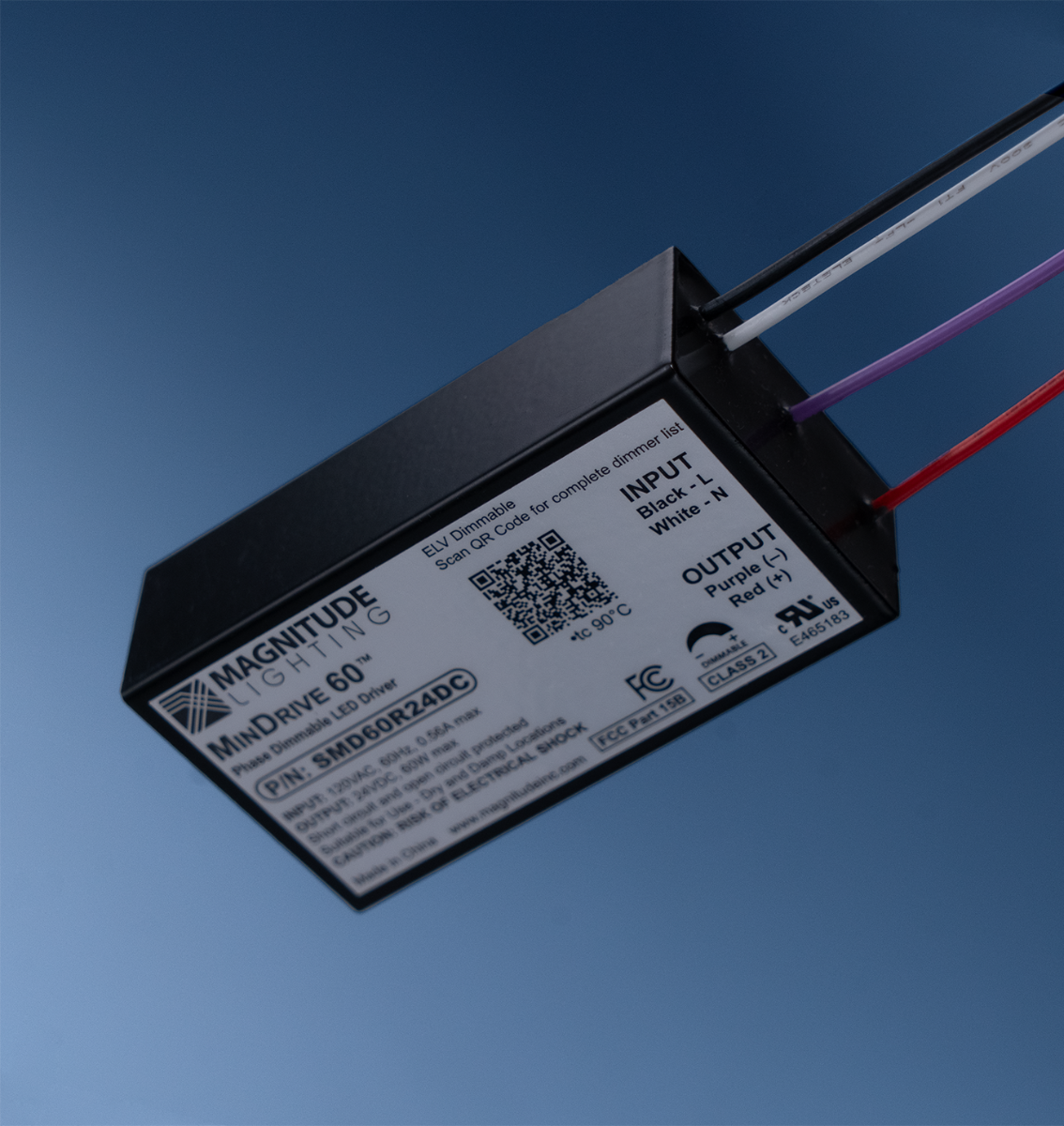

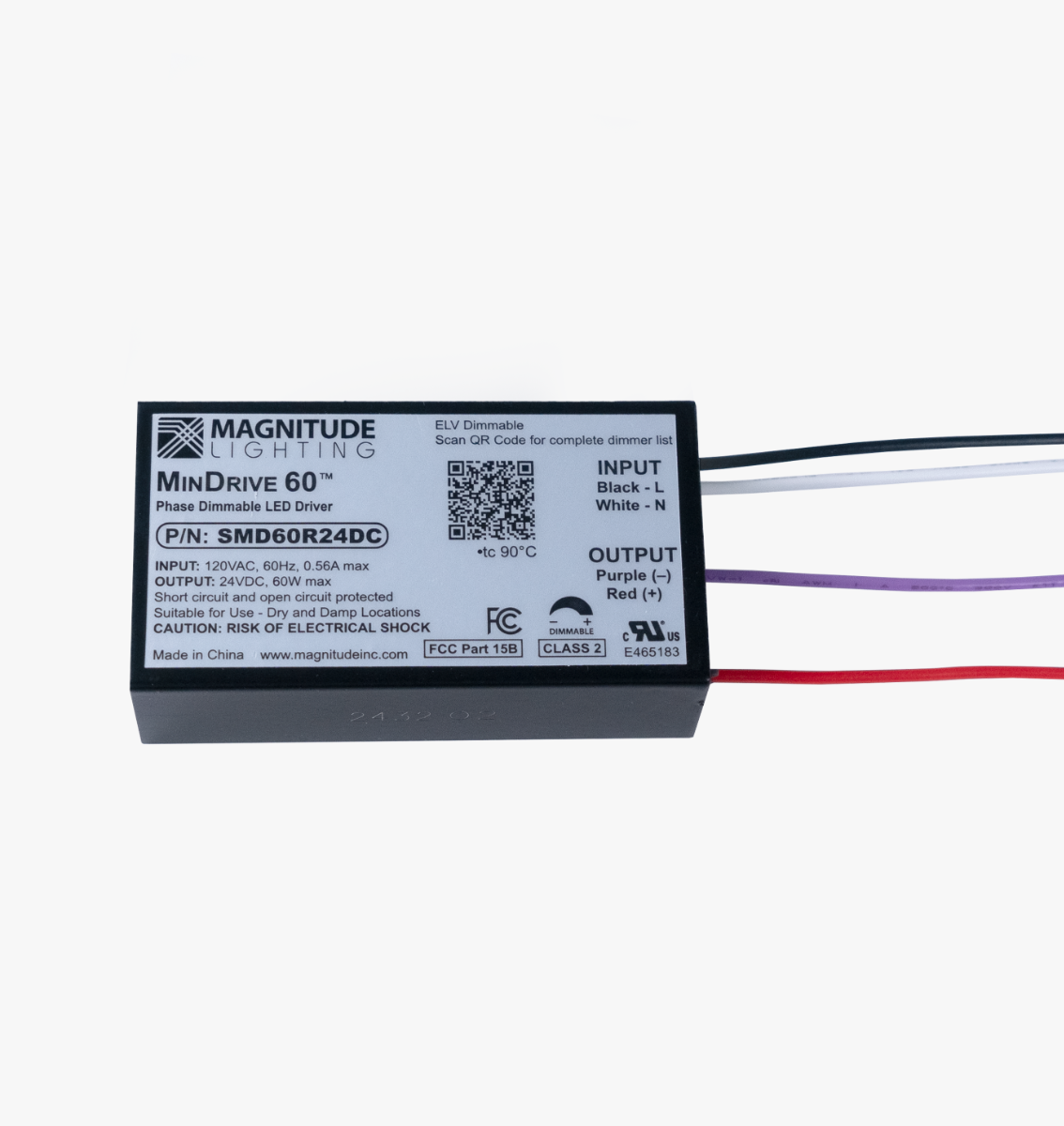

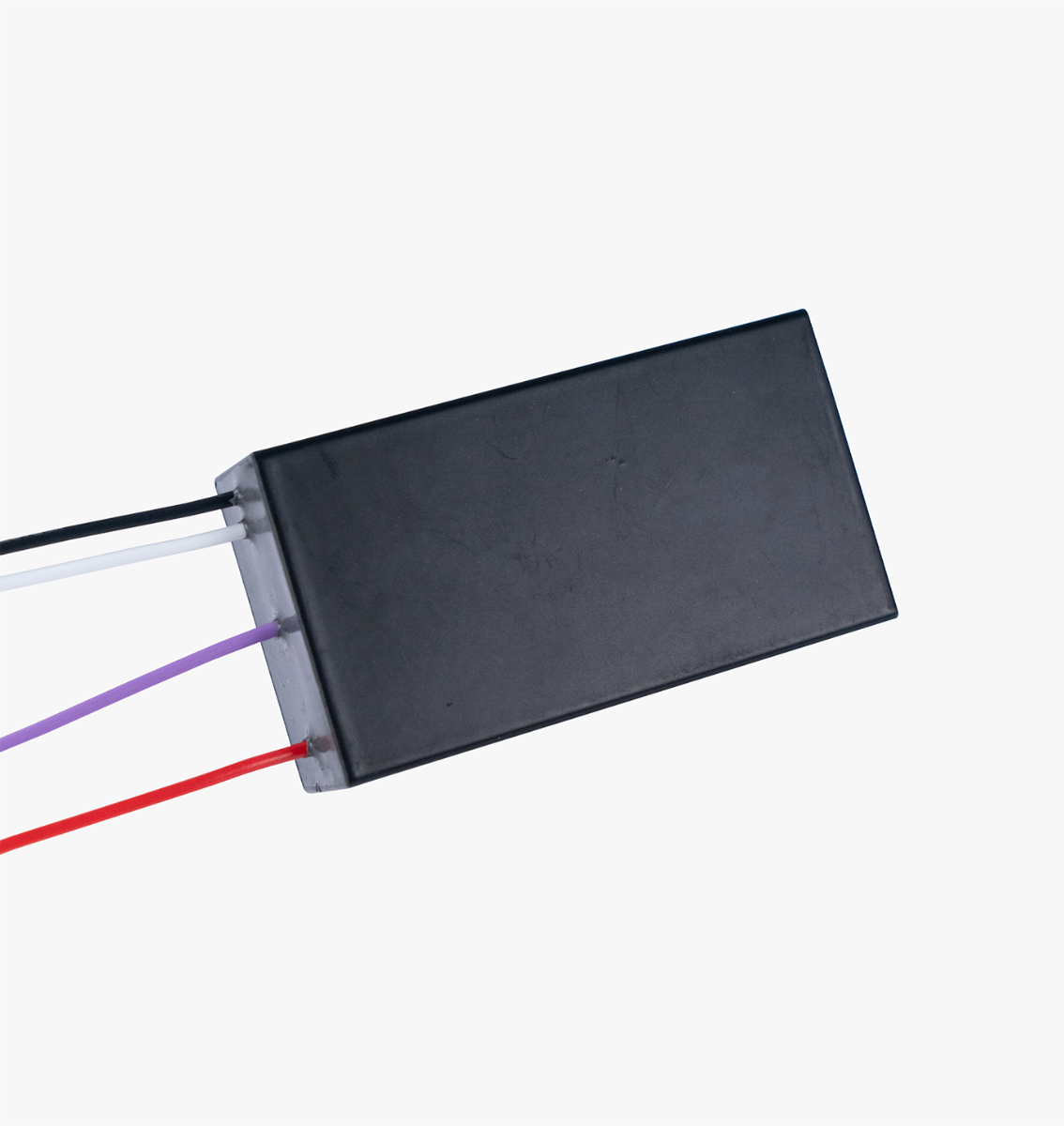

MinDrive 60 Watt Dimmable Power Supply
MinDrive 60 Watt Dimmable Power Supply
In-Stock (274) - Ships Same or Next Business Day
Description
The Magnitude MinDrive 60 Watt Dimmable Power Supply, engineered to enhance your lighting solutions. This power supply effortlessly supports a minimum load of just 5 watts with dimmers, surpassing the typical 60% load requirement. Its ultra-compact design fits flawlessly into any dual-gang switch box for streamlined installation. Compatible with top phase dimming technologies including ELV, CL, and Caseta systems, it's perfect for dry locations with a IP20 rating. Meeting Class 2 safety standards and UL recognized for reliability, the MinDrive Dimmable Power Supply ensures performance and peace of mind in every application. This power supply is only for use with single color LED strip lighting. Never use MinDrive 60 with recessed lights, color controllers, or any product other than strip lighting.
Key Features
Key Features
-
Phase Dimmable
-
Output Voltage 12/24VDC
-
Fits in double gang switch box
-
Can operate without dimmer switch
Dimensions
Dimensions
Specifications
Specifications
| AL-PS-MMD-60-12 | AL-PS-MMD-60-24 | |
|---|---|---|
| Part # | AL-PS-MMD | AL-PS-MMD |
| Physical | ||
| Dimensions | 2.9" Long (74mm) x 1.6" Wide (41mm) x 0.9" Tall (23mm) | 2.9" Long (74mm) x 1.6" Wide (41mm) x 0.9" Tall (23mm) |
| Housing Material | Steel | Steel |
| Mounting Method | Inside Junction Box | Inside Junction Box |
| Weight | 0.34 lb (0.15 kg) | 0.34 lb (0.15 kg) |
| Electrical | ||
| AC Current | 0.56A @ 120VAC | 0.56A @ 120VAC |
| AC Voltage Range | 100-130VAC | 100-130VAC |
| DC Voltage | 12VDC | 24VDC |
| Efficiency | >90% | >90% |
| Frequency Range | 60Hz | 60Hz |
| Max Output Current | 5A | 2.5A |
| Max Power Consumption | 60W | 60W |
| Minimum Load | 5W | 5W |
| Environmental | ||
| IP Rating | IP20 | IP20 |
| Max Operating Temperature | -30°C to 40°C (-22°F to 104°F) | -30°C to 40°C (-22°F to 104°F) |
| Max Storage Temperatures | -30°C to 90°C (-22°F to 194°F) | -30°C to 90°C (-22°F to 194°F) |
| Suitable Uses | Dry and Damp Locations | Dry and Damp Locations |
| Control | ||
| Dimmable | Yes | Yes |
| Standards / Certifications | ||
| Standards / Certifications | UL Recognized RoHS Class 2 | UL Recognized RoHS Class 2 |
| Warranty | 5 Years | 5 Years |
Features
Features
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
How many power supplies do I need?
Many LED lighting systems are designed with one driver for each individual LED light in a 1:1 ratio. Strip light systems are wired differently due to the spread of lights over the length of the run. The number of power supplies needed will be based on the total wattage required to power the specific lights in your system.
Can I dim my lights with aspectLED power supplies?
Yes, you can! LED lighting systems can be dimmed on either the Alternating Current (AC) or Direct Current (DC) side of the system. The direction you choose depends on personal preferences, system goals, and design constraints.
AC-side Dimming: This is the most common approach for controlling brightness. It aligns with electrical systems found in most homes and commercial buildings, allowing control via standard wall switches. If this is your preferred method, ensure your system includes dimmable lights and dimmable power supplies.
DC-side Dimming: While less common, DC-side dimming is growing in popularity. It’s often controlled by handheld remotes or smartphone apps, providing more customization options. If designing a system with RGB color tuning, CCT color tuning, or addressable strip lights, you’ll need DC-side dimming. Additionally, DC-side systems are generally more energy-efficient.
How do I know which size I need?
Use this simple equation: Watts per fixture x Number of lights installed = Z, then Z x 1.25 = Minimum size of power supply required.
Example 1: 9 Watts x 4 Fixtures = 36 Watts. 36 x 1.25 = 45. The minimum power supply needed is 45 watts.
Example 2: 16.4’ of N-series Ultra-bright Strip (2.92 Watts per foot): 16.4 x 2.92 = 47.88. 47.88 x 1.25 = 59.86. The minimum power supply size needed is 60 watts.
