Modern Vertical Portrait Recessed Indoor/Outdoor LED In-Wall Stair Step Light
Modern Vertical Portrait Recessed Indoor/Outdoor LED In-Wall Stair Step Light
Special Order - Contact our LED Experts for lead time
Description
aspectLED wall lights are bright, energy efficient, offer a modern aesthetic, and offer the industry-leading quality and performance aspectLED is known for. Recessed step lights are designed to provide safety and decorative/accent lighting for steps, stairways, risers, walls, and walkways in both indoor and outdoor locations.
They are ideal for installation in garden walls, stairways, building entrances, elevator lobbies, pathways, or public parks. aspectLED in-wall lights come with a mounting sleeve that simplifies installation.

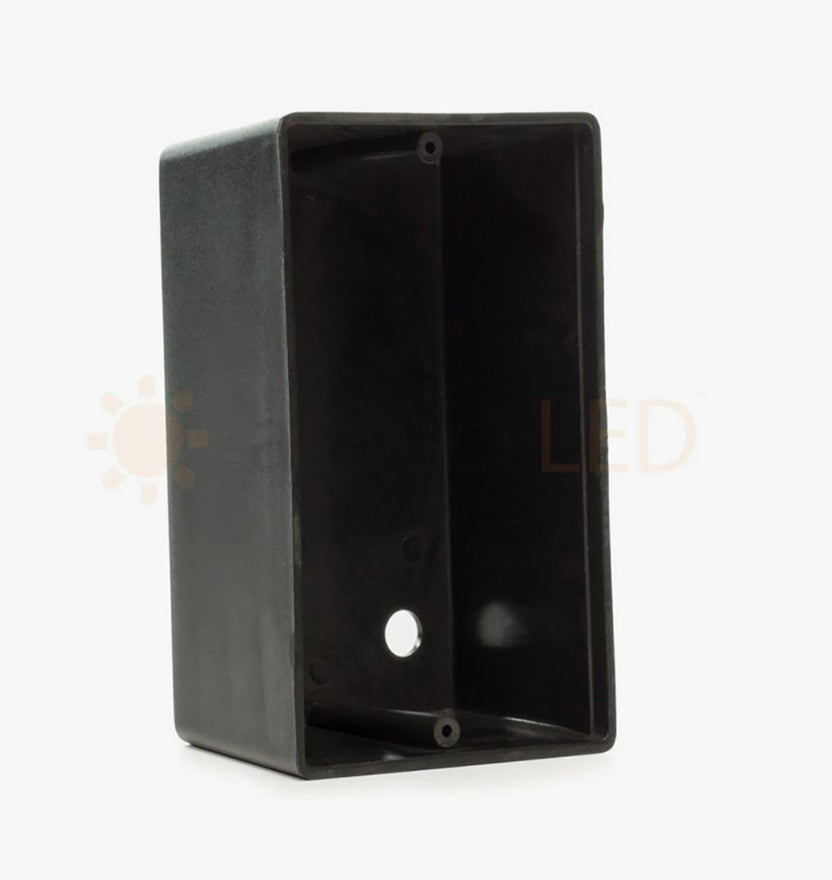

This can be used as a placeholder/form for poured-in concrete applications, or it can be used as a rough-in for drywall recessed applications, so the fixture itself can be easily wired and installed into the box once everything is ready. As with most aspectLED products, our riser lights boast industry-leading customizability. Made to order with your choice of LED color, voltage (line or low voltage options), and wire lead length options for more specialized installations.

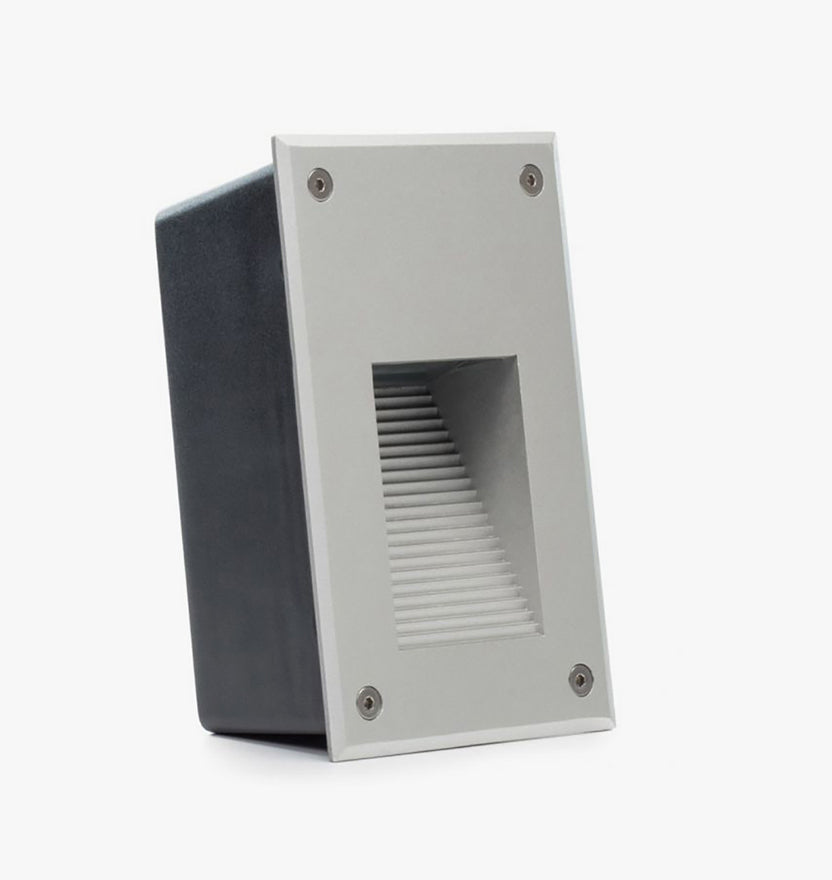

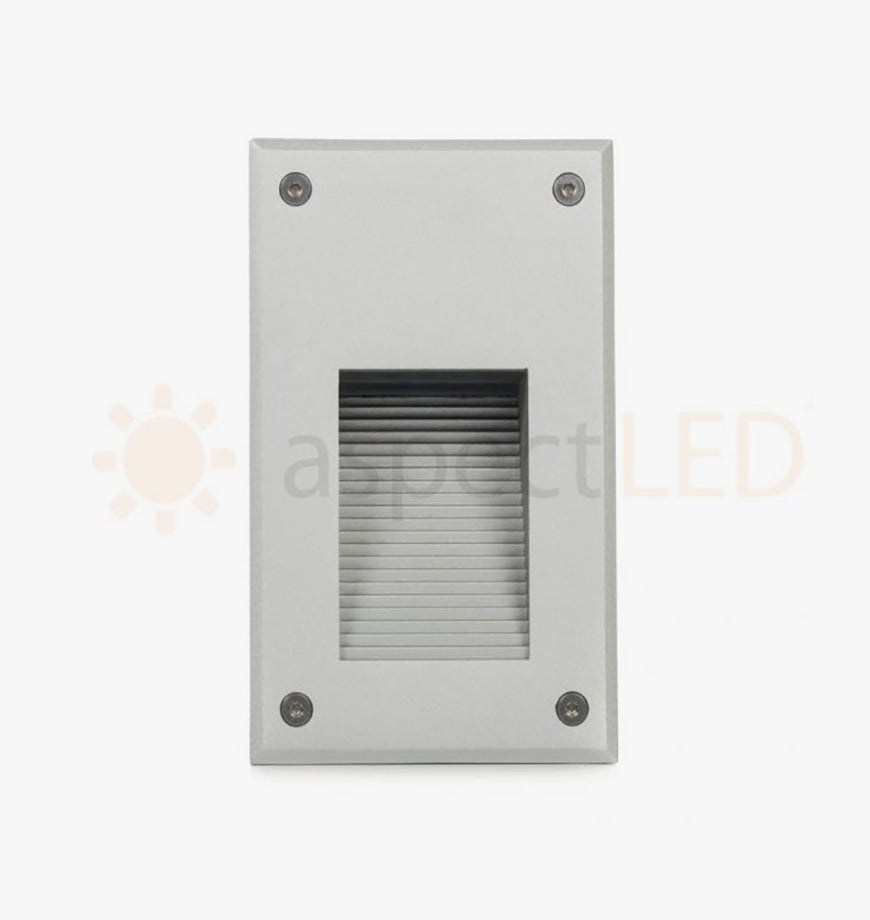

These recessed in-wall lights are waterproof (with an IP65 rating) and feature a die-cast aluminum trim and die-cast aluminum body. These lights come standard with a clear frosted trim.
Key Features
Key Features
-
90 Lumens
-
1.8 Watts
-
VOLTAGE
12VDC, 24VDC
or 120VAC -
IP65
Dimensions
Dimensions
Specifications
Specifications
| 12VDC | 24VDC | 120VAC | |
|---|---|---|---|
| Part # | AL-IWM-P | AL-IWM-P | AL-IWM-P |
| Physical | |||
| Beam Angle | 60 Degrees | 60 Degrees | 60 Degrees |
| Estimated Lifespan | 50,000 hours | 50,000 hours | 50,000 hours |
| Exterior Trim/Face Dimensions | 6-3/4" Tall 4-1/4" Wide 1/8" Thick | 6-3/4" Tall 4-1/4" Wide 1/8" Thick | 6-3/4" Tall 4-1/4" Wide 1/8" Thick |
| Housing Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Lens | Optical, >85% efficient | Optical, >85% efficient | Optical, >85% efficient |
| Light Trim Dimension | 6-3/4" Tall 4-1/4" Wide 1/8" Thick | 6-3/4" Tall 4-1/4" Wide 1/8" Thick | 6-3/4" Tall 4-1/4" Wide 1/8" Thick |
| Mounting Sleeve | 6-3/8" long 3-7/8" Wide 3" Tall | 6-3/8" long 3-7/8" Wide 3" Tall | 6-3/8" long 3-7/8" Wide 3" Tall |
| Recessed Fixture Dimensions | 6" Tall 3-5/8" Wide 2-3/4" Thick | 6" Tall 3-5/8" Wide 2-3/4" Thick | 6" Tall 3-5/8" Wide 2-3/4" Thick |
| Trim Material | Die-cast Aluminum | Die-cast Aluminum | Die-cast Aluminum |
| Weight | 2 lbs | 2 lbs | 2 lbs |
| Electrical | |||
| Input Voltage | 12VDC | 24VDC | 120VAC |
| LED Quantity | 24 - High Power LEDs | 24 - High Power LEDs | 24 - High Power LEDs |
| LED Type | SMD LED Chips | SMD LED Chips | SMD LED Chips |
| Max Power Consumption | 1.8 Watts | 1.8 Watts | 1.8 Watts |
| Photometric | |||
| Max Lumens | Luminous Flux: 90 Lumens | Luminous Flux: 90 Lumens | Luminous Flux: 90 Lumens |
| Environmental | |||
| IP Rating | IP65 | IP65 | IP65 |
| Max Operating Temperature | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) |
| Suitable Uses | Exterior Dry, Damp, or Wet Locations | Exterior Dry, Damp, or Wet Locations | Exterior Dry, Damp, or Wet Locations |
| Control | |||
| Dimmable | No | No | No |
| Standards / Certifications | |||
| Standards / Certifications | RoHS, CE | RoHS, CE | RoHS, CE |
| Warranty | 1 Year | 1 Year | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What light color should I choose?
Warm White is equivalent to a standard incandescent light color and is most popular for residential applications. It has a slight warm yellow glow to it that many people find comfortable and we are all used to seeing in our homes. It is a 2700-3000K on the Kelvin Light Color Scale.
Cool White is equivalent to a standard CFL or Fluorescent light color and is most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without any yellow undertone. It is a 4000-4500K on the Kelvin Light Color Scale.
Neutral White is a very pure white, most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without without any blue undertone. It is a 5000-5500K on the Kelvin Light Color Scale.
DayWhite™ most closely replicates natural daylight and does have a slight blue hue to the light output. This is rarely seen in residential applications as the light output can seem a bit harsh and bright, and is most commonly seen in exterior or commercial applications. This is the brightest of the White light color options. It is a 6000-6500K on the Kelvin Light Color Scale.
Which voltage option should I choose?
12VDC: Popular for automotive, motorcycle, boat/marine applications, or anywhere where you are connecting to a 12VDC supply. Some applications may require a separate 12VDC power supply!
24VDC: This is the most popular option for residential and commercial applications. 24VDC is a safe low voltage, and is the most stable and reliable voltage for your aspectLED in-ceiling lights. Requires a separate 24VDC supply!
120VAC: Designed to connect directly to your 120VAC residential supply power. No additional power supply is required.
If I choose a low voltage (12VDC or 24VDC) light; how do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply.It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
What gauge wire should I run to my in-ground/in-wall lights?
We generally recommend using between 14ga and 16ga stranded wire. Longer distances require larger gauge wire. Always consult a wire gauge chart to determine the correct size wire for your application.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
