Description

The Wide Mud-In Channel is a durable aluminum housing built to be seamlessly embedded into drywall during construction or renovation, offering a sleek way to protect and diffuse your strip lights and add custom lighting at any stage of your project. Customize your look with a frosted or smoke lens, depending on whether you want your lighting to stand out or stay subtly hidden.

This wide model has a 7/8” visible lens and accommodates strip lights up to 20mm wide.

Specifications

Part #	AL-TRK-MUD2-W
Physical
Accommodates these \| Interior Channel Dimensions	0.81" (20.6mm)
Aluminum Channel \| Routing Width	See Technical Drawing
Channel Material	Aluminum
Dimensions	2.42" (61.5mm) Wide 0.55" (14mm) Tall
Finish Options	Silver
Lens Material	Polycarbonate
Lens Options	Frosted, Smoke
Mounting Method	Mud In
Routing Width	0.79" (20mm)
Weight	0.5 lb (6.5ft Channel & Lens)
Photometric
Lens Transmittance	Clear = 92% Frosted = 78% Smoke = 25%
Environmental
IP Rating	IP20
Load Rating	IK06
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light 12mm wide & above
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Mud-In/Embedded Channel: Aluminum channel designed to be recessed into professional drywall installations.
Universal Compatibility: 20mm of strip space accommodates ALL aspectLED strip lights (indoor and outdoor rated) or 2x strips side-by-side.

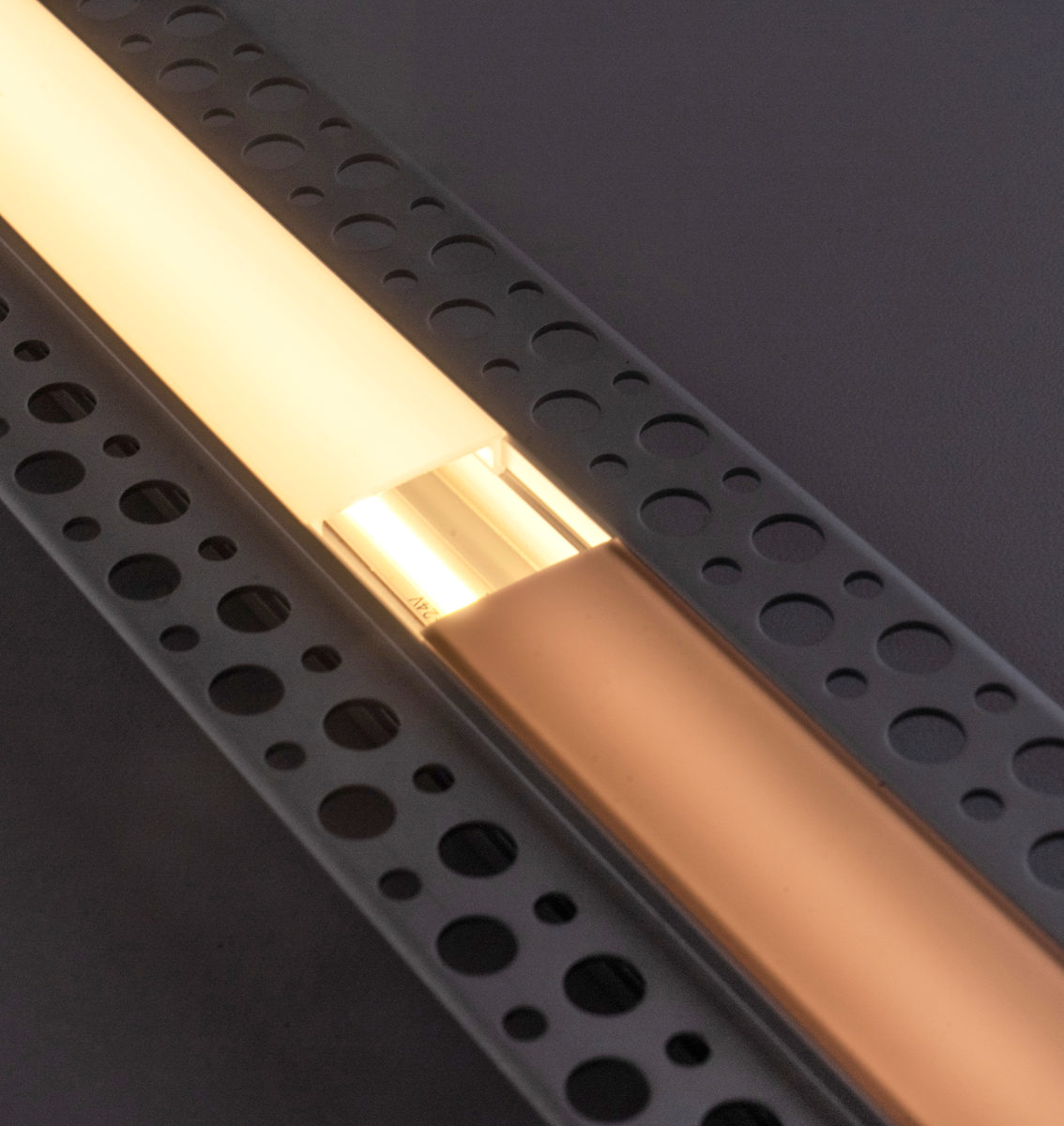

Customizable: Choose between Smoke or Frosted lenses to achieve the look you’re after.
Seamless, Trimless Finish: Dual winged design for direct installation in drywall or plaster, creating a clean, high-end architectural lighting effect without visible fixtures.
Durable Aluminum Construction: High-quality aluminum body enhances heat dissipation and extends LED lifespan.
Punched Flanges: Allow for stronger and more durable installation.
Multi-Packs Available: Perfect for installers and larger projects.
Warranty: 1 year.

Applications

Seamlessly Integrated Linear Lighting: Introduces striking or subtle lighting to walls or ceilings.
Stairway & Step Lighting: Embed along staircase, into stair risers, or under steps to improve both aesthetics and safety.
Late Night Guidance: Provides soft illumination in walkways and corridors to get you to your midnight destinations with ease.
Architectural Highlighting: Make architectural details shine with integrated linear lighting.
Modern Home Ambiance: Enhances home theatre viewing experiences with sleek, built-in LED lighting.
Office & Workspace Design: Embed in walls and ceilings for modern, diffused lighting.
Restaurant & Bar Design: Add mood lighting along walls, counters, and seating areas.
Hotel & Hospitality Design: Add a modern appeal in lobbies, corridors, and suites.

Technical Documents

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What is a mud-in LED channel?

A mud-in LED channel is an aluminum profile designed to be recessed into drywall or plaster for a seamless, flush lighting installation.

How do you install a mud-in LED channel?

The channel is mounted into the drywall, secured, and then covered with a final layer of plaster or drywall compound to create a smooth, trimless finish.

What type of LED strips can be used with this channel?

This channel is compatible with all aspectLED strip light products (indoor or outdoor rated) or other strip light products 20mm wide or less. It can also accommodate 2x strip lights for added brightness.

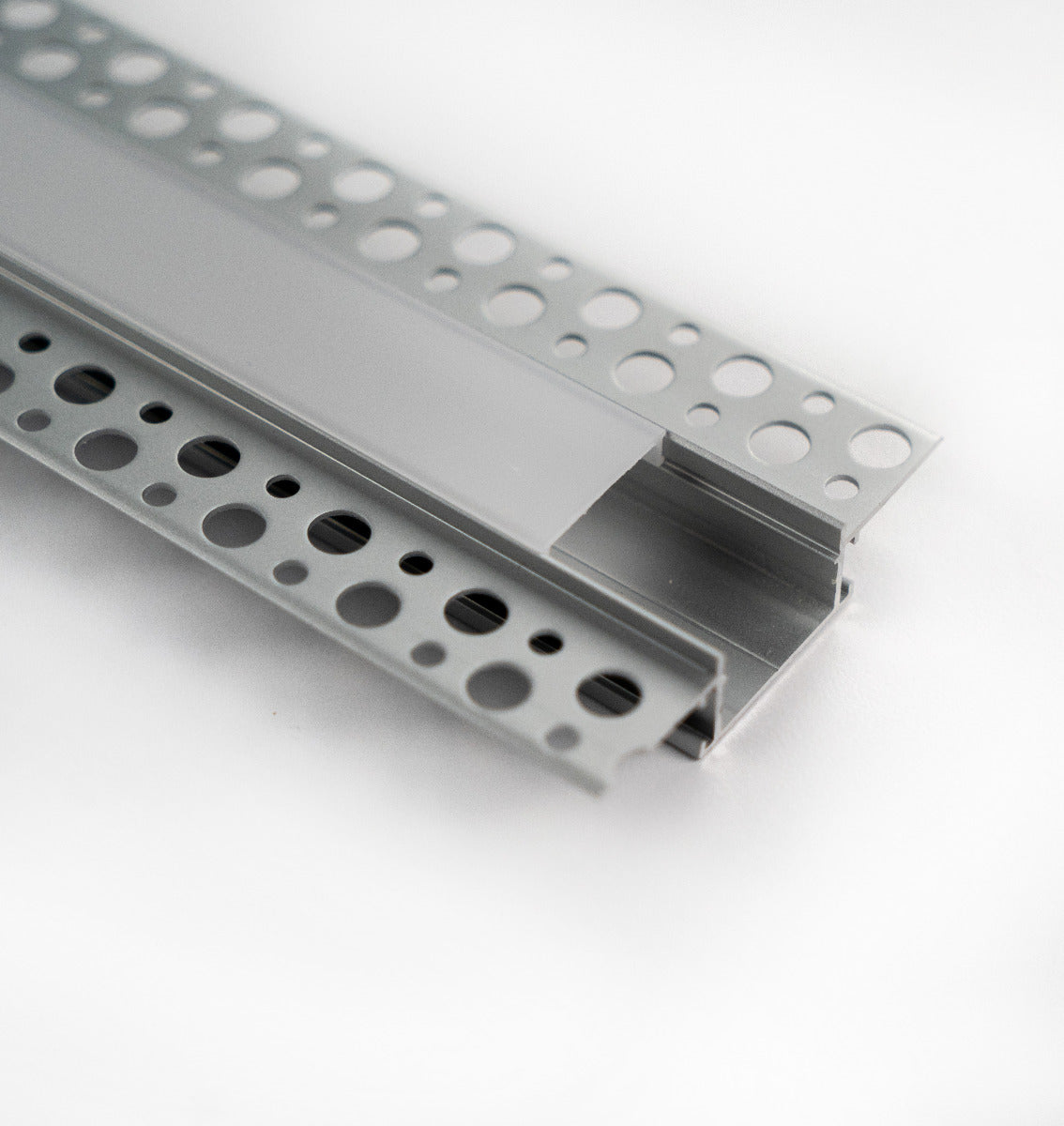

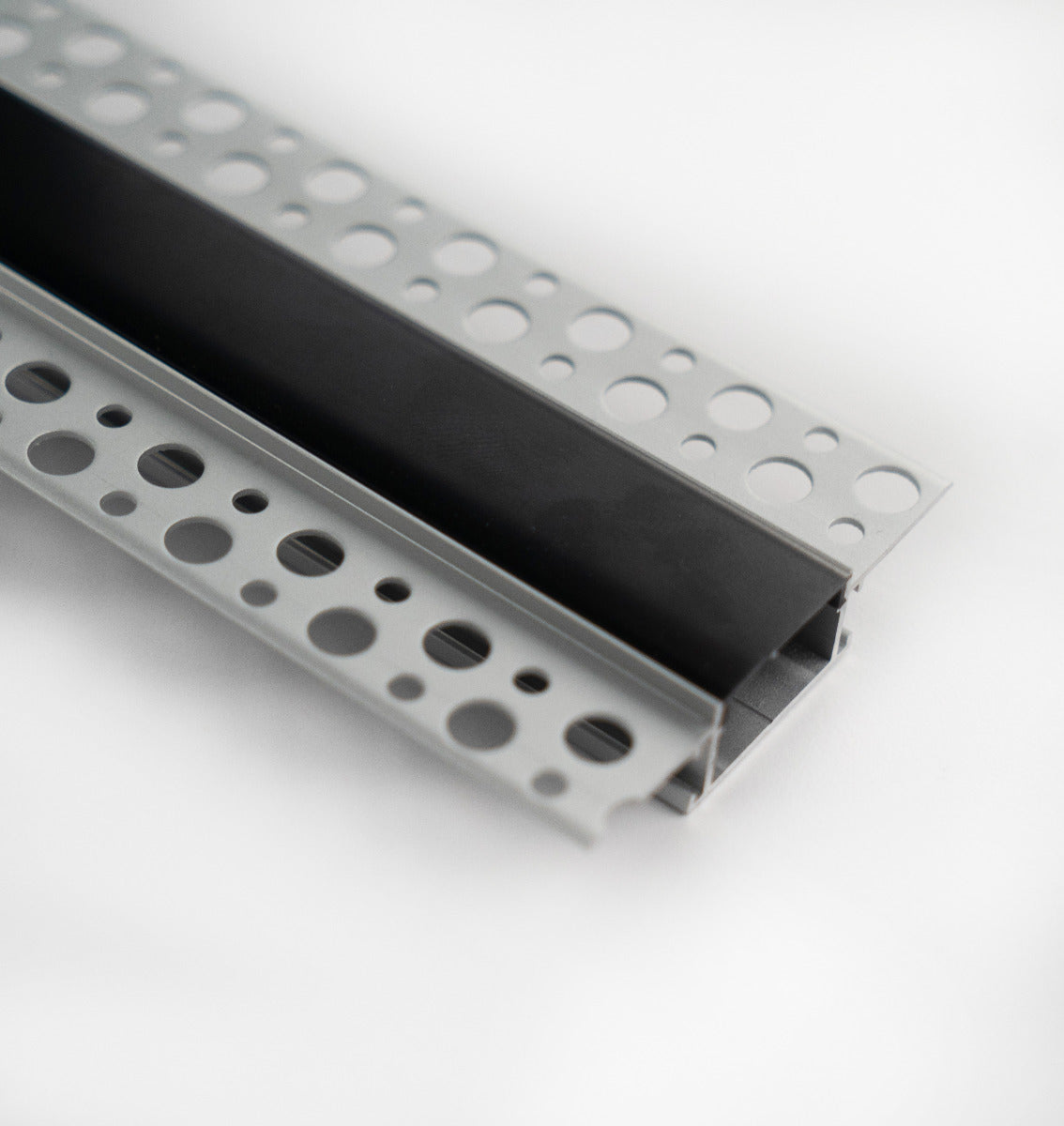

Mud-In LED Channel, Wide
