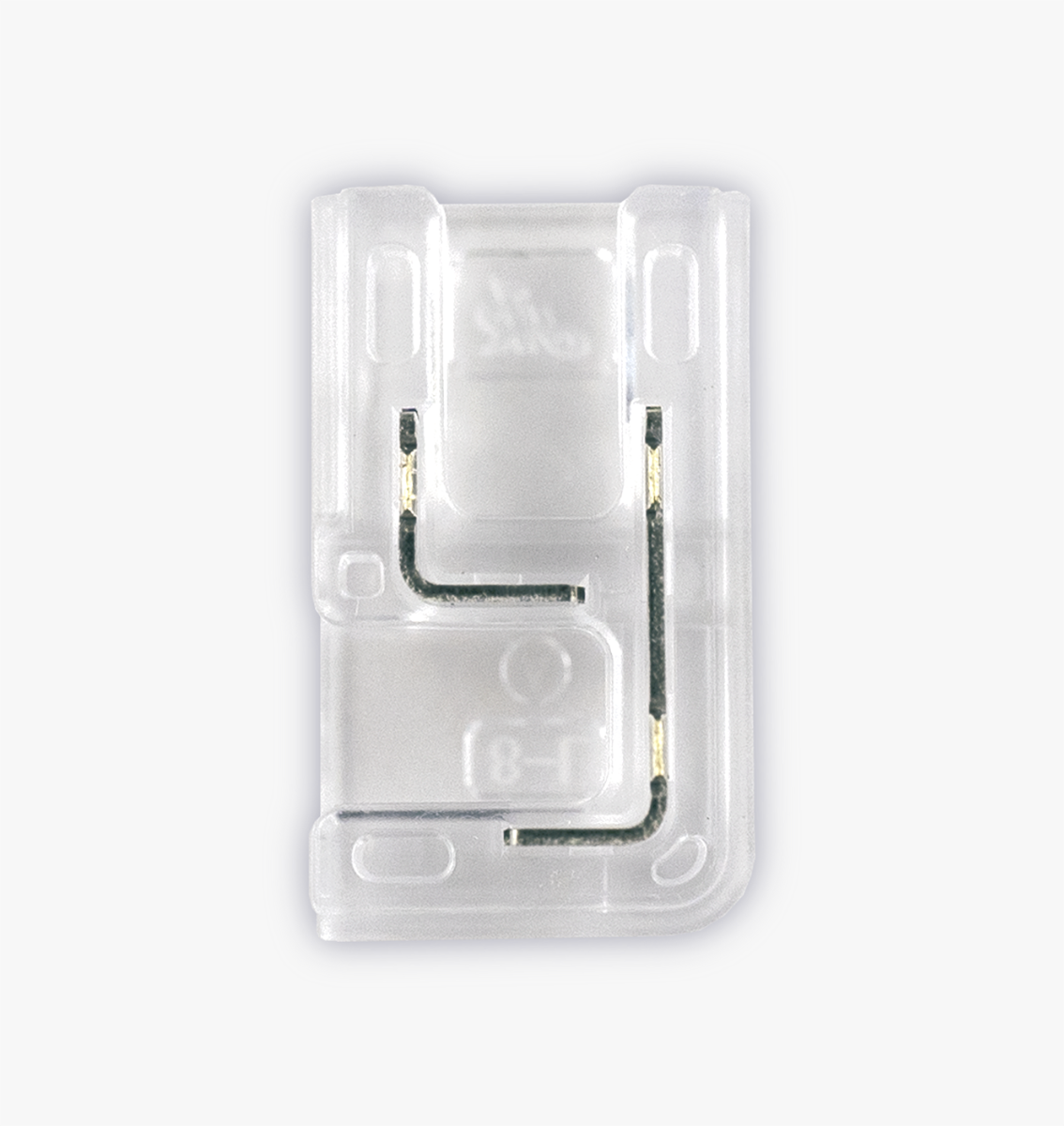

N-Series Solderless 90 Degree Angle Splice Bite Connector
N-Series Solderless 90 Degree Angle Splice Bite Connector
Regular price
$1.00
Sale price
$1.00
Regular price
In-Stock (705) - Ships Same or Next Business Day
Description

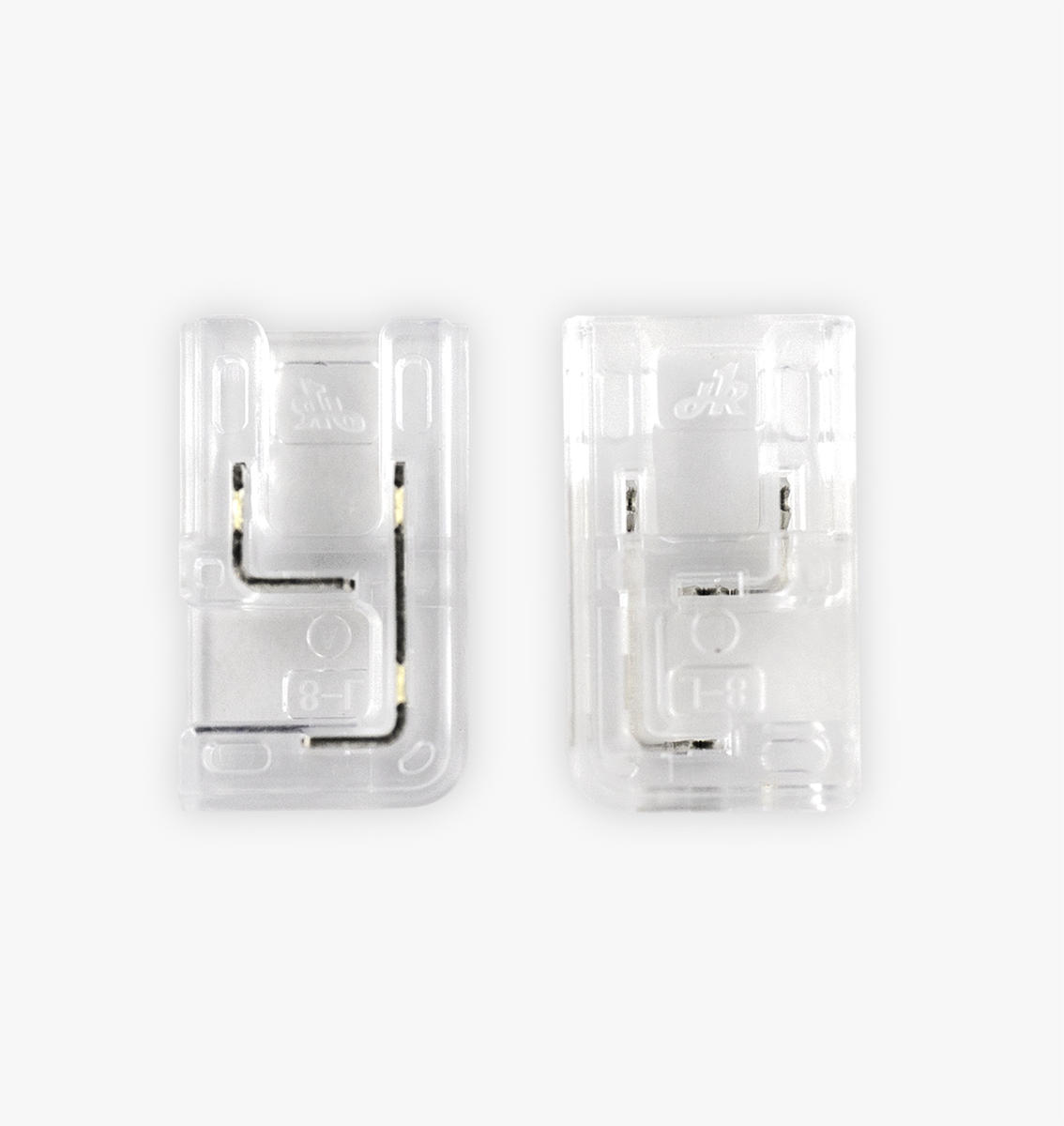

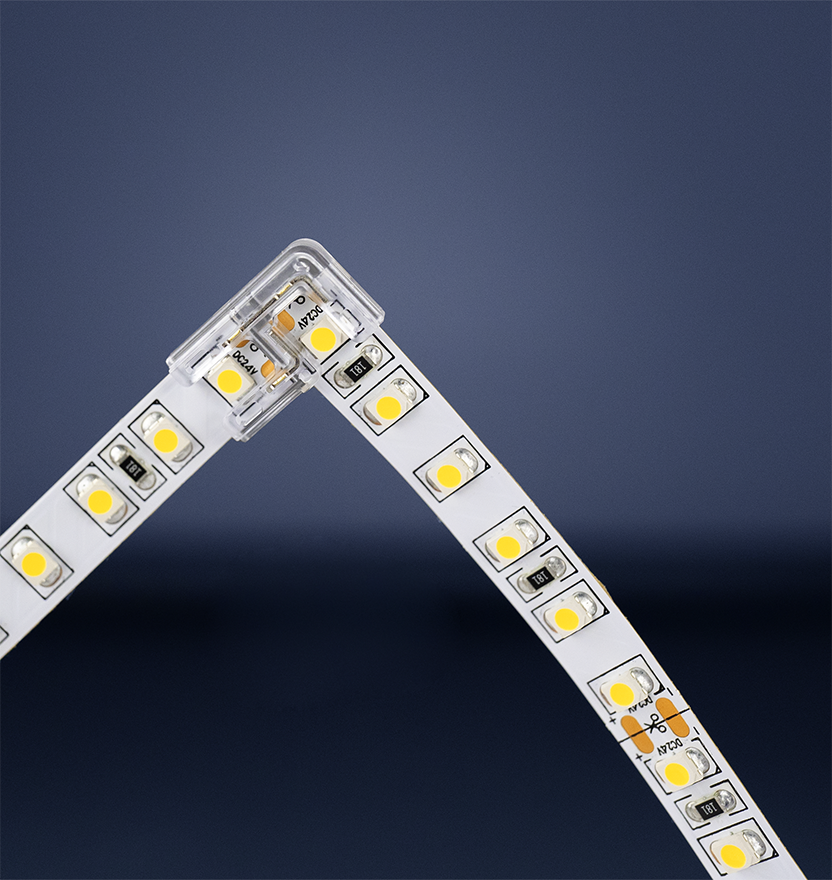

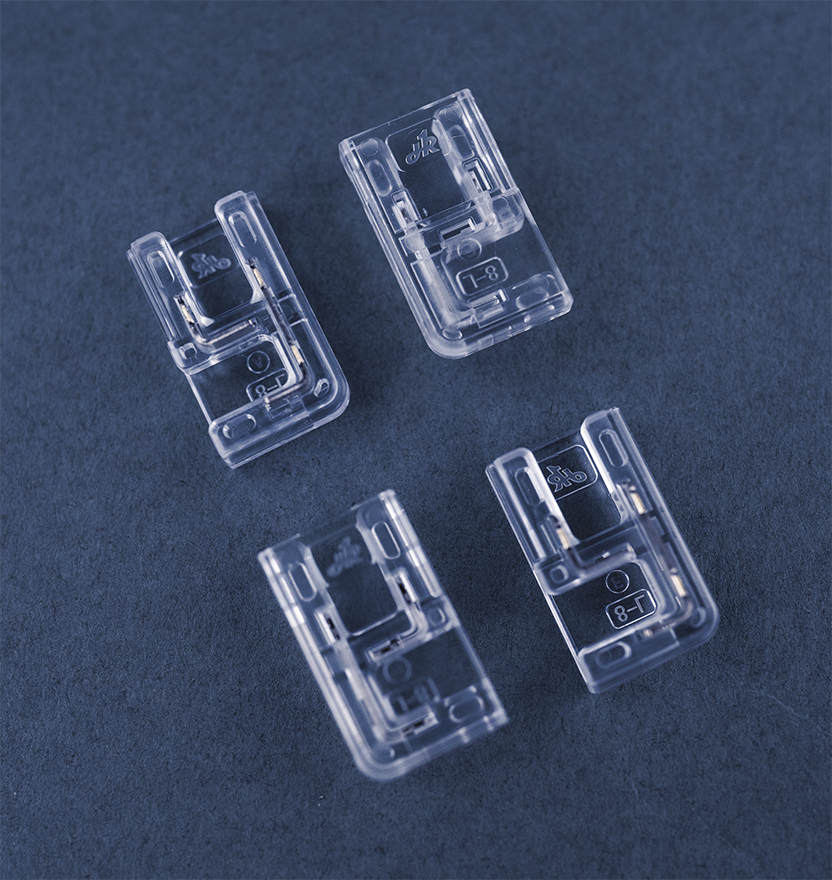

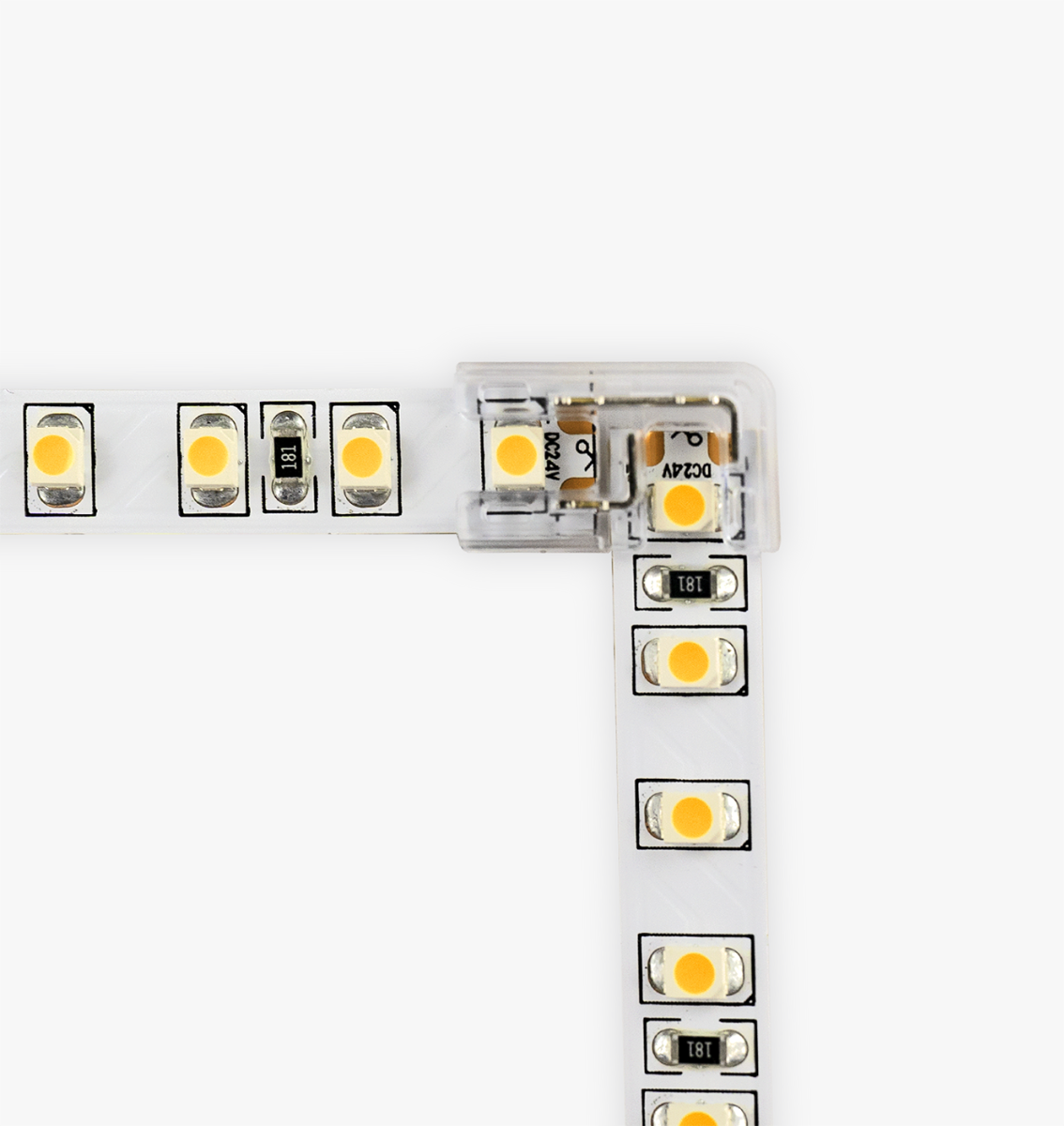

This corner L-shaped connector is designed to connect 2 sections of LED Strip Lights to make 90-degree corner turns with no soldering work. FOR USE ONLY WITH aspectLED LED Strip Lights. Be sure to observe strip light polarity at all connection points. Needle Nose or Parallel Jaw Pliers are recommended for installation.
Key Features
Key Features
-
Secure Connection
-
Copmact Design
-
IP20 non-waterproof
-
Easy to use
Specifications
Specifications
| Part # | AL-SL-CN-N-ANGLESPLICE-1 |
| Physical | |
| Connector Type | Right Angle (90 Degree) |
| Dimensions | 0.66" Long (17mm) 0.66" Wide (17mm) 0.2" Deep (5mm) |
| Weight | 0.03 oz (0.7g) |
| Electrical | |
| Max Current | 4A |
| Wire Connections | N/A |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-N90 AL-SL-NN-U AL-SL-NN-S |
