Pendant/Surface Mount Multi-Directional Bar Light Linear Channel for LED Strip Light
Pendant/Surface Mount Multi-Directional Bar Light Linear Channel for LED Strip Light
Low Stock (only 9 items left in stock) - Backorder Available
Description

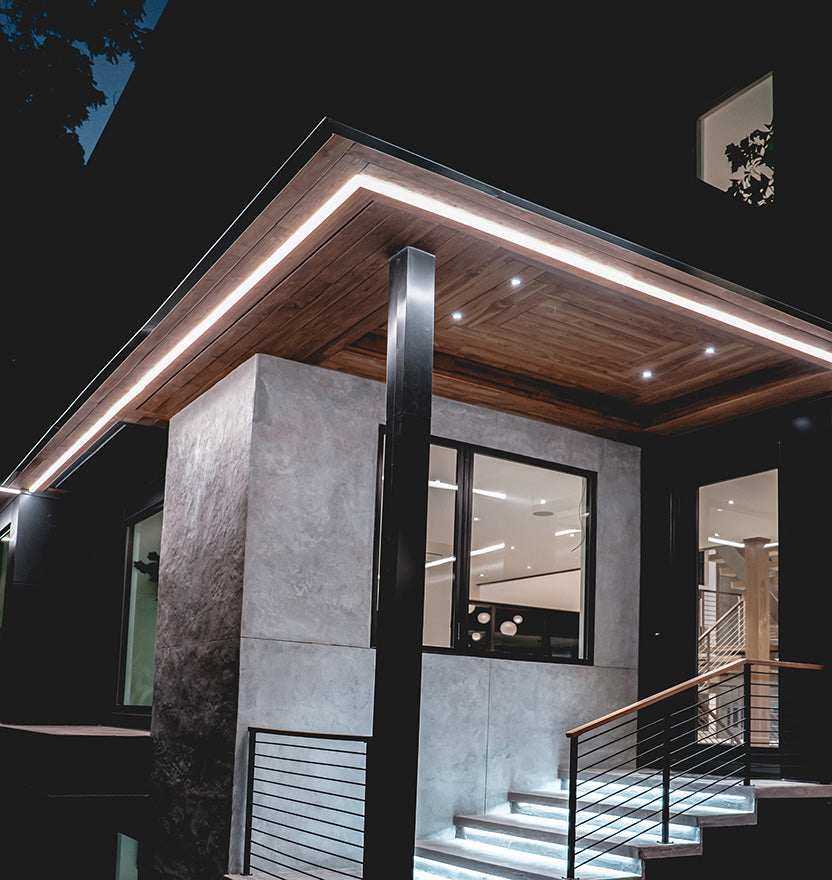

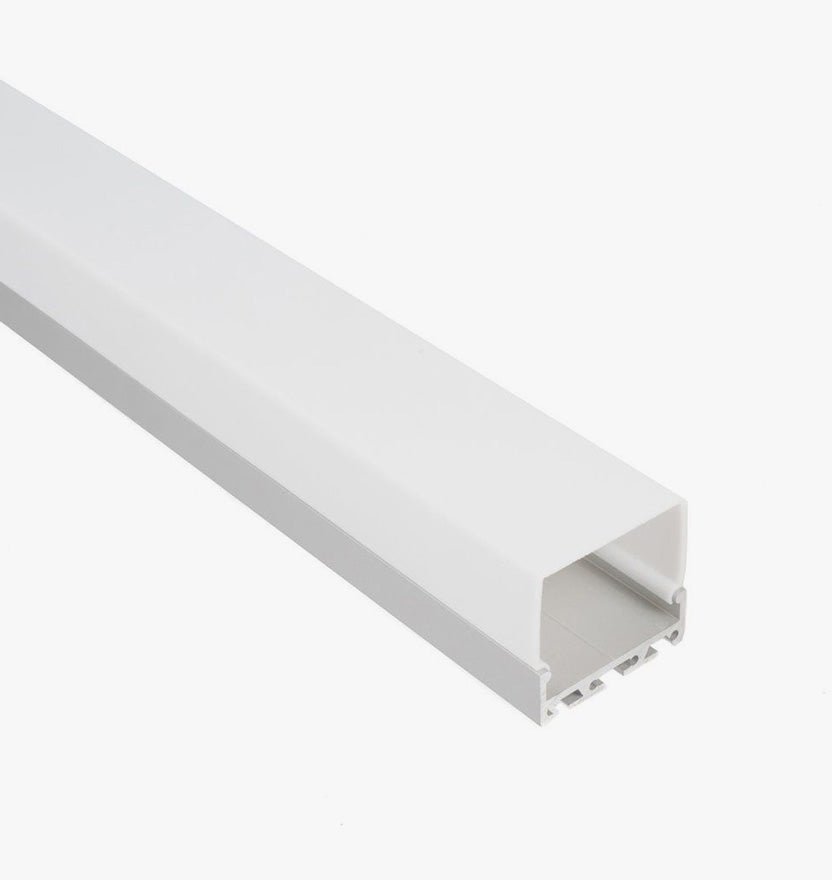

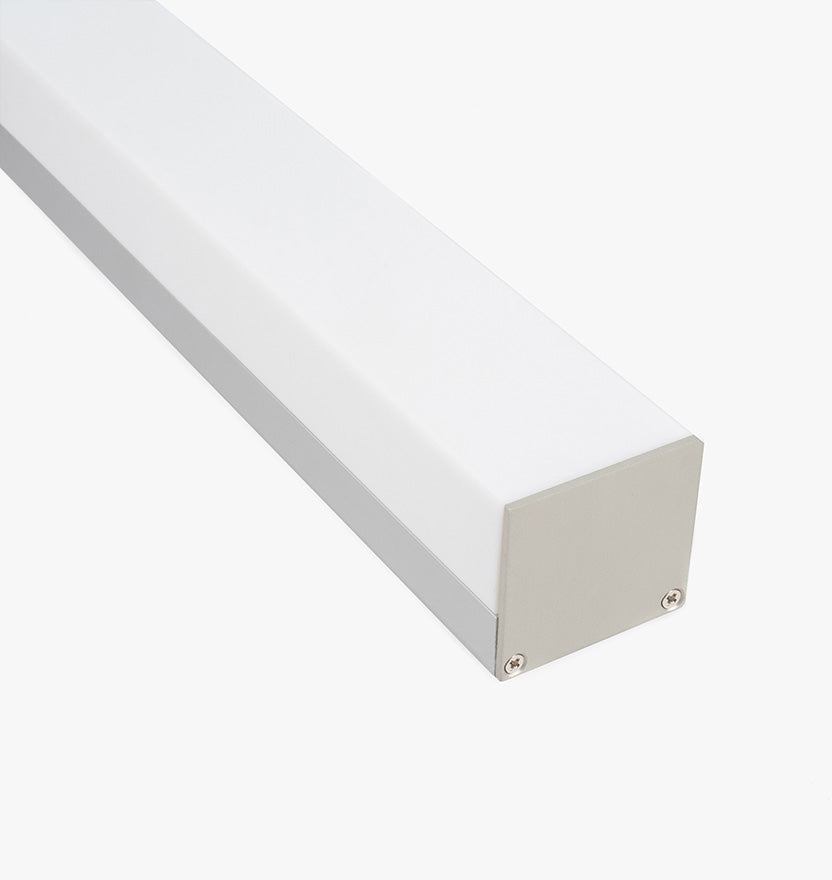

Our aluminum channel is designed to work specifically with our Flexible LED Strip Lights. These come in a variety lengths and have a frosted lens cover. Light output can be increased by laying up to 4 runs of our N-Series narrow non-waterproof, or 3 runs of our W-Series (wide) strip lights, including connectors. This linear channel emits light from 3 sides as opposed to 1 and can be mounted on a ceiling, wall, or virtually anywhere as architectural lighting for wall washing. It can also be hung from the ceiling and used as a pendant over bars, game rooms, pool tables, garages, or kitchen peninsulas and islands. Also available are matching machined end caps to give exposed ends a clean, modern look as well as surface mounting clips for making installations a breeze. Hanging pendant hardware kits are also available as special order. Check strip light and mounting channel compatibility.
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-TRK-LNR |
| Physical | |
| Channel Material | Aluminum |
| Dimensions | 1.8" Wide x 1.62" Deep (with Lens) |
| Lens | Frosted |
| Lens Material | Frosted Polycarbonate |
| Weight | 1.8 lbs |
| Compatibility | |
| Compatible Strip Lights | D-Series Non-Waterproof L-Series Non-Waterproof & Water Resistant N-Series Non-Waterproof, Water Resistant & Waterproof W-Series Non-Waterproof, Water Resistant & Waterproof W-Series Dynamic White Non-Waterproof, Water Resistant & Waterproof RGB Non-Waterproof, Water Resistant & Waterproof RGBA Non-Waterproof, Water Resistant & Waterproof RGB 4in1 Non-Waterproof, Water Resistant & Waterproof RGBW Non-Waterproof, Water Resistant & Waterproof X-Series Non-Waterproof |
| Standards / Certifications | |
| Warranty | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
