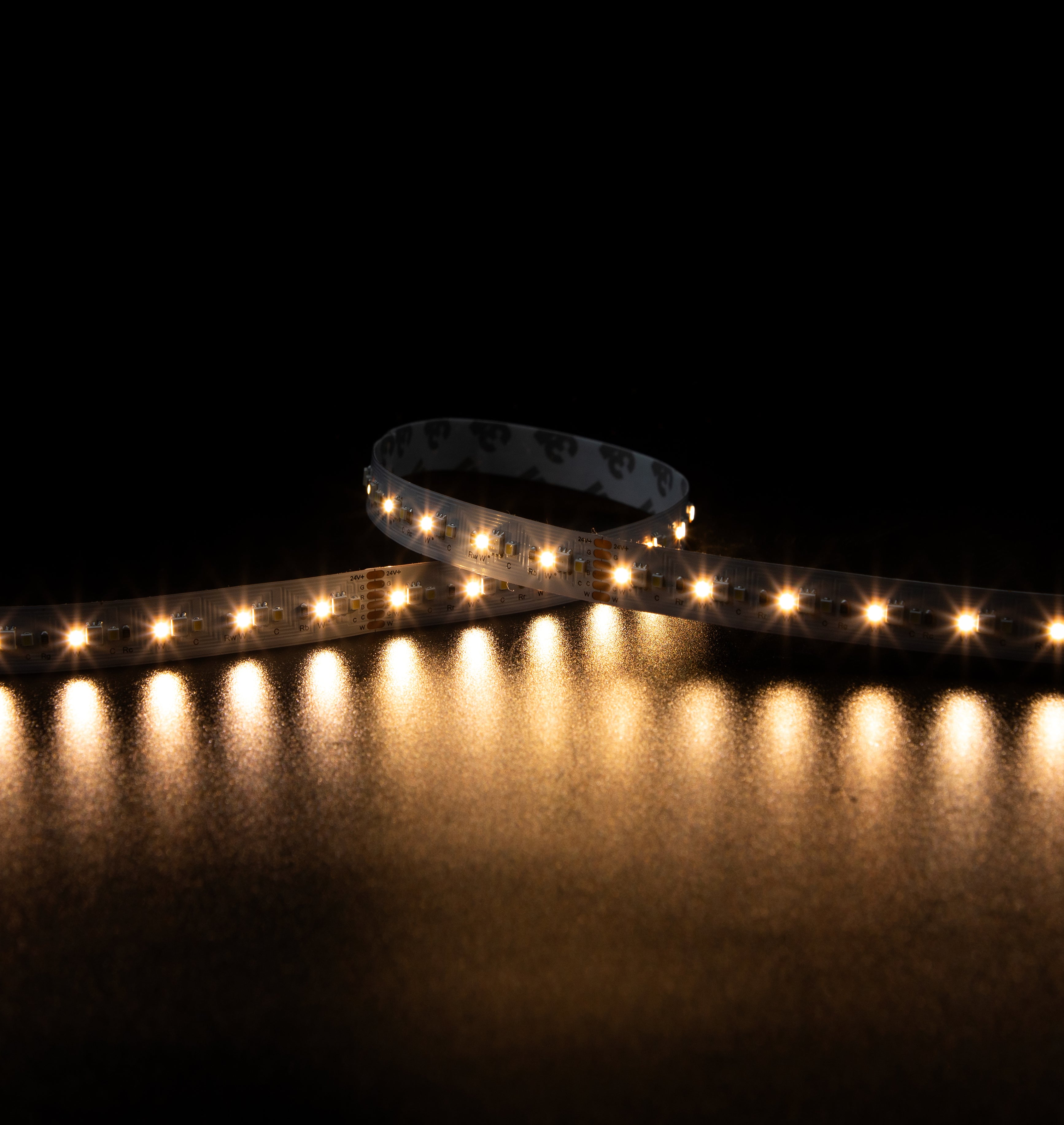

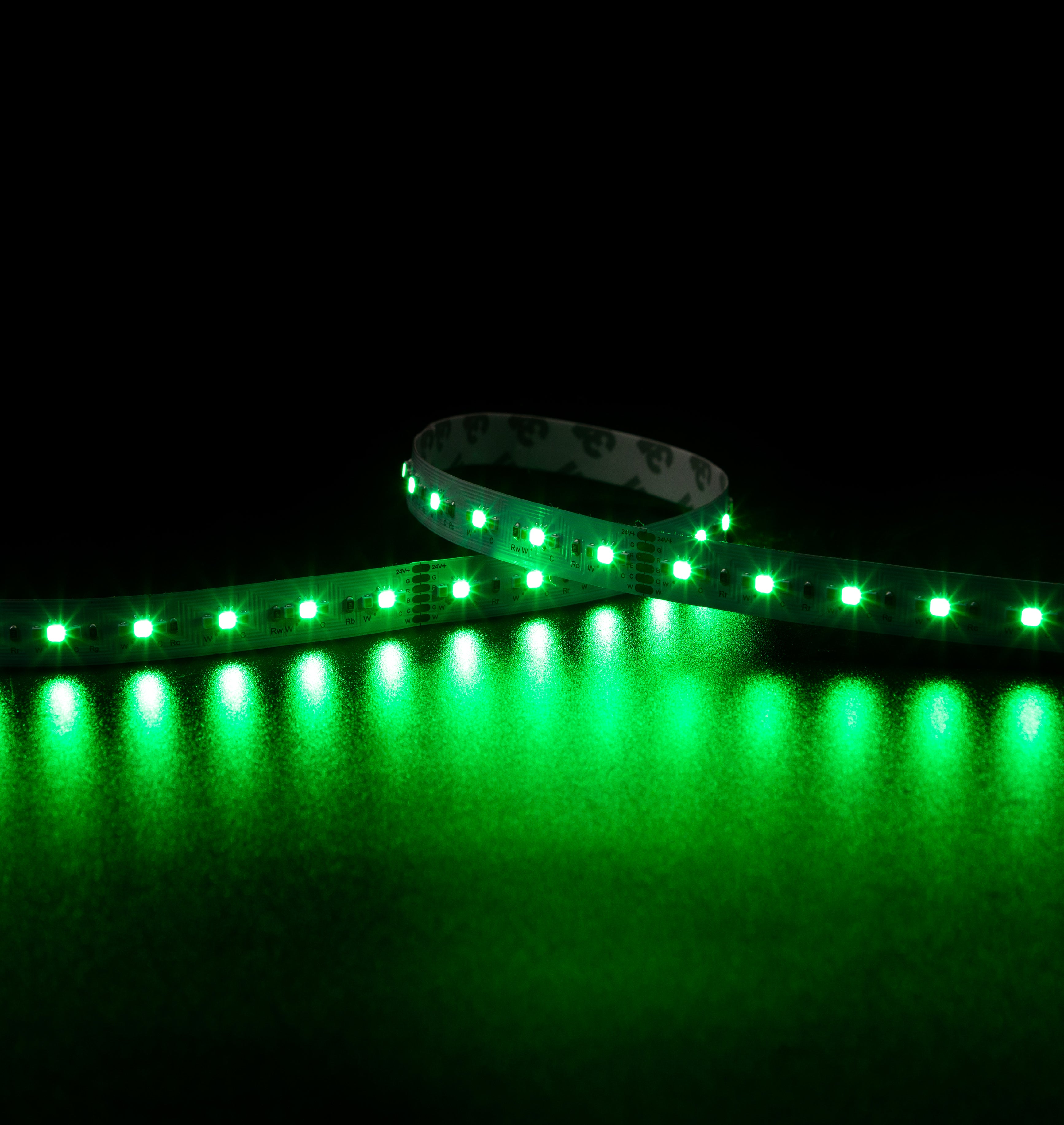

Prism LED Strip Light - RGBCCT
Prism LED Strip Light - RGBCCT
In-Stock (49) - Ships Same or Next Business Day
This product requires a power supply.
Calculate your power supply
Description

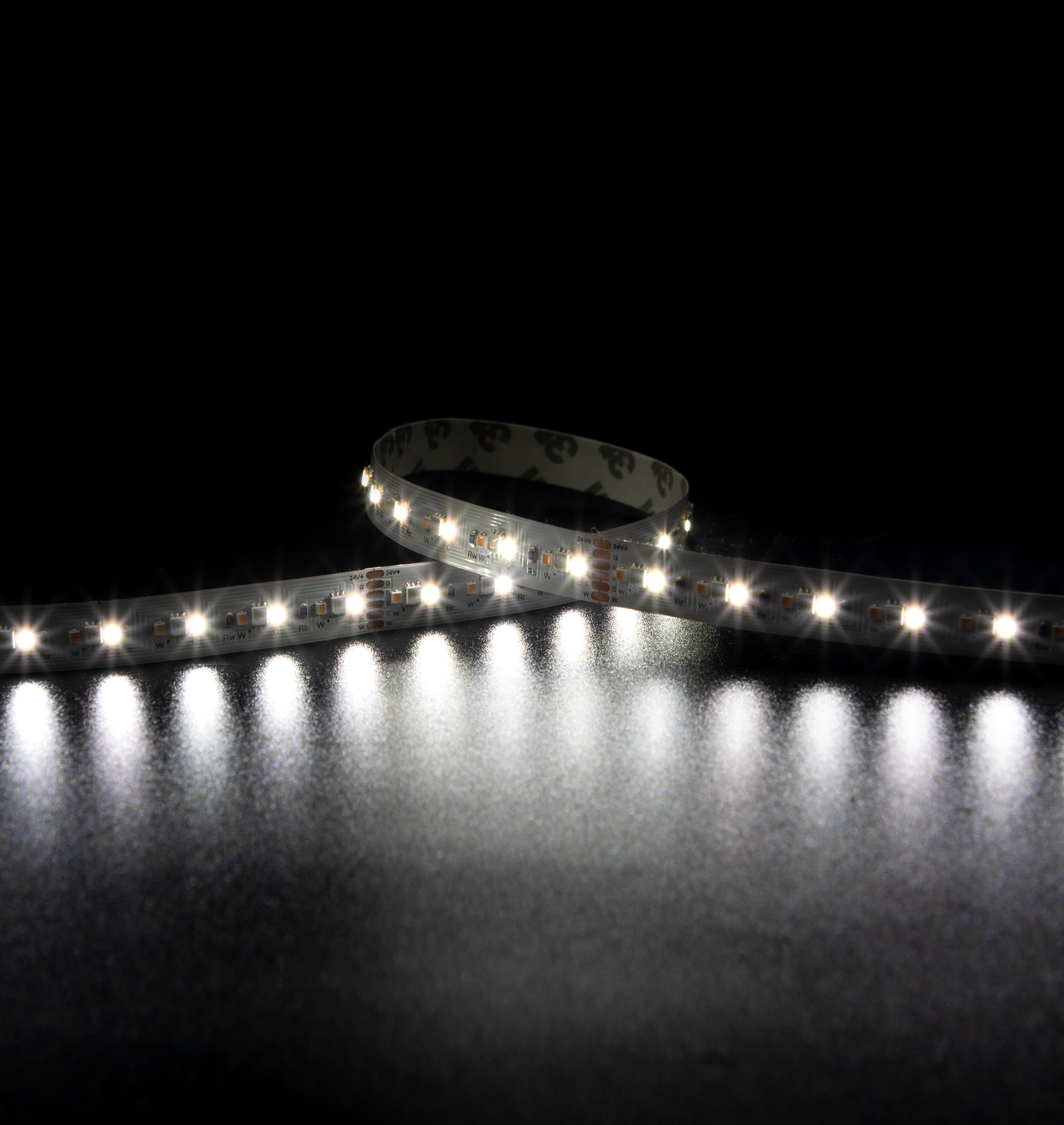

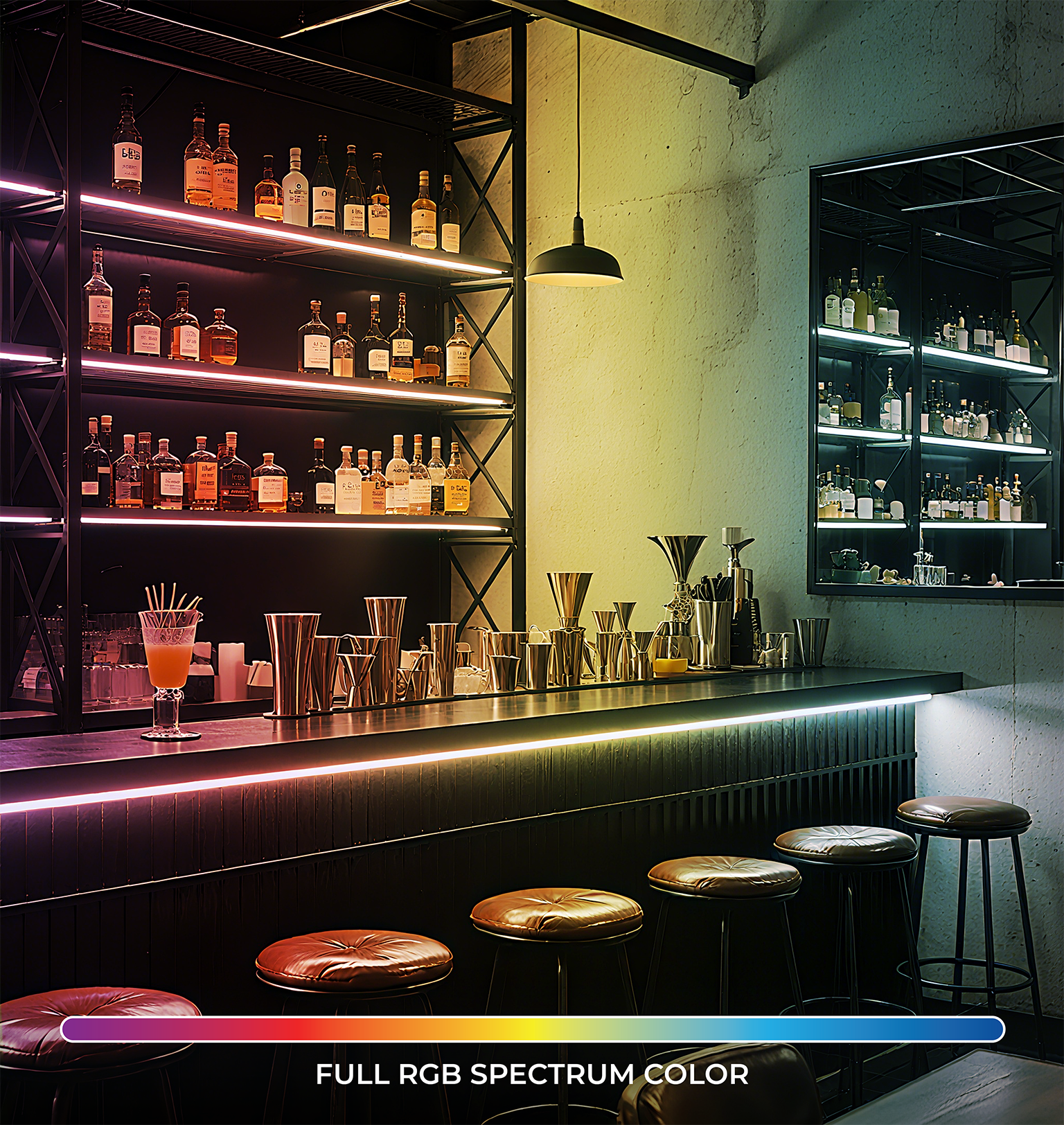

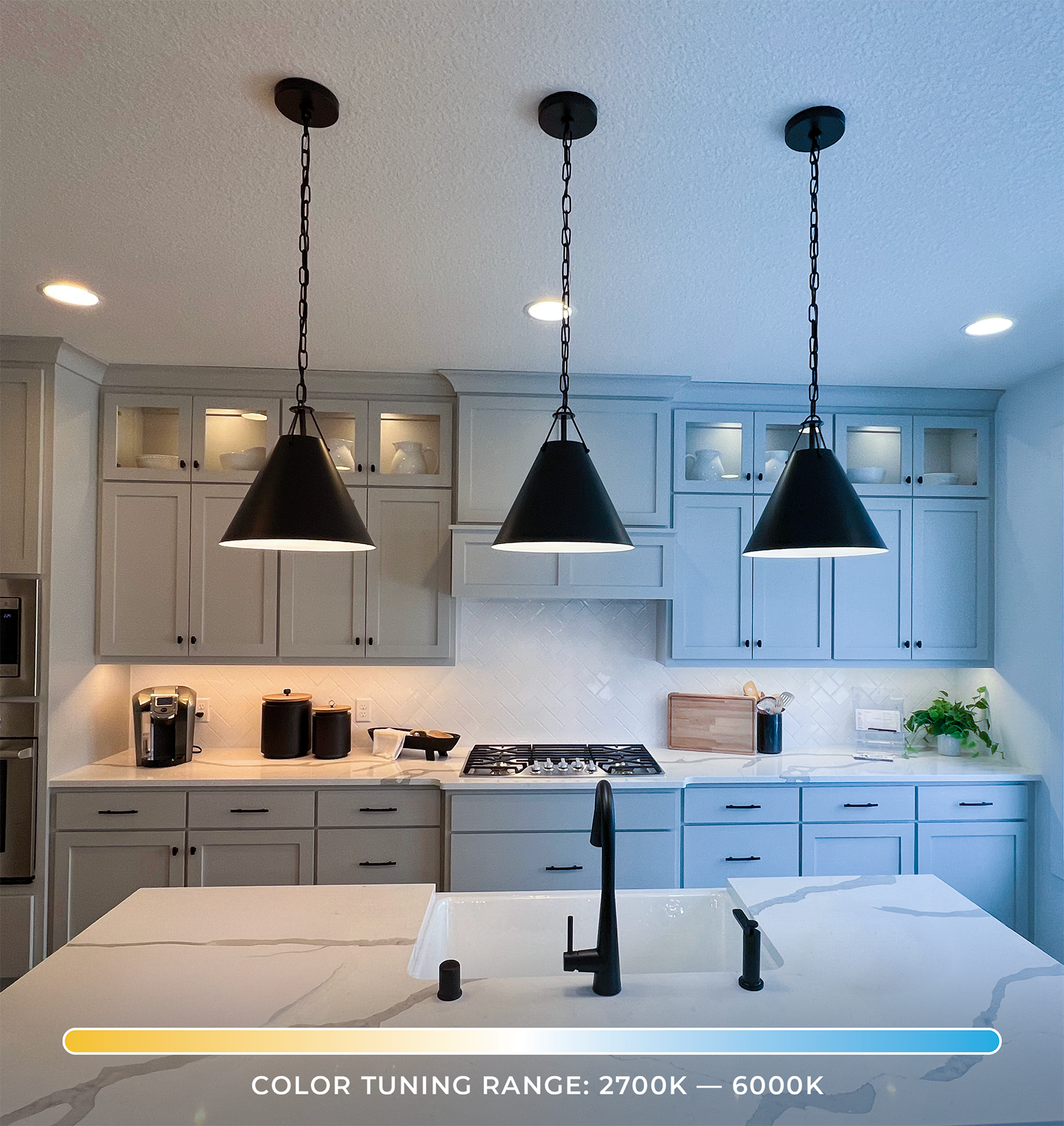

Experience complete lighting control with the Prism RGBCCT LED Strip Light. Designed for precise adjustment of both color temperature and brightness, it delivers smooth, independent dimming from 1–100% along with full RGBCCT tuning. Enjoy the flexibility of vibrant RGB color plus tunable white light ranging from 2700K to 6000K, all in one strip. Create millions of color combinations or dial in the perfect warm or cool white to suit any space. Featuring a flexible construction and a wide 120° beam angle, this strip easily adapts to a variety of layouts and contours. With cut points every 3.93" (100mm), it allows for clean, accurate customization, making it an ideal solution for dynamic, multi-color lighting applications.
Key Features
Key Features
-
Non-Waterproof
-
RGBCCT
-
CRI 90
-
Max Run Length:
16.4ft
Specifications
Specifications
| Part # | AL-SL-PM-IP20-24-RGBCCT |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 120 |
| Cut Length | 3.93" (100mm) |
| Dimensions | 16.4' (5m) 0.472" (12mm) 0.07" (1.9mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape |
| Weight | 0.4 lb |
| Electrical | |
| Efficacy (lumens per watt) | R: 6 Lumens/Watt G: 20 Lumens/Watt B: 4 Lumens/Watt 2700K: 22 Lumens/Watt 6000K: 24 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 64 LED's/ft (210 LED's/m) |
| LED Type | 2835+2022x |

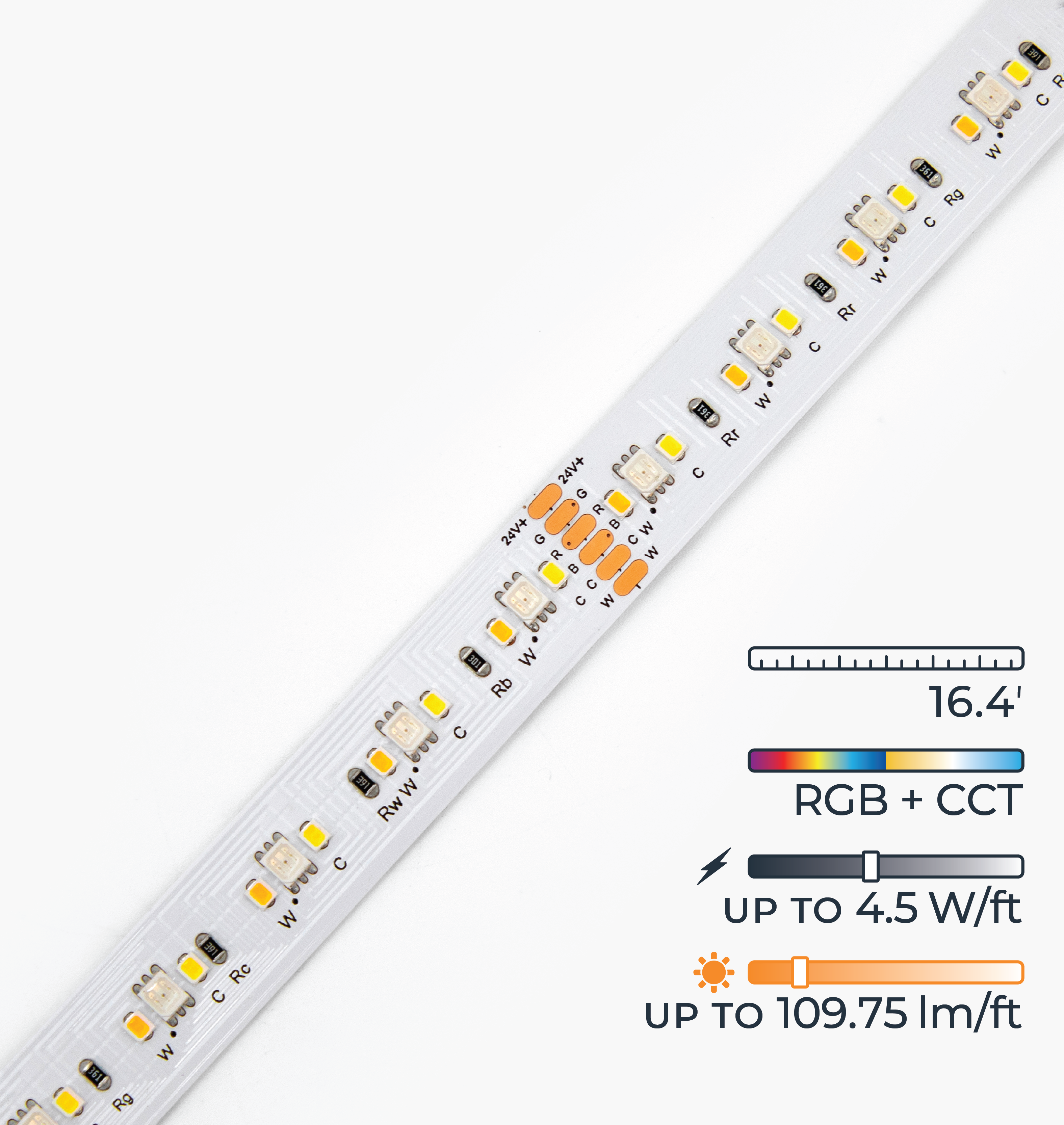

| Max Power Consumption | 4.5W/ft (15W/m) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| CRI | 90 |
| LED Color Options | RGB+2700K+6000K |
| Max Lumens | R: Up to 30.48 Lumens/ft (100 Lumens/m) G: Up to 91.46 Lumens/ft (300 Lumens/m) B: Up to 18.29 Lumens/ft (60 Lumens/m) 2700K: Up to 103.65 Lumens/ft (340 Lumens/m) 6000K: Up to 109.75 Lumens/ft (360 Lumens/m) |
| RGB Wavelength Ranges | See Photometric Report |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176°F (-30 - 80°C) |
| Suitable Uses | Dry, Indoor |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Dimmable | Yes |
| Compatibility | |
| Compatible Connectors | AL-SL-CN-RGBCCT-SPLICE AL-SL-CN-RGBCCT-PIGTAIL AL-SL-CN-RGBCCT-JUMPER |
| Standards / Certifications | |
| Standards / Certifications | CE UL RoHS LM80 |
| Warranty | 5 years |
