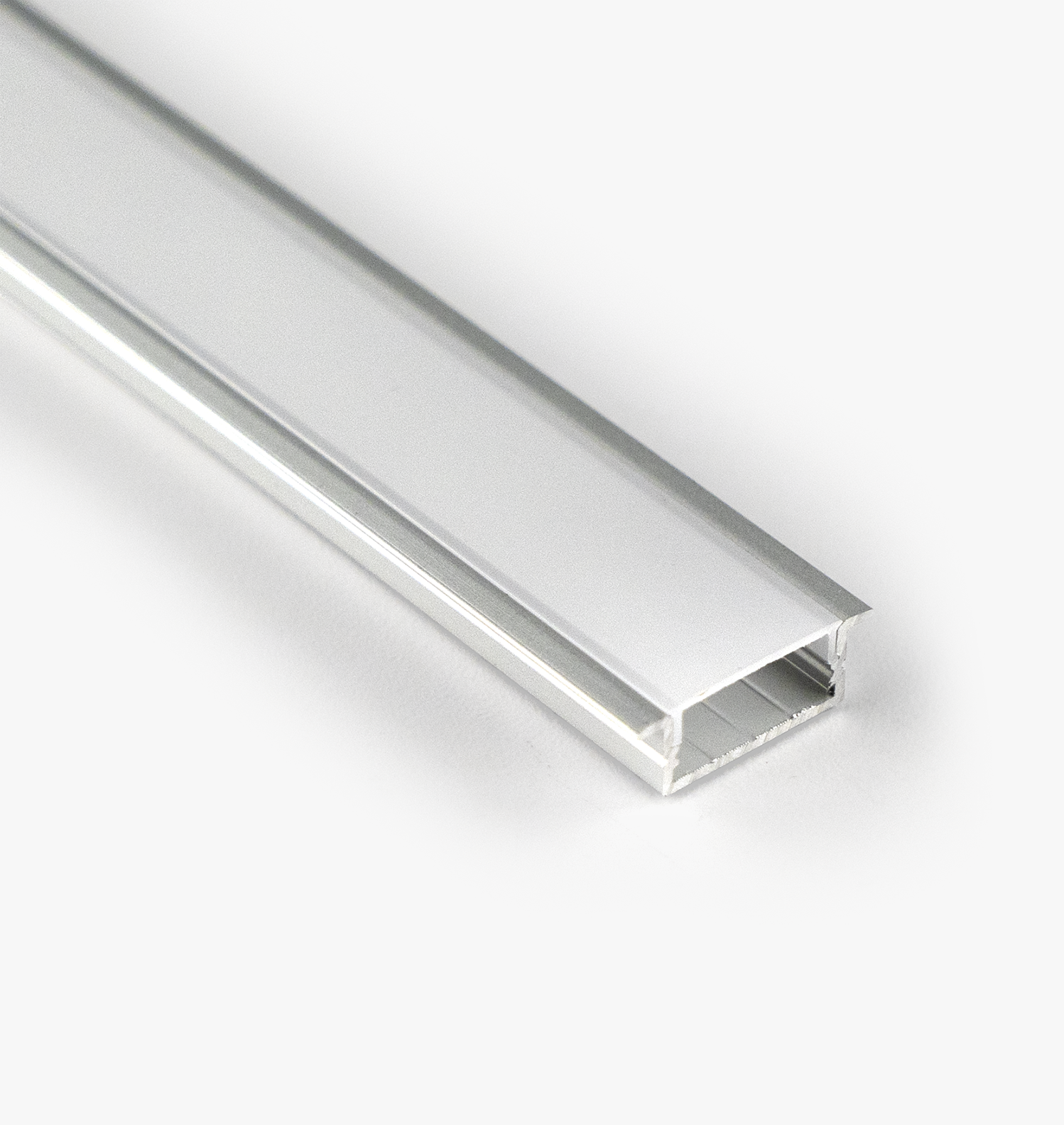

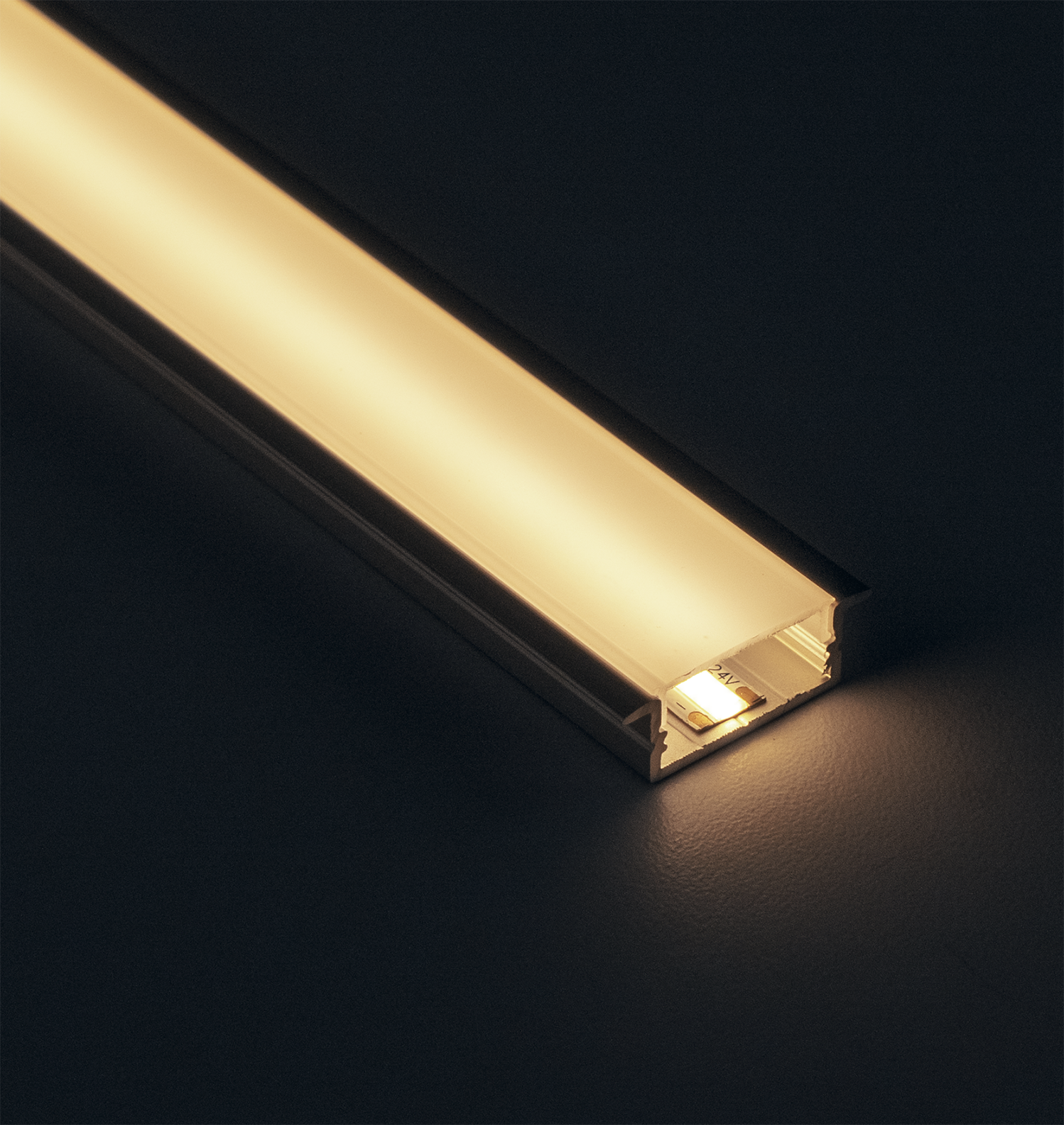

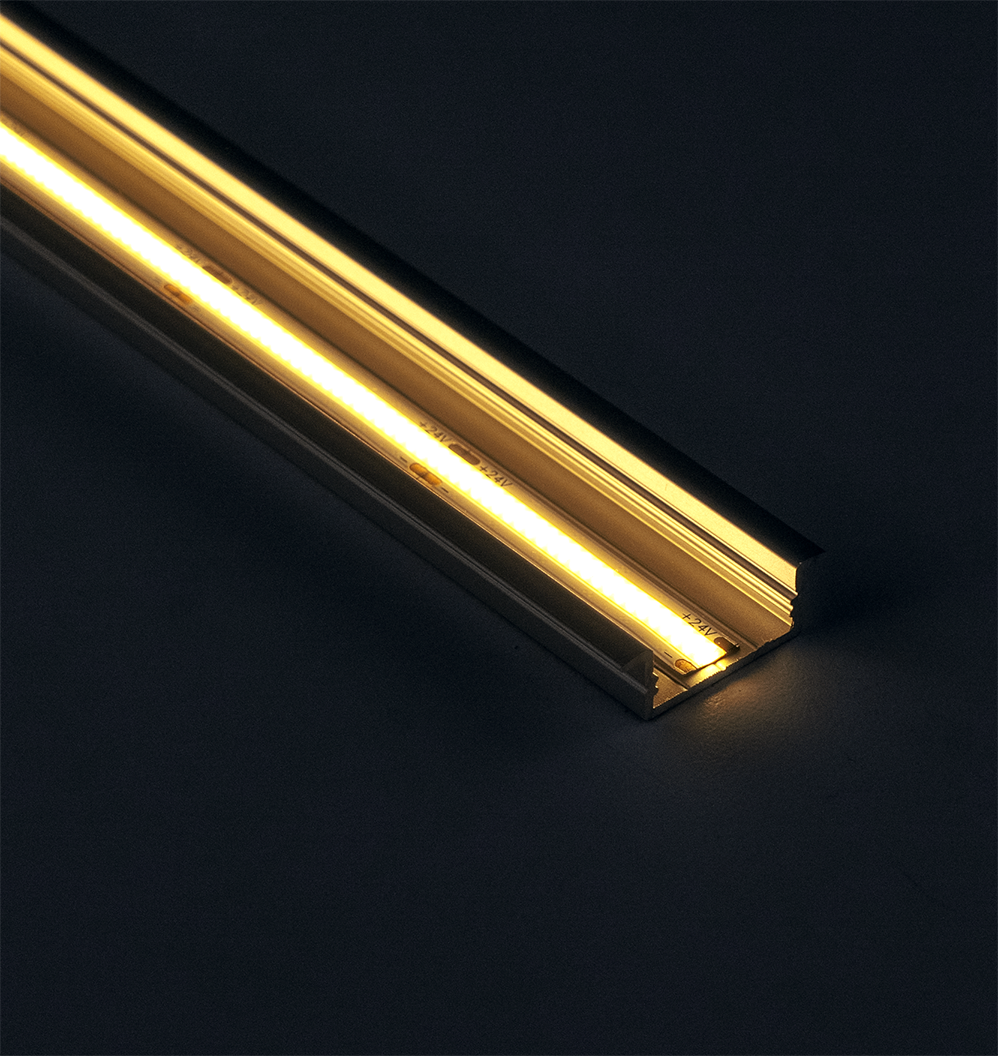

Recessed LED Channel, Universal Wide - Silver - 5PK

SKU: AL-TRK-R-W-SFST-2M-KIT-5

$121.89

In-Stock (34) - Ships Same or Next Business Day

Pack Size: 5 Pack

1 Pack 10 Pack 5 Pack

Channel Color: Silver

Black Silver

Lens: Frosted

Smoke Frosted Clear

Channel Length: 6.5 Feet

3.3 Feet 6.5 Feet

Include Accessories?: Yes

No Yes

Description

This Universal Wide Recessed Channel accommodates strip lights up to 20mm wide, whether rated for indoor or outdoor use. Its extra wide design can even fit two 8mm strips for enhanced brightness. Built from durable aluminum, it protects strip lights and diffuses light evenly. Customize your look with a clear, frosted or smoke lens. The smoke lens softens output for subtle accent lighting, while the clear and frosted lenses provide bright, clean illumination ideal for task lighting.

Specifications

Part #	AL-TRK-R-W
Physical
Accommodates these \| Interior Channel Dimensions	0.71" (18.2mm)
Aluminum Channel \| Routing Width	See Technical Drawing

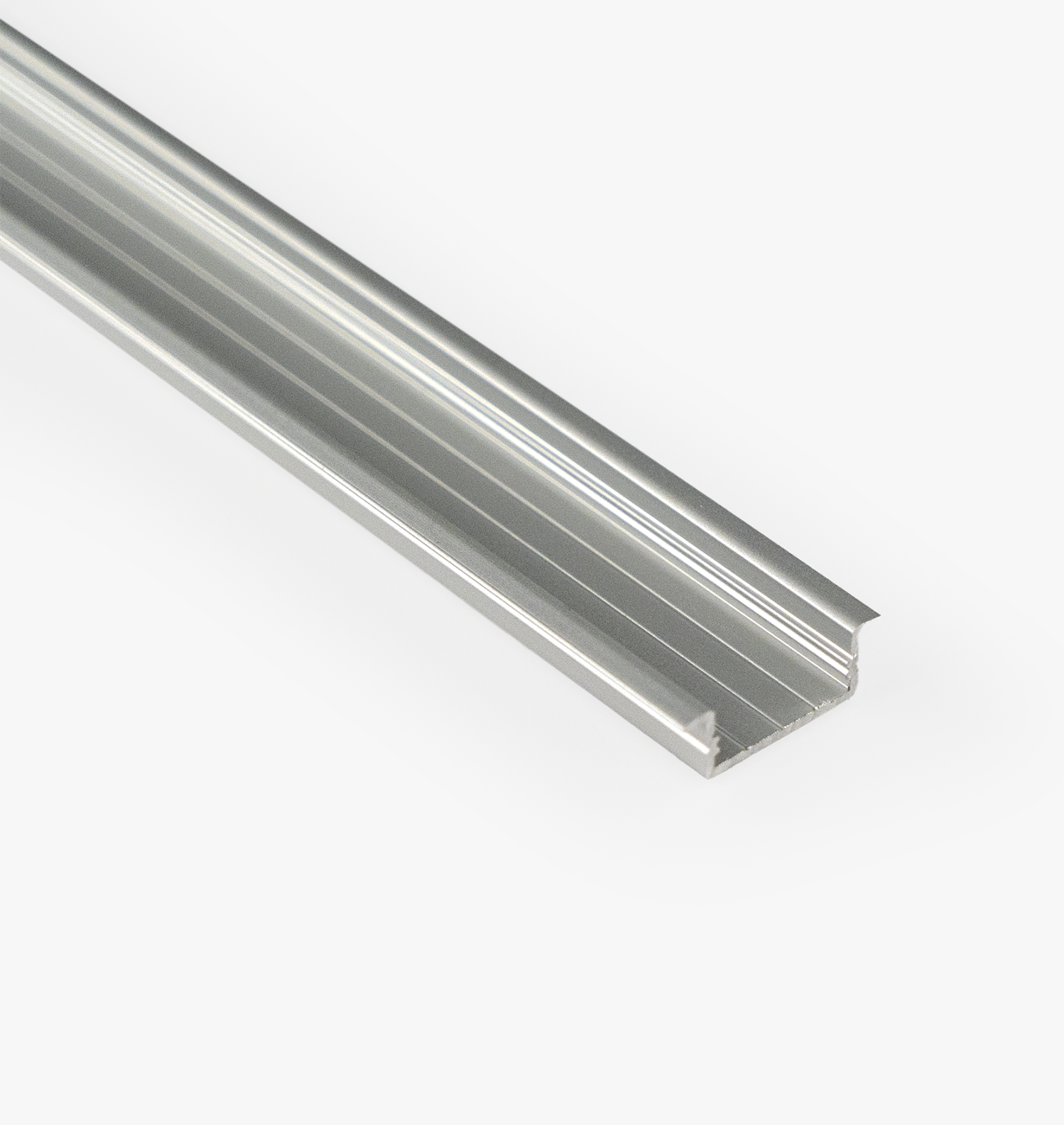

Channel Material	Anodized Aluminum
Dimensions	1.18" (30mm) Wide 0.41" (10.5mm) Tall

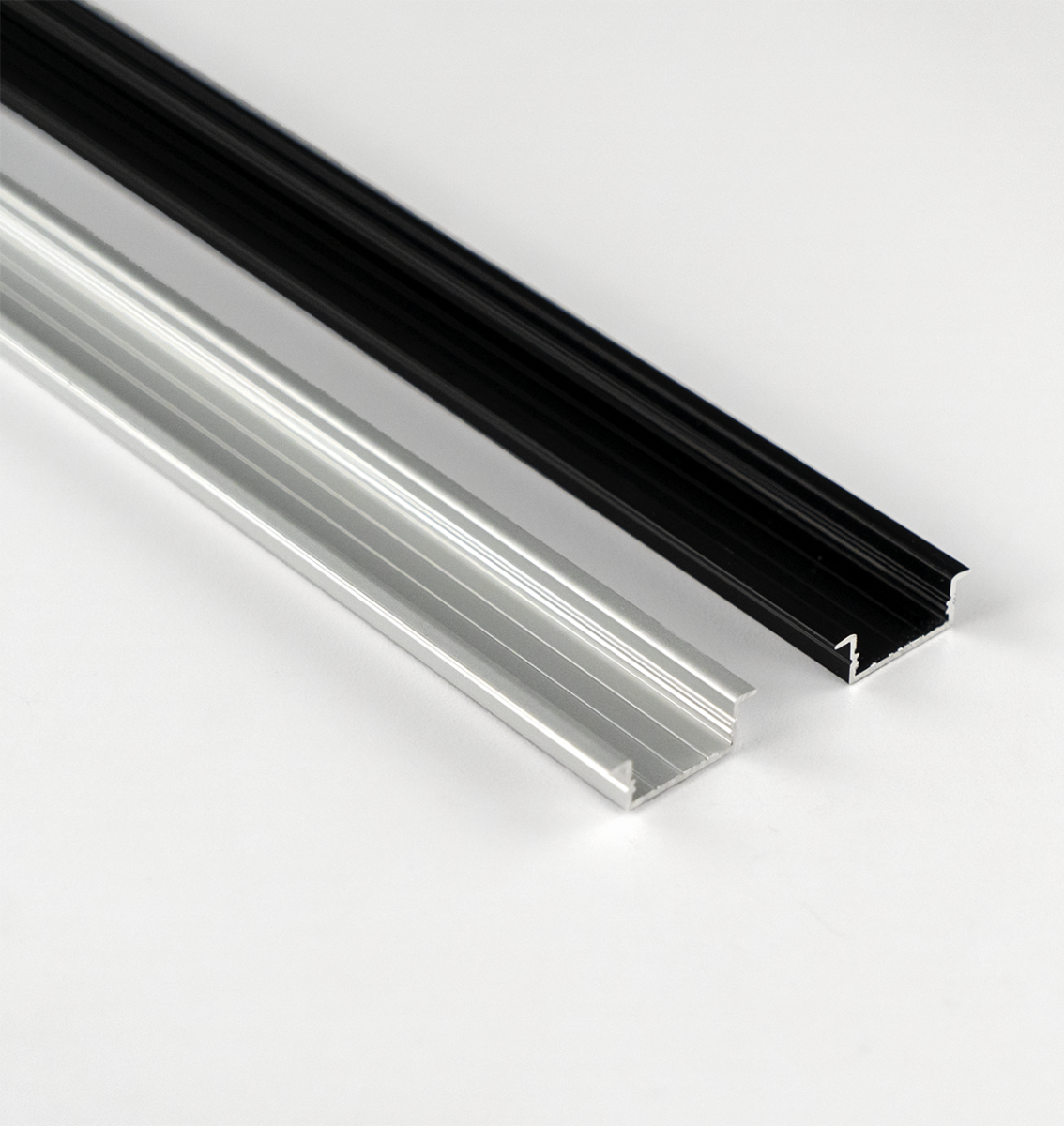

Finish Options	Silver, Black
Lens Material	Polycarbonate

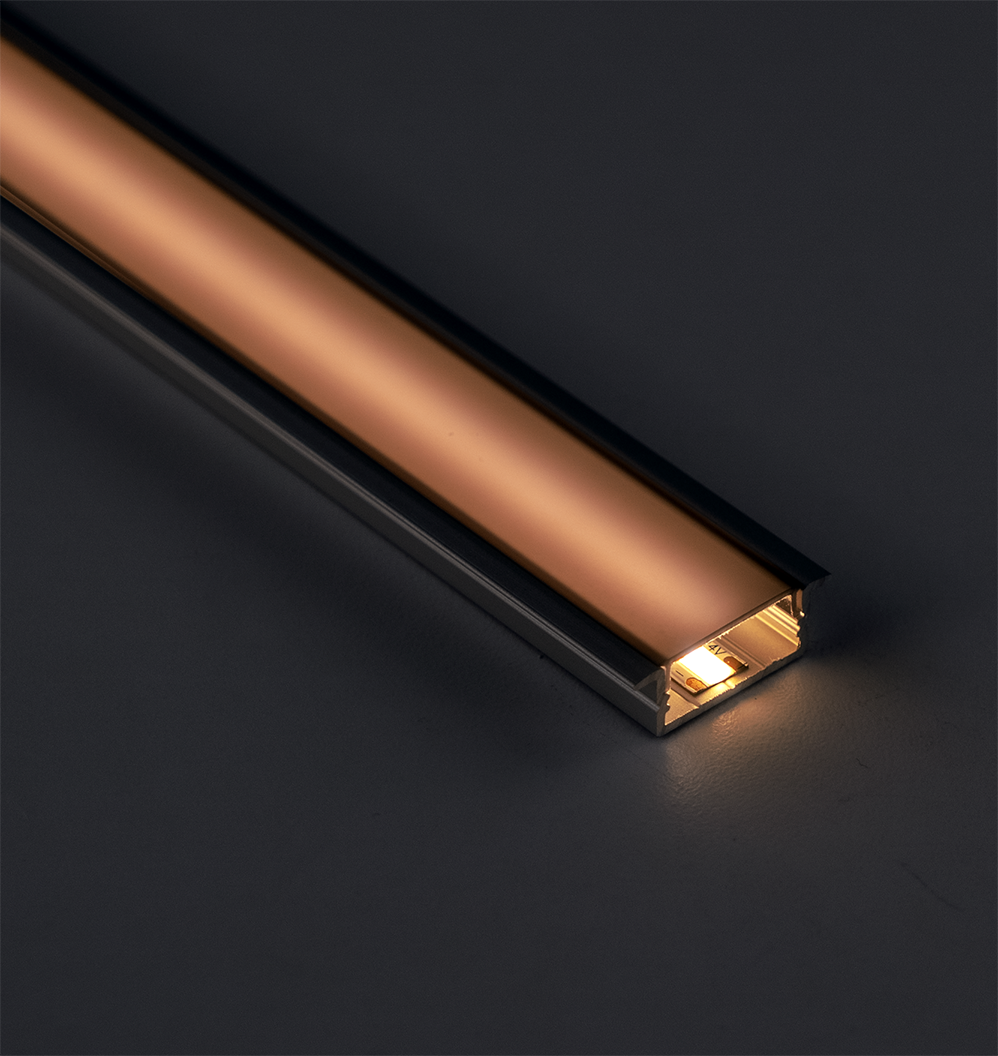

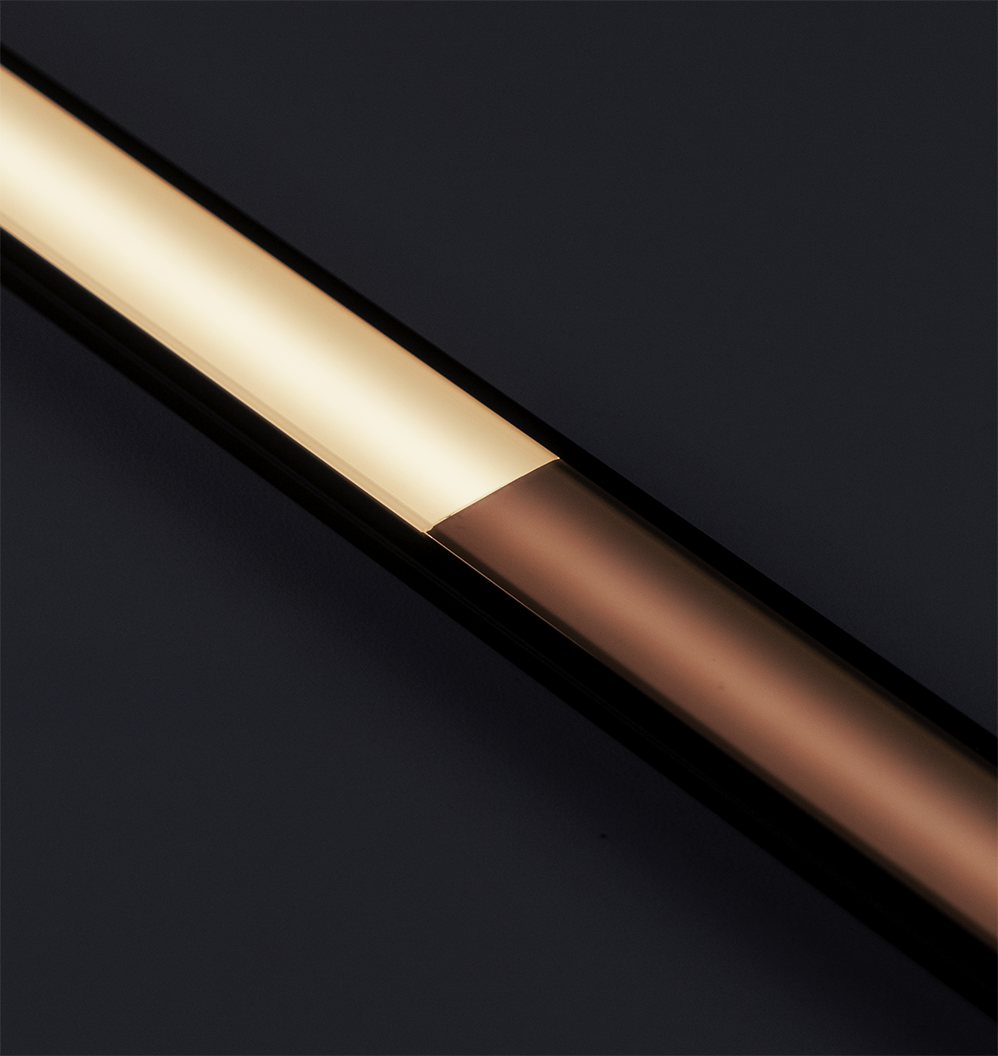

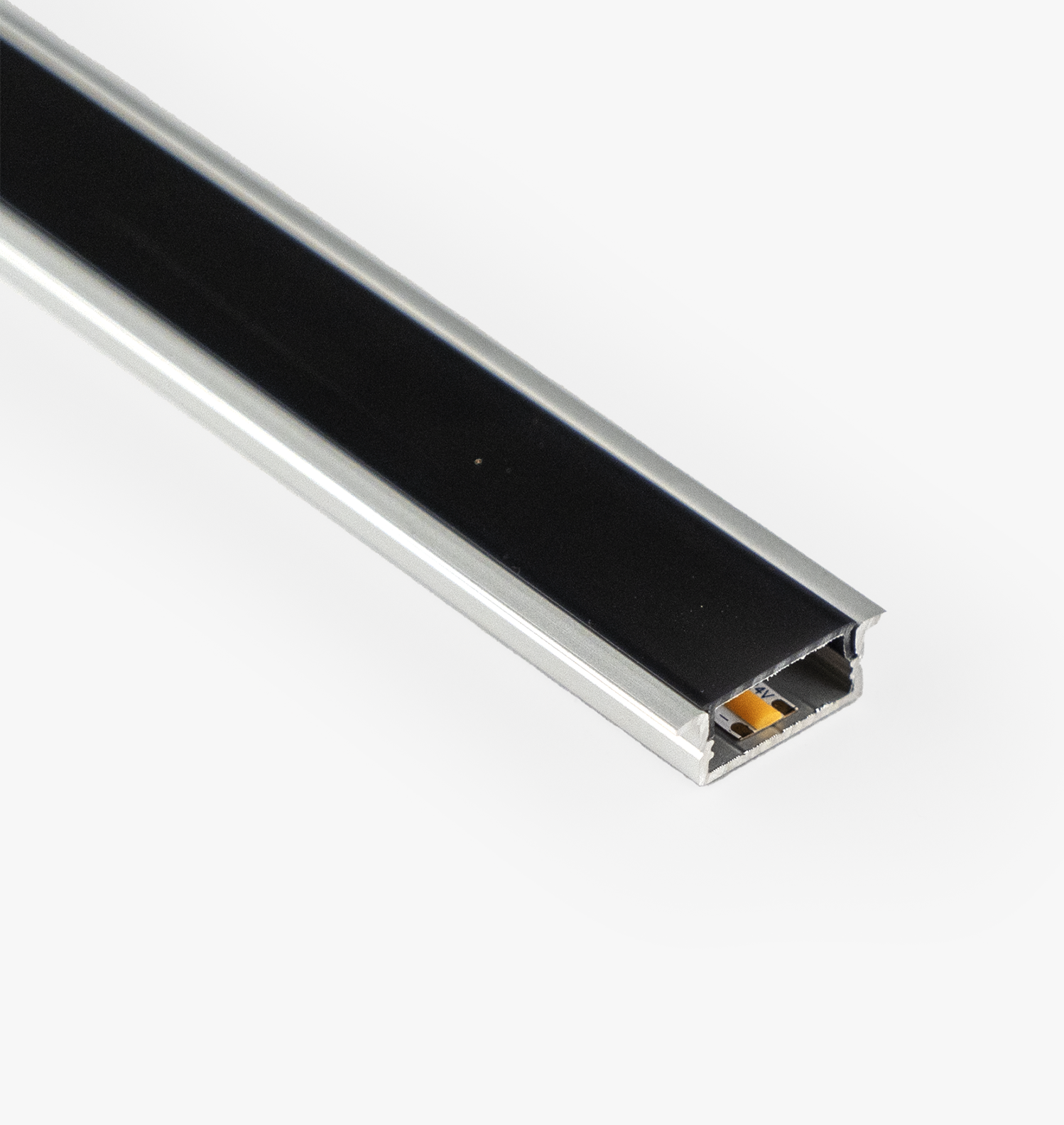

Lens Options	Clear, Frosted, Smoke
Mounting Method	Recessed, Mounting Clip
Package Quantity	Accessory Pack (optional) 1 End Cap with Hole, 1 End Cap without Hole, 2 Mounting Clips per 3.3ft length
Routing Width	29mm
Weight	0.8 lb (6.5ft Channel & Lens)
Photometric
Lens Transmittance	Clear = 92% Frosted = 78% Smoke = 25%
Environmental
IP Rating	IP20
Load Rating	IK06
Max Operating Temperature	-4 – 122°F (-20 – 50°C)
Max Storage Temperatures	-22 – 176°F (-30 – 80°C)
Suitable Uses	Dry, Indoor
Compatibility
Compatible Strip Lights	Holds Strip Light 12mm wide & above
Standards / Certifications
Standards / Certifications	RoHS
Warranty	1 Year

Features

Universal Wide Design: Accommodates strip lights up to 20mm wide for maximum flexibility.

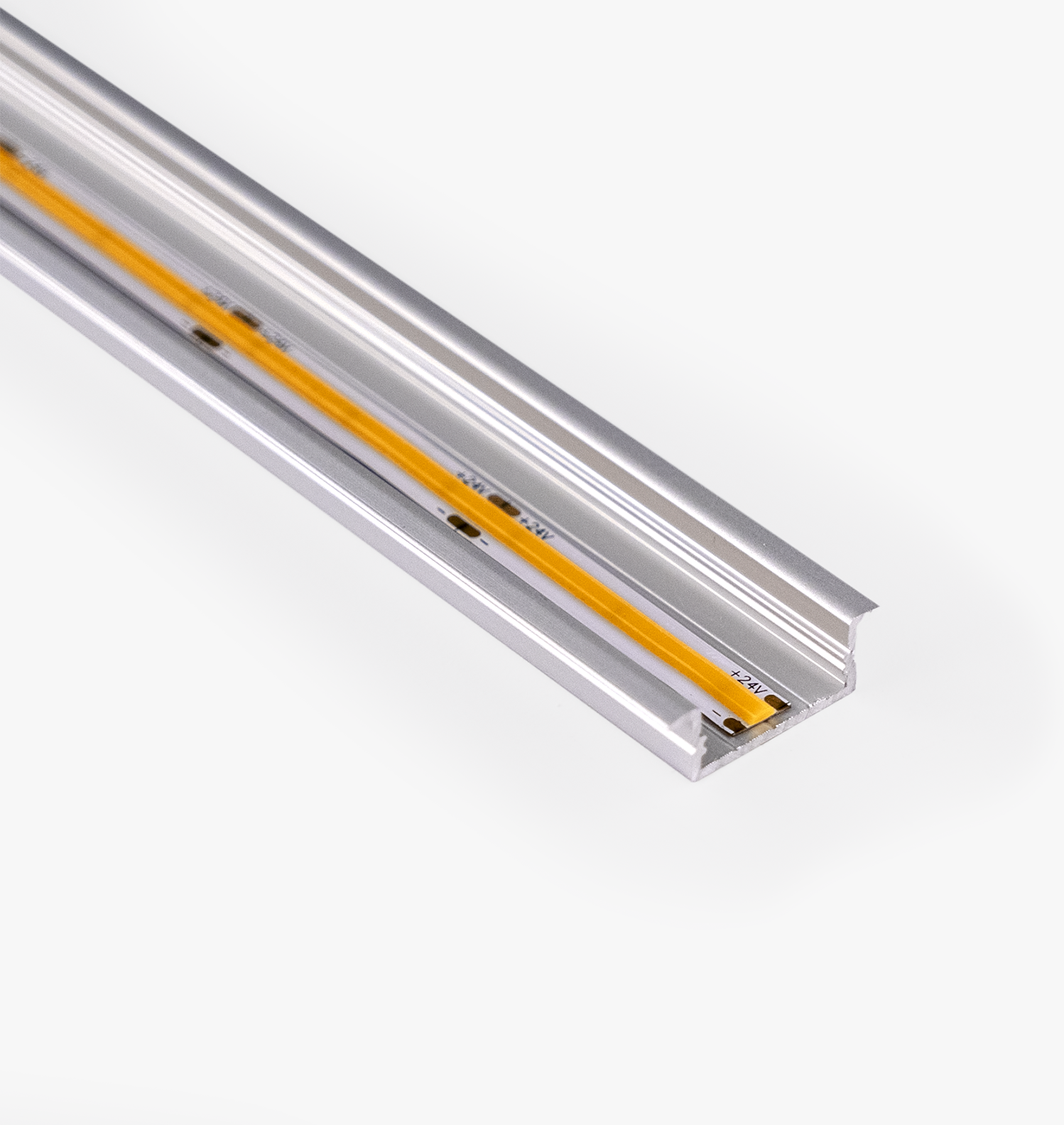

Dual Strip Capability: Extra-wide profile fits two 8mm strips for enhanced brightness.
Indoor & Outdoor Ready: Compatible with both indoor and outdoor rated strip lights.
Visible Lens: 7/8" lens opening provides broad, even illumination.
Customizable Appearance: Choose a frosted lens for bright, clean task lighting or a smoke lens for subtle accent lighting.
Durability: Built from high-quality aluminum to protect strip lights and ensure long-lasting performance.
Even Light Distribution: Integrated lens design diffuses light evenly across surfaces.

Applications

Recessed Profile
Visible Lens
Strip Compatibility
Versatile Light Sources
Customizable Appearance
Finish Options
Easy Installation
Durability
Added Protection
Multi-Pack Options

Technical Documents

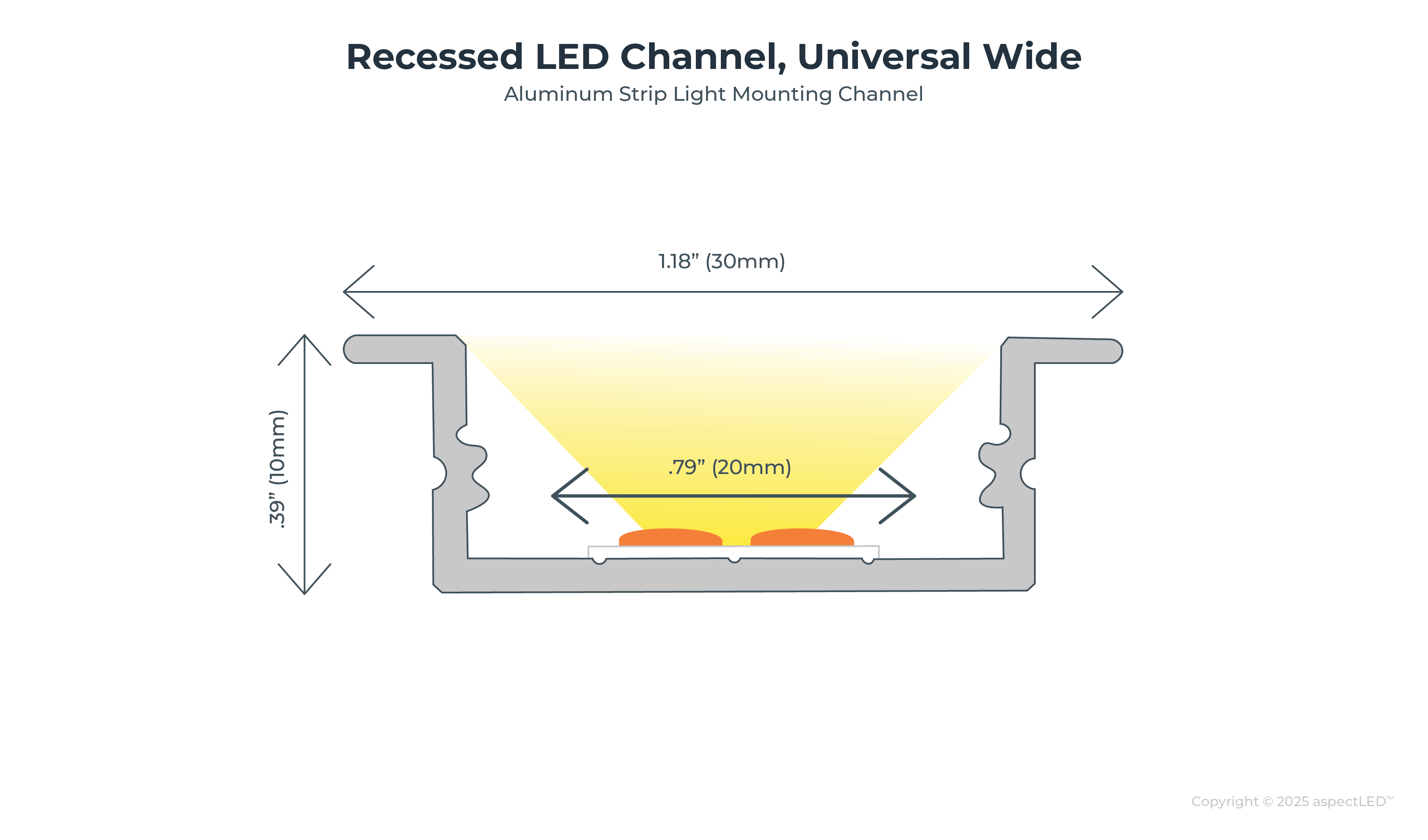

Technical Drawing

Cut Sheet

Compatibility Chart

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert
