RGBW Underwater Tripod Light - HP Series Ultra Bright (9 LED - 36W) - 24VDC
RGBW Underwater Tripod Light - HP Series Ultra Bright (9 LED - 36W) - 24VDC
In-Stock (60) - Ships Same or Next Business Day
Description

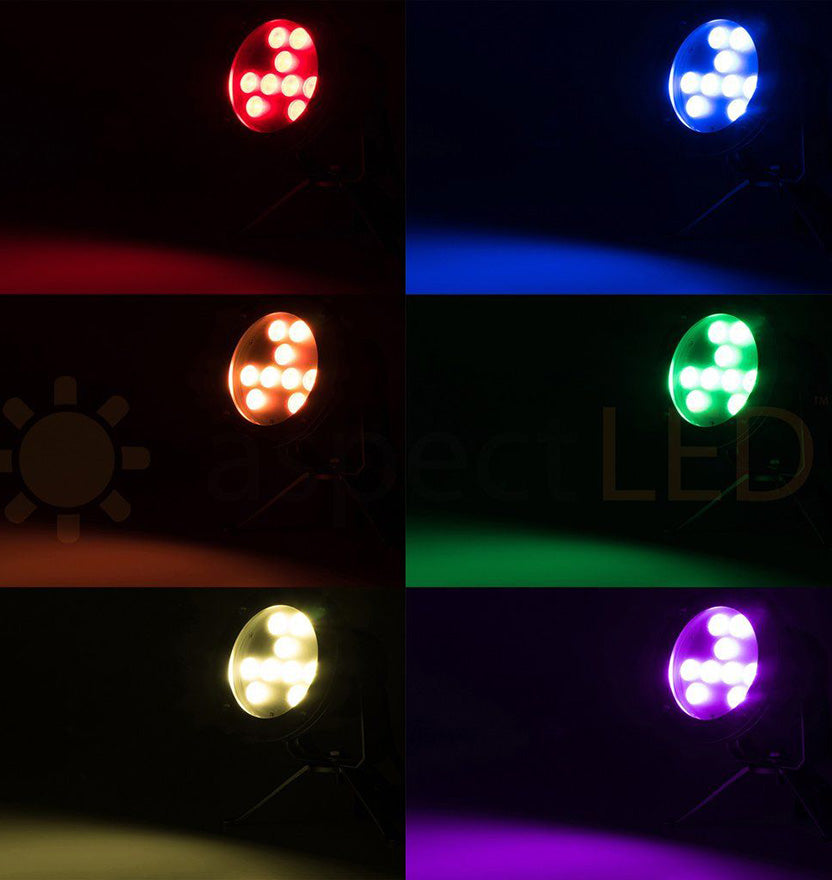

aspectLED's underwater LED lights are bright, energy efficient, and attractively styled, making them perfect for virtually any underwater application. Ideal for installation in ponds, aquariums, waterfalls, water features, fountains, and docks. This 36W underwater tripod light features 9 of our 4W RGBW SMD LEDs and is 6" nominal diameter x 3.5" deep and is designed for installation on a pool/water feature floor. Includes easy-to-mount stainless steel tripod, with mounting holes located in tripod feet (for screwing down the unit). The RGB + White color changing capability can be easily controlled via a DMX decoder/driver. These LED underwater lights are waterproof (with an IP68 rating) and submersible. They feature a stainless steel housing and trim face and come standard with a clear glass trim.
Key Features
Key Features
- Easy to install and mount using ABS mounting sleeve
- Maintenance free
- Solid-state construction makes for high shock and vibration resistance
- SMD LEDs are super bright, high intensity and low power consumption
- Extremely long life: up to 50,000 hours
- Standard included lead length is 25 feet. Longer wire lead lengths are available for an additional charge
- Product must be submerged at all times when turned on for proper heat dissipation
Dimensions
Dimensions
Specifications
Specifications
| Part # | AL-UW-TP9-36W |
| Physical | |
| Beam Angle | 30 Degrees |
| Dimensions | 6" (152mm) Diameter 3.5" (89mm) Deep (not including the tripod) |
| Estimated Lifespan | 50,000 hours |
| Glass | Step-tempered 8mm thickness glass |
| Lens | Optical, >85% efficient |
| Material | 304 Stainless Steel (316 available as special order) |
| Trim Material | Polished 304 Stainless Steel (316 available as special order) Clear Glass Lens |
| Waterproof Seal | Double silicone seal |
| Weight | 5.6 lbs |
| Electrical | |
| Input Voltage | 24VDC Also available in 12VDC and 12VAC |
| LED Quantity | 9 - High Power 4 Watt LEDs |
| LED Type | SMD LED Chips |
| Max Power Consumption | 36 Watts |
| Photometric | |
| Max Lumens | Luminous Flux: 2200 Lumens for RGBW |
| Environmental | |
| IP Rating | IP68 Submersible |
| Max Operating Temperature | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) |
| Maximum Submersible Depth | 6.5' (2 Meters) |
| Suitable Uses | Underwater, Exterior Wet Locations |
| Control | |
| Dimmable | Yes |
| Compatibility | |
| Compatible Power Supplies | Non-Dimmable Power Supplies Never use with MLV power supplies! |
| Standards / Certifications | |
| Standards / Certifications | RoHS, CE |
| Warranty | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What light color should I choose?
Warm White is equivalent to a standard incandescent light color and is most popular for residential applications. It has a slight warm yellow glow to it that many people find comfortable and we are all used to seeing in our homes. It is a 2700-3000K on the Kelvin Light Color Scale.
Cool White is equivalent to a standard CFL or Fluorescent light color and is most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without any yellow undertone. It is a 4000-4500K on the Kelvin Light Color Scale.
Neutral White is a very pure white, most popular for commercial applications, although it is also used fairly often in residential. It puts out a pure white without without any blue undertone. It is a 5000-5500K on the Kelvin Light Color Scale.
DayWhite™ most closely replicates natural daylight and does have a slight blue hue to the light output. This is rarely seen in residential applications as the light output can seem a bit harsh and bright, and is most commonly seen in exterior or commercial applications. This is the brightest of the White light color options. It is a 6000-6500K on the Kelvin Light Color Scale.
How do I know what power supply to purchase?
The method to calculate your required power source for a low voltage light installation would be to take the watts per light (in the specs section of the product you are interested in), multiply by the number of fixtures you plan to install, and then add 20% to that total. The resulting number is the minimum number of watts your power supply needs to be, so round up to the next available size power supply.It never hurts to go with a larger power supply. Your lights will only consume the number of watts actually being used when they are on.
Is this fixture UL listed?
Many of our products are UL listed. To confirm, please review the Certifications listed under the product specifications section of the product you are interested in.
