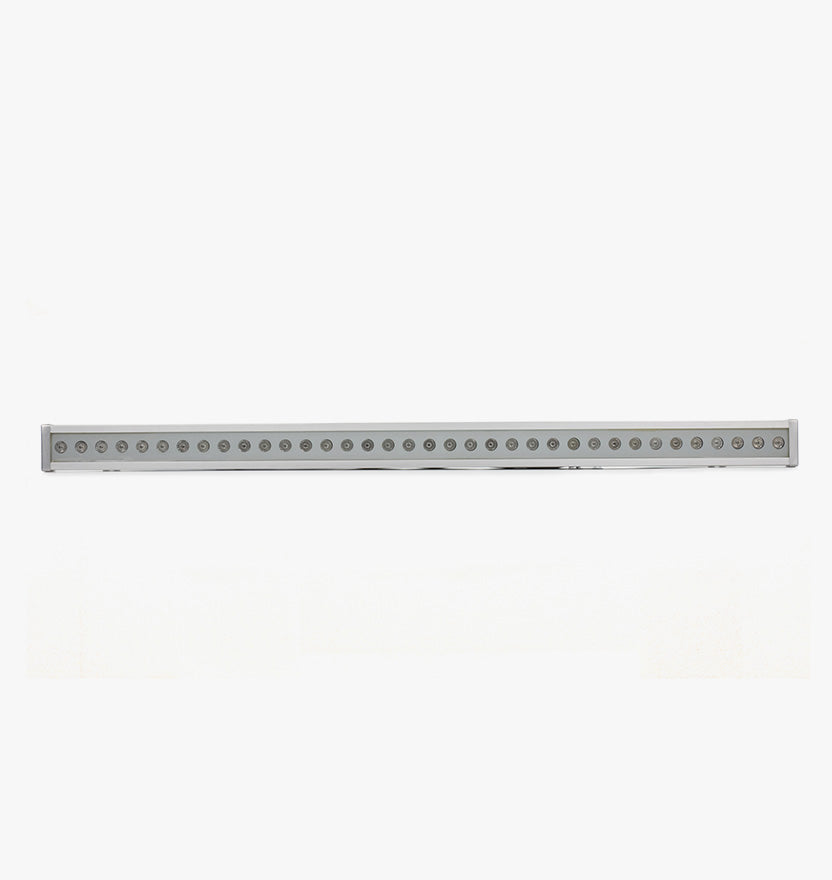

Slim Line 48" LED Wall Washer (36W)
Slim Line 48" LED Wall Washer (36W)
Special Order - Contact our LED Experts for lead time
Description
aspectLED's Slim Line series of wall wash fixtures are perfect for interior or exterior wall wash applications and are easily concealed due to their compact size. These wall wash fixtures are the choice of electricians, lighting designers and architects worldwide for their high performance light output, attractive styling, and accurate colors. Available in a variety of colors, as well as RGB (up to 16.7M colors). The RGB version of this wall washer is capable of producing 16.7 million colors and features 31 built-in color changing programs. Or, it can be controlled via a DMX decoder/driver.
Key Features
Key Features
-
3240 Lumens (white)
2880 Lumens (color) -
36 Watts
-
VOLTAGE
120VAC -
Beam Angle:
15°, 30° or 45°
Specifications
Specifications
| RGB | Single Solid Color | |
|---|---|---|
| Part # | AL-WW-SL-48 | AL-WW-SL-48 |
| Physical | ||
| Beam Angle | 15, 30 or 45 Degrees | 15, 30 or 45 Degrees |
| Dimensions | 48.6" (1,234mm) Wide 3.9" (134mm) Tall 2.2" (60mm) deep | 48.6" (1,234mm) Wide 3.9" (134mm) Tall 2.2" (60mm) deep |
| Estimated Lifespan | 50,000 hours | 50,000 hours |
| Fixture Material | Aluminum Body | Aluminum Body |
| Glass | Step-tempered glass | Step-tempered glass |
| Weight | 11 pounds | 11 pounds |
| Electrical | ||
| Input Voltage | 120VAC | 120VAC |
| LED Quantity | 36 - High Power 1 Watt LEDs | 36 - High Power 1 Watt LEDs |
| LED Type | SMD LED Chips | SMD LED Chips |
| Max Power Consumption | 36 Watts | 36 Watts |
| Photometric | ||
| Max Lumens | Luminous Flux: 3240 Lumens (white) 2880 Lumens (color) | Luminous Flux: 3240 Lumens (white) 2880 Lumens (color) |
| Environmental | ||
| IP Rating | IP63 (install with glass bezel/LEDs facing upwards) | IP63 (install with glass bezel/LEDs facing upwards) |
| Suitable Uses | Indoor/Outdoor, Dry or Damp Locations. If unit is installed upside down, it must be installed in a cove or other structure with protection from rain/moisture. | Indoor/Outdoor, Dry or Damp Locations. If unit is installed upside down, it must be installed in a cove or other structure with protection from rain/moisture. |
| Control | ||
| Dimmable | Yes | No |
| Standards / Certifications | ||
| Standards / Certifications | RoHS, CE | RoHS, CE |
| Warranty | 1 Year | 1 Year |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
How does this fixture install?
This light comes with 2 surface mount brackets that can be mounted on to virtually any surface. The light is supplied with a power cord for your input power as well as a DMX input cable to control the RGB color changing capability (on the RGB version only).
