Description

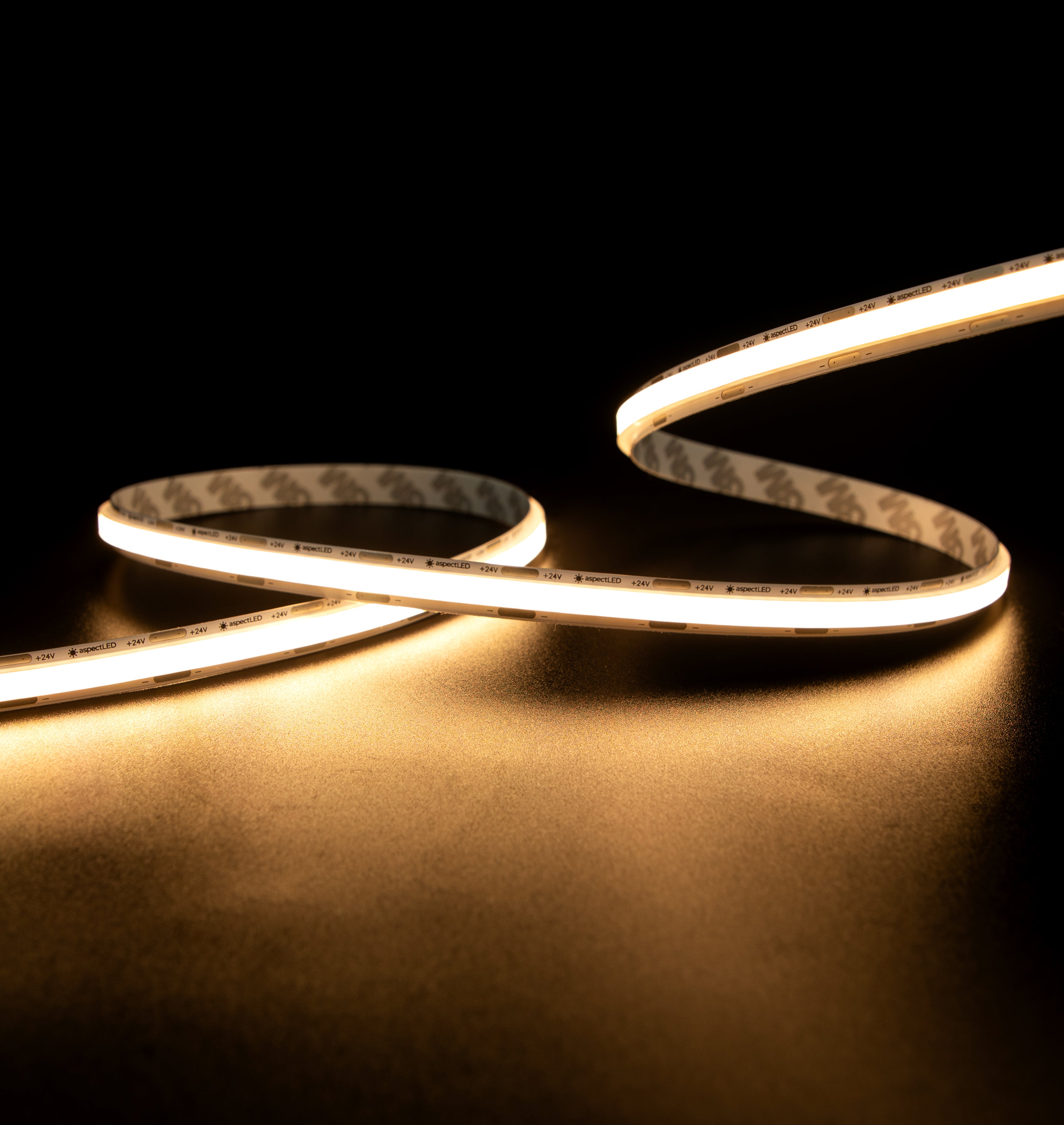

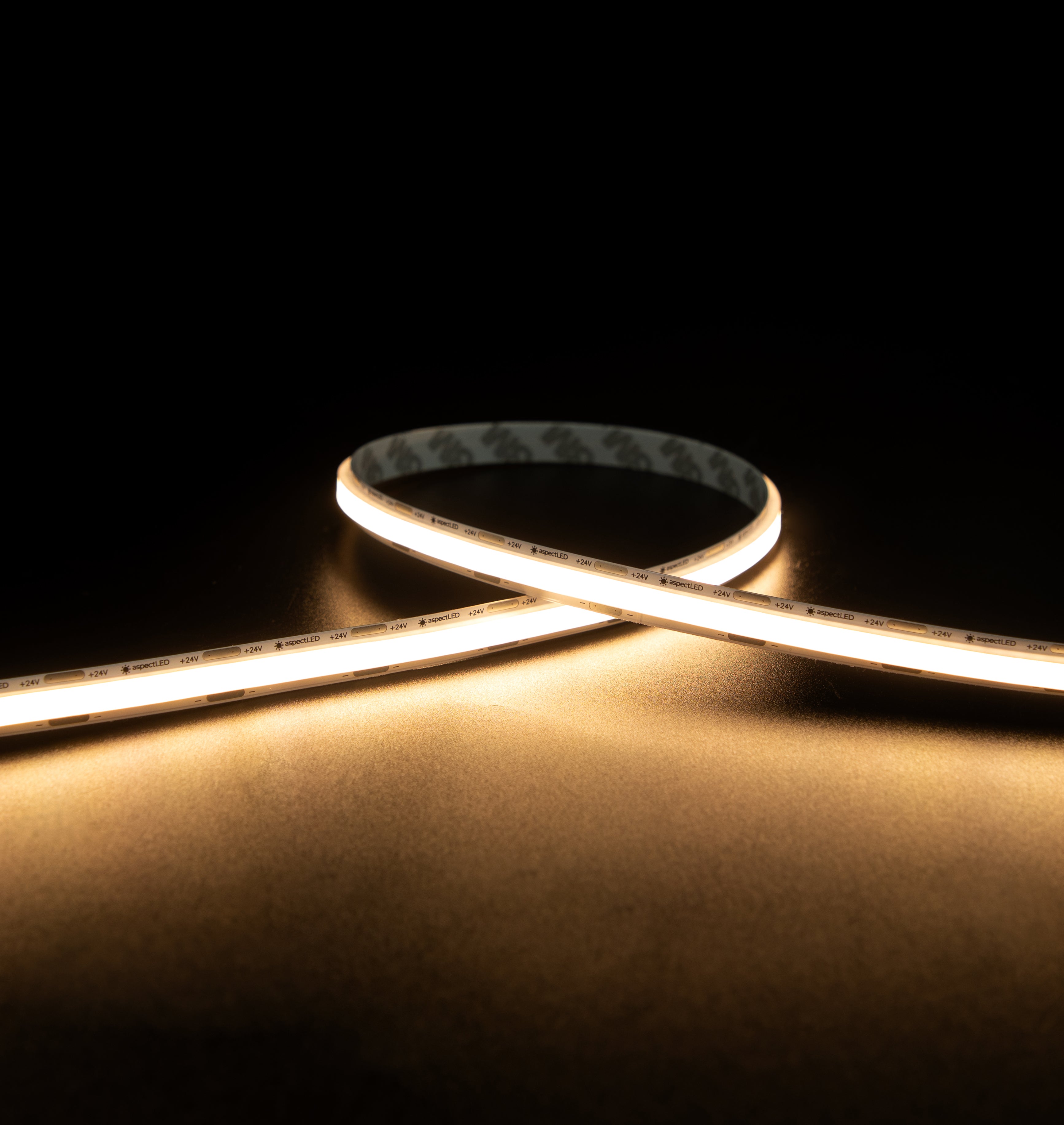

Experience exceptional color accuracy and vibrant illumination with our Summit LED Strip Light with a 95+ CRI. Designed for applications where color quality matters most, these strip lights reveal the true tones of your space and enhance every detail. Ideal for visible installations, Summit creates a clean, continuous line of light with no visible diodes and no diffusion lens required. Advanced CSP technology delivers smooth, even illumination while improving efficiency and long term reliability. The strip can be cut every 1.09 inches, making it easy to achieve the precise length your project requires. With a high 95+ CRI and compatibility with dimmable power supplies, Summit provides crisp, natural white light with full brightness control for any lighting environment.

Key Features

CRI 95
Non-Waterproof
Reduced Glare
CSP Technology

Specifications

Part #	AL-SL-DL95-IP20-24
Physical
Adhesive Backing	Yes
Beam Angle	180

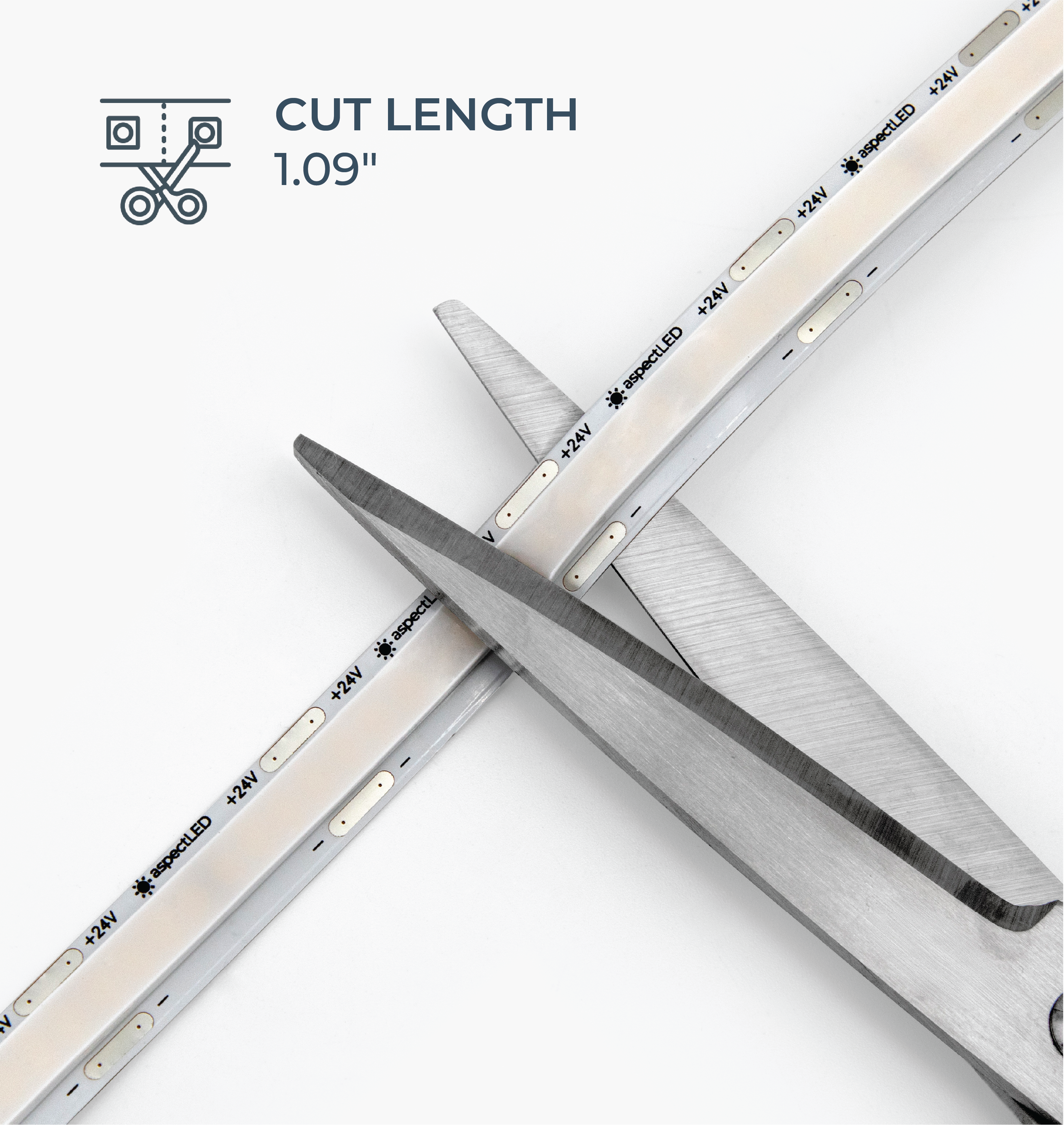

Cut Length	1.09" (27.77mm)
Dimensions	16.4' (5m) 0.393" (10mm) 0.11" (2.7mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Weight	0.4 lb
Electrical
Efficacy (lumens per watt)	Up to 101 Lumens/Watt
Input Voltage	24VDC
LED Quantity	87 LED's/ft (288 LED's/m)
LED Type	2022x

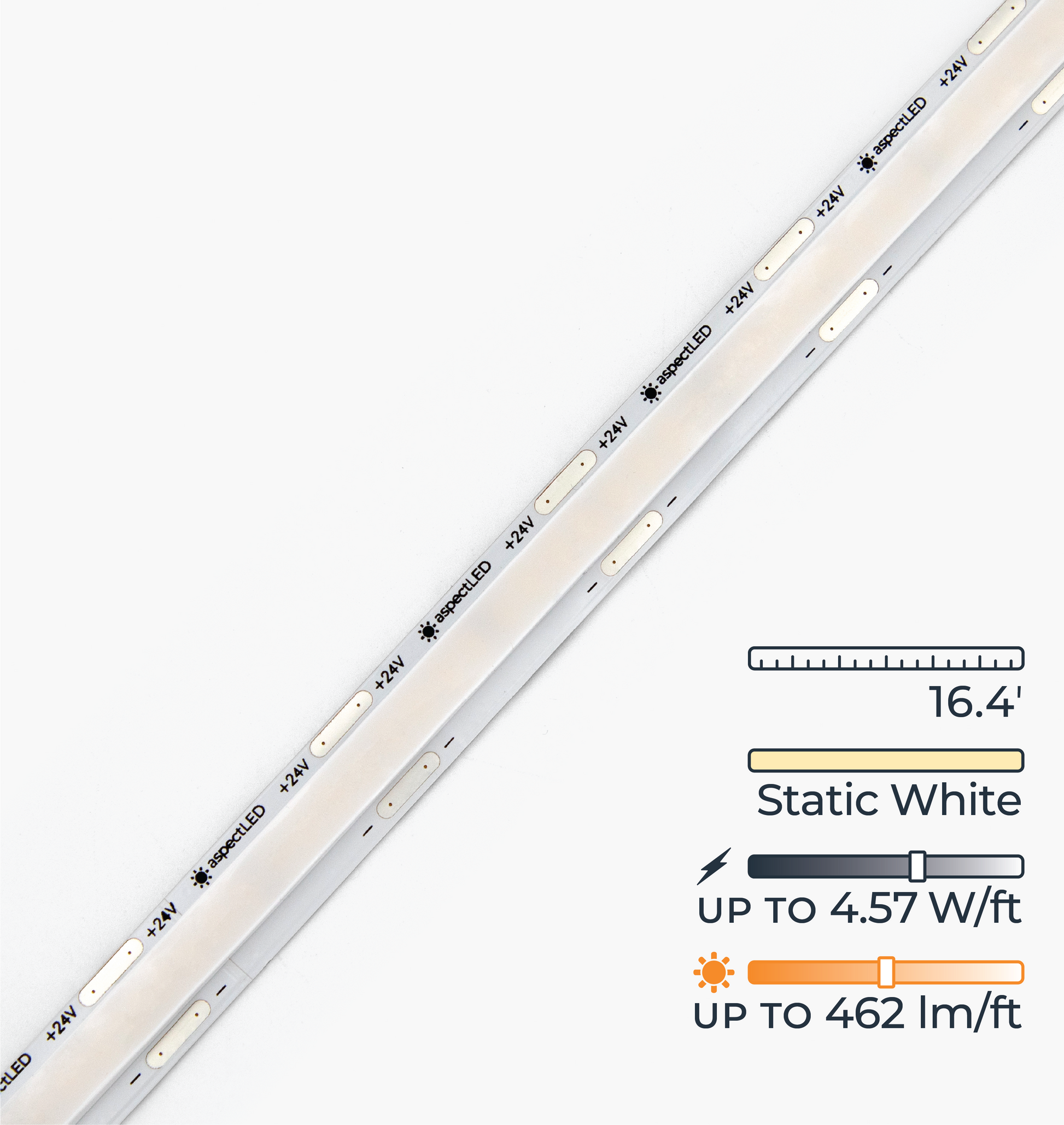

Max Power Consumption	4.5W/ft (15W/m)
Max Run Length	16.4' (5m)
Photometric
CRI	95

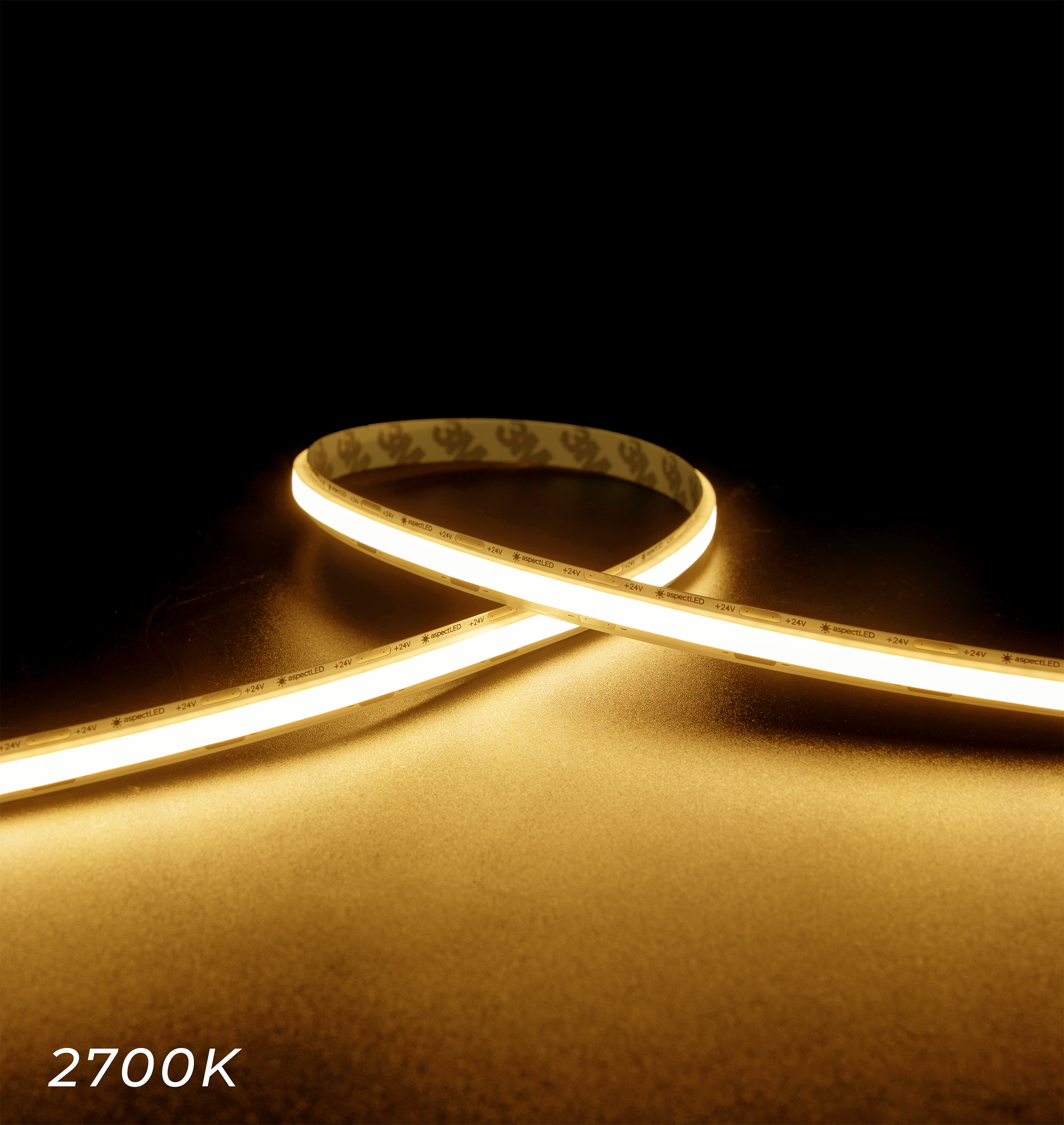

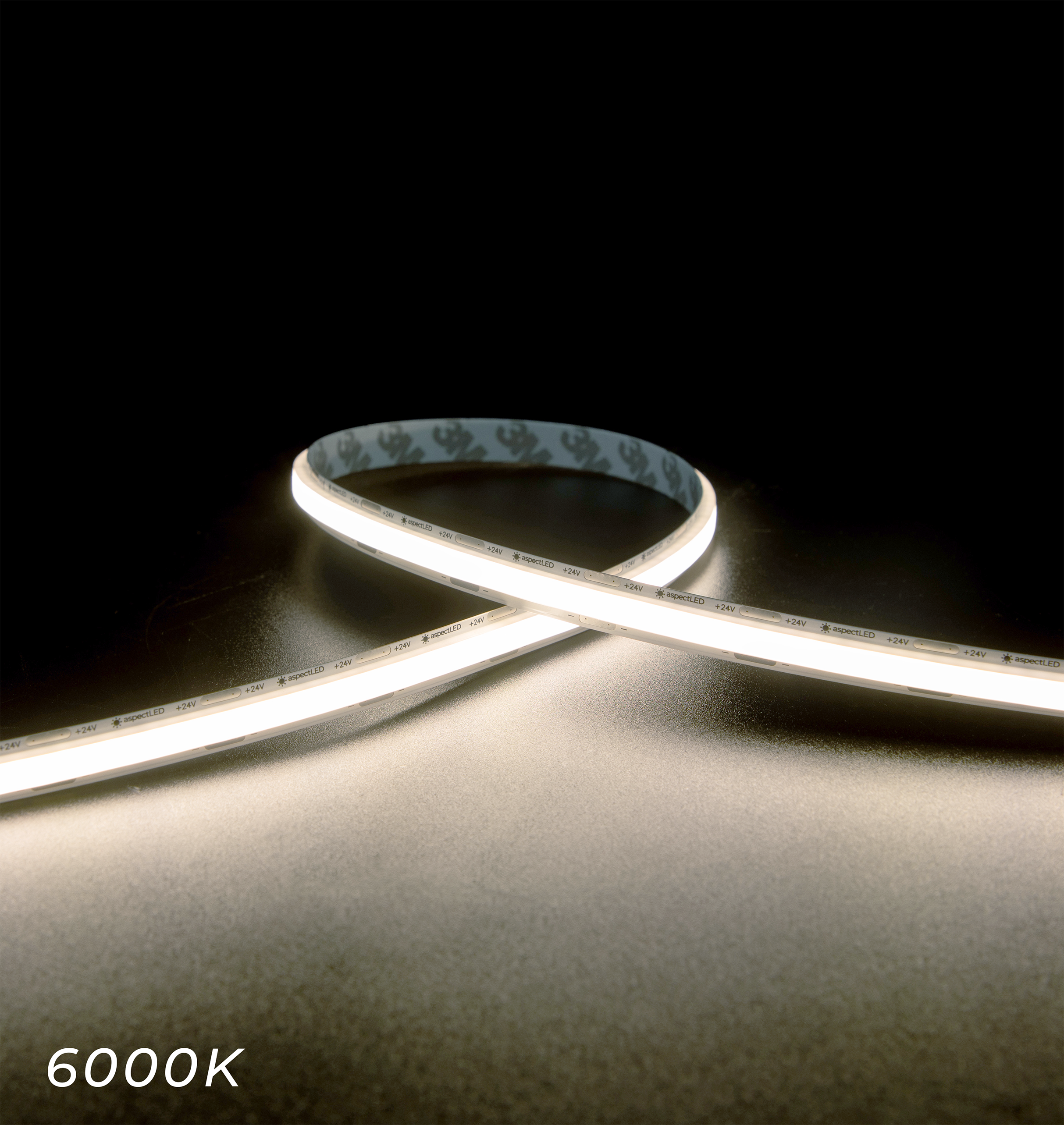

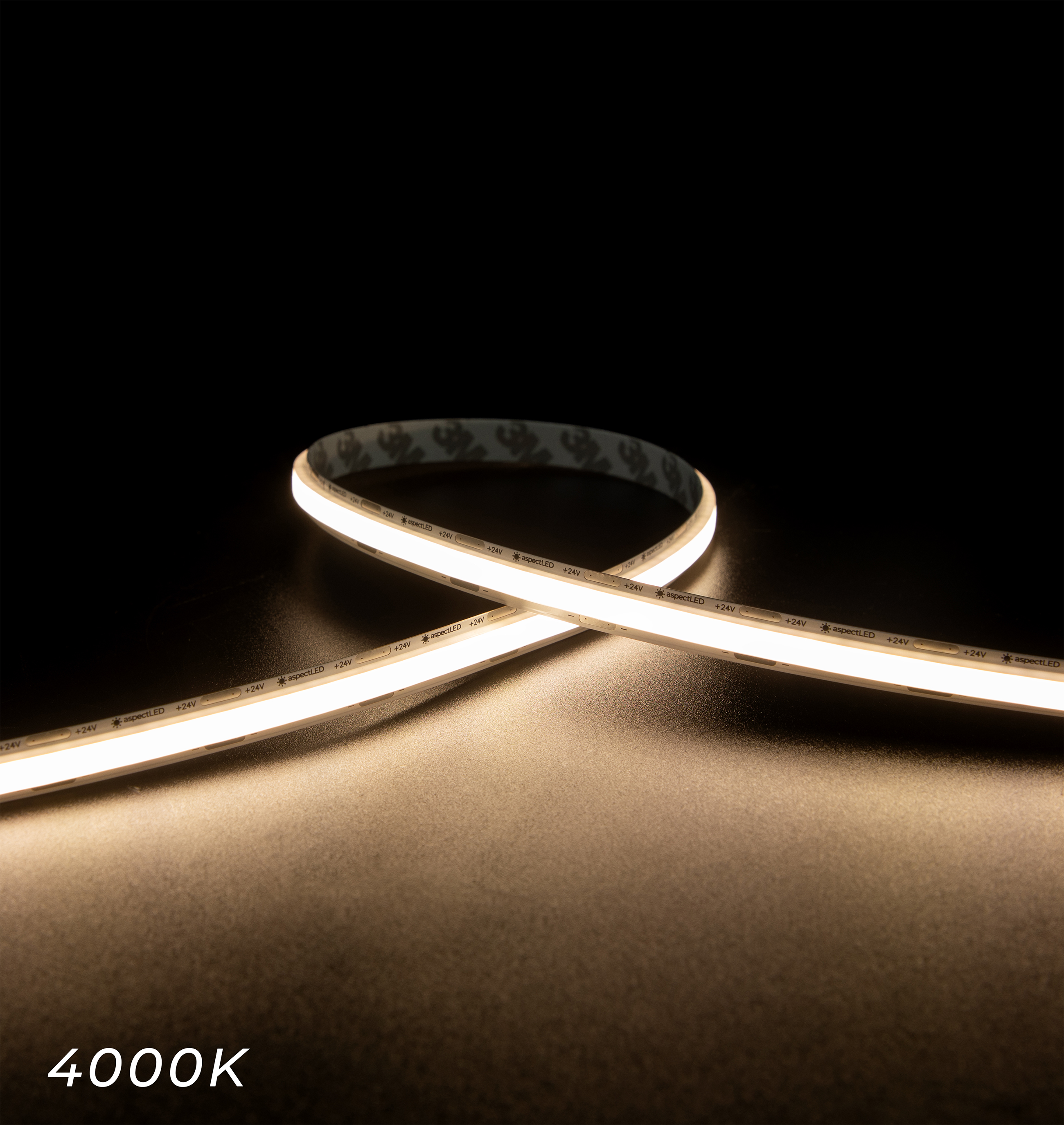

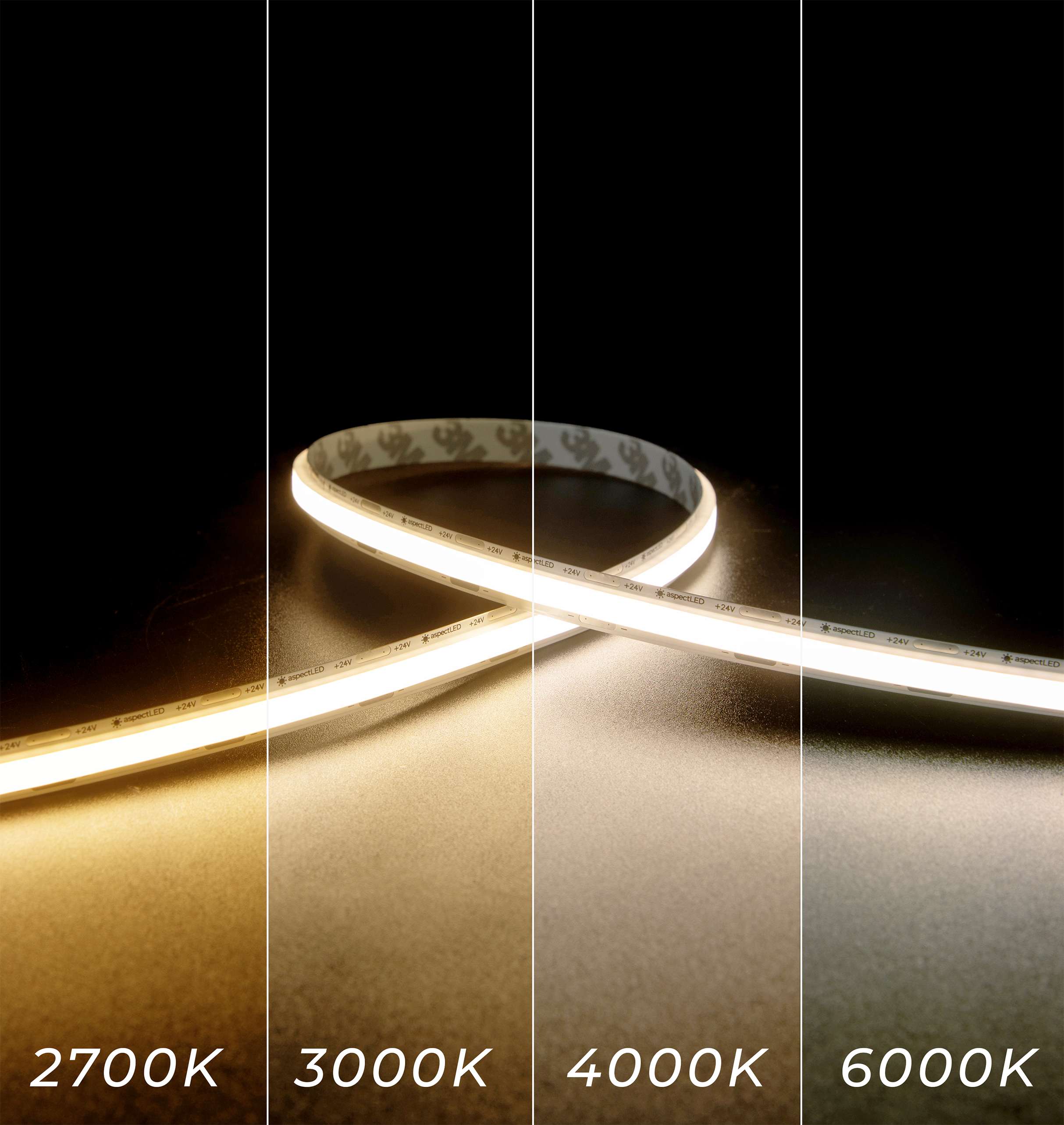

LED Color Options	2700K, 3000K, 4000K, 6000K
Max Lumens	Up to 461.89 Lumens/ft (1515 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176°F (-30 - 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Voltage
Dimmable	Yes
Compatibility
Compatible Connectors	AL-SL-CN-DLS-SPLICE AL-SL-CN-DLS-PIGTAIL AL-SL-CN-DLS-JUMPER AL-SL-CN-DLS-ANGLESPLICE
Standards / Certifications
Standards / Certifications	CE, UL, RoHS, LM80
Warranty	5 years

Features

Ultra High CRI 95 Color Accuracy: Reveal colors as they were meant to be seen with exceptional vibrancy and true to life rendering ideal for luxury residential, retail displays and detailed task lighting.
Future Forward LED Engineering: Featuring innovative CSP technology, this strip light delivers improved efficiency, smoother output and enhanced reliability.

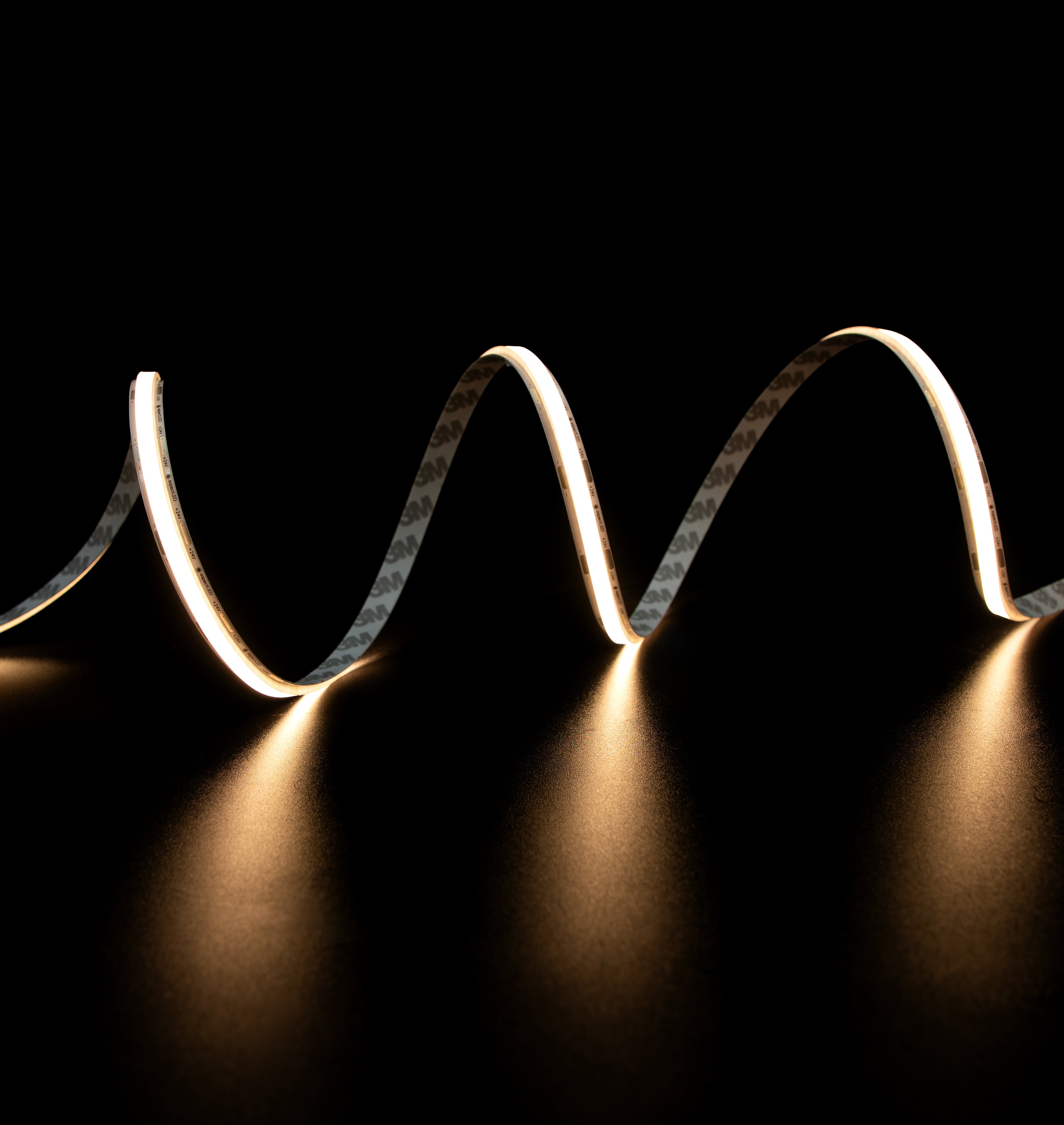

Uniform light output: No visible LED hotspots or dark gaps with smooth, continuous illumination across the entire strip for a premium finish.
For Indoor Environments: IP20-rated strip lights are ideal for retail, hospitality, and tradeshow applications where water and dust exposure are minimal.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Under-cabinet, toe-kick, in-cove moldings
Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Safety stair tread and step marking
Decorative lighting for holidays, tradeshows, exhibitions
Edge-lighting for glass
DIY projects

Technical Documents

Tech Drawing

Cut Sheet

Installation Guide

Photometric Report

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

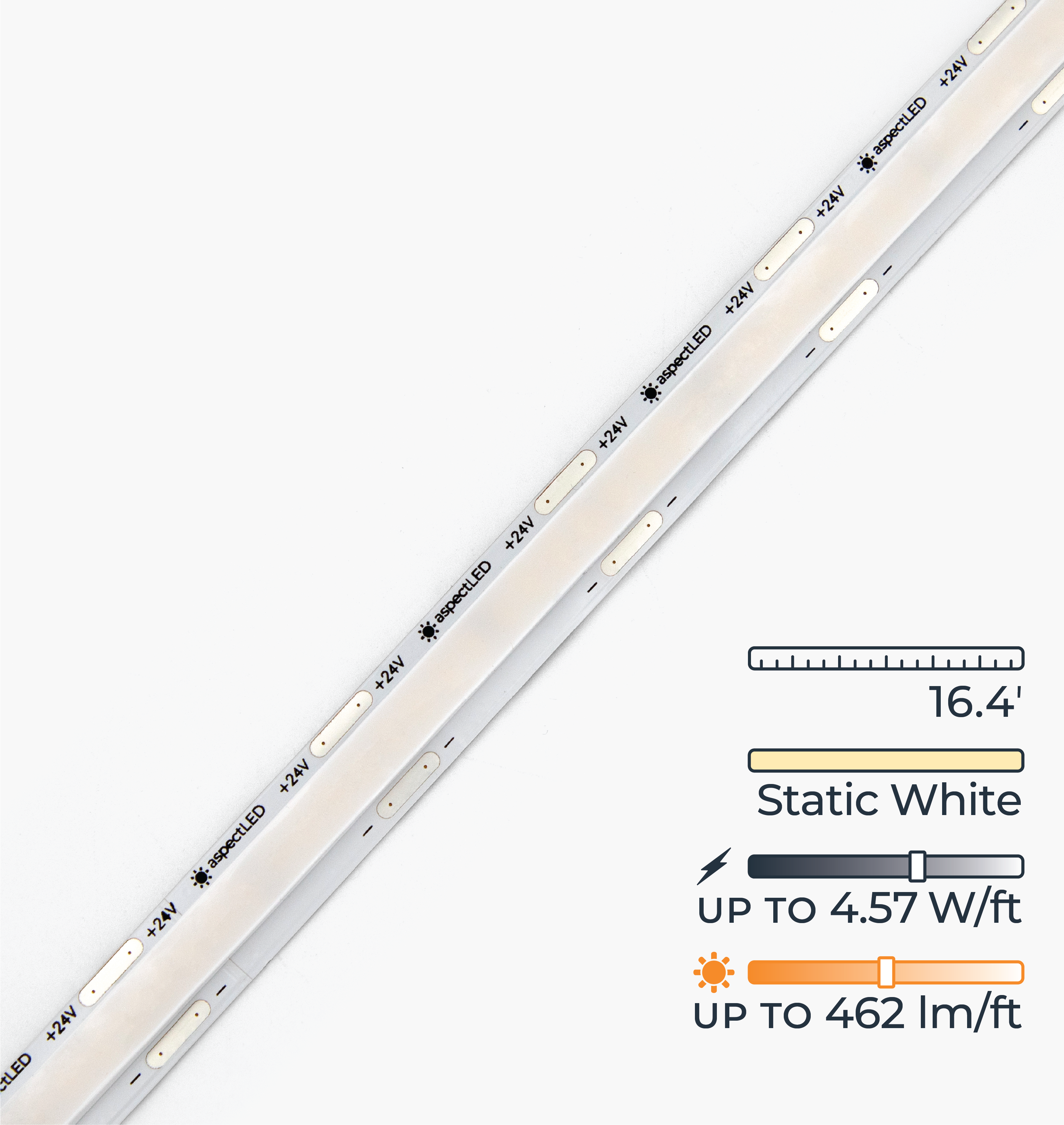

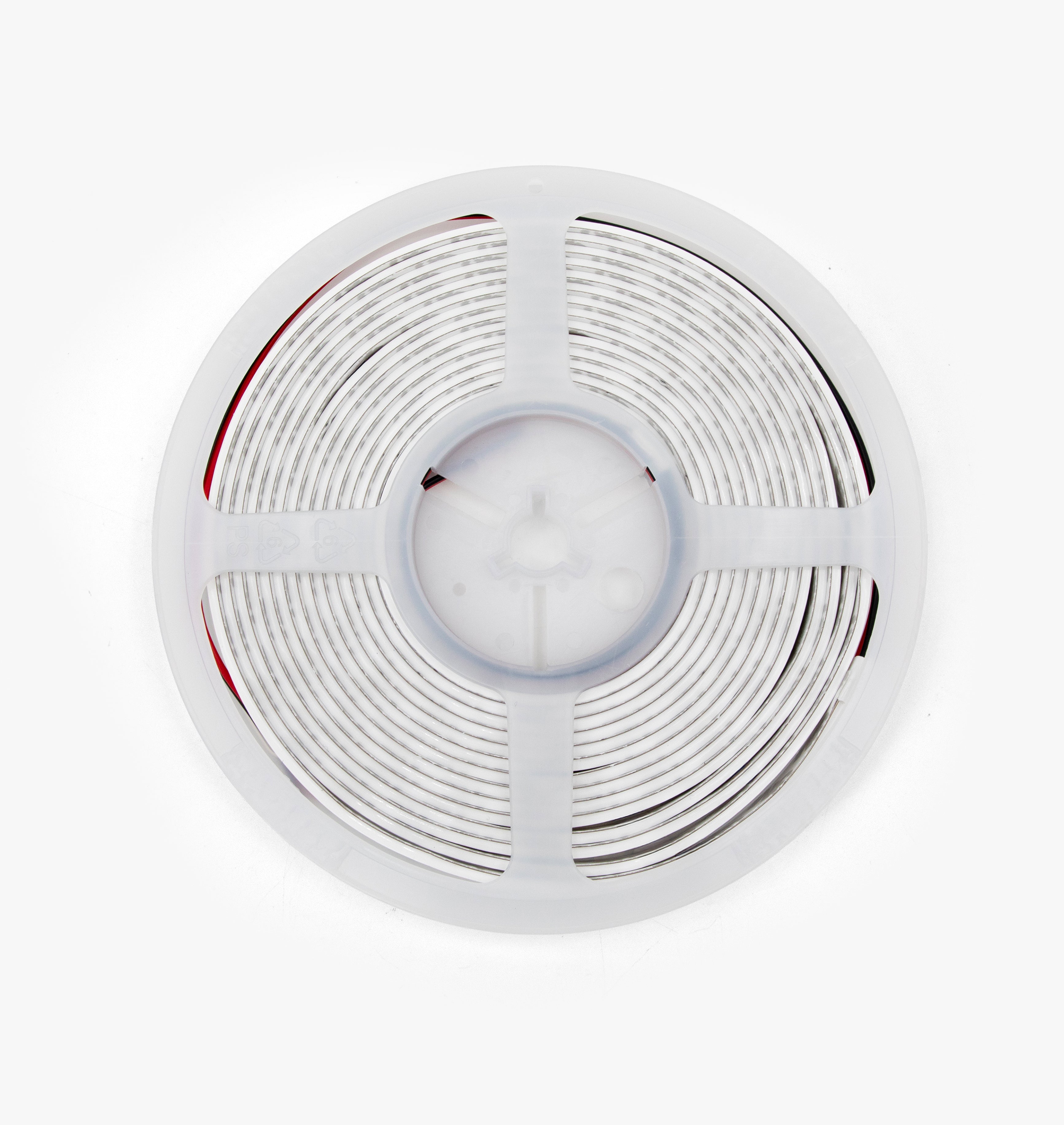

Summit LED Strip Light - CRI 95

SKU: AL-SL-DL95-IP20-24-27K

$163.89

In-Stock (250) - Ships Same or Next Business Day

Color temp: 2700K

2700K 3000K 4000K 6000K

This product requires a power supply.
Calculate your power supply
