Summit LED Strip Light - RGB Color Changing, 32ft
Summit LED Strip Light - RGB Color Changing, 32ft
This product requires a power supply.
Calculate your power supply
Description
The RGB color-changing Summit Strip Lights are the ultimate choice for colorful, seamless accent lighting. Summit creates a clean, continuous line of light featuring no visible diodes and no diffusion lens required. Advanced CSP technology delivers smooth, even illumination while improving efficiency and long-term reliability. Integrated Chip (IC) technology enables continuous runs up to 32 feet without voltage drop, reducing time, labor, and materials compared to traditional constant voltage strips. Constant current technology allows each cut section to regulate its own current, ensuring uniform brightness and even light distribution across the entire strip for vibrant RGB color-changing performance from end to end. Compatibility includes non-dimmable power supplies and DC decoders/remotes, making installation and upgrades quick and hassle-free.
Specifications
Specifications
| Part # | AL-SL-DL-CC-IP20-24-RGB-32 |
| Physical | |
| Adhesive Backing | Adhesive Tape 3M 9080 in White |
| Beam Angle | 180 degrees |

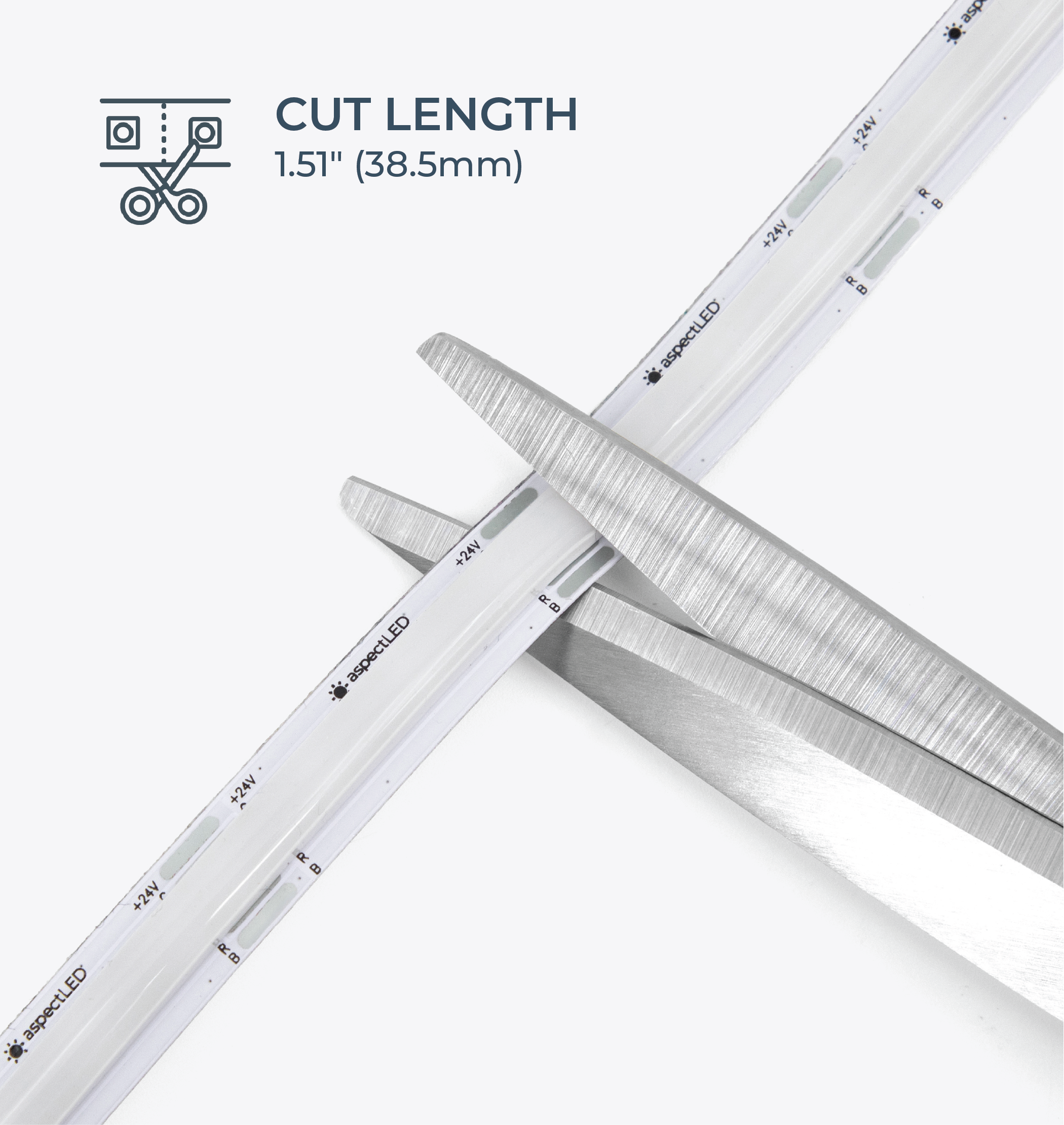

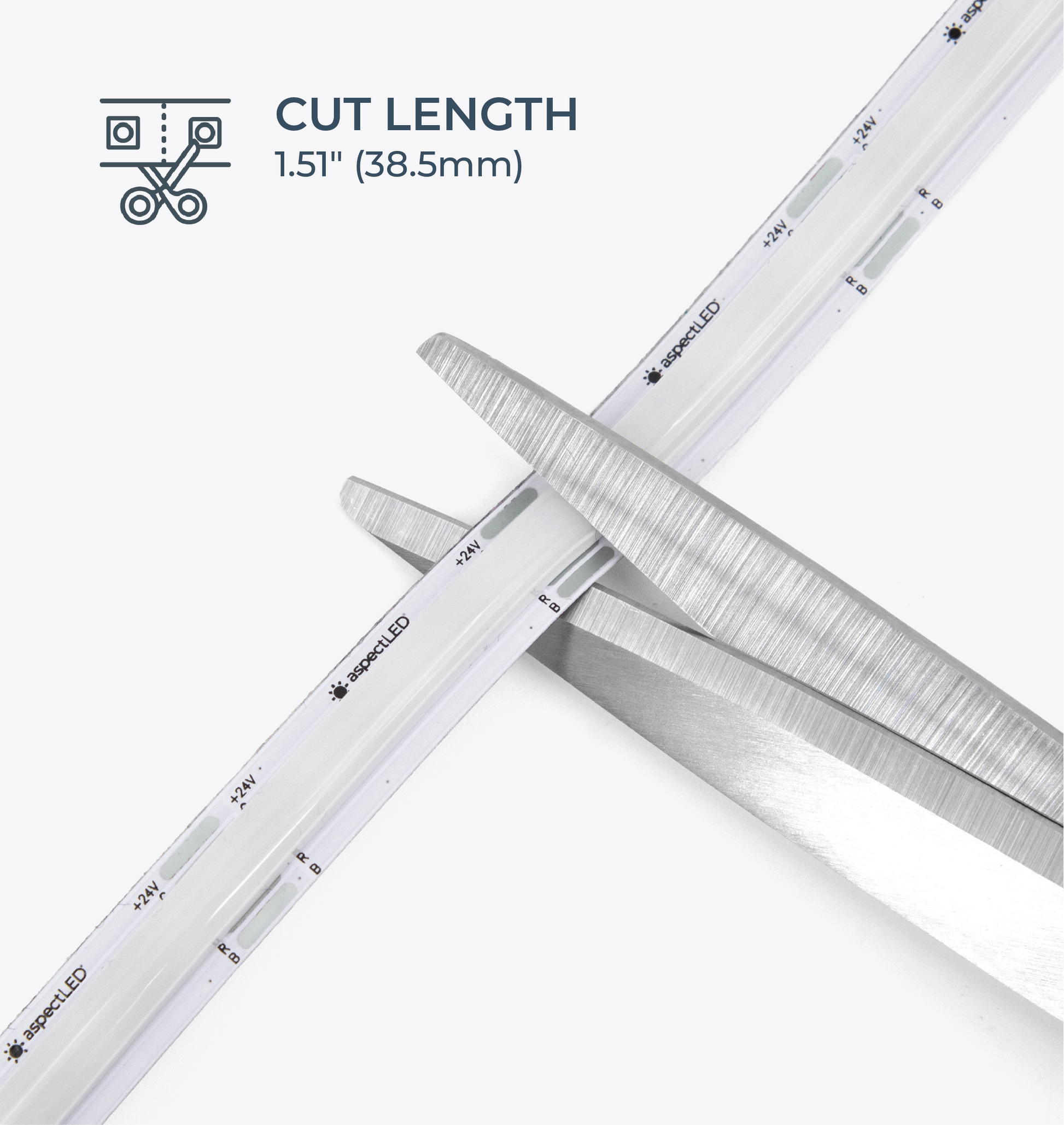

| Cut Length | 1.51" (38.46mm) |
| Dimensions | 32.8' (10m) long 0.38" (10mm) wide 0.11" (2.7mm) high |
| Estimated Lifespan | 50,000 hours |
| Maximum Wire Gauge | 22 AWG |
| Mounting Method | Surface Mounted |
| Weight | 0.4 lb |
| Electrical | |
| Efficacy (lumens per watt) | Red: 11 lm/W Green: 24 lm/W Blue: 5 lm/W |
| Input Voltage | 24VDC |
| LED Quantity | 190 LED's/ft (624 LED's/m) |
| LED Type | SMD 2022x |

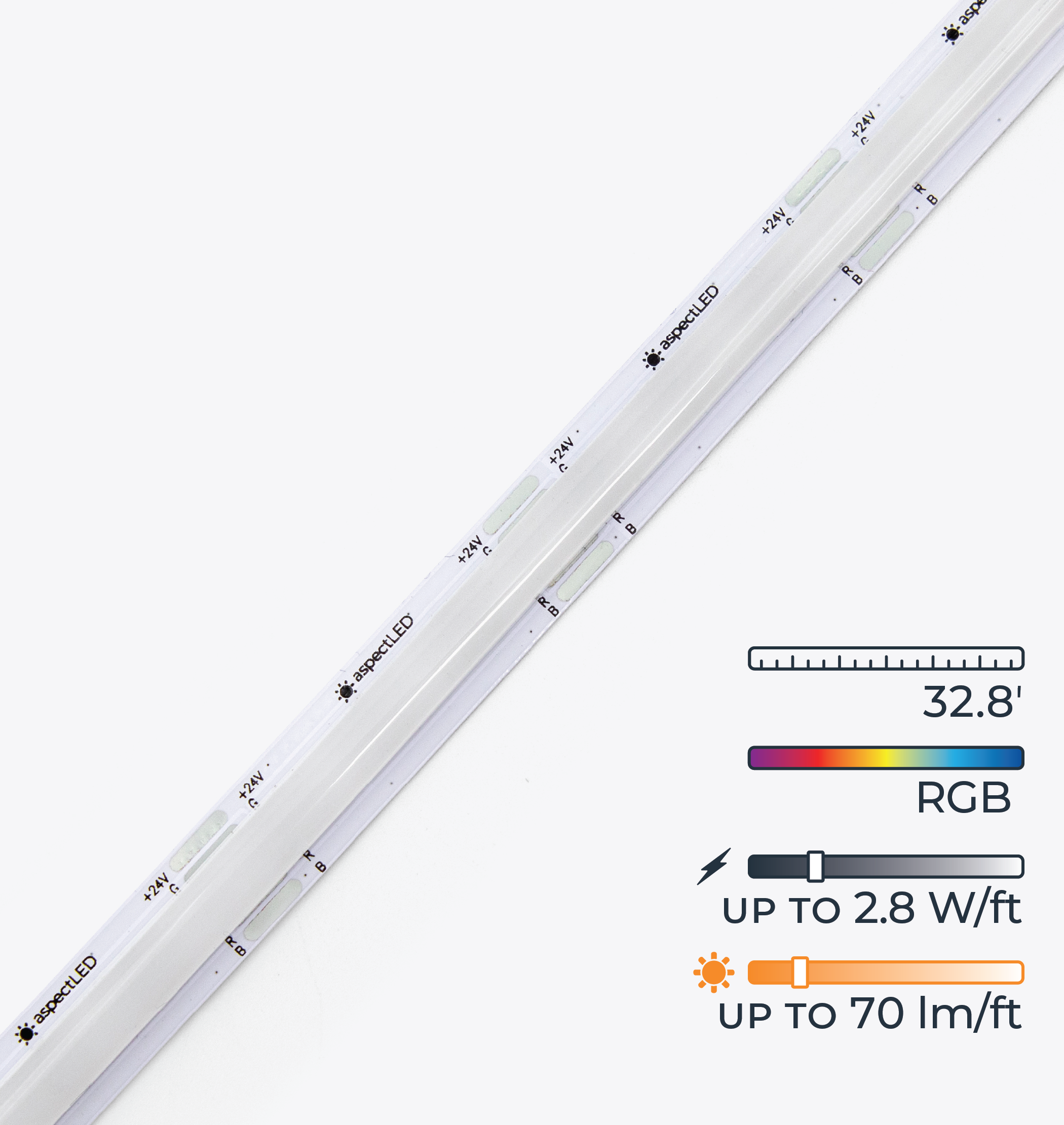

| Max Power Consumption | 2.8W/ft (9.36W/m) |
| Max Run Length | 32.8' (10m) |
| Pin/Wire Count | 4 pin |
| Photometric | |

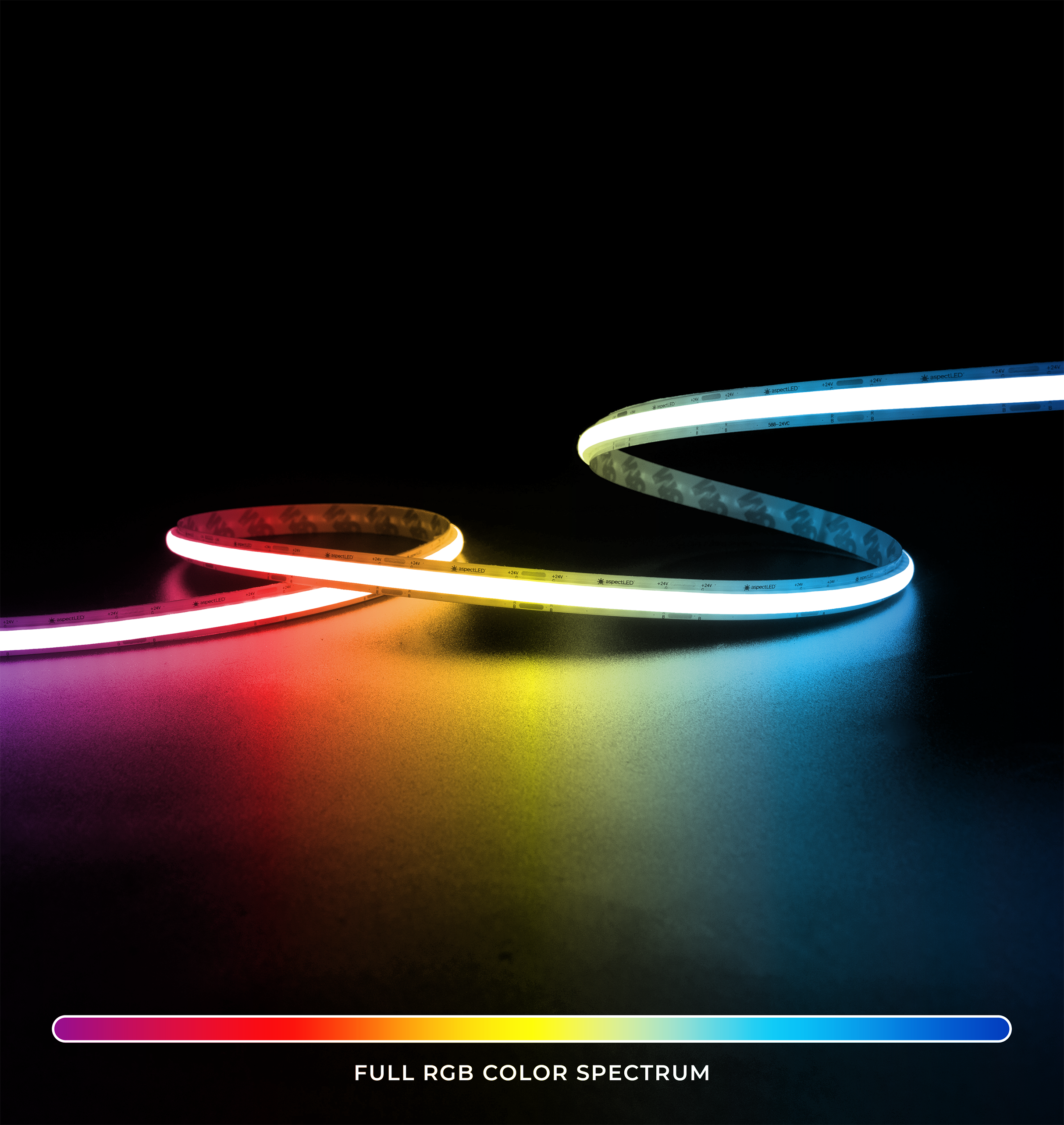

| LED Color Options | RGB |
| Max Lumens | Red: 33 lm/ft Green: 70 lm/ft Blue: 15 lm/ft |
| RGB Wavelength Ranges | See Photometric Report |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176° F (-30 - 80° C) |
| Suitable Uses | Dry Locations Only |
| Control | |
| CV, CC, DMX or SPI | Constant Current |
| Compatibility | |
| Compatible Connectors | AL-SL-CN-DRC-SPLICE AL-SL-CN-DRGB-PIGTAIL AL-SL-CN-DRGB-JUMPER |
| Standards / Certifications | |
| Standards / Certifications | CE UL RoHS LM80 |
| Warranty | 5 years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
What power supply should I use with the Summit LED Strip Lights?
Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.
