Summit LED Strip Light - Static White - 32ft

Description

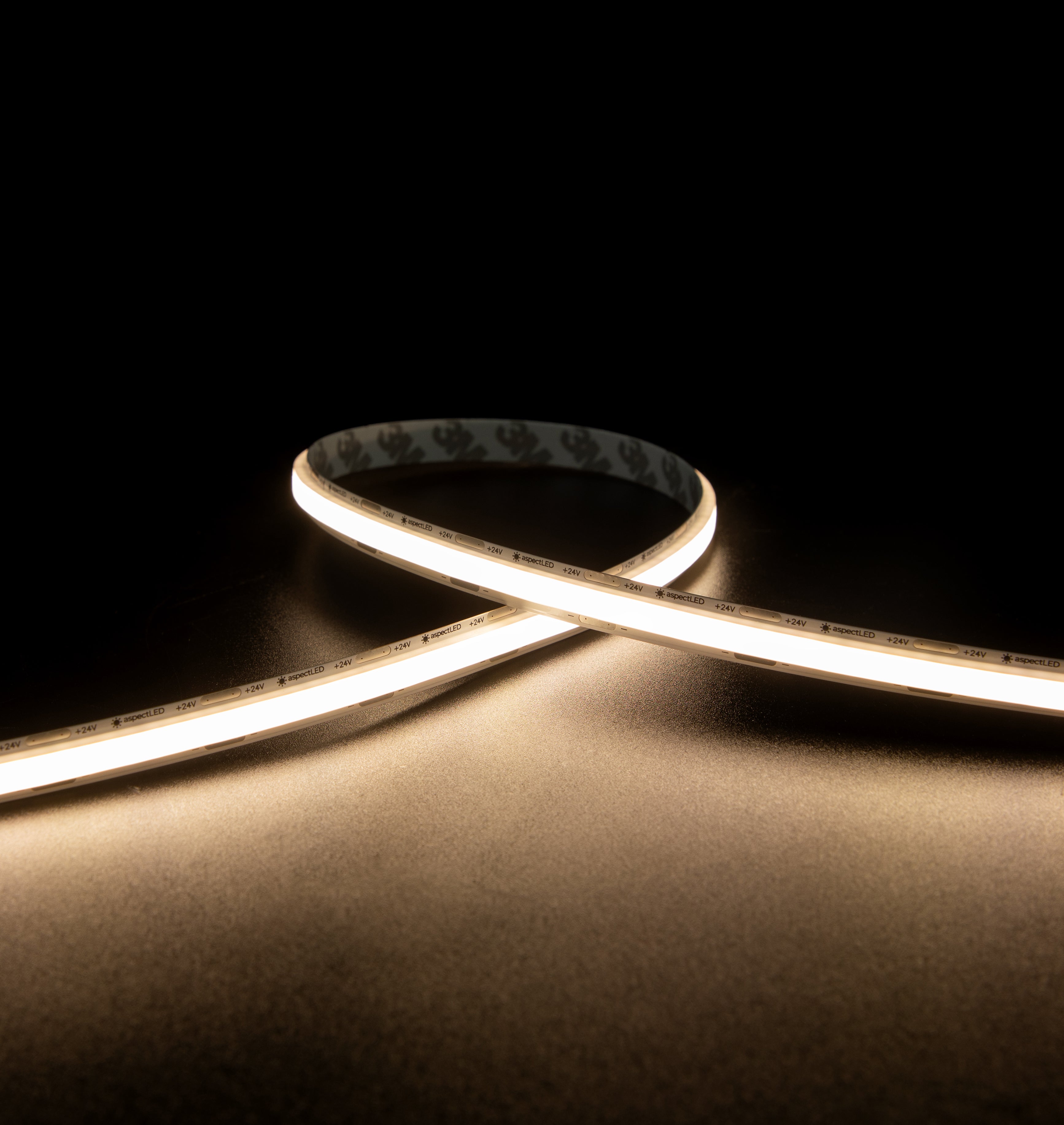

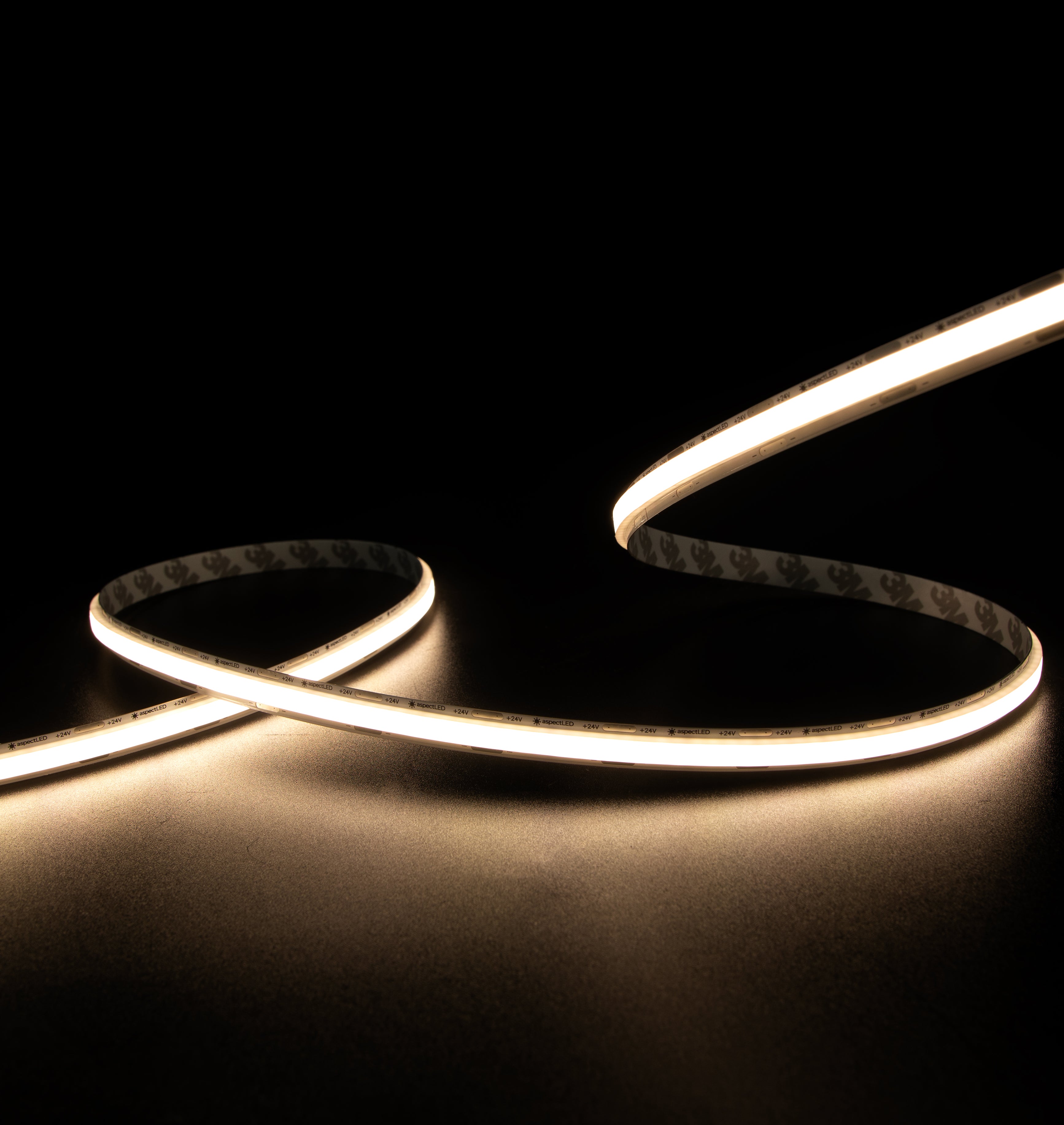

Summit Strip Lights are the ultimate choice for seamless accent lighting. Summit creates a clean, continuous line of light with no visible diodes and no diffusion lens required. Advanced CSP technology delivers smooth, even illumination while improving efficiency and long term reliability. With Integrated Chip (IC) technology, you can install continuous runs up to 32 feet without voltage drop, saving time, labor, and materials compared to traditional Constant Voltage strips. Each cut section regulates its own current for uniform brightness from end to end. Featuring a 90+ CRI, these strip lights provide accurate color rendering and vibrant illumination. Available in four color temperatures, these strips offer a tailored solution for any space. Compatible with non-dimmable power supplies and DC decoders/remotes, installation and upgrades are quick and hassle-free.

Key Features

Max Run Length:
32.8ft
Non-Waterproof
CRI 90
CSP Technology

Specifications

Part #	AL-SL-DL-CC-IP20-24-32
Physical
Adhesive Backing	Yes
Beam Angle	180

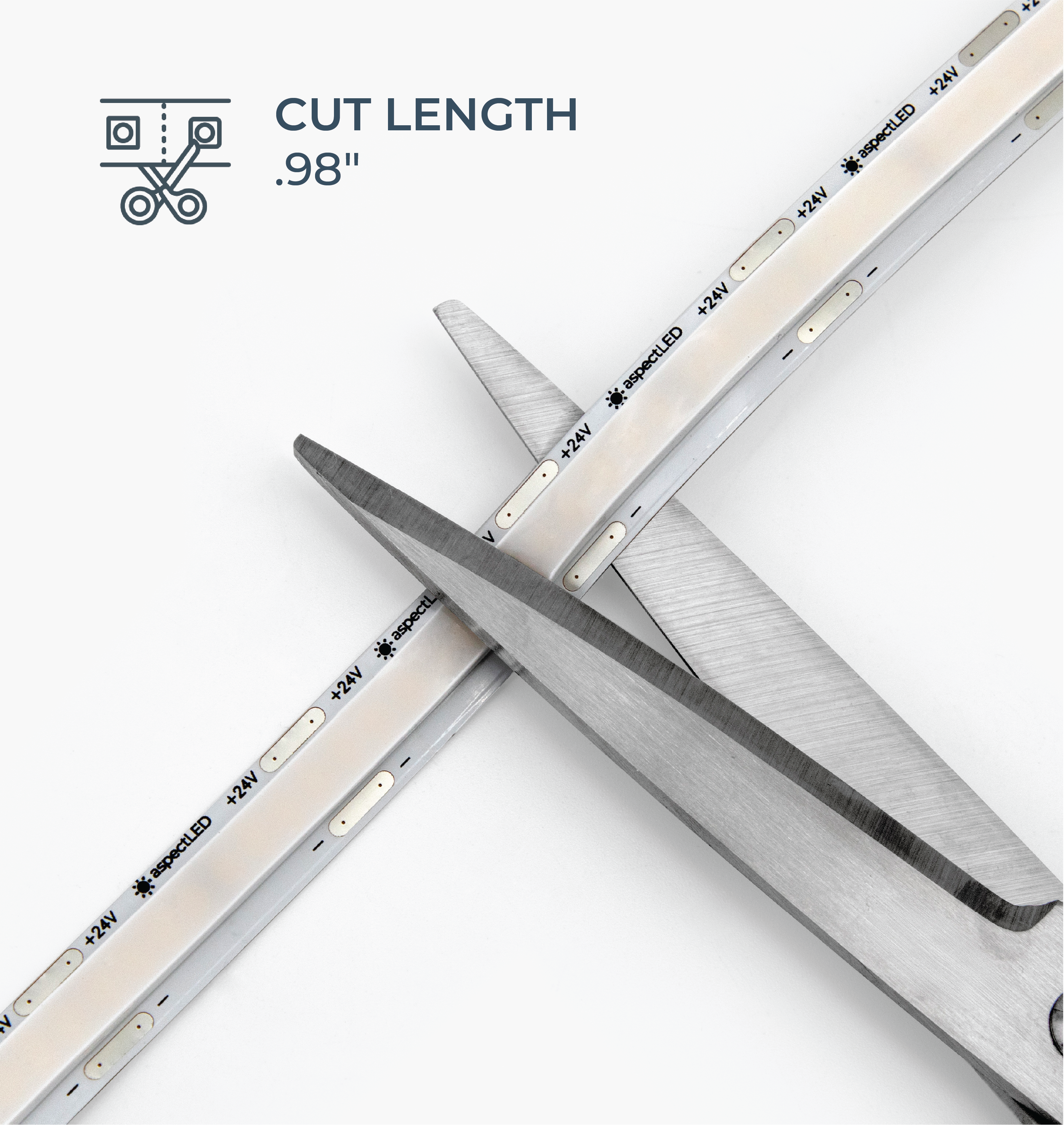

Cut Length	0.98" (25mm)
Dimensions	32.8' (10m) 0.393" (10mm) 0.11" (2.7mm)
Estimated Lifespan	50,000 Hours
Mounting Method	Adhesive Tape
Weight	0.8 lb
Electrical
Efficacy (lumens per watt)	Up to 117 Lumens/Watt
Input Voltage	24VDC
LED Type	2022x

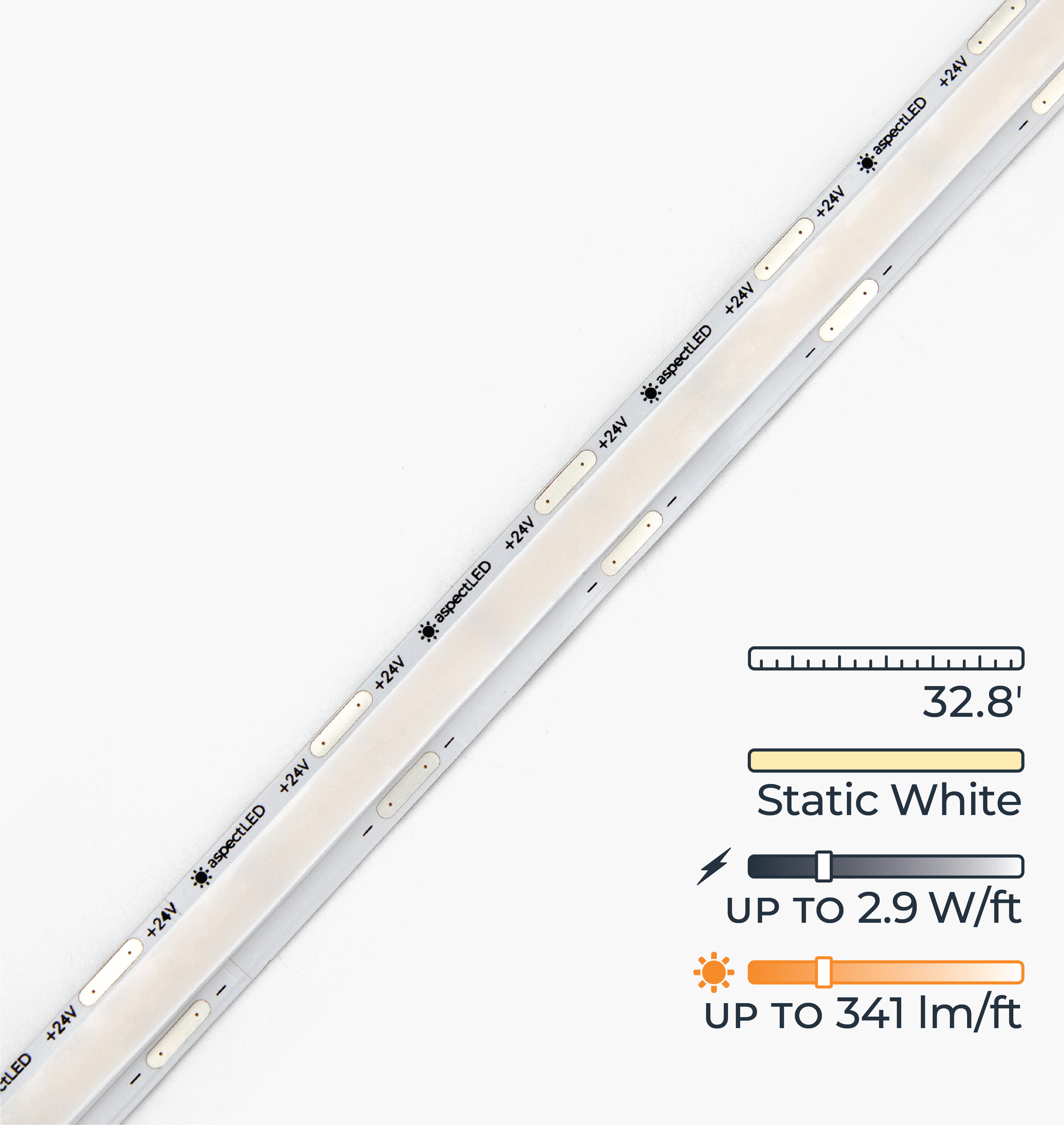

Max Power Consumption	2.9W/ft (9.6W/m)
Max Run Length	32.8' (10m)
Photometric
CRI	90

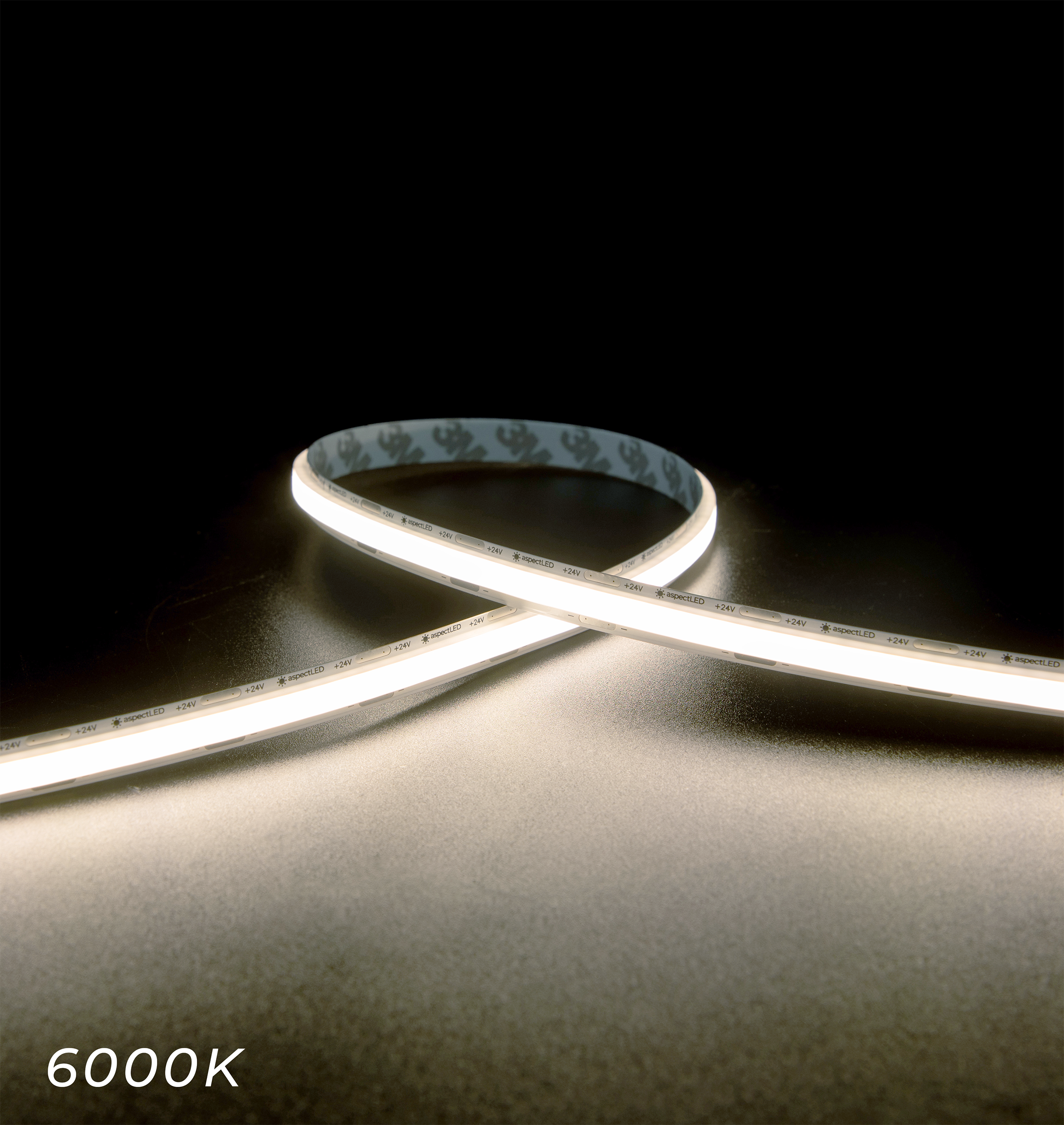

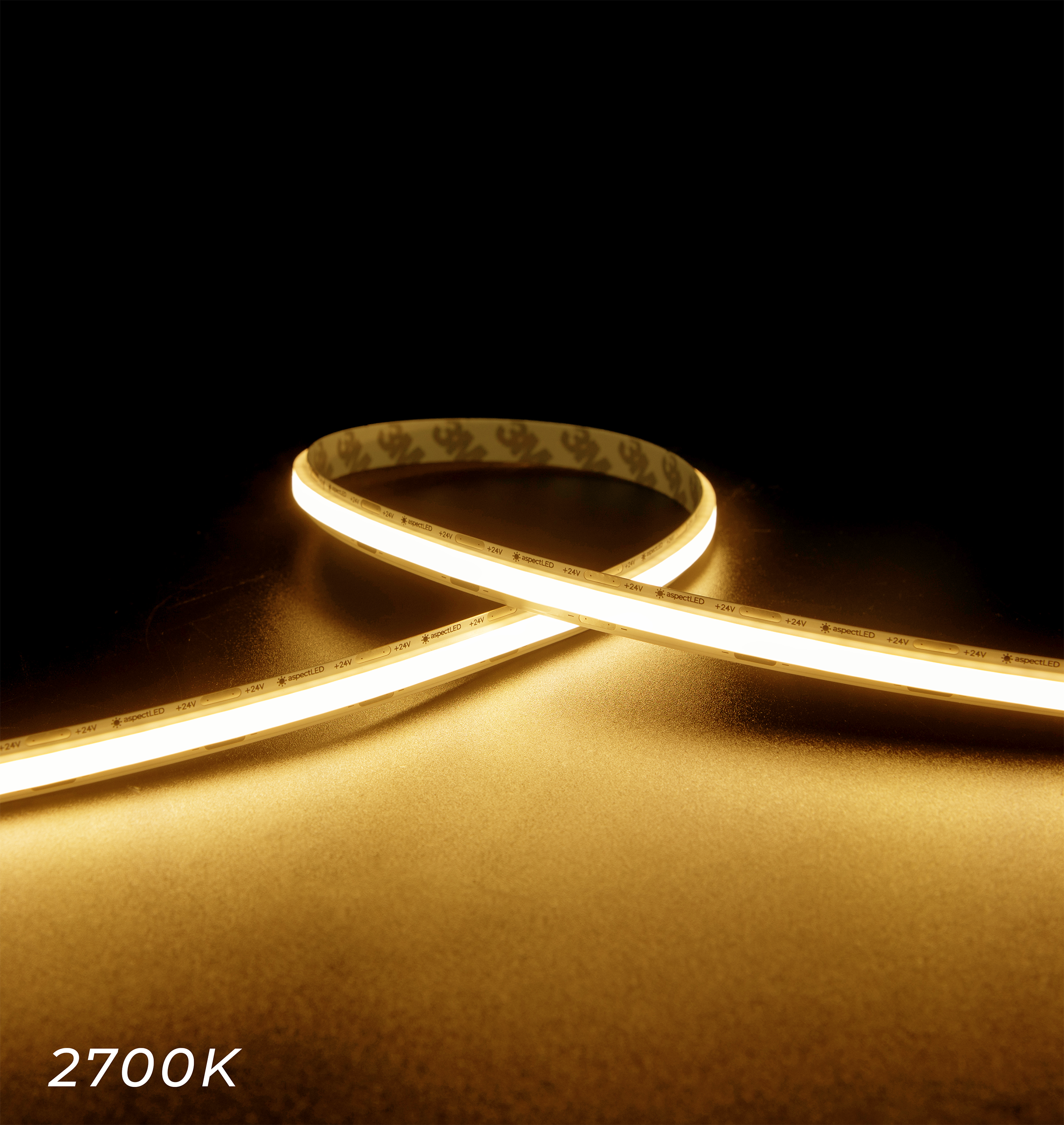

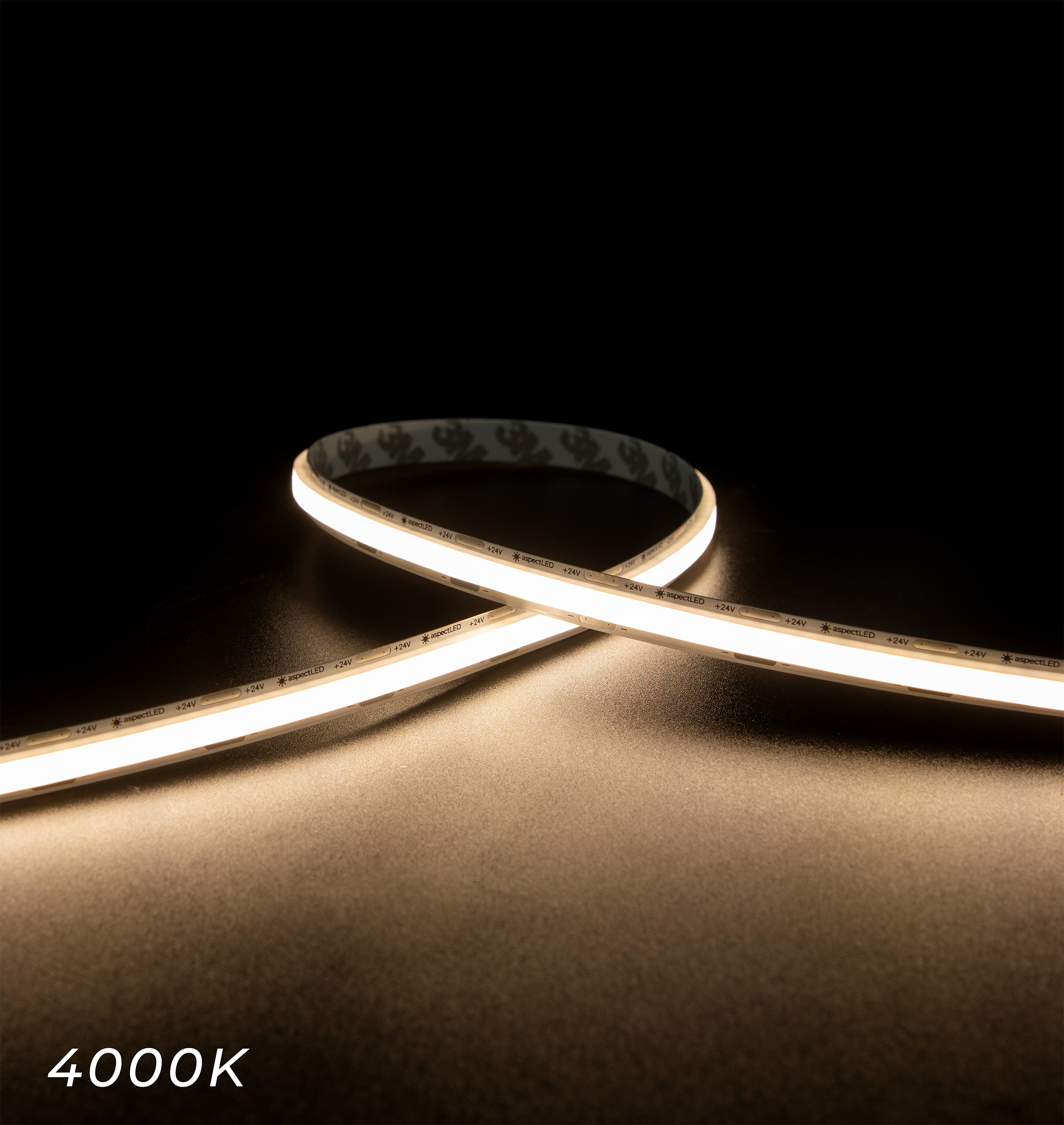

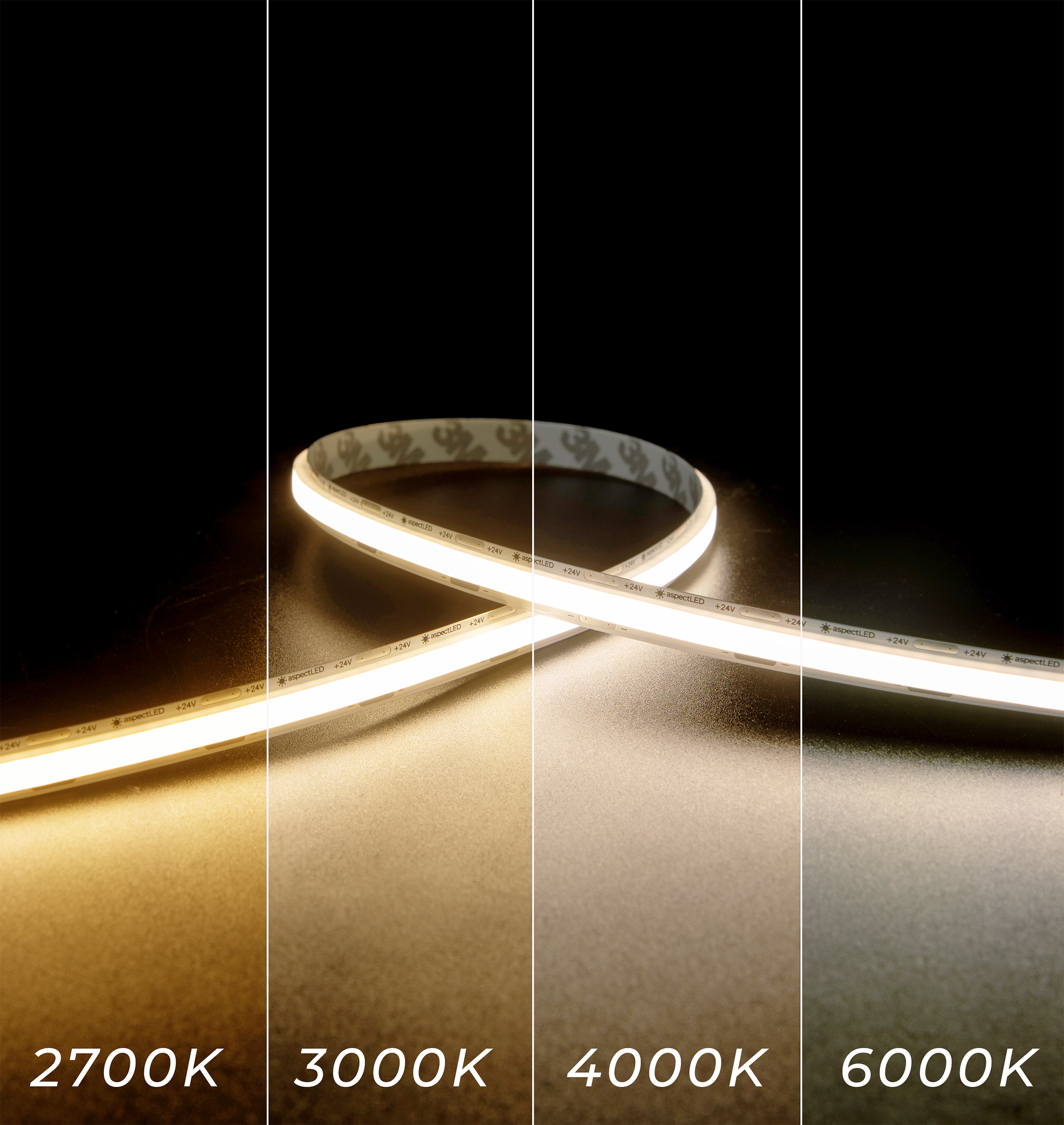

LED Color Options	2700K, 3000K, 4000K, 6000K
Max Lumens	Up to 341.46 Lumens/ft (1120 Lumens/m)
Environmental
IP Rating	IP20
Max Operating Temperature	-4 - 122° F (-20 - 50° C)
Max Storage Temperatures	-22 - 176°F (-30 - 80°C)
Suitable Uses	Dry, Indoor
Control
CV, CC, DMX or SPI	Constant Current
Dimmable	Yes
Compatibility
Compatible Connectors	AL-SL-CN-DLS-SPLICE AL-SL-CN-DLS-PIGTAIL AL-SL-CN-DLS-JUMPER AL-SL-CN-DLS-ANGLESPLICE
Standards / Certifications
Standards / Certifications	CE, UL, RoHS, LM80
Warranty	5 years

Features

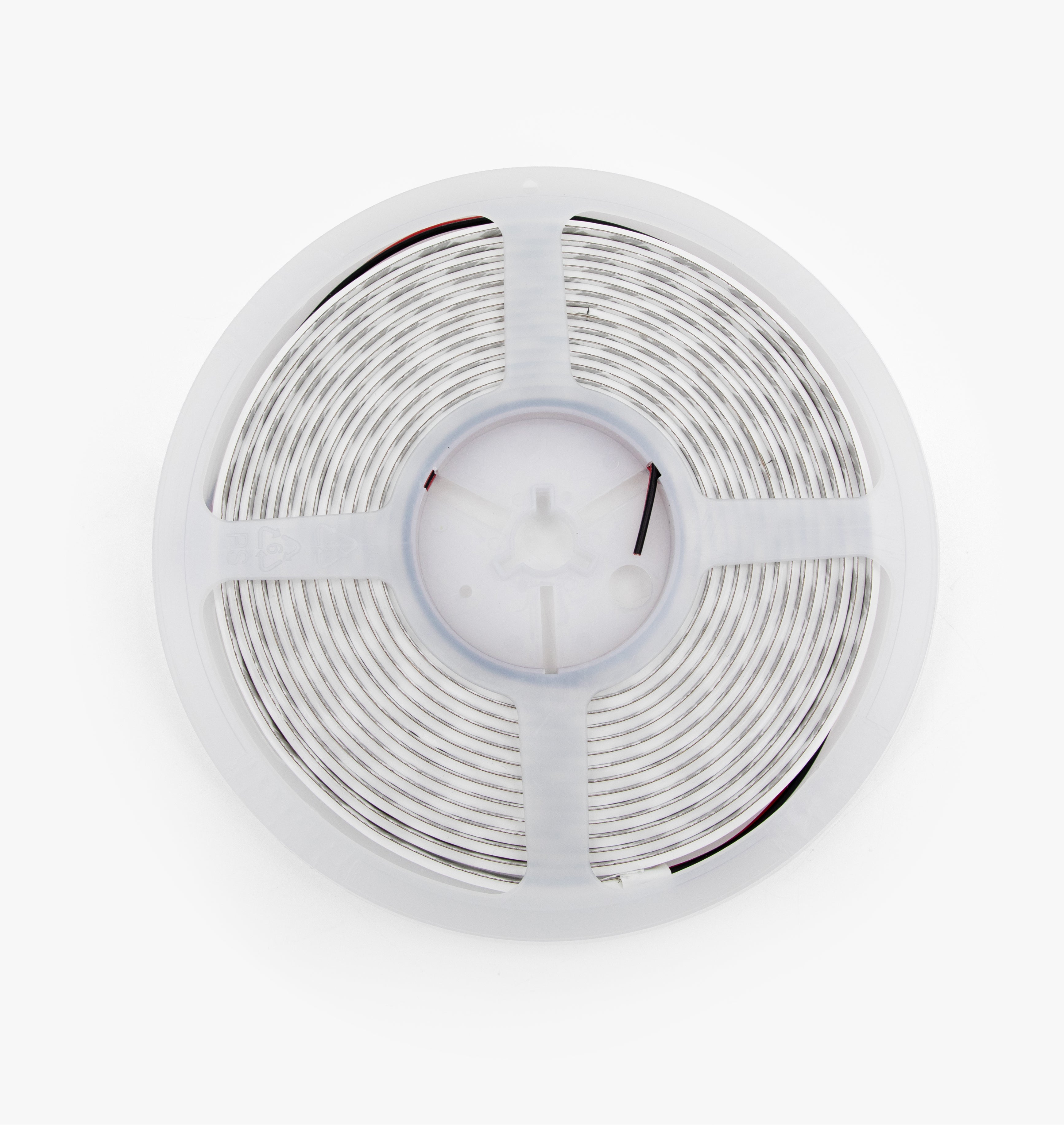

Extended Length: Install one reel of 32ft, or equivalent shorter runs wired in series, up to a total length of 32ft, making it our longest static white dotless strip light yet.
Integrated Chips: regulate the light output across the entire run of Constant Current strip lights giving an even level of light output from beginning to end.
For Indoor Environments: IP20-rated strip lights are ideal for retail, hospitality, and tradeshow applications where water and dust exposure are minimal.
Future Forward LED Engineering: Featuring innovative CSP technology, this strip light delivers improved efficiency, smoother output and enhanced reliability.
Premium CRI 90: Accurate color rendering in CRI 90, this strip light enhances natural tones and materials without any distortion.
Commercial Grade quality: Engineered for demanding jobs. UL listed with an extremely long life; up to 50,000 hours of continuous, reliable illumination.

Applications

Under-cabinet, toe-kick, in-cove moldings
Architectural lighting for canopies, corridors, archways, windows
Downlighting or uplighting for wall wash applications
Backlighting or edge lighting for signage
Safety stair tread and step marking
Decorative lighting for holidays, tradeshows, exhibitions

Technical Documents

Tech Drawing

Cut Sheet

Installation Guide

Photometric Report

FAQ

Have a question and don't see the answer below? Chat live with an LED Expert

What power supply should I use with the Summit LED Strip Lights? Only our Non-Dimmable Power Supplies are compatible. If planning to dim the lights this can be done by using a PWM dimmer.

Summit LED Strip Light - Static White - 32ft

SKU: AL-SL-DL-CC-IP20-24-27K-32

$245.89

In-Stock (126) - Ships Same or Next Business Day

Color temp: 2700K

2700K 3000K 4000K 6000K

This product requires a power supply.
Calculate your power supply
