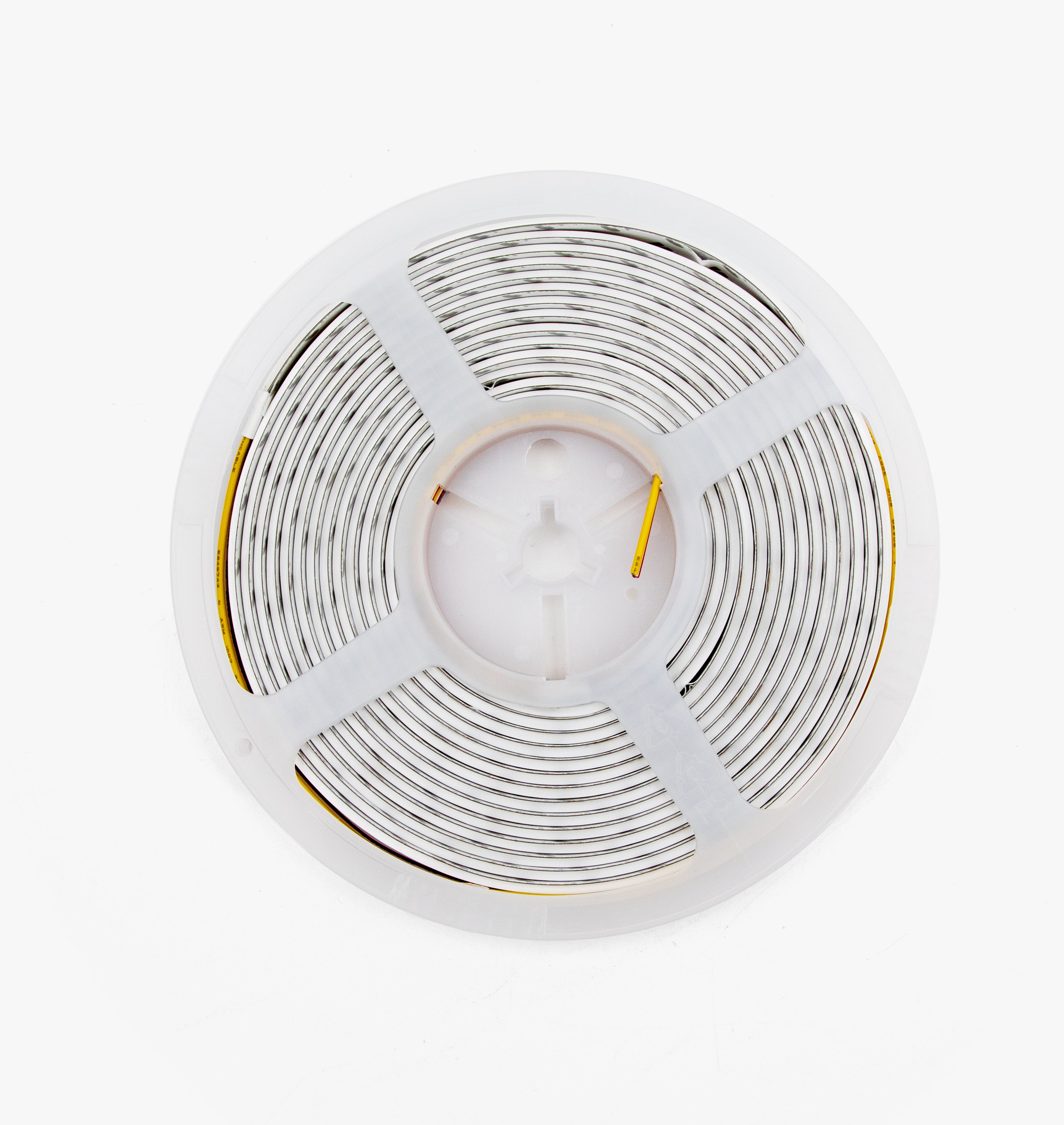

Summit LED Strip Light - CCT
Summit LED Strip Light - CCT
In-Stock (43) - Ships Same or Next Business Day
This product requires a power supply.
Calculate your power supply
Description

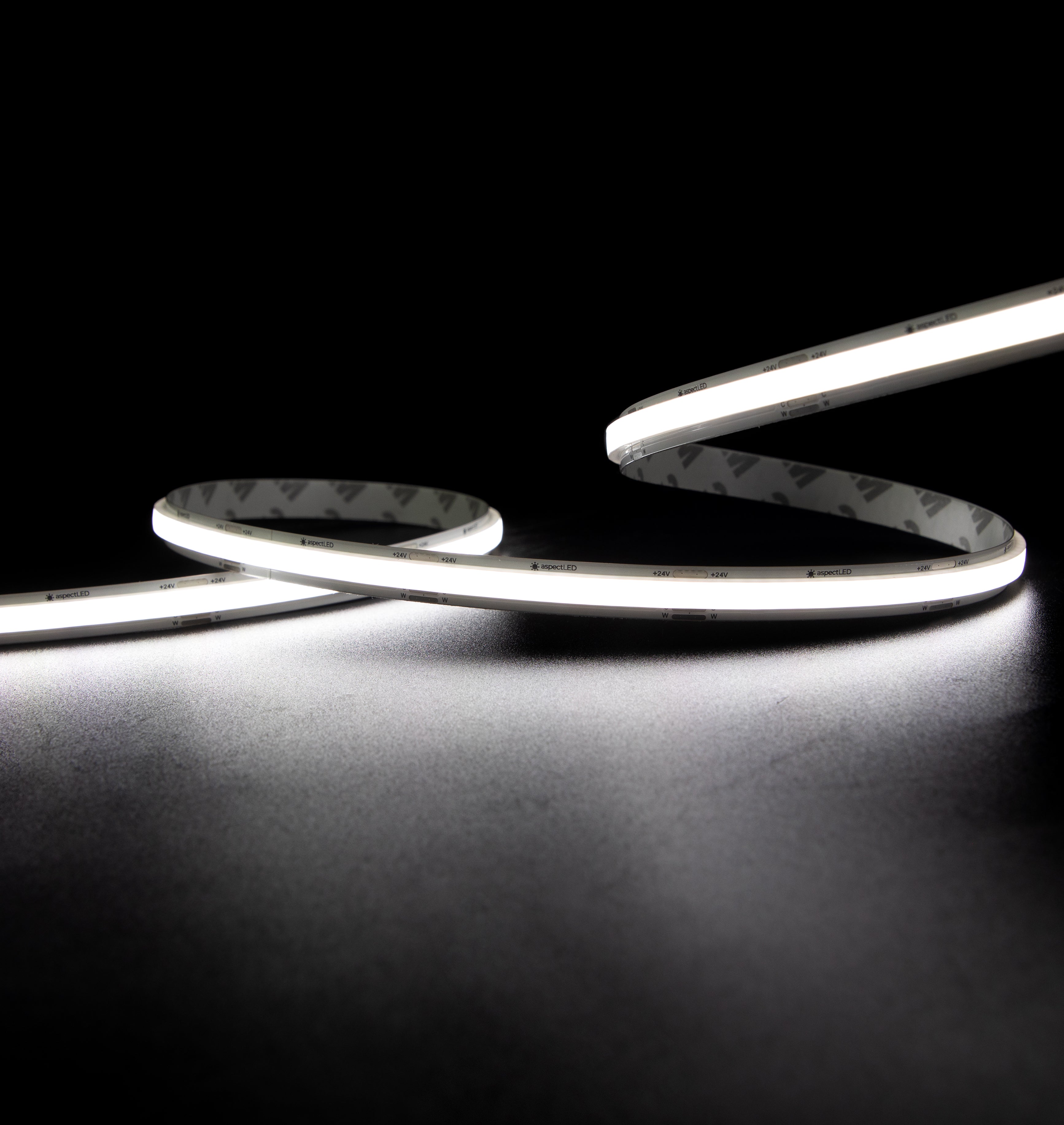

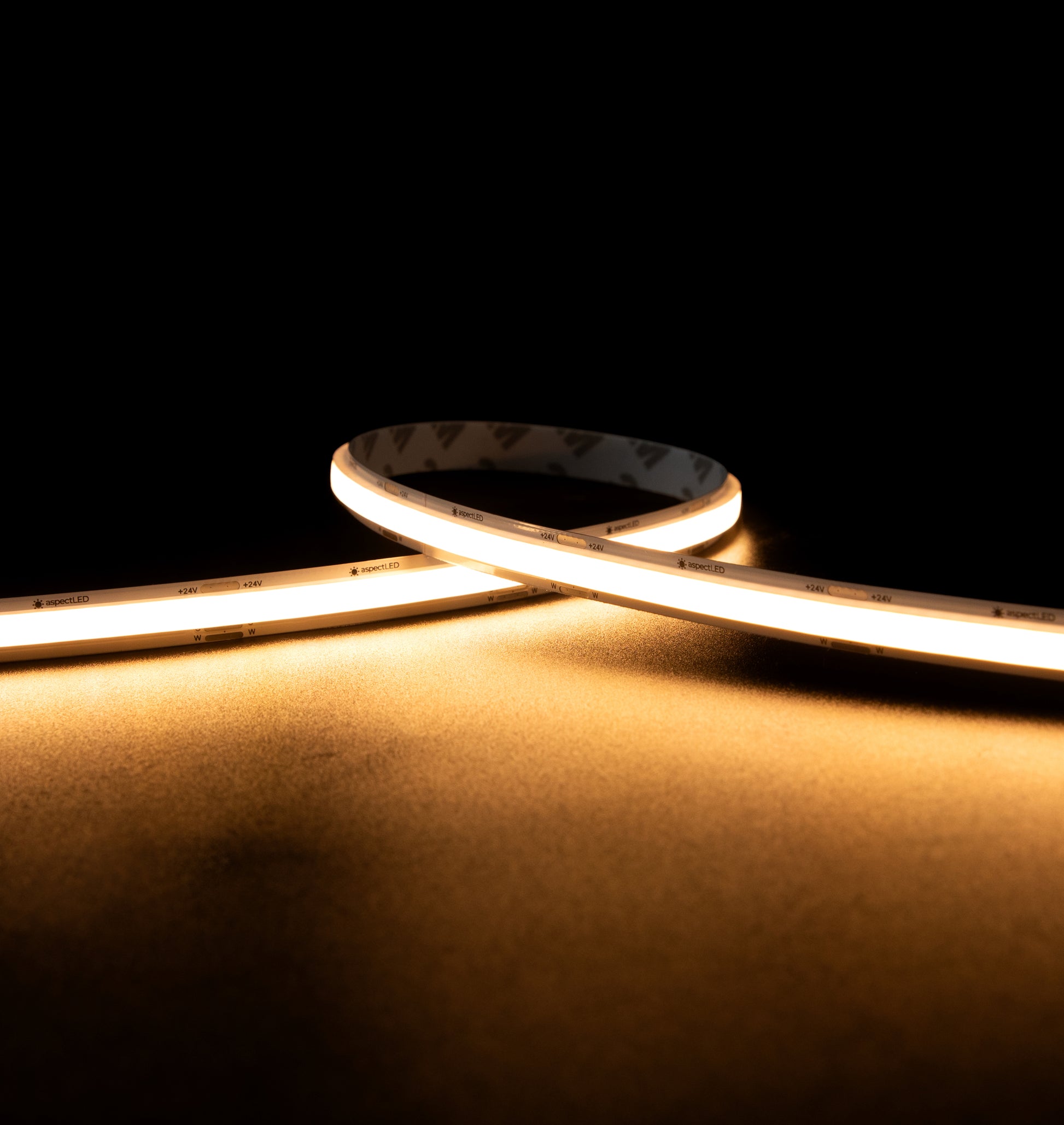

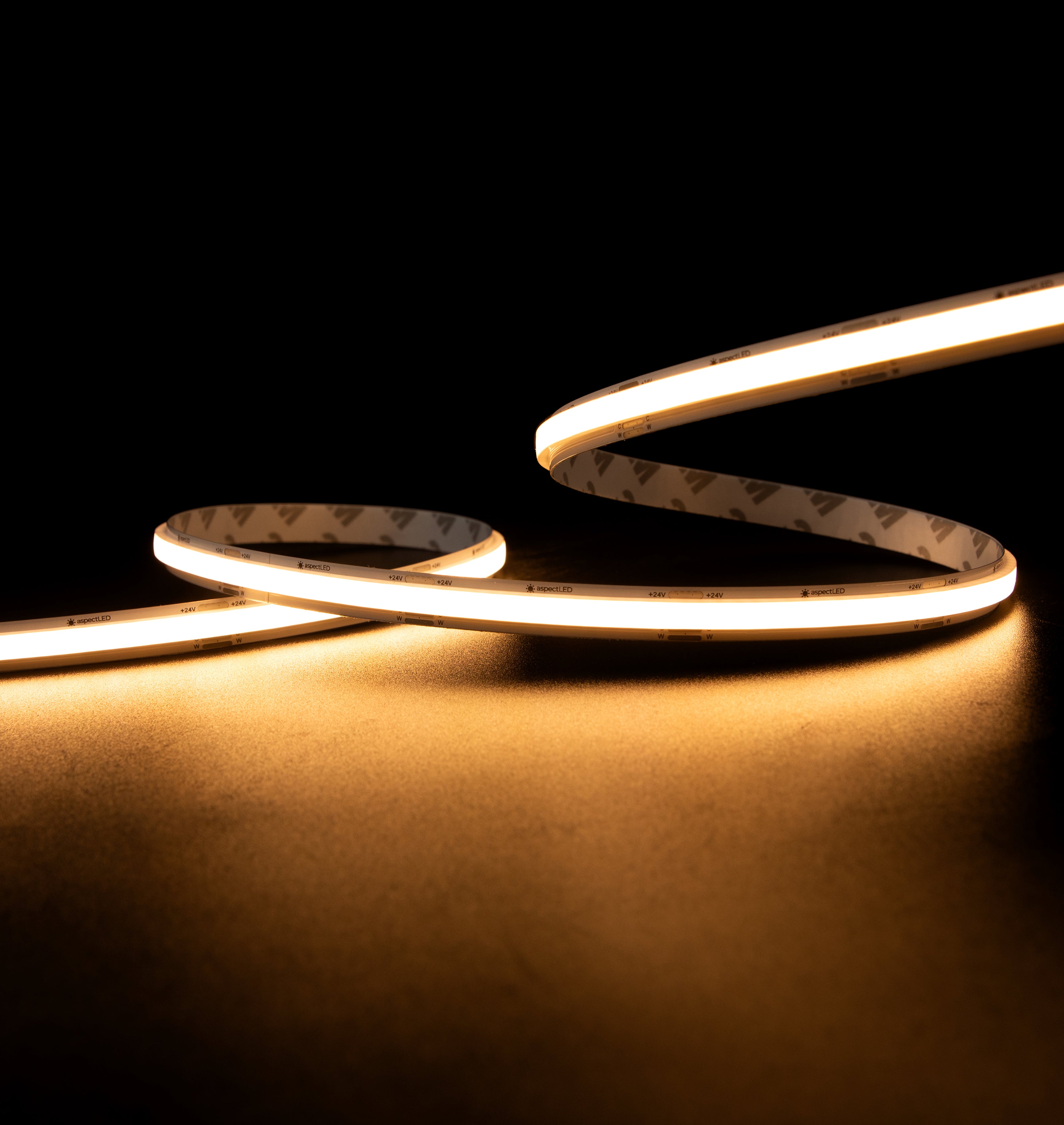

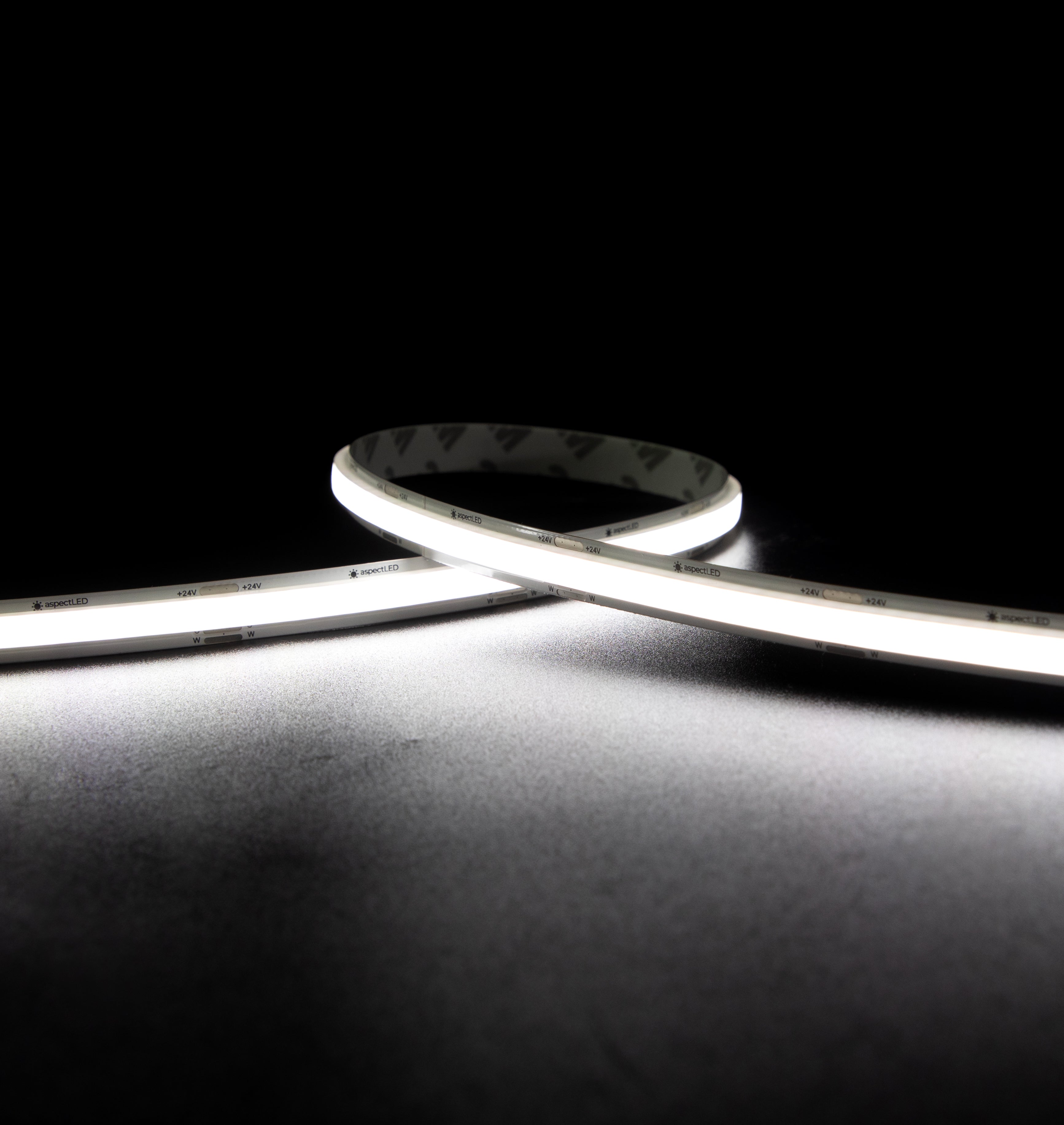

Tunable White Summit Strip Lights provide smooth, seamless accent lighting for indoor spaces, with adjustable color temperature from 2700K to 6000K and dimmable brightness to match any setting. Designed to deliver a clean, continuous line of light with no visible diodes and no need for a diffusion lens, they create a polished, professional look in visible installations. With a 90+ CRI, Summit ensures accurate, natural color rendering and vibrant illumination. The flexible construction and wide 180° beam angle allow the strip to adapt easily to a variety of layouts and contours, while a cuttable design every 1.96" (50mm) supports precise, custom installations.
Key Features
Key Features
-
CRI 90
-
Non-Waterproof
-
Tunable White
2700K-6000K -
CSP Technology
Specifications
Specifications
| Part # | AL-SL-DL-CC-IP20-24-CCT |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 180 |

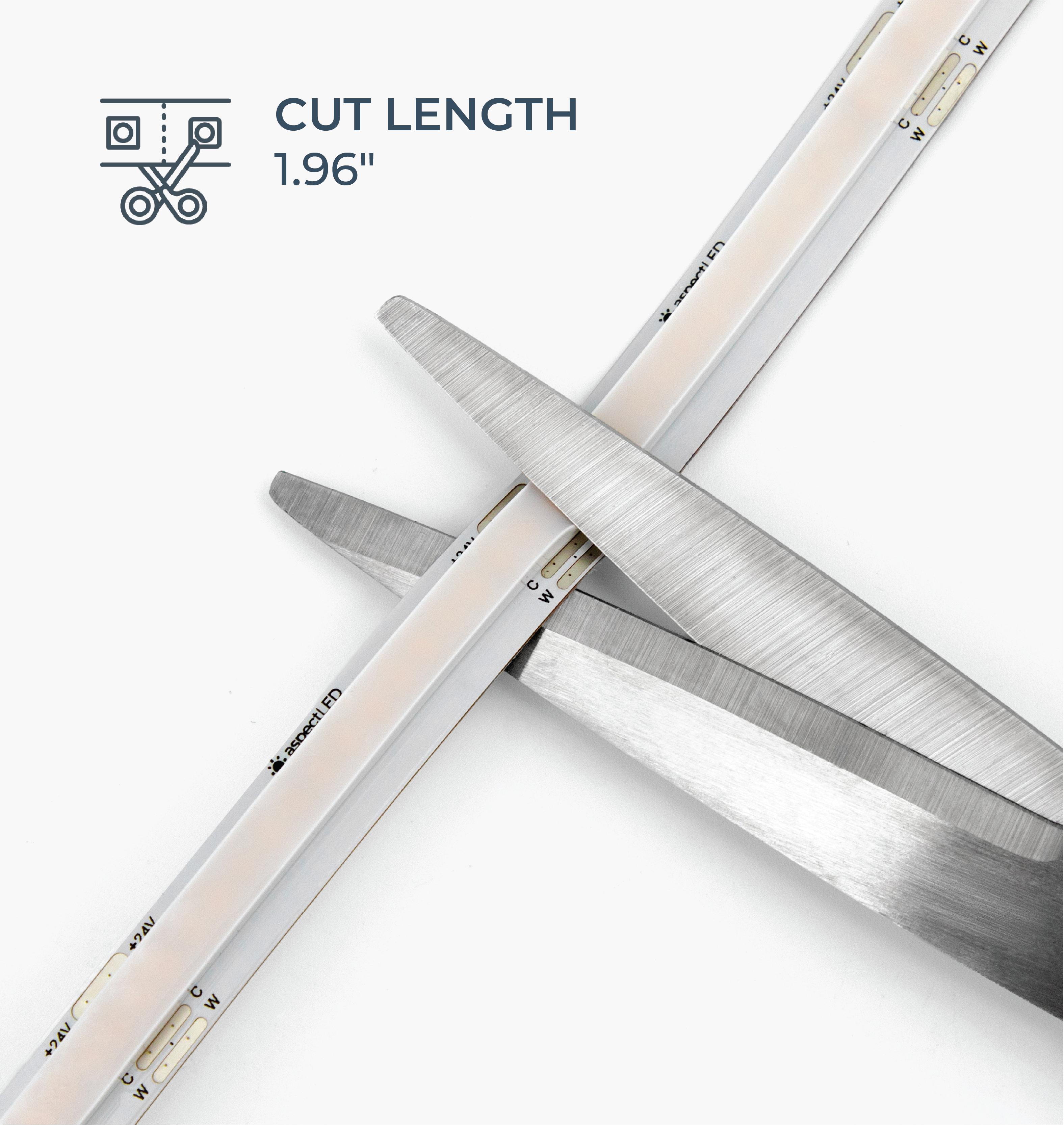

| Cut Length | 1.96" (50mm) |
| Dimensions | 16.4' (5m) 0.393" (10mm) 0.11" (2.7mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape |
| Weight | 0.8 lb |
| Electrical | |
| Efficacy (lumens per watt) | 2700K: 89 Lumens/Watt 6000K: 90 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 97 LED's/ft (320 LED's/m) |
| LED Type | 2022x |

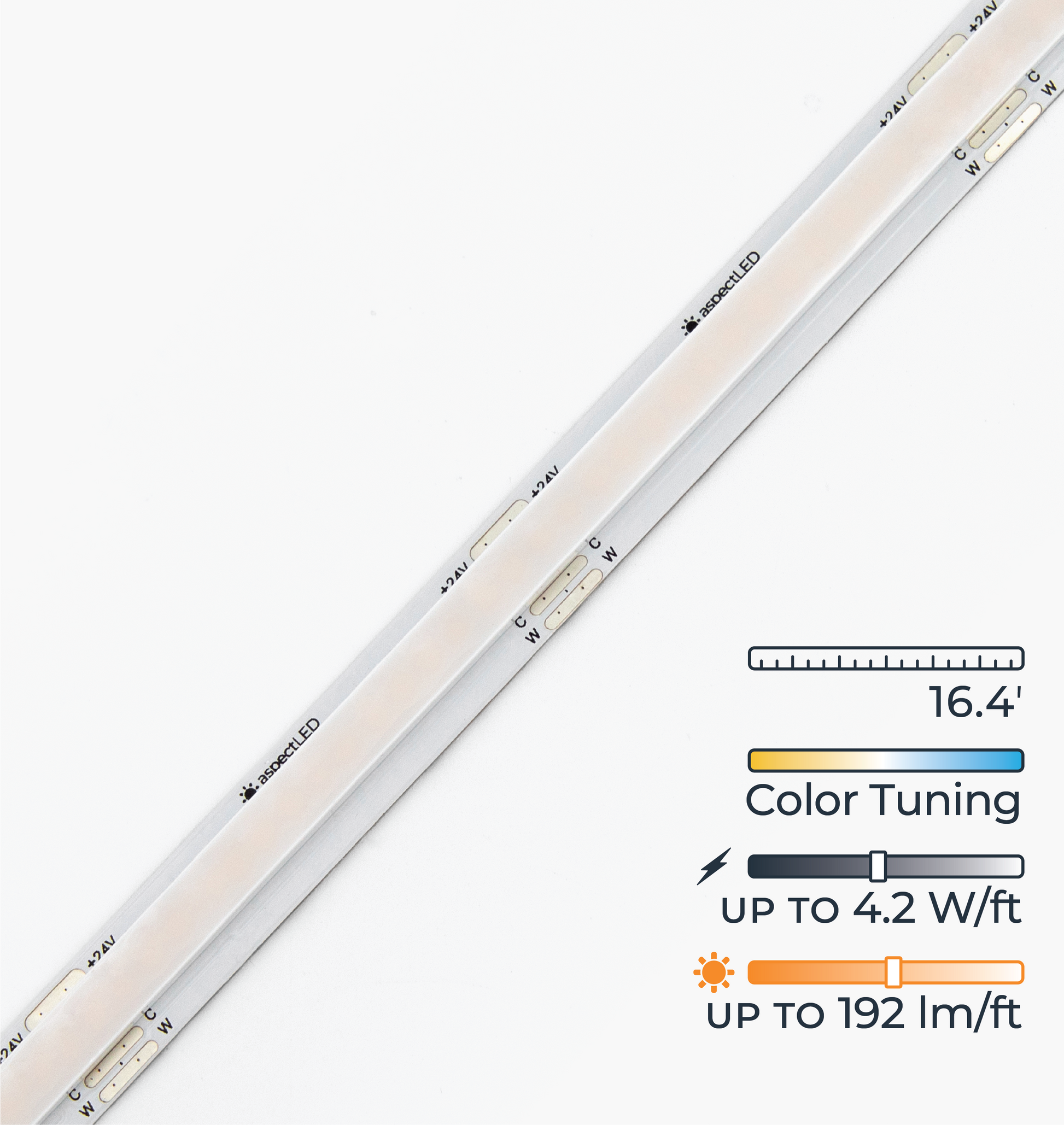

| Max Power Consumption | 4.2W/ft (14W/m) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| CRI | 90 |
| LED Color Options | CCT 2700K-6000K |
| Max Lumens | 2700: Up to 190.54 Lumens/ft (625 Lumens/m) 6000: Up to 192.07 Lumens/ft (630 Lumens/m) |
| Environmental | |
| IP Rating | IP20 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176°F (-30 - 80°C) |
| Suitable Uses | Dry, Indoor |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Dimmable | Yes, Non-Dimmable Power Supplies ONLY |
| Compatibility | |
| Compatible Connectors | AL-SL-CN-DRC-SPLICE AL-SL-CN-DCCT-PIGTAIL AL-SL-CN-DCCT-JUMPER |
| Standards / Certifications | |
| Standards / Certifications | CE, UL, RoHS, LM80 |
| Warranty | 5 years |
