Summit LED Strip Light – Tunable White, Waterproof
Summit LED Strip Light – Tunable White, Waterproof
In-Stock (96) - Ships Same or Next Business Day
This product requires a power supply.
Calculate your power supply
Description
Tunable White Summit Strip Lights provide smooth, seamless accent lighting for indoor spaces, with adjustable color temperature from 2700K to 6000K and dimmable brightness to match any setting. With an IP68 waterproof rating, this strip is fully submersible and built to withstand demanding and extreme environments. Designed to deliver a clean, continuous line of light with no visible diodes and no need for a diffusion lens, they create a polished, professional look in visible installations. With a 90+ CRI, Summit ensures accurate, natural color rendering and vibrant illumination. The flexible construction and wide 180° beam angle allow the strip to adapt easily to a variety of layouts and contours, while a cuttable design every 1.96" (50mm) supports precise, custom installations.
Key Features
Key Features
-
2700K-6000K
-
CRI 90
-
Waterproof IP68
-
CSP Technology
Specifications
Specifications
| Part # | AL-SL-DL-CC-IP68-24-CCT |
| Physical | |
| Adhesive Backing | Yes |
| Beam Angle | 180 |

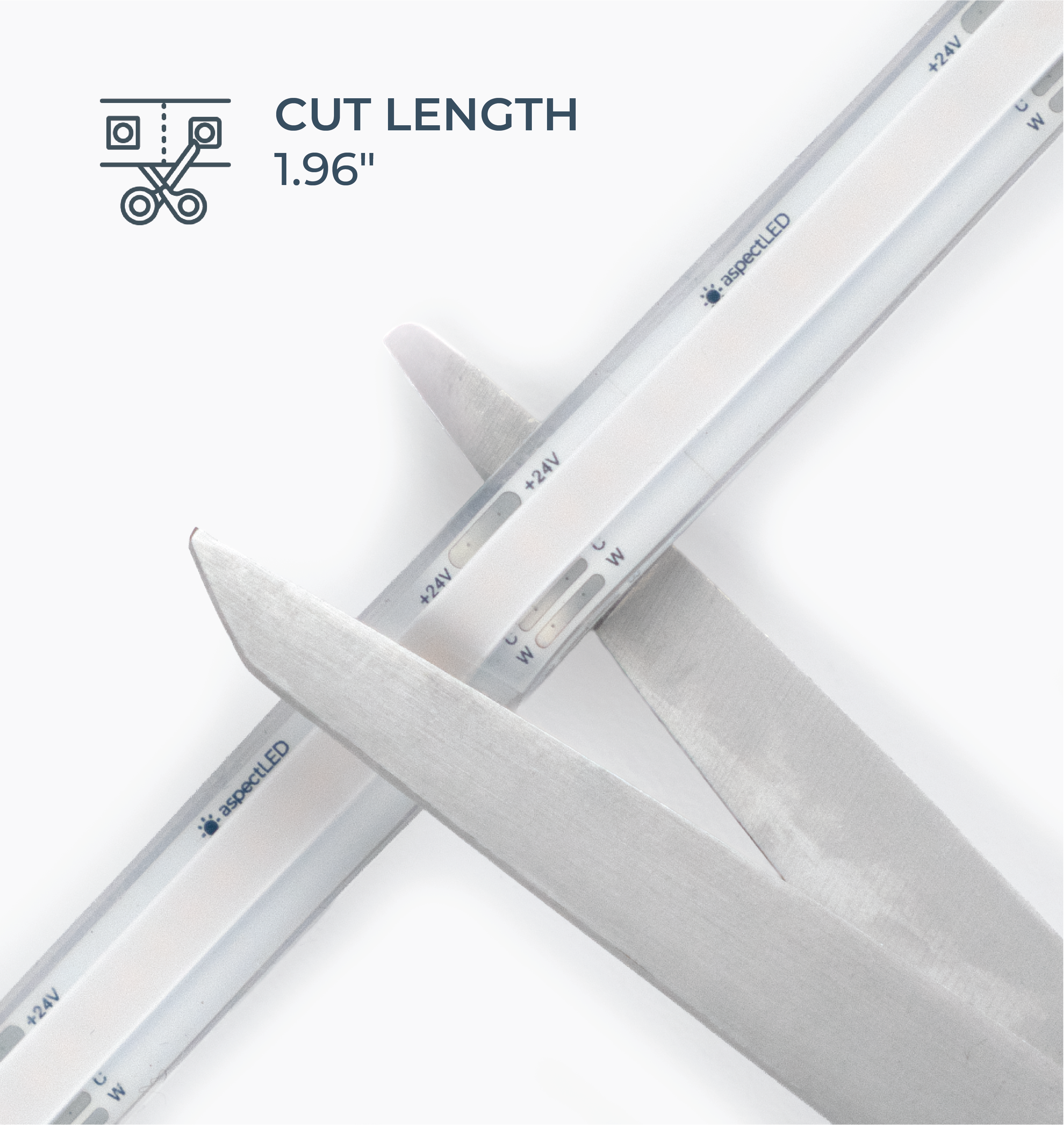

| Cut Length | 1.96" (50mm) |
| Dimensions | 16.4' (5m) 0.393" (10mm) 0.20" (5.23mm) |
| Estimated Lifespan | 50,000 Hours |
| Mounting Method | Adhesive Tape, Mounting Straps |
| Weight | 1.2 lb |
| Electrical | |
| Efficacy (lumens per watt) | 2700K: 89 Lumens/Watt 6000K: 90 Lumens/Watt |
| Input Voltage | 24VDC |
| LED Quantity | 97 LED's/ft (320 LED's/m) |
| LED Type | 2022x |
| Max Power Consumption | 4.2W/ft (14W/m) |
| Max Run Length | 16.4' (5m) |
| Photometric | |
| CRI | 90 |

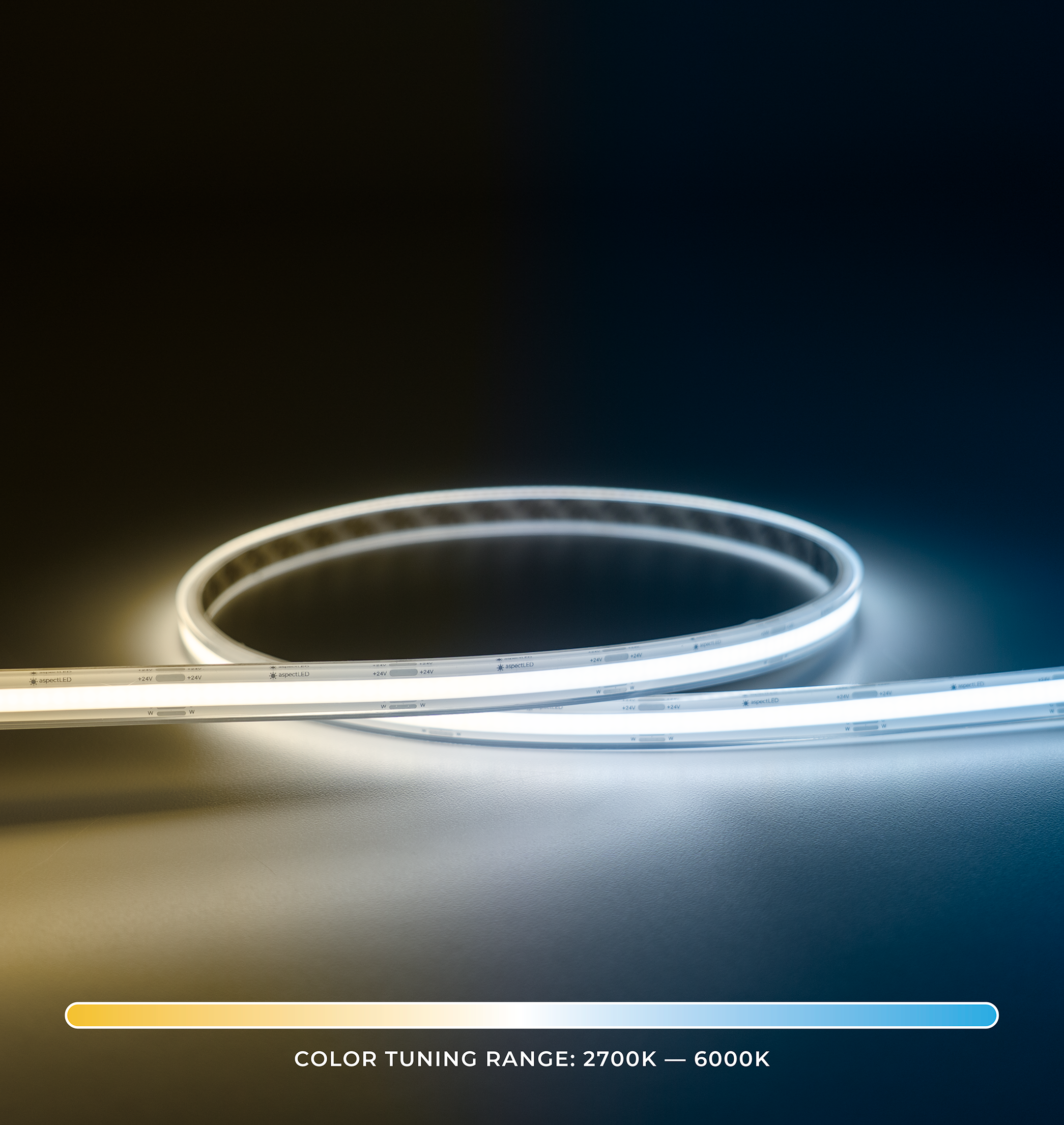

| LED Color Options | CCT 2700K-6000K |

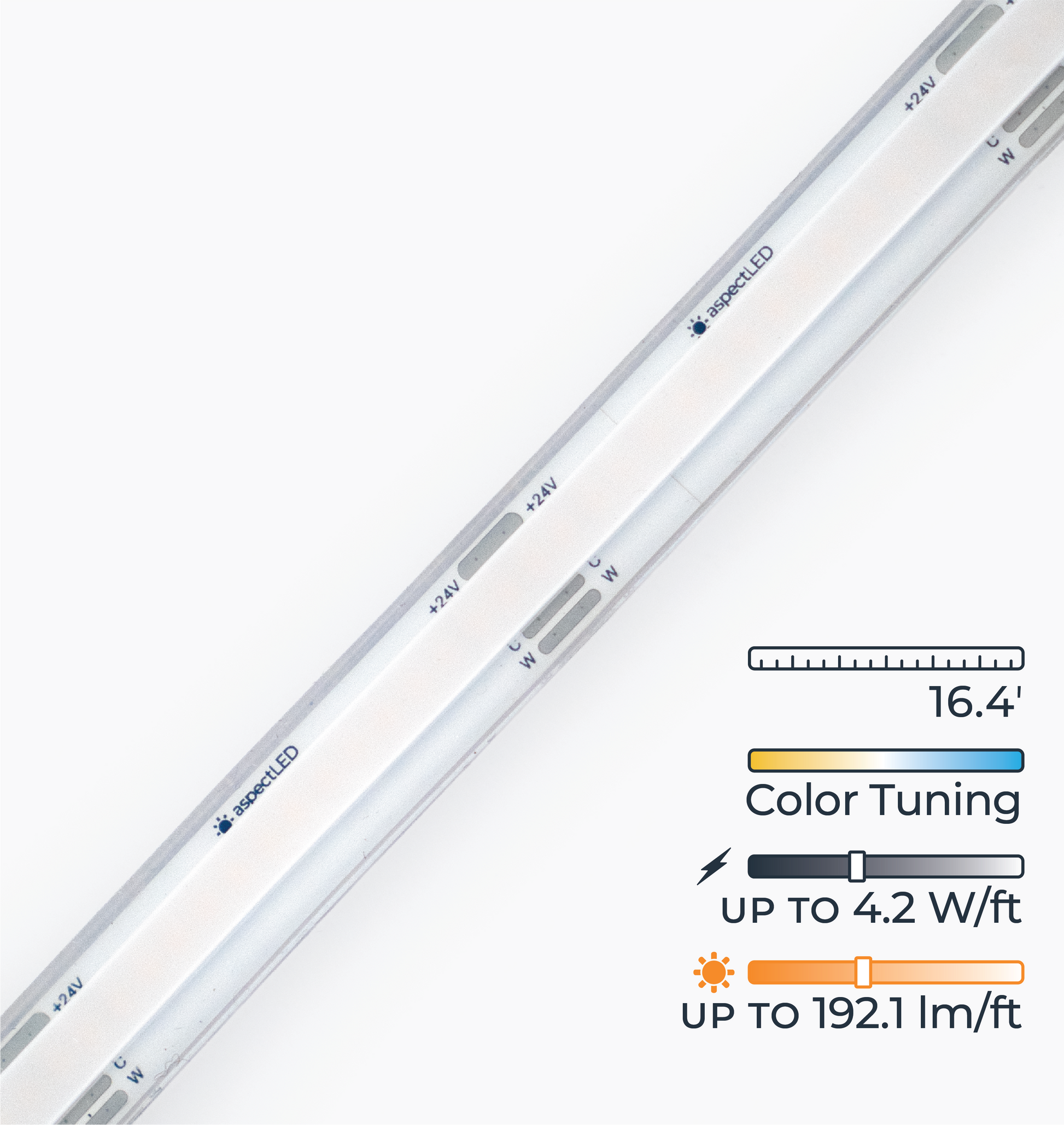

| Max Lumens | 2700: Up to 190.54 Lumens/ft (625 Lumens/m) 6000: Up to 192.07 Lumens/ft (630 Lumens/m) |
| Environmental | |
| IP Rating | IP68 |
| Max Operating Temperature | -4 - 122° F (-20 - 50° C) |
| Max Storage Temperatures | -22 - 176°F (-30 - 80°C) |
| Suitable Uses | Wet, Outdoor |
| Control | |
| CV, CC, DMX or SPI | Constant Voltage |
| Dimmable | Yes, Non-Dimmable Power Supplies ONLY |
| Compatibility | |
| Compatible Connectors | n/a |
| Standards / Certifications | |
| Standards / Certifications | CE, UL, RoHS, LM80 |
| Warranty | 5 years |
Features
Features
Applications
Applications
Technical Documents
Technical Documents
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
