W-Series & Superior Single Color Solderless T Splice Bite Connector
W-Series & Superior Single Color Solderless T Splice Bite Connector
Regular price
$1.00
Sale price
$1.00
Regular price
In-Stock (600) - Ships Same or Next Business Day
Description

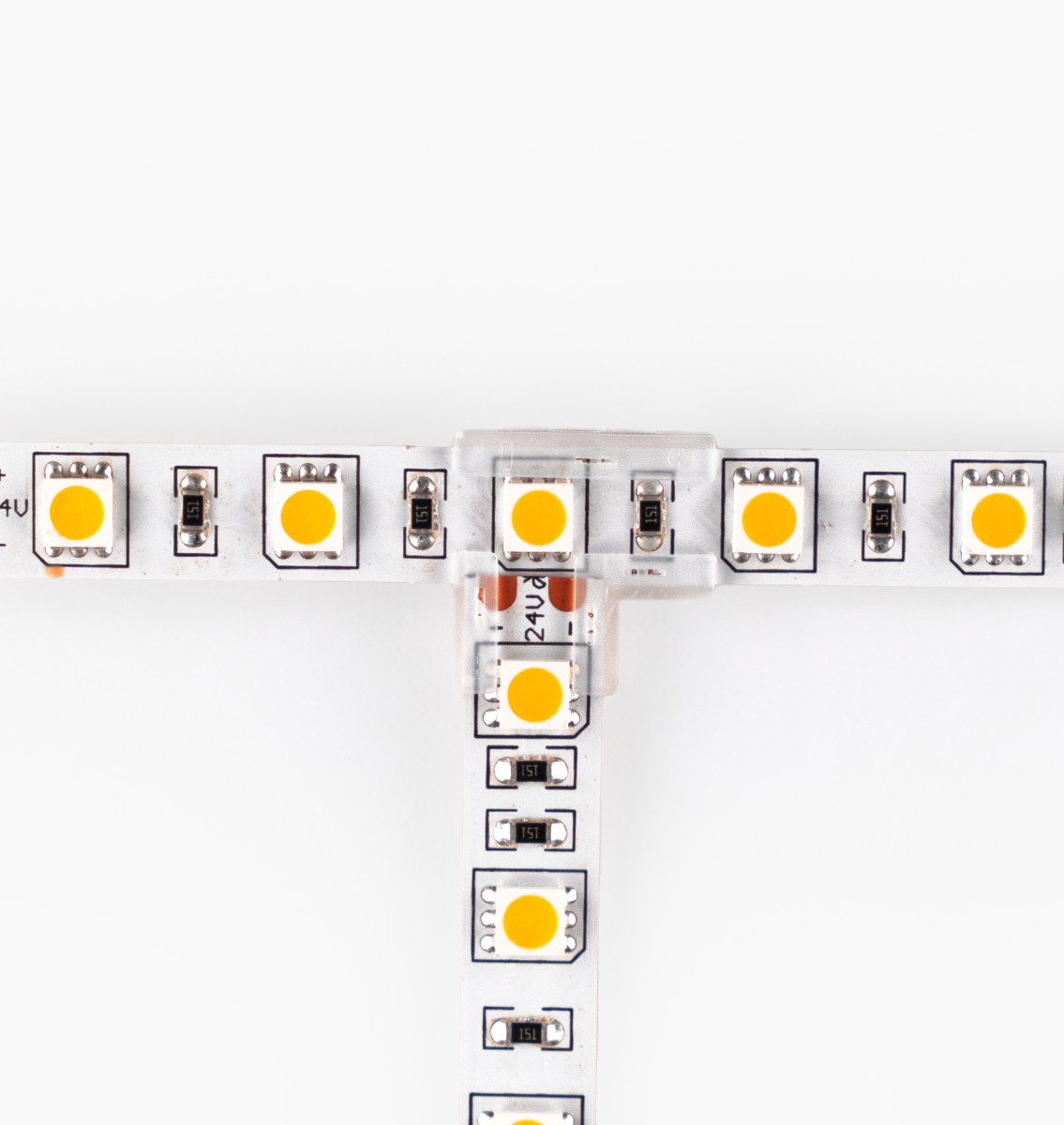

This T-splice connector allows you to join two sections of LED strip lights to create a clean, T-shaped junction without soldering. Ensure correct polarity at all connection points. Needle-nose or parallel-jaw pliers are recommended for a smooth installation. Only compatible with aspectLED LED strip lights.
Key Features
Key Features
-
Secure Connection
-
Compact Design
-
IP 20
NON WATERPROOF -
Easy To Use
Specifications
Specifications
| Part # | AL-SL-CN-W-TSPLICE |
| Physical | |
| Connector Type | T-Junction |
| Dimensions | 0.75" Long (19.05mm) 0.75" Long (19.05mm) 0.144" Deep (3.66mm) |
| Weight | 0.03 oz (0.7g) |
| Electrical | |
| Max Current | 24VDC-4A or 12VDC-5A |
| Pin/Wire Count | 2 pin |
| Environmental | |
| IP Rating | IP20 |
| Suitable Uses | Dry Locations Only |
| Compatibility | |
| Compatible Strip Lights | AL-SL-WN-S AL-SL-WN-U AL-SL-W90 |
| Standards / Certifications | |
| Warranty | 1 year |
Features
Features
FAQ
FAQ
Have a question and don't see the answer below? Chat live with an LED Expert
